Isuzu WW
▶
TRUCKS
▶
FSR
▶
11603 - FSR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#141094) — 29 parça
◀
[378A] NO.2 (15 parça)

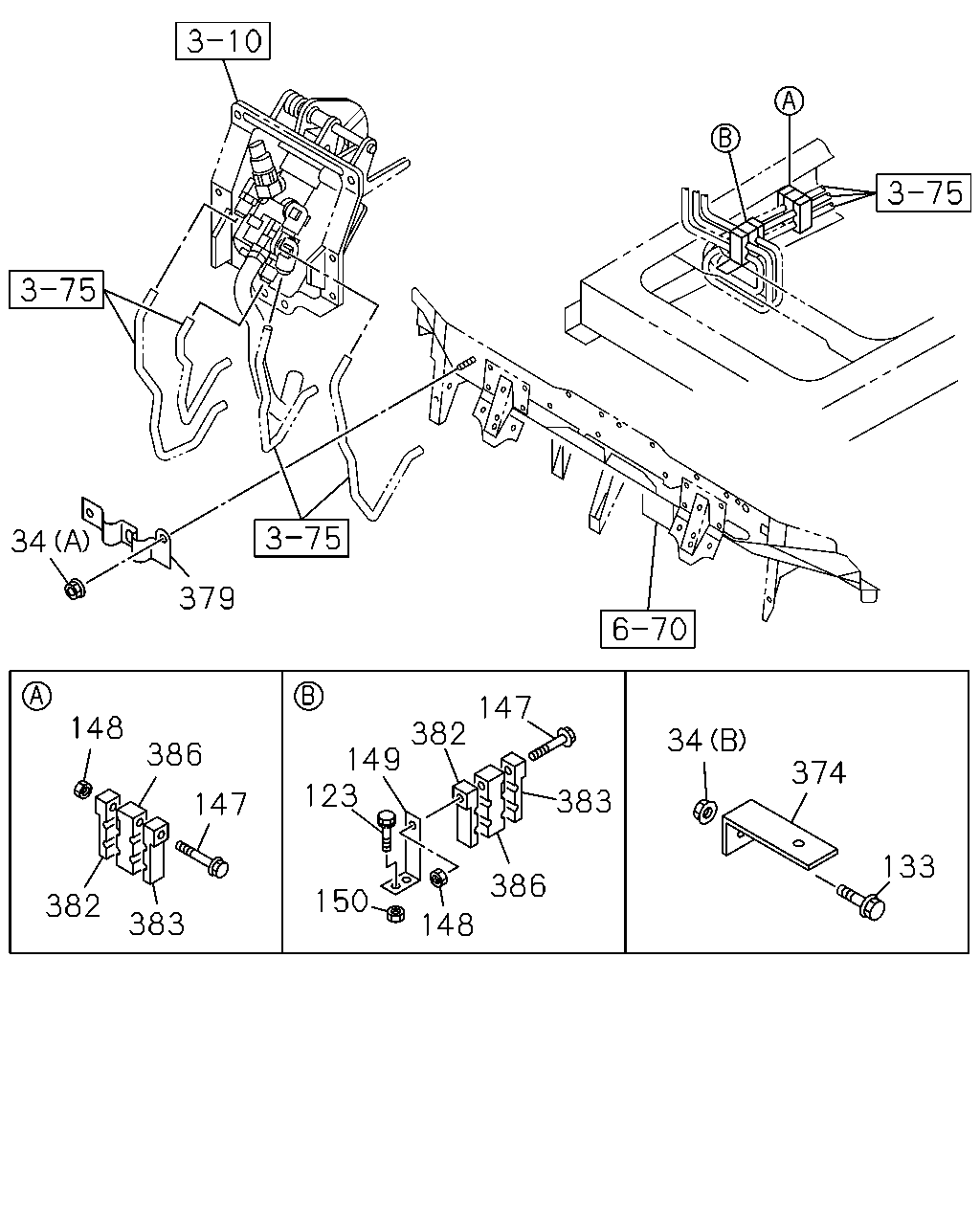

[378A] NO.1 (14 parça)
▶
341
146
4
341
134
341
78
6
5
341
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
01
1
1406-
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
04
1
1406-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1406-
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
02
1
1406-
4
CLIP; AIR PIPE
ID=12 & 12
1-09709-280-1
01
1
1406-
5
BOLT; PIPE CLIP
M8X20 FLANGE MAL
0-28650-820-0
01
1
1406-
6
NUT; PIPE CLIP
M8 FLANGE MAL
0-91180-108-0
01
1
1406-
78
CLIP; AIR PIPE
ID=13 L=20
0-95235-236-0
01
1
1406-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1406-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1406-
341
CLIP; HARNESS
(C) OD=9 H=6
1-09709-178-0
01
1
1406-
341
CLIP; HARNESS
(C) OD=9 H=6
1-09709-178-0
01
1
1406-
341
CLIP; HARNESS
(A) ID=10 & 10
1-09709-277-1
02
1
1406-
341
CLIP; HARNESS
(D) ID=5-12 L=14.5
1-09987-221-0
02
1
1406-
341
CLIP; HARNESS
(B) L=250
5-09707-030-1
05
1
1406-
379
34
374
133
34
383
386
148
150
123
147
382
149
148
386
147
383
382
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
(A) M6 FLANGE MAL
0-91180-106-0
02
1
1406-
34
NUT; BRKT
(B) M8 FLANGE MAL
0-91180-108-0
01
1
1406-
123
BOLT; PIPE CLIP
M8X25 FLANGE MAL
0-28650-825-0
02
1
1406-
133
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1406-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1406-
148
NUT; PIPE CLIP
M8 FLANGE MAL
0-91180-108-0
04
1
1406-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1406-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
1406-
374
BRACKET; PIPE CLIP
L=90 B=25
1-47475-530-0
01
1
1406-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1406-
382
CLIP; UPR
ID=10 & 10 MAL
1-09709-241-0
04
1
1406-
383
CLIP; LWR
ID=10 & 10 MAL
1-09709-241-0
04
1
1406-
386
CLIP; CENTER
ID=10 MAL
1-09709-242-0
04
1
1406-
