◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#141092) — 24 parça

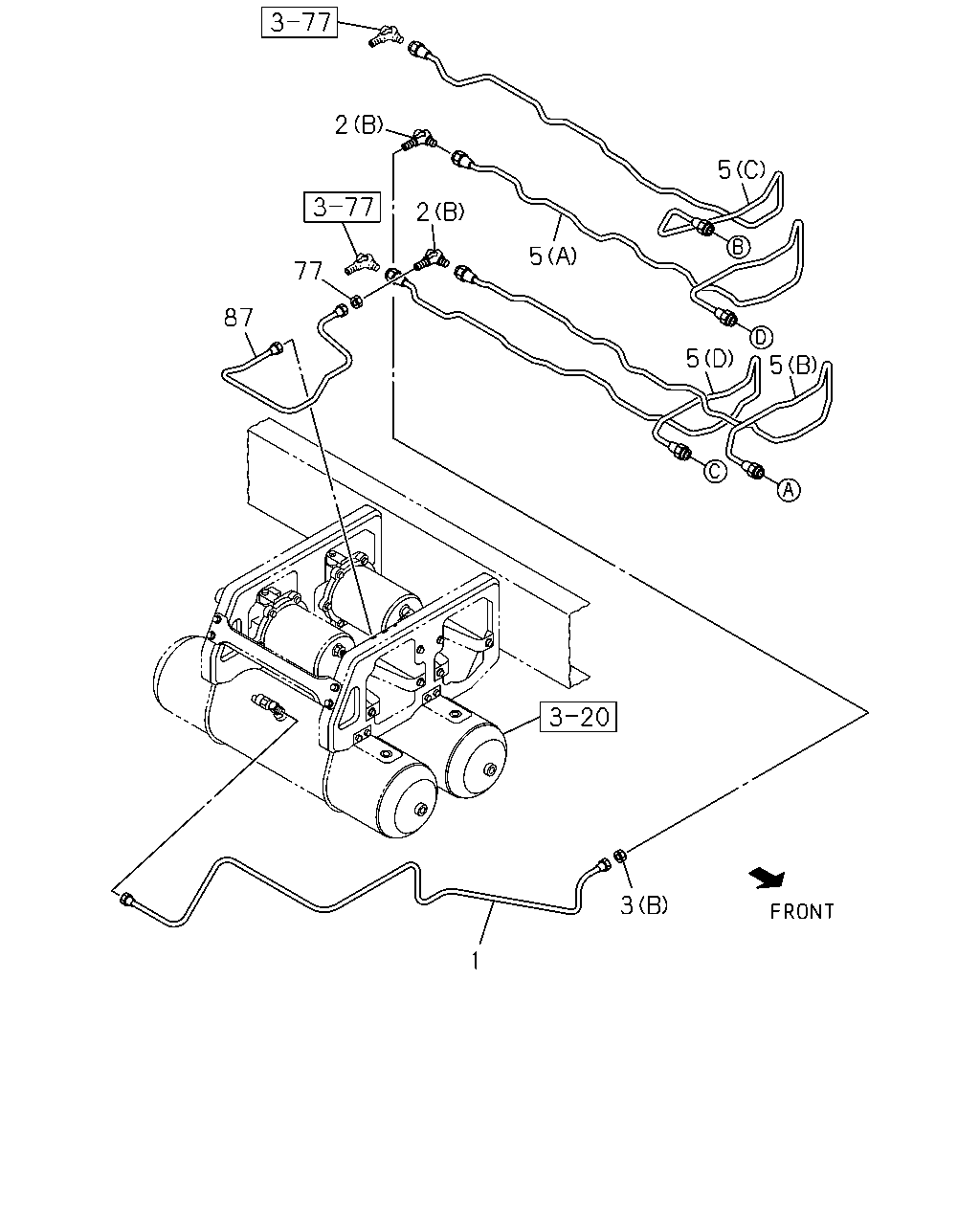

çizim 426210
2 2 5 5 5 5 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=1416 SERVICED BY L=1550 		1-47428-879-0 01 1 1406-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1406-
2 UNION; AIR PIPE
(A) MAL 		8-98057-394-1 01 1 1406-
3 NUT; PIPE UNION
(B) M16 MAL 		0-91111-516-0 01 1 1406-
3 NUT; PIPE UNION
(A) M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
(A) L=2624 SERVICED BY L=2900 		1-47428-885-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
(D) L=3028 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
(C) L=3079 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
5 PIPE; AIR,UNION TO UNION
(B) L=3058 SERVICED BY L=3300 		1-47428-886-0 01 1 1406-
77 NUT; PIPE UNION
M16 MAL 		0-91111-516-0 01 1 1406-
87 PIPE; AIR,UNION TO AIR MASTER
L=865 SERVICED BY L=900 		1-47428-873-0 01 1 1406-

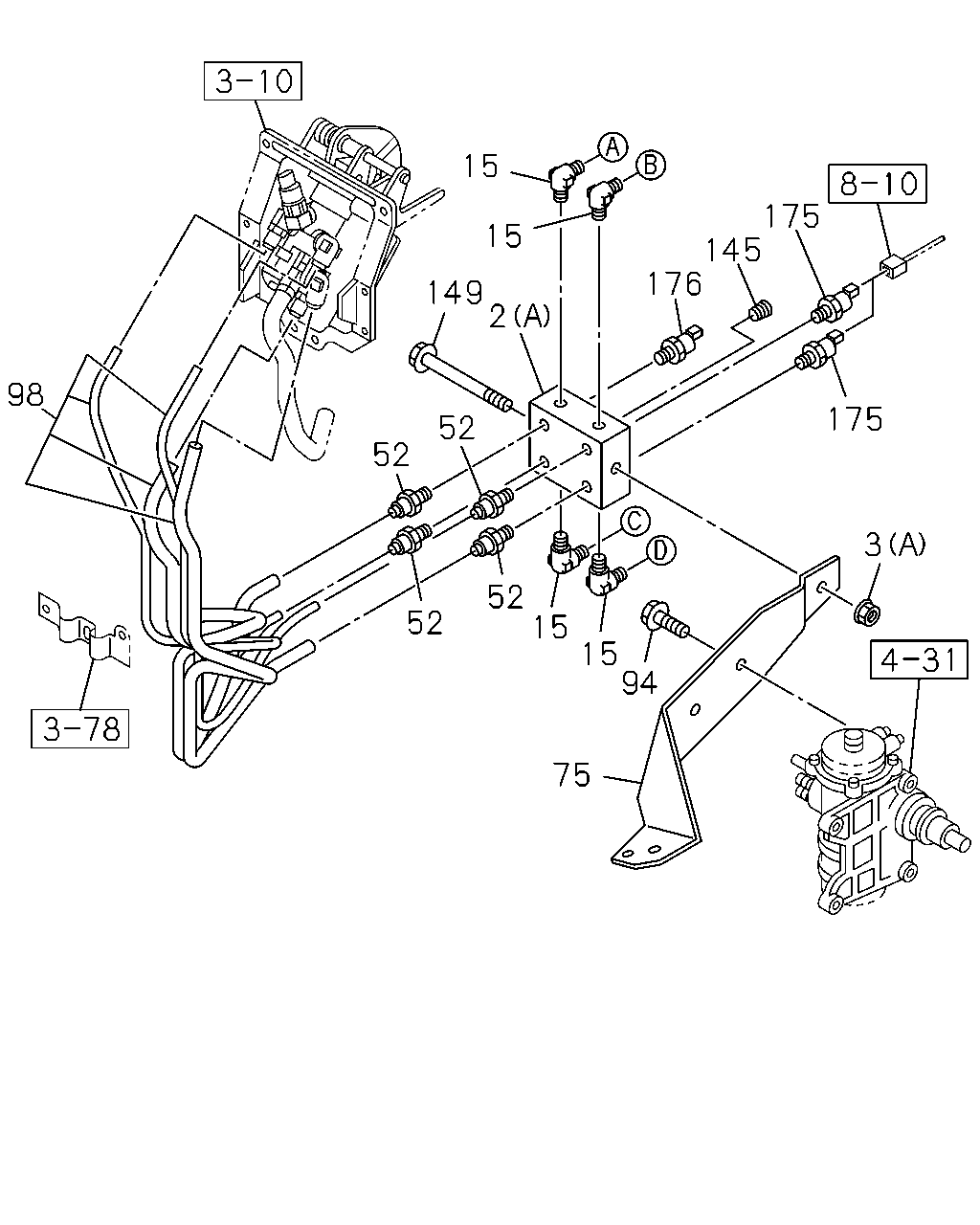

çizim 426289
98 15 15 149 2 52 52 52 52 15 15 94 75 3 175 176 145 175
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1406-
2 UNION; AIR PIPE
(A) MAL 		8-98057-394-1 01 1 1406-
3 NUT; PIPE UNION
(B) M16 MAL 		0-91111-516-0 01 1 1406-
3 NUT; PIPE UNION
(A) M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW MAL 		0-92134-310-0 04 1 1406-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1406-
75 BRACKET; UNION 8-98066-785-0 01 1 1406-
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1406-
98 TUBE; NYLON 8-98079-179-0 01 1 1406-
145 PLUG
PT1/4 MAL 		9-99204-513-0 01 1 1406-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1406-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1406-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1406-
