◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11603 - FSR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#141091) — 50 parça

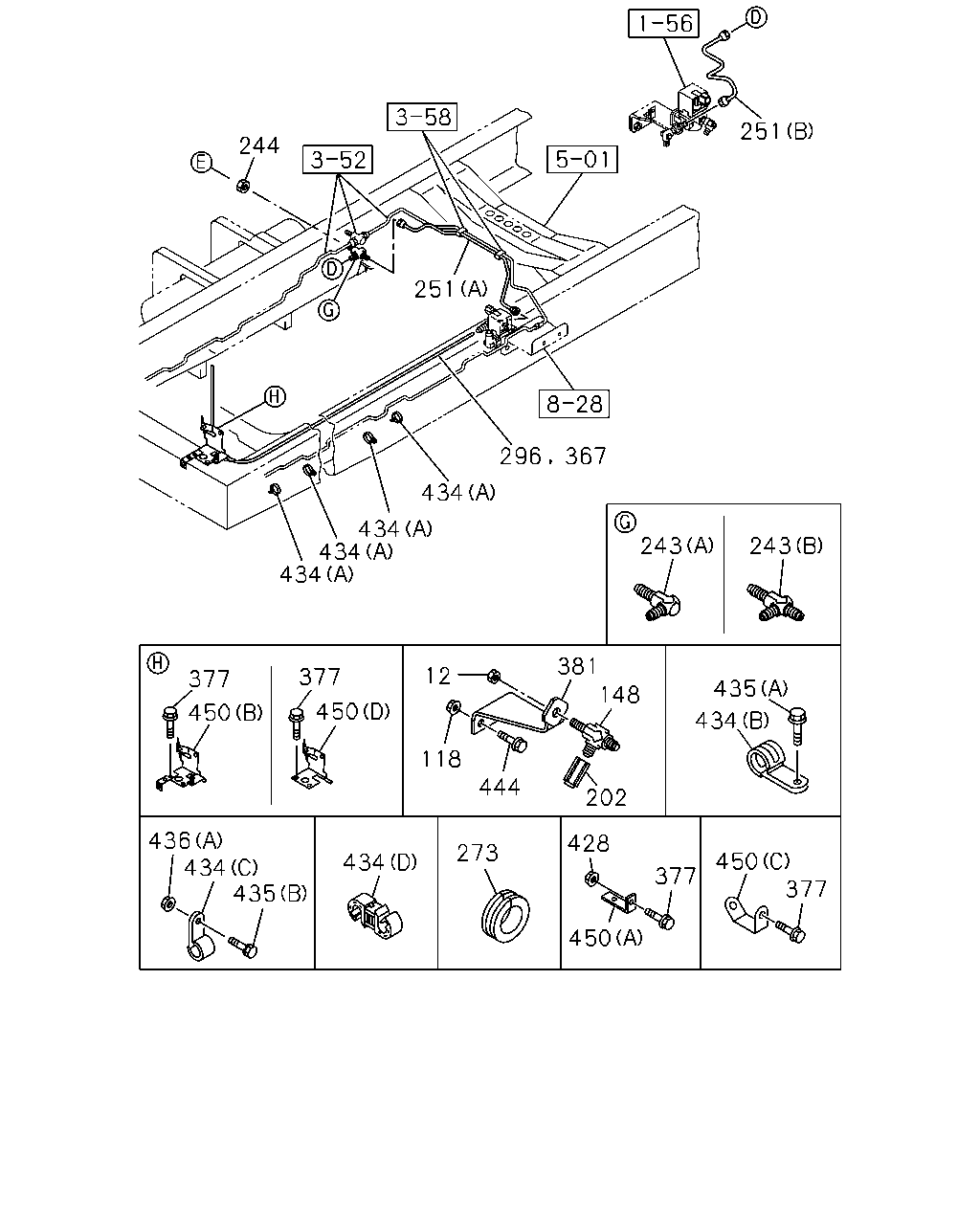

çizim 426292
377 450 450 377 428 273 434 435 434 436 434 435 202 444 118 12 381 148 450 377 377 450 243 243 434 434 434 434 296 367 251 251 244
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1406-
118 NUT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> M10 FLANGE MAL 		0-91180-210-0 02 1 1406-
148 CONNECTOR; UNION
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> M12 2WAY MAL 		1-09654-059-2 01 1 1406-
202 ADAPTER
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1406-
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1406-
243 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1406-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 ELBOW 		0-92125-206-0 01 1 1406-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1406-
251 PIPE; AIR,UNION TO MAG VLV
(B) L=308 		8-98208-549-0 01 1 1406-
251 PIPE; AIR,UNION TO MAG VLV
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> PTO CONTROL<SV6> (A) L=884 SERVICED BY L=900 		1-47428-813-0 01 1 1406-
251 PIPE; AIR,UNION TO MAG VLV
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> (A) L=884 SERVICED BY L=900 		1-47428-813-0 01 1 1406-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1406-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1406-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1406-
377 BOLT; BRKT FIX
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1406-
377 BOLT; BRKT FIX
AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE MAL 		0-28650-825-0 03 1 1406-
377 BOLT; BRKT FIX
AIR SUSP DRIVER SEAT<A56> M10X30 FLANGE 		0-28651-030-0 02 1 1406-
381 BRACKET
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> MAL 		8-98119-700-0 01 1 1406-
428 NUT; BRKT
AIR SUSP DRIVER SEAT<A56> M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
434 CLIP
(B) ID=16 L=20 		0-95235-536-0 02 1 1406-
434 CLIP
(D) ID=10 & 12 		1-09709-278-1 01 1 1406-
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1406-
434 CLIP
AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20 		0-95234-635-0 01 1 1406-
434 CLIP
AIR SUSP DRIVER SEAT<A56> (A) L=350 		1-09707-183-0 09 1 1406-
435 BOLT; CLIP
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1406-
435 BOLT; CLIP
AIR SUSP DRIVER SEAT<A56> (B) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1406-
436 NUT; CLIP
(B) M22 		0-91111-522-0 01 1 1406-
436 NUT; CLIP
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1406-
436 NUT; CLIP
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. PTO CONTROL<SV6> M10X30 FLANGE 		0-28651-030-0 02 1 1406-
450 BRACKET; CLIP
(D) L=90 B=25 		1-47475-530-0 01 1 1406-
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> (A) L=50 B=25 		1-47477-694-0 01 1 1406-
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98070-479-0 01 1 1406-1412
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> (B) 		8-98254-305-0 01 1 1501-
450 BRACKET; CLIP
AIR SUSP DRIVER SEAT<A56> (C) 		8-98117-686-0 02 1 1406-

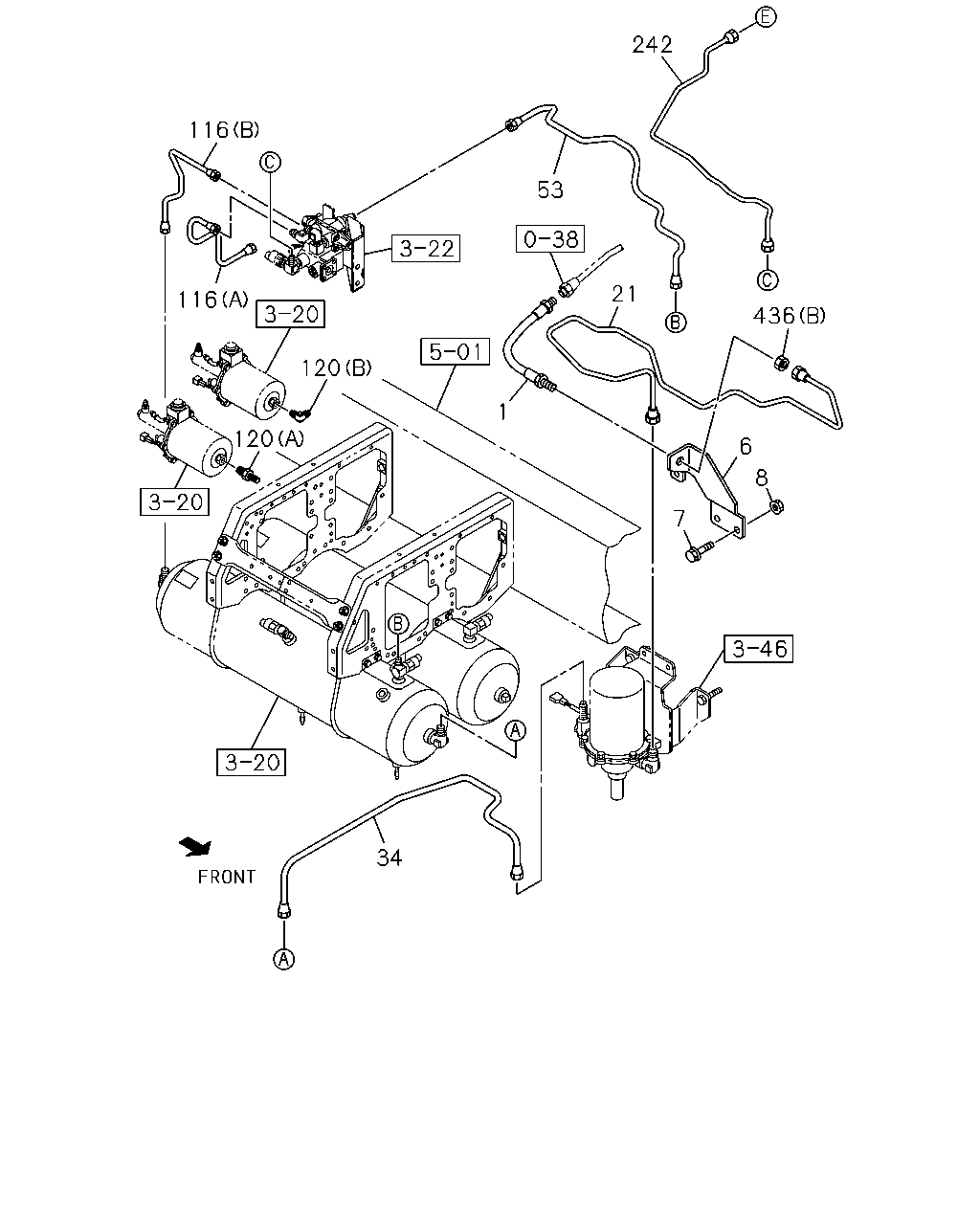

çizim 426416
242 53 116 116 120 21 1 436 6 7 8 34 120
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1406-
6 BRACKET; FLEX HOSE,AIR TANK 8-98227-136-0 01 1 1406-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1406-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE MAL 		0-91180-108-0 02 1 1406-
21 PIPE; AIR,UNION TO AIR DRYER
L=1848 		8-98213-157-0 01 1 1406-
34 PIPE; AIR
L=1041 SERVICED BY L=1100 		1-49115-486-0 01 1 1406-
53 PIPE; AIR,AIR TANK TO VALVE 8-98246-623-0 01 1 1406-
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98120-149-0 01 1 1406-
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98246-628-0 01 1 1406-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT MAL 		1-09650-179-1 01 1 1406-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW MAL 		1-09650-438-0 01 1 1406-
242 PIPE; AIR,AIR TANK TO UNION
L=1361 SERVICED BY L=1370 		1-47428-818-0 01 1 1406-
436 NUT; CLIP
(B) M22 		0-91111-522-0 01 1 1406-
436 NUT; CLIP
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1406-
436 NUT; CLIP
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
