0-57 — EMISSION PIPING (#14109) — 136 parça

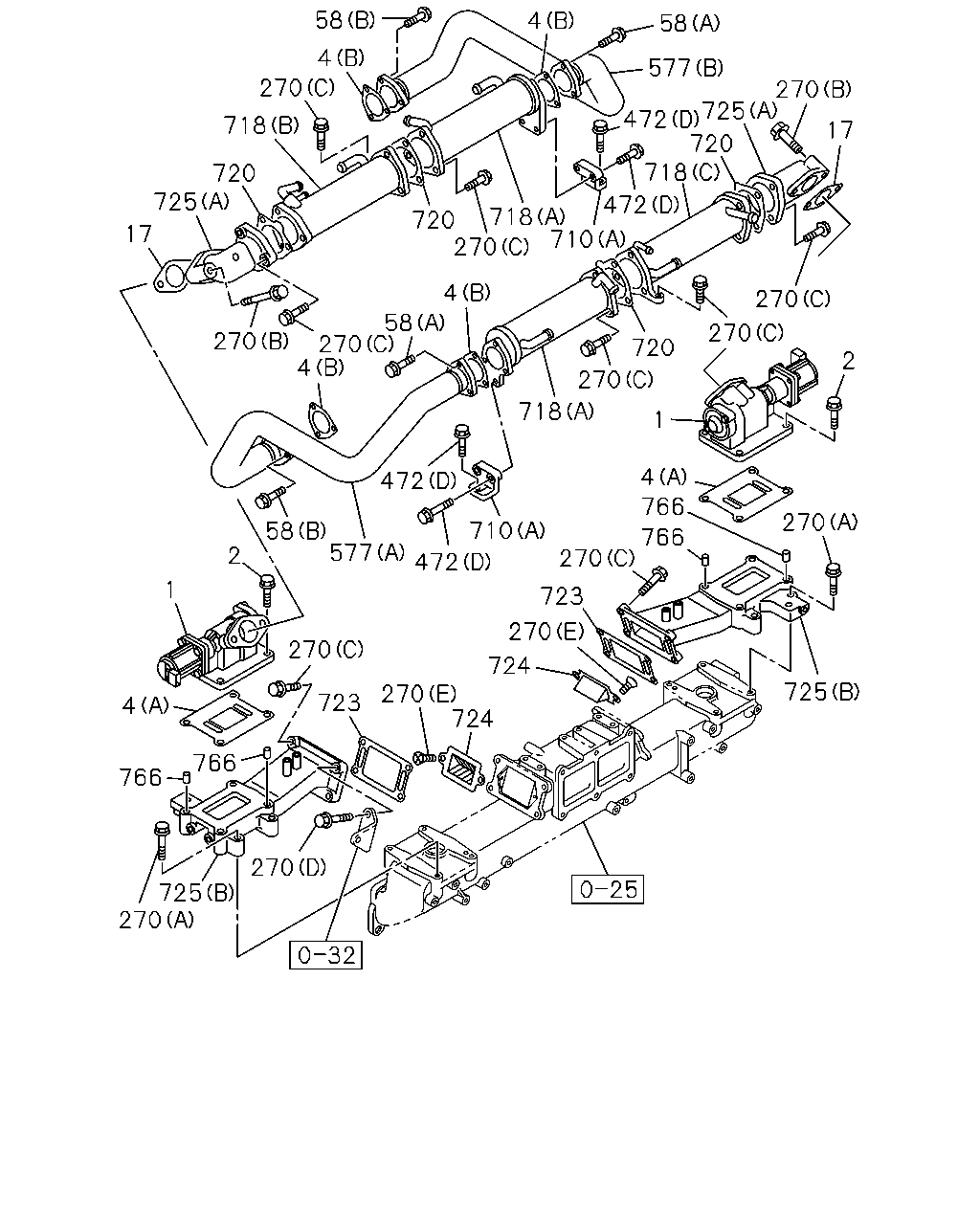

çizim 141994
58 4 58 4 577 270 270 725 472 720 718 718 17 720 725 472 718 710 720 270 17 4 270 58 270 270 4 270 720 2 270 718 1 4 766 472 270 58 577 710 766 270 472 2 1 723 270 270 724 725 270 724 723 4 766 766 270 725 270
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-98029-595-5 02 1 0710-1107 ●
1 VALVE; EGR 8-98029-595-7 02 1 1108-1502 ● ●
1 VALVE; EGR 8-98238-266-1 02 1 1503- ● ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28751-030-0 08 1 0710-1107 ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28751-030-0 08 1 1108-1405 ● ●
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 08 1 1406- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97601-836-0 04 1 0710-1107 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97601-836-0 04 1 1108- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 02 1 0710-1107 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 02 1 1108- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47 		8-97603-282-0 02 1 0710-1107 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47 		8-97603-282-0 02 1 1108- ● ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-97378-077-0 12 1 1108- ●
58 BOLT; PIPE
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710- ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-97378-077-0 06 1 0710- ●
270 BOLT
(A) M10X45 FLANGE 		0-28151-045-0 06 1 1108- ●
270 BOLT
(F) M10X50 FLANGE 		0-28151-050-0 02 1 1108- ●
270 BOLT
(C) M10X35 FLANGE 		0-28751-035-0 26 1 1108- ●
270 BOLT
(A) M10X45 FLANGE 		0-28151-045-0 08 1 0710- ●
270 BOLT
(B) M10X70 FLANGE 		0-28151-070-0 04 1 0710-1107 ●
270 BOLT
(B) M10X70 FLANGE 		0-28151-070-0 04 1 1108- ● ●
270 BOLT
(C) M10X35 FLANGE 		0-28751-035-0 20 1 0710- ●
270 BOLT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 0710-1107 ●
270 BOLT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 1108- ● ●
270 BOLT
(E) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0710-1107 ●
270 BOLT
(E) M6X12 HEX SOCKET 		9-05820-612-0 04 1 1108-1502 ● ●
270 BOLT
(E) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503- ● ●
472 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
472 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1108- ●
472 BOLT; BRKT
(C) M10X20 FLANGE 		0-28751-020-0 05 1 1108- ●
472 BOLT; BRKT
(D) M10X35 FLANGE 		0-28751-035-0 02 1 1108- ●
472 BOLT; BRKT
(D) M10X35 FLANGE 		0-28751-035-0 06 1 0710- ●
577 PIPE; AIR,EGR
(C) 		8-98105-624-1 01 1 1108- ●
577 PIPE; AIR,EGR
(D) 		8-98105-625-0 01 1 1108- ●
577 PIPE; AIR,EGR
(A) 		8-97608-515-0 01 1 0710- ●
577 PIPE; AIR,EGR
(B) 		8-97608-516-0 01 1 0710- ●
710 BRACKET; EGR COOLER
(B) 		8-98106-748-1 02 1 1108- ●
710 BRACKET; EGR COOLER
(A) 		8-97608-521-0 02 1 0710- ●
718 COOLER; EGR
(C) 		8-97628-168-1 02 1 1108- ●
718 COOLER; EGR
(D) 		8-97628-169-0 02 1 1108- ●
718 COOLER; EGR
(A) 		8-97608-517-1 02 1 0710- ●
718 COOLER; EGR
(B) 		8-97608-886-1 01 1 0710- ●
718 COOLER; EGR
(C) 		8-97608-887-1 01 1 0710- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80 		8-97603-889-0 06 1 1108- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80 		8-97603-889-0 04 1 0710- ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97621-936-0 02 1 0710-1107 ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97621-936-0 02 1 1108-1502 ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97647-880-0 02 1 1503- ● ●
724 VALVE; REED 8-98186-738-0 02 1 1108-1502 ● ●
724 VALVE; REED 8-98272-702-0 02 1 1503-1503 ● ●
724 VALVE; REED 8-98291-639-0 02 1 1503- ● ●
724 VALVE; REED 8-98186-738-0 02 1 0710-1107 ●
725 DUCT; EGR VLV
(A) 		8-97608-519-1 02 1 0710-1107 ●
725 DUCT; EGR VLV
(A) 		8-97608-519-1 02 1 1108-1304 ● ●
725 DUCT; EGR VLV
(A) 		8-98239-398-1 02 1 1305- ● ●
725 DUCT; EGR VLV
(B) 		8-97608-520-3 02 1 0710-0909 ●
725 DUCT; EGR VLV
(B) 		8-98110-541-0 02 1 0910-1107 ●
725 DUCT; EGR VLV
(B) 		8-98110-541-0 02 1 1108-1304 ● ●
725 DUCT; EGR VLV
(B) 		8-98239-399-0 02 1 1305-1502 ● ●
725 DUCT; EGR VLV
(B) 		8-98273-010-0 02 1 1503- ● ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 04 1 0710-1107 ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 04 1 1108- ● ●

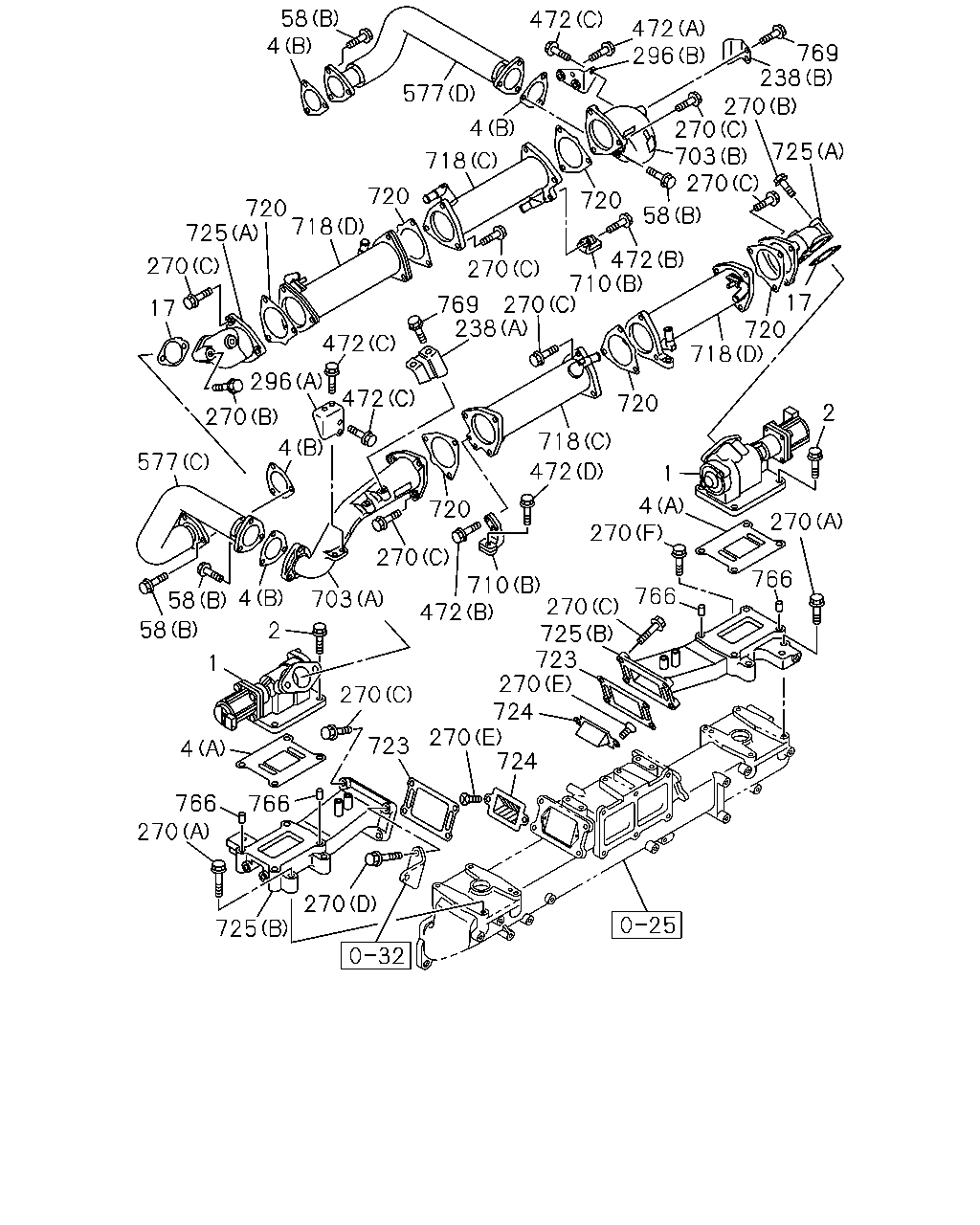

çizim 142001
58 4 472 472 296 769 238 577 270 270 703 270 4 725 718 720 720 720 718 725 58 17 720 718 270 472 710 238 270 17 472 296 472 4 720 2 270 718 577 472 1 4 270 720 270 270 4 766 710 270 472 725 723 270 724 270 724 766 703 58 58 2 1 270 723 4 766 766 270 270 725 769 270
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-98029-595-5 02 1 0710-1107 ●
1 VALVE; EGR 8-98029-595-7 02 1 1108-1502 ● ●
1 VALVE; EGR 8-98238-266-1 02 1 1503- ● ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28751-030-0 08 1 0710-1107 ●
2 BOLT; EGR VLV
M10X30 FLANGE 		0-28751-030-0 08 1 1108-1405 ● ●
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 08 1 1406- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97601-836-0 04 1 0710-1107 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97601-836-0 04 1 1108- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 02 1 0710-1107 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 02 1 1108- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47 		8-97603-282-0 02 1 0710-1107 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47 		8-97603-282-0 02 1 1108- ● ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-97378-077-0 12 1 1108- ●
58 BOLT; PIPE
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710- ●
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-97378-077-0 06 1 0710- ●
238 PROTECTOR; HEAT,EGR
(A) 		8-98114-194-0 01 1 1108- ●
238 PROTECTOR; HEAT,EGR
(B) 		8-98114-195-0 01 1 1108- ●
270 BOLT
(A) M10X45 FLANGE 		0-28151-045-0 06 1 1108- ●
270 BOLT
(F) M10X50 FLANGE 		0-28151-050-0 02 1 1108- ●
270 BOLT
(C) M10X35 FLANGE 		0-28751-035-0 26 1 1108- ●
270 BOLT
(A) M10X45 FLANGE 		0-28151-045-0 08 1 0710- ●
270 BOLT
(B) M10X70 FLANGE 		0-28151-070-0 04 1 0710-1107 ●
270 BOLT
(B) M10X70 FLANGE 		0-28151-070-0 04 1 1108- ● ●
270 BOLT
(C) M10X35 FLANGE 		0-28751-035-0 20 1 0710- ●
270 BOLT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 0710-1107 ●
270 BOLT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 1108- ● ●
270 BOLT
(E) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0710-1107 ●
270 BOLT
(E) M6X12 HEX SOCKET 		9-05820-612-0 04 1 1108-1502 ● ●
270 BOLT
(E) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503- ● ●
296 BRACKET; DUCT
(A) 		8-98109-817-0 01 1 1108- ●
296 BRACKET; DUCT
(B) 		8-98109-818-0 01 1 1108- ●
472 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1108- ●
472 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1108- ●
472 BOLT; BRKT
(C) M10X20 FLANGE 		0-28751-020-0 05 1 1108- ●
472 BOLT; BRKT
(D) M10X35 FLANGE 		0-28751-035-0 02 1 1108- ●
472 BOLT; BRKT
(D) M10X35 FLANGE 		0-28751-035-0 06 1 0710- ●
577 PIPE; AIR,EGR
(C) 		8-98105-624-1 01 1 1108- ●
577 PIPE; AIR,EGR
(D) 		8-98105-625-0 01 1 1108- ●
577 PIPE; AIR,EGR
(A) 		8-97608-515-0 01 1 0710- ●
577 PIPE; AIR,EGR
(B) 		8-97608-516-0 01 1 0710- ●
703 DUCT; EGR
(A) 		8-98105-622-1 01 1 1108-1412 ●
703 DUCT; EGR
(A) 		8-98292-630-0 01 1 1501- ●
703 DUCT; EGR
(B) 		8-98105-623-0 01 1 1108-1412 ●
703 DUCT; EGR
(B) 		8-98292-632-0 01 1 1501- ●
710 BRACKET; EGR COOLER
(B) 		8-98106-748-1 02 1 1108- ●
710 BRACKET; EGR COOLER
(A) 		8-97608-521-0 02 1 0710- ●
718 COOLER; EGR
(C) 		8-97628-168-1 02 1 1108- ●
718 COOLER; EGR
(D) 		8-97628-169-0 02 1 1108- ●
718 COOLER; EGR
(A) 		8-97608-517-1 02 1 0710- ●
718 COOLER; EGR
(B) 		8-97608-886-1 01 1 0710- ●
718 COOLER; EGR
(C) 		8-97608-887-1 01 1 0710- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80 		8-97603-889-0 06 1 1108- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80 		8-97603-889-0 04 1 0710- ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97621-936-0 02 1 0710-1107 ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97621-936-0 02 1 1108-1502 ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97647-880-0 02 1 1503- ● ●
724 VALVE; REED 8-98186-738-0 02 1 1108-1502 ● ●
724 VALVE; REED 8-98272-702-0 02 1 1503-1503 ● ●
724 VALVE; REED 8-98291-639-0 02 1 1503- ● ●
724 VALVE; REED 8-98186-738-0 02 1 0710-1107 ●
725 DUCT; EGR VLV
(A) 		8-97608-519-1 02 1 0710-1107 ●
725 DUCT; EGR VLV
(A) 		8-97608-519-1 02 1 1108-1304 ● ●
725 DUCT; EGR VLV
(A) 		8-98239-398-1 02 1 1305- ● ●
725 DUCT; EGR VLV
(B) 		8-97608-520-3 02 1 0710-0909 ●
725 DUCT; EGR VLV
(B) 		8-98110-541-0 02 1 0910-1107 ●
725 DUCT; EGR VLV
(B) 		8-98110-541-0 02 1 1108-1304 ● ●
725 DUCT; EGR VLV
(B) 		8-98239-399-0 02 1 1305-1502 ● ●
725 DUCT; EGR VLV
(B) 		8-98273-010-0 02 1 1503- ● ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 04 1 0710-1107 ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 04 1 1108- ● ●
769 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1108- ●

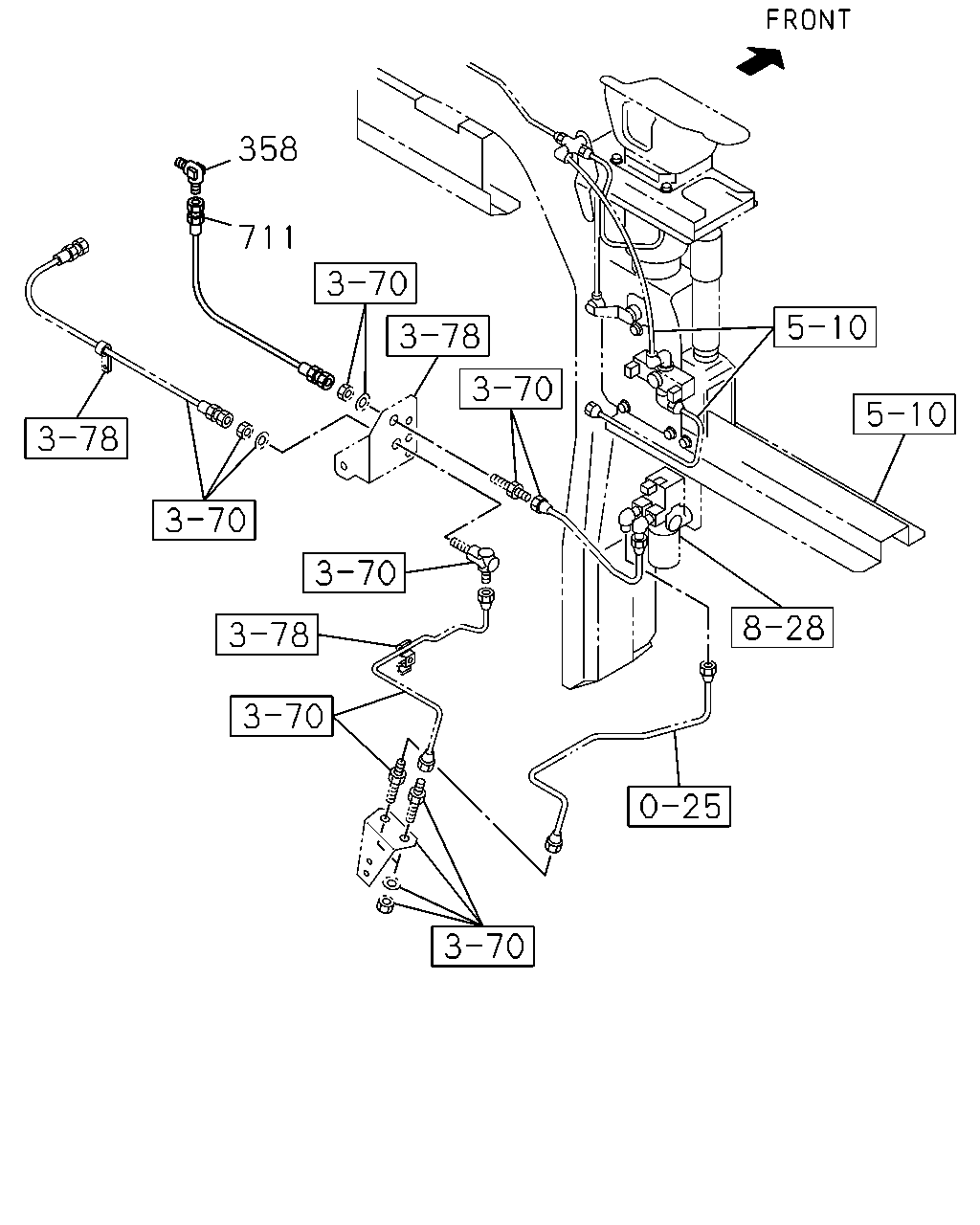

çizim 142297
358 711
BalonParca AdiParca NoAdetTipApplied Date A B
358 CONNECTOR
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710- ●
711 HOSE; FLEX,EGR
L=540 		1-09363-612-1 01 1 0710-0711 ●
711 HOSE; FLEX,EGR
L=500 		1-09363-733-0 01 1 0712- ●
