3-55 — BRAKE PIPING; OIL,REAR (#141089) — 13 parça

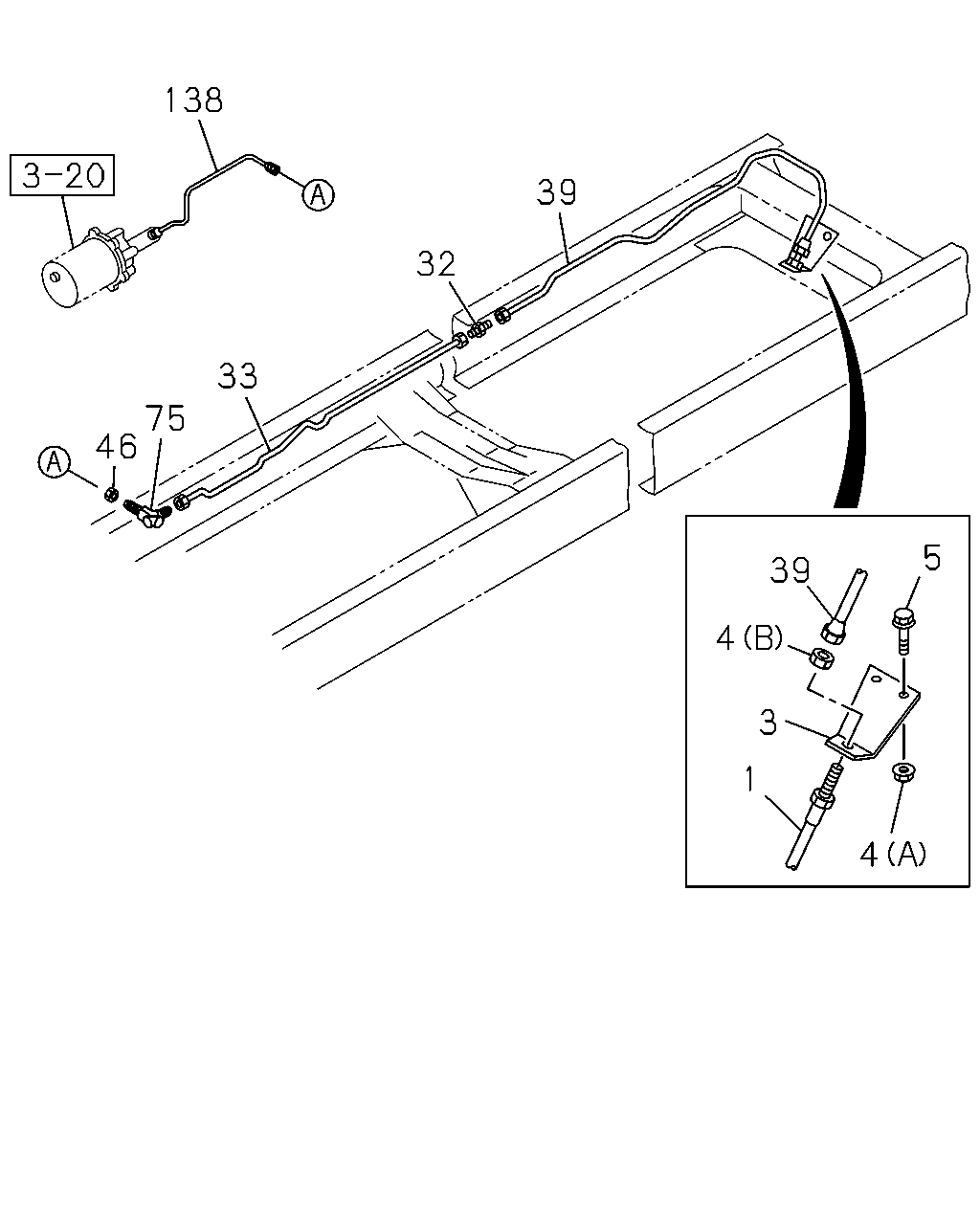

çizim 426392
138 46 75 33 32 39 39 4 3 1 5 4
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=730 		0-05213-730-0 01 1 1406-
3 BRACKET; FLEX HOSE,RR BRK 8-98119-699-1 01 1 1406-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1406-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 01 1 1406-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1406-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 1406-
33 PIPE; OIL,UNION TO UNION
L=1593 SERVICED BY L=1620 		1-47428-736-0 01 1 1406-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2269 SERVICED BY L=2350 		1-47428-741-0 01 1 1406-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1406-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1406-
138 PIPE; HYDRAULIC UNIT
L=414 		8-98216-686-0 01 1 1406-

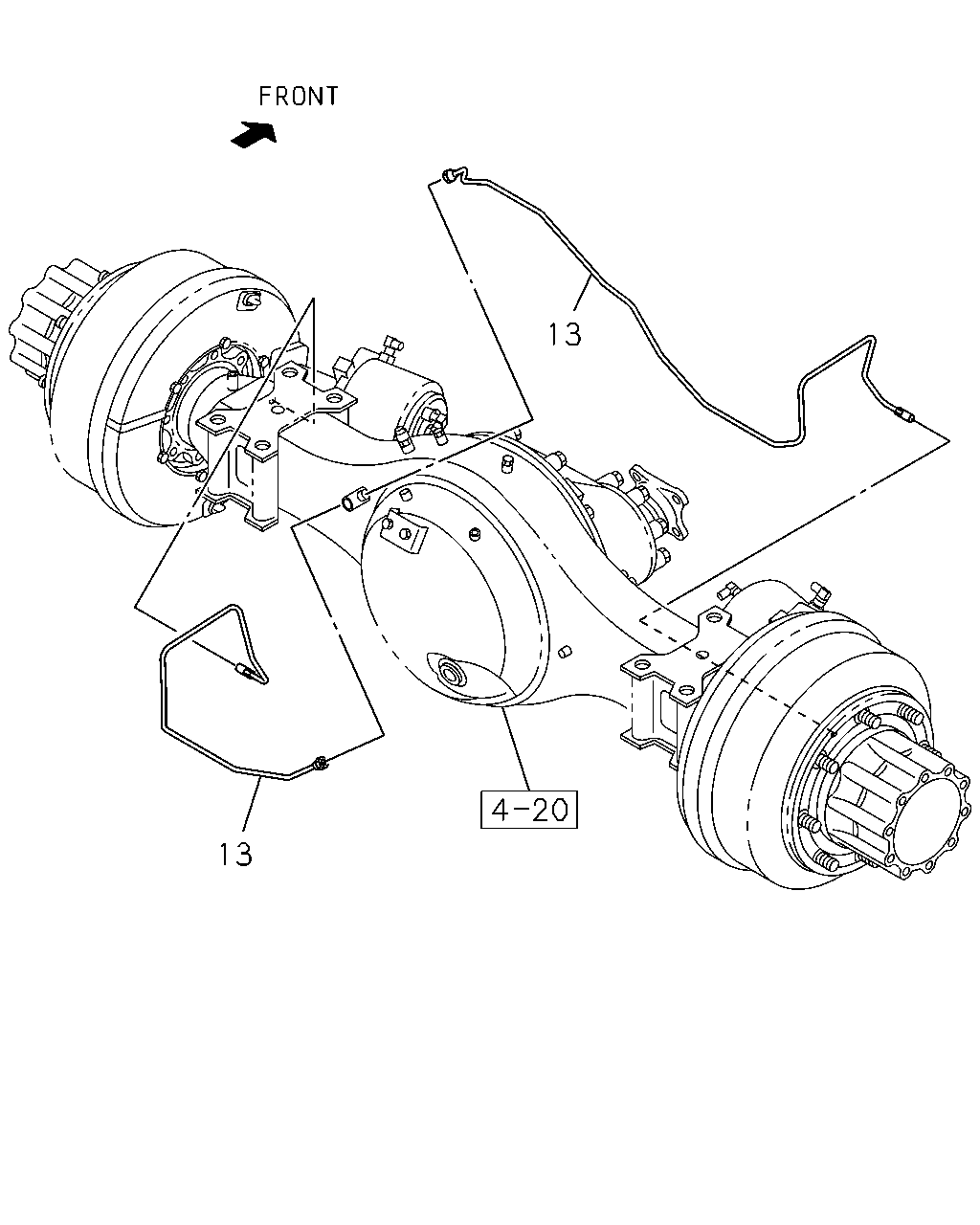

çizim 426523
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
RH LINE L=1190 		8-98012-467-0 01 1 1406-
13 PIPE; BRK,RR AXLE
LH LINE L=600 		8-98012-468-0 01 1 1406-
