Isuzu WW
▶
TRUCKS
▶
FSR
▶
11603 - FSR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

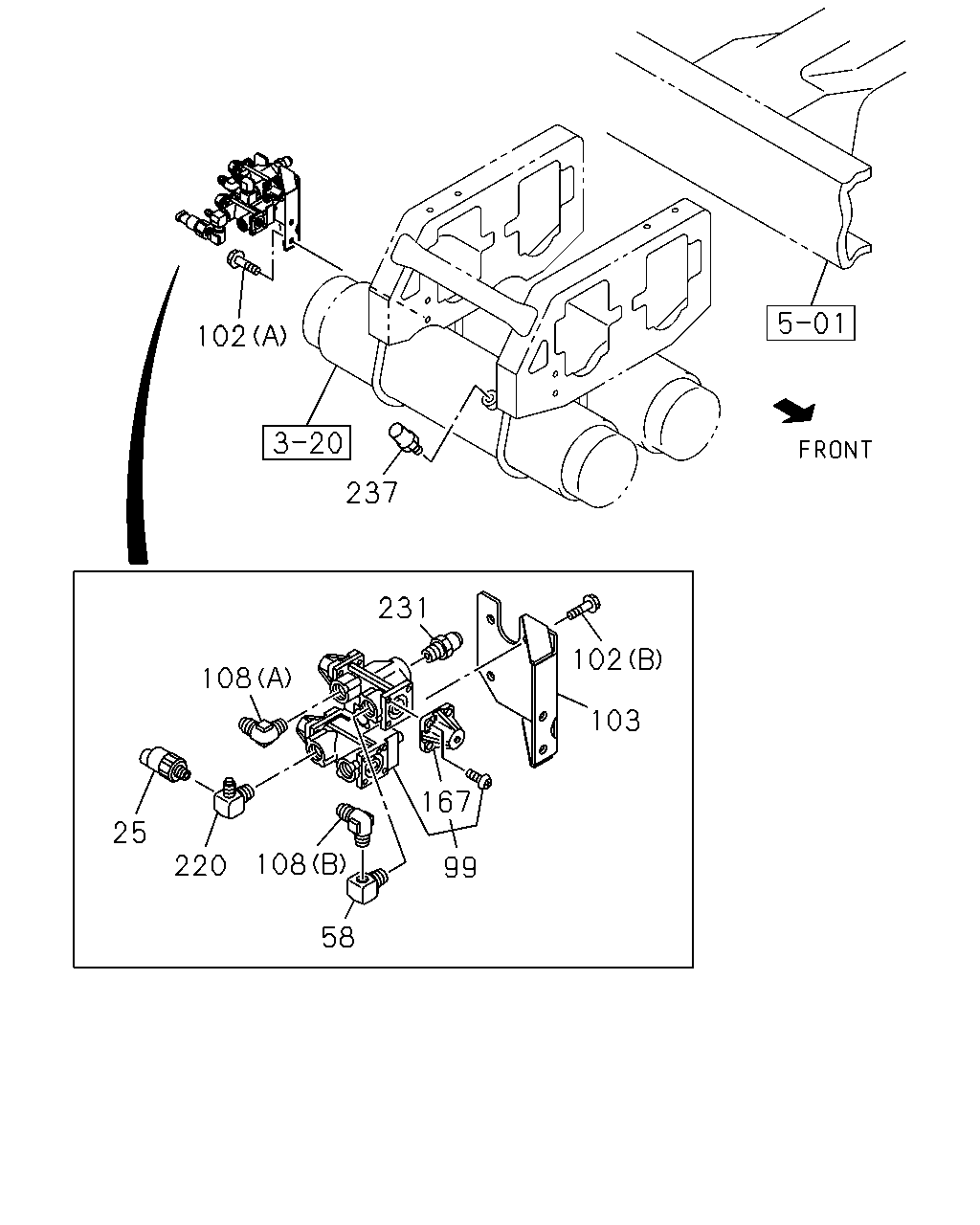

3-22 — AIR CONTROL PARTS
(#141084) — 13 parça
◀
[322A] REPAIR KIT (1 parça)
[322A] FIXING (12 parça)
▶
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
MAL
1-85576-452-2
01
1
1406-
102
237
102
103
167
99
58
108
220
25
108
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
SWITCH; PRESSURE
STAMP 5.5 MAL
8-97609-249-0
01
1
1406-
58
ADAPTER
PT1/4 & PT3/8 2WAY MAL
1-09660-809-0
01
1
1406-
99
VALVE; PROTECTION
MAL
1-48110-287-3
01
1
1406-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE MAL
0-28050-816-0
02
1
1406-
102
BOLT; PROTECTION VALVE
(A) M10X30 FLANGE
0-28651-030-0
02
1
1406-
103
BRACKET; PROTECTION VALVE
MAL
8-98111-527-1
01
1
1406-
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW MAL
0-92134-310-0
01
1
1406-
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW MAL
1-09650-438-0
01
1
1406-
167
COVER; VALVE
MAL
1-48119-625-0
03
1
1406-
220
CONNECTOR; 3WAY
MAL
8-98131-540-0
01
1
1406-
231
CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT MAL
1-09650-249-1
01
1
1406-
237
VALVE; SAFETY
1-48320-012-2
01
1
1406-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
