Isuzu WW
▶
TRUCKS
▶
FSR
▶
11603 - FSR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#141082) — 37 parça
◀

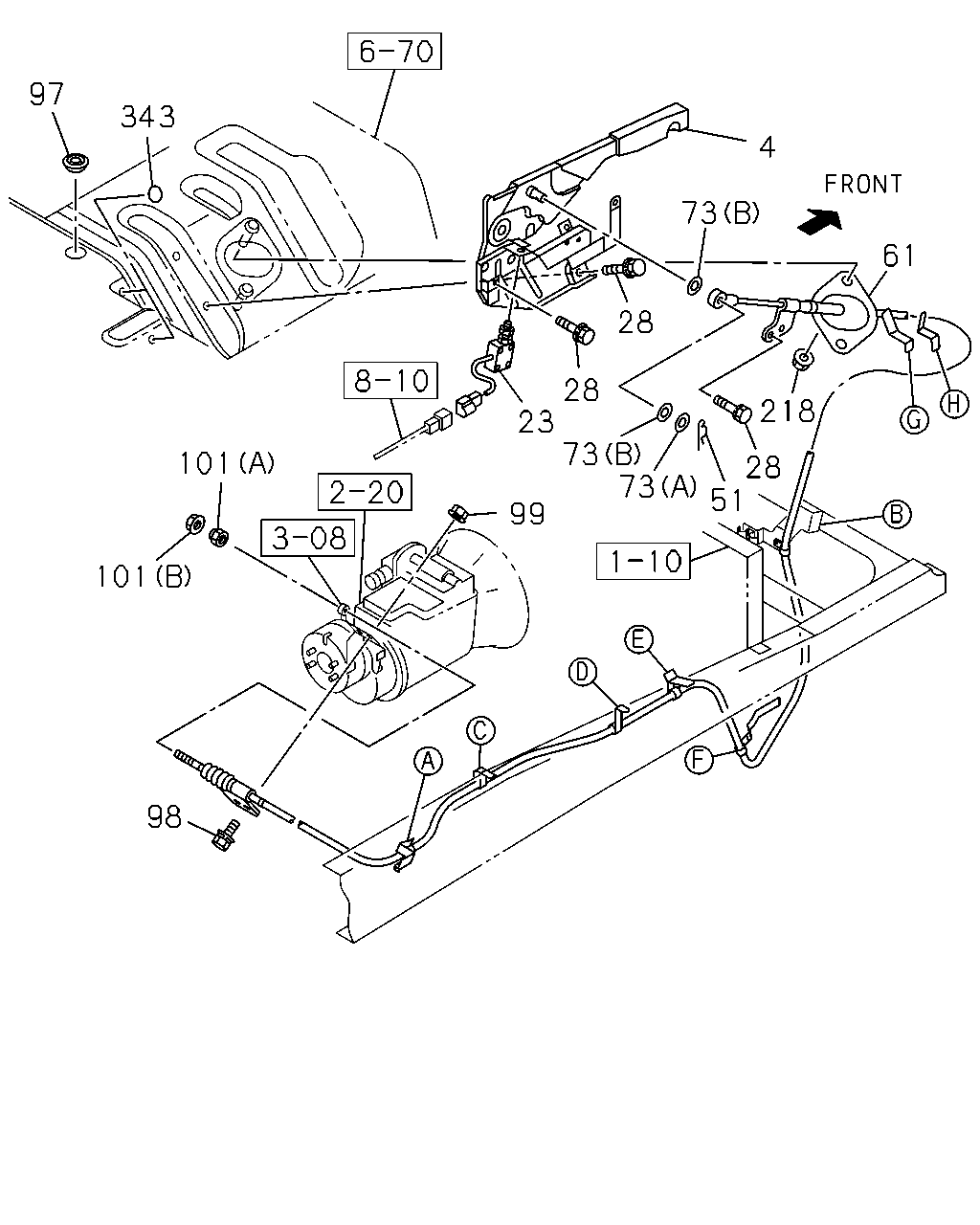

[311A] NO.2 (23 parça)

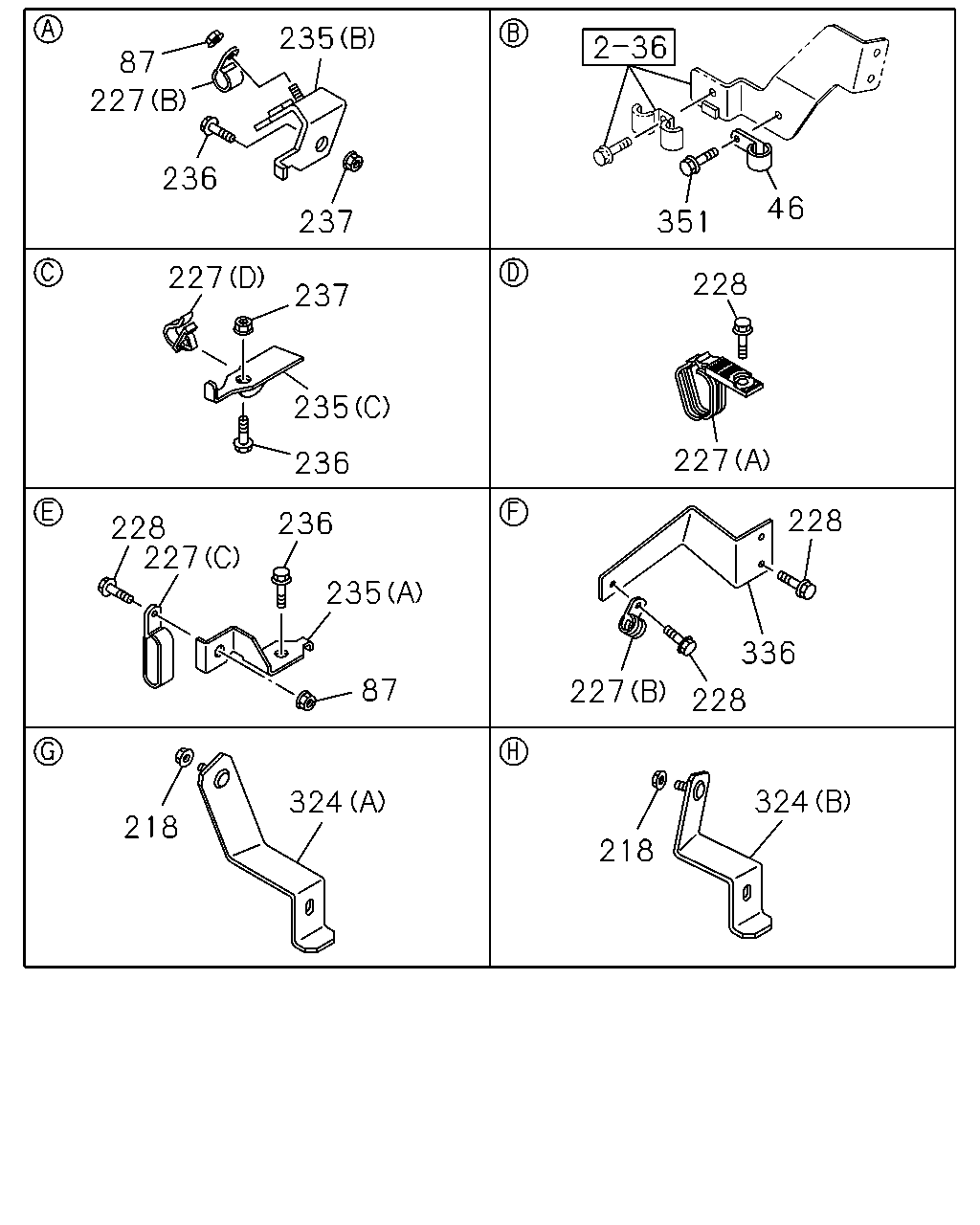

[311A] NO.1 (14 parça)
▶
235
87
227
236
237
227
237
235
236
228
227
236
235
87
218
324
351
46
228
227
228
227
336
228
324
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=13 L=20
0-95235-235-0
01
1
1406-
87
NUT
M8 FLANGE MAL
0-91180-108-0
02
1
1406-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE MAL
0-91180-108-0
04
1
1406-
227
CLIP; RAD
(B) ID=16 L=20
0-95235-535-0
01
1
1406-
227
CLIP; RAD
(B) ID=26 L=26
1-09701-236-0
01
1
1406-
227
CLIP; RAD
(D) ID=9.5
5-09709-020-0
01
1
1406-
227
CLIP; RAD
(C) ID=13 & 13 L=32
8-97389-264-0
01
1
1406-
227
CLIP; RAD
(A) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1406-1504
227
CLIP; RAD
(A) ID=13 & 10 & 10 L=43.5
8-98292-921-0
01
1
1505-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE MAL
0-28050-816-0
01
1
1406-
228
BOLT; CLIP RAD MTG
M8X25 FLANGE MAL
0-28650-825-0
02
1
1406-
228
BOLT; CLIP RAD MTG
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1406-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98077-903-2
01
1
1406-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98100-153-0
01
1
1406-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98126-426-0
01
1
1406-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE MAL
0-28650-825-0
02
1
1406-
236
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28651-030-0
01
1
1406-
237
NUT; BRKT TO FRAME
M8 FLANGE MAL
0-91180-108-0
01
1
1406-
237
NUT; BRKT TO FRAME
M10 FLANGE MAL
0-91180-210-0
01
1
1406-
324
BRACKET
(A)
8-98227-661-1
01
1
1406-
324
BRACKET
(B)
8-98227-663-1
01
1
1406-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1406-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1406-
97
343
4
73
61
28
28
23
73
73
51
28
218
99
101
101
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-548-0
01
1
1406-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1406-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER MAL
8-98059-720-0
03
1
1406-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1406-
61
CABLE; PARKING BRK
L=4731
8-98257-643-0
01
1
1406-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1406-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1406-
97
GROMMET; PARKING BRK CABLE
OD=35 MAL
8-94122-971-0
01
1
1406-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1406-
99
NUT; CONT CABLE
M10 FLANGE MAL
0-91180-210-0
02
1
1406-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE MAL
0-91180-108-0
01
1
1406-
101
NUT; CABLE TO LEVER
(A) M8
1-46259-007-0
01
1
1406-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE MAL
0-91180-108-0
04
1
1406-
343
SEAL
OD=25 BLACK MAL
1-76798-019-0
05
1
1406-
