0-52 — OIL AND VACUUM PIPING; ENGINE (#14108) — 95 parça

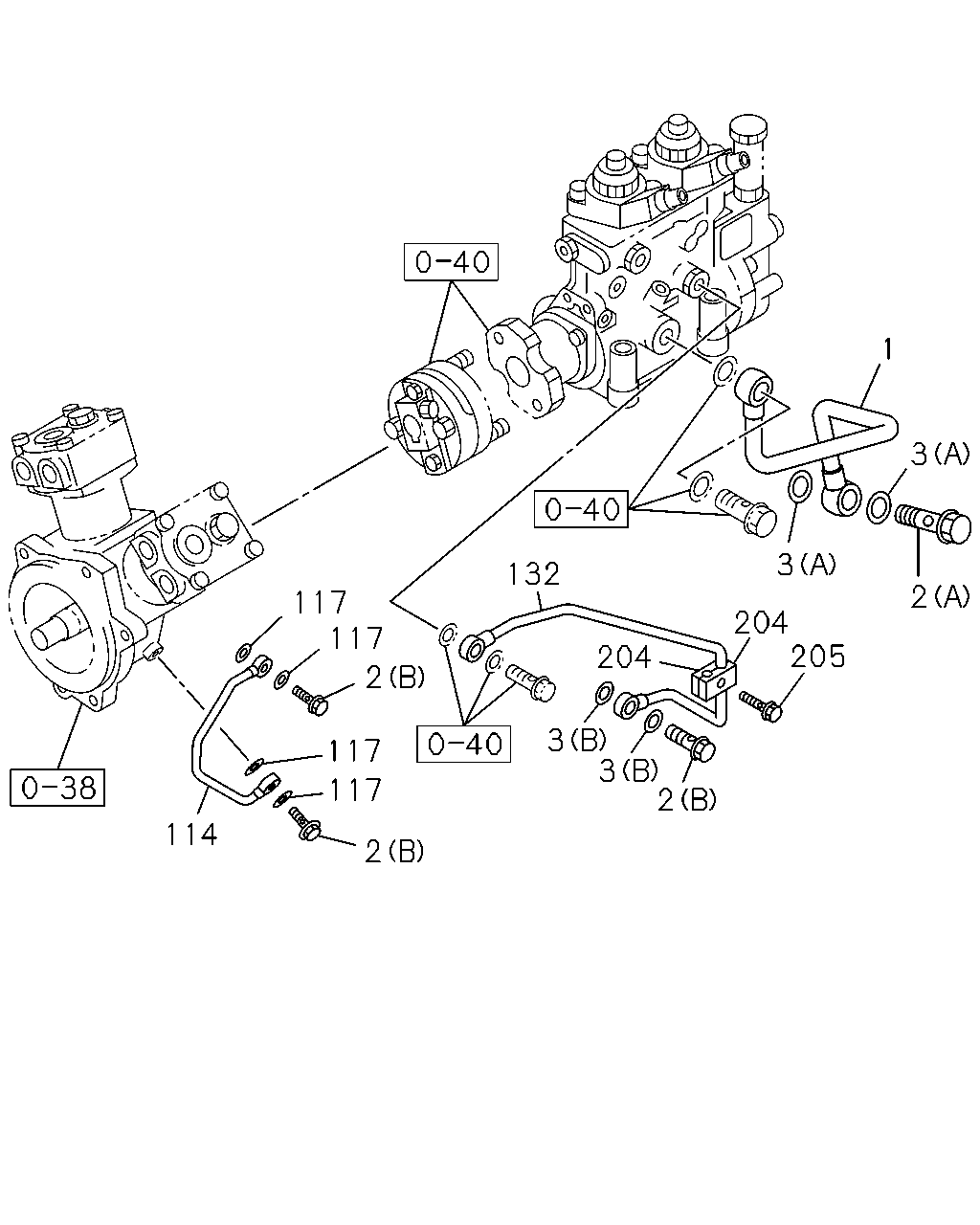

1 3 3 132 2 117 117 204 205 204 2 3 3 2 117 117 114 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-97610-911-0	01	1	0710-1107	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-97610-911-0	01	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	0710-0805	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	0806-1107	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0710-1107	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0710-0805	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-1107	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	0710-1107	●
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	1108-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	1108-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1108-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1108-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	9-09571-412-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	9-09571-412-0	02	1	1108-	●	●
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	0710-1107	●
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	1108-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0710-1107	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	1108-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	8-97610-910-1	01	1	0710-1107	●
132	PIPE ASM; OIL,INJ PUMP FEED	8-97610-910-1	01	1	1108-	●	●
204	CLIP; OIL PIPE	1-09701-132-1	02	1	0710-1107	●
204	CLIP; OIL PIPE	1-09701-132-1	02	1	1108-1210	●	●
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1211-	●	●
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0710-1107	●
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1108-	●	●

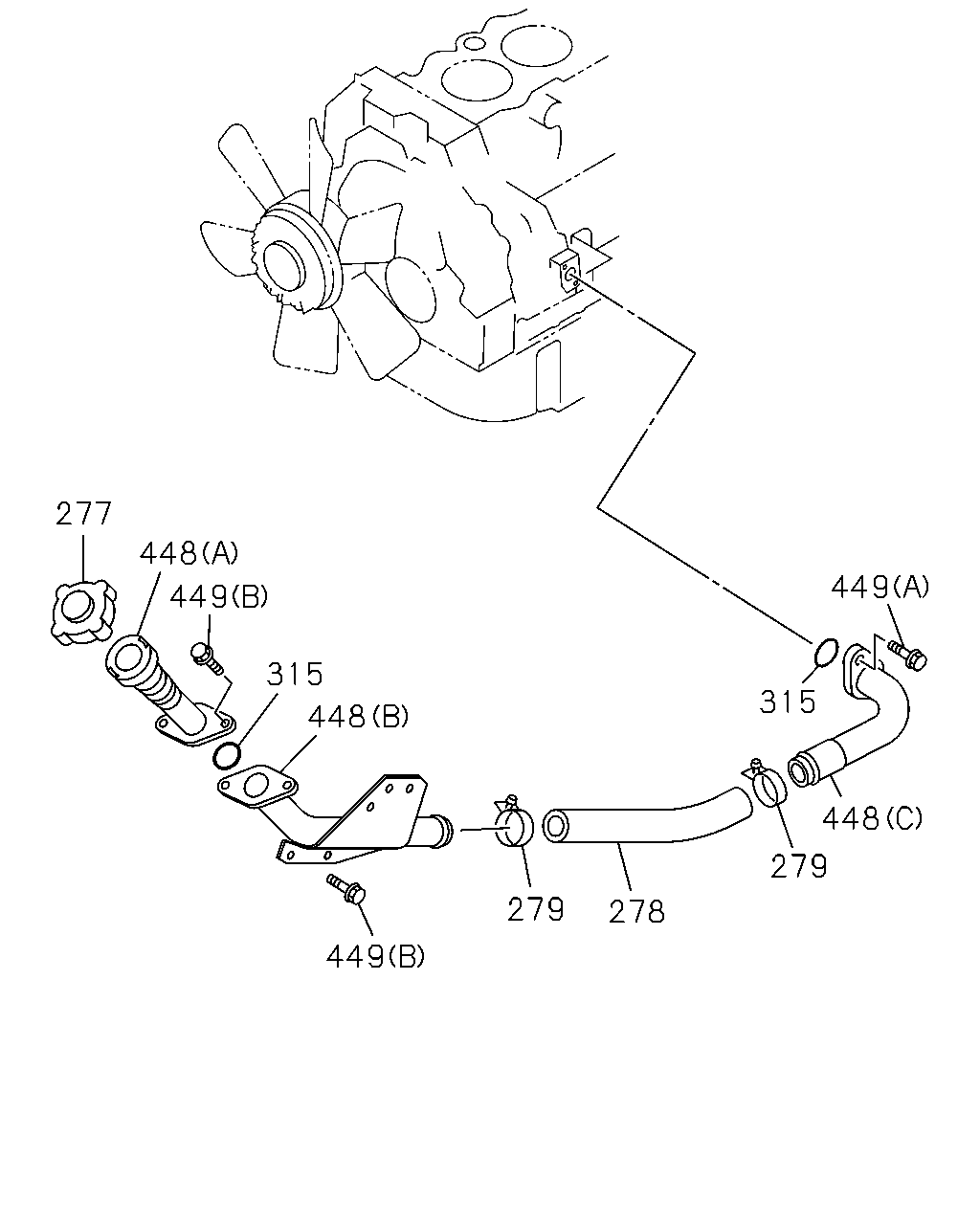

277 448 449 449 315 315 448 448 279 279 278 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
277	CAP; OIL FILLER	1-11750-028-0	01	1	0710-1107	●
277	CAP; OIL FILLER	1-11750-028-0	01	1	1108-	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-216-0	01	1	0710-1107	●
278	HOSE; RUBBER,OIL FILLER	1-11749-216-0	01	1	1108-	●	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	0710-1107	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	1108-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	0710-1107	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	0710-1107	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	1108-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	1108-	●	●
448	FILLER; OIL (C)	1-11740-227-2	01	1	0710-1107	●
448	FILLER; OIL (C)	1-11740-227-2	01	1	1108-	●	●
448	FILLER; OIL (A)	1-11741-313-0	01	1	0710-1107	●
448	FILLER; OIL (A)	1-11741-313-0	01	1	1108-	●	●
448	FILLER; OIL (B)	1-11741-314-0	01	1	0710-1107	●
448	FILLER; OIL (B)	1-11741-314-0	01	1	1108-	●	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-1107	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-1107	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1108-	●	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1108-	●	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-1107	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	1108-	●	●

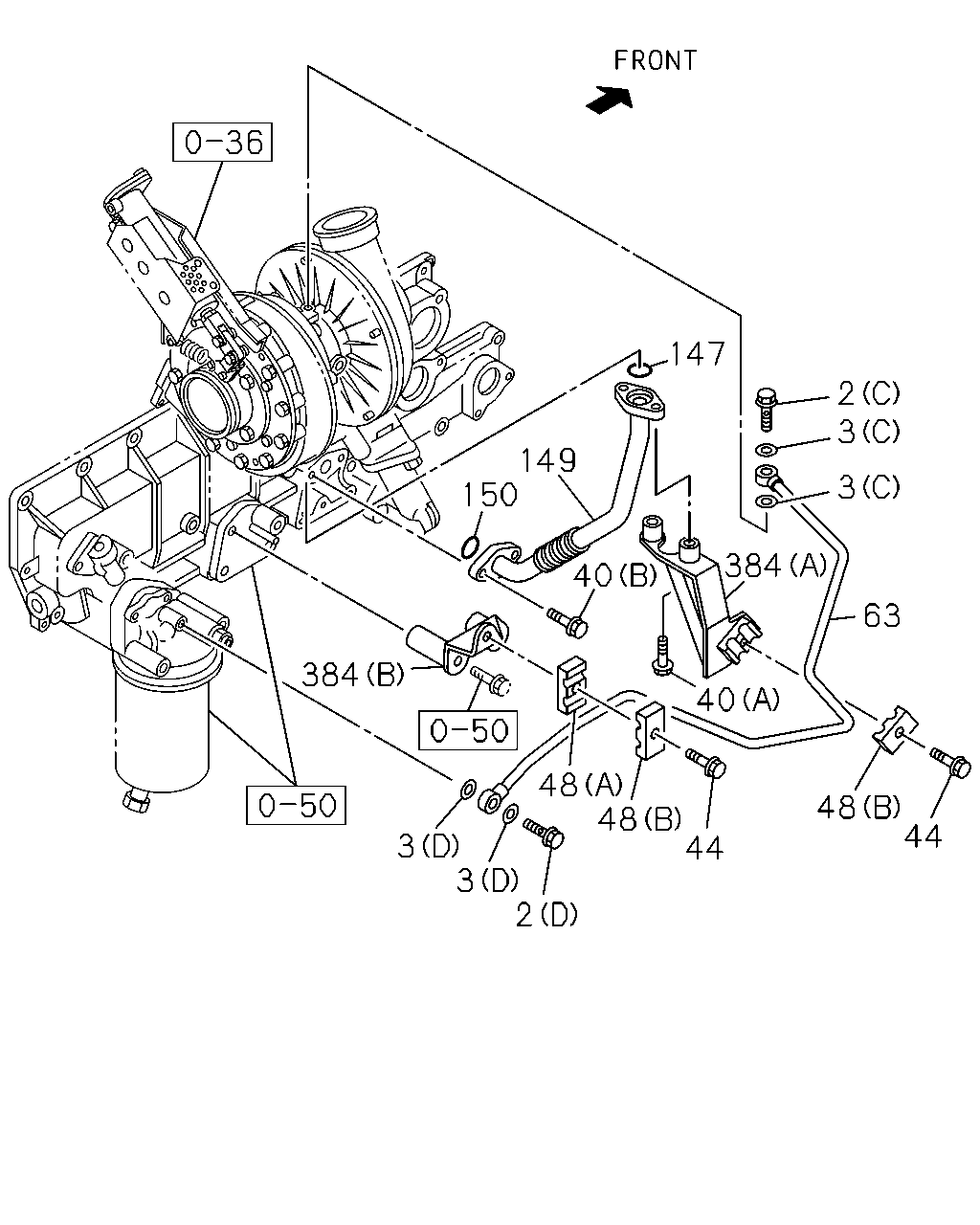

147 2 3 149 150 3 384 40 63 384 40 48 48 44 48 44 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	0710-0805	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	0806-1107	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	8-97372-238-0	03	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	0710-1107	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0710-0805	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-1107	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1108-	●	●
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	0710-1107	●
2	BOLT; EYE,OIL PIPE (C) M12X28	8-97388-295-0	01	1	1108-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	1108-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1108-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1108-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	9-09571-412-0	02	1	0710-1107	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	9-09571-412-0	02	1	1108-	●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0710-1107	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	1108-	●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	0710-1107	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	1108-	●	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	0710-1107	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	1108-	●	●
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	0710-1107	●
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	1108-	●	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	0710-1107	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1108-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97609-509-0	01	1	0710-1107	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97609-509-0	01	1	1108-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	0710-1107	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	1108-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13314-024-0	01	1	0710-1107	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13314-024-1	01	1	1108-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0710-1107	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1108-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-216-0	01	1	0710-1107	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-216-0	01	1	1108-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-225-1	01	1	0710-1107	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-225-1	01	1	1108-	●	●
