1 |

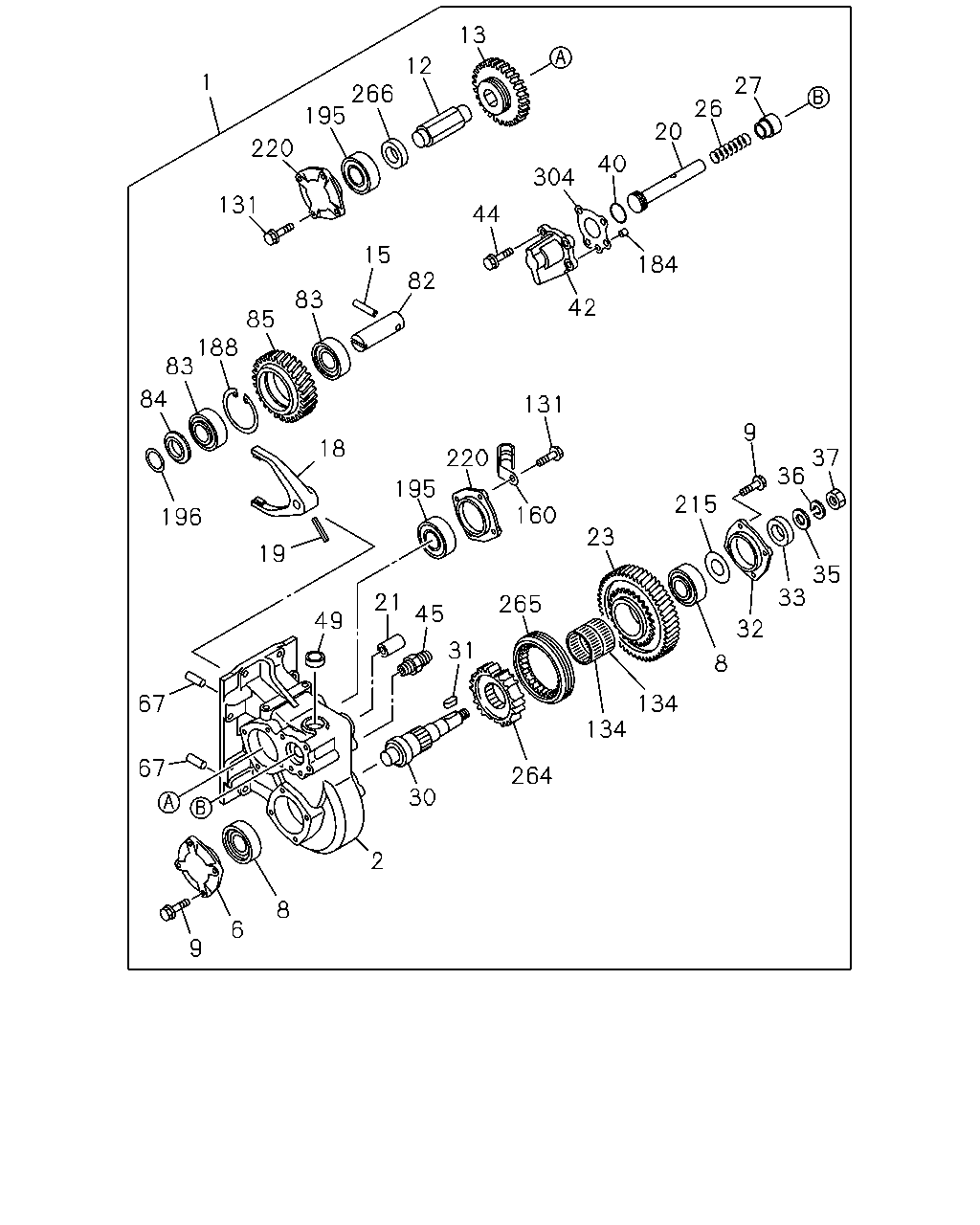

POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-577-0 |
01 |
1 |
1406- |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-784-0 |
01 |
1 |
1406- |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98134-910-0 |
01 |
1 |
1406- |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
5-09820-017-0 |
02 |
1 |
1406- |
| |
9 |
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M8X20 FLANGE
MAL
|
0-28050-820-0 |
08 |
1 |
1406- |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-791-0 |
01 |
1 |
1406- |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=27
|
8-98238-793-0 |
01 |
1 |
1406- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
L=20 OD=4
|
9-09678-514-0 |
01 |
1 |
1406- |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-797-0 |
01 |
1 |
1406- |
| |
19 |
PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-97306-596-0 |
01 |
1 |
1406- |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38371-057-0 |
01 |
1 |
1406- |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98046-619-0 |
01 |
1 |
1406- |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=37
|
8-98238-789-0 |
01 |
1 |
1406- |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38121-004-1 |
01 |
1 |
1406- |
| |
27 |
COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98153-945-0 |
01 |
1 |
1406- |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-787-0 |
01 |
1 |
1406- |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
L=25
|
8-98068-088-0 |
01 |
1 |
1406- |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-97305-794-0 |
01 |
1 |
1406- |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38159-007-0 |
01 |
1 |
1406- |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
ID=15
|
0-91610-514-0 |
01 |
1 |
1406- |
| |
36 |
WASHER; LK,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
ID=14.2
MAL
|
0-91510-814-0 |
01 |
1 |
1406- |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M14
|
0-91111-514-0 |
01 |
1 |
1406- |
| |
40 |
GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-09561-324-0 |
01 |
1 |
1406- |
| |
42 |
CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-798-0 |
01 |
1 |
1406- |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M8X20 FLANGE
MAL
|
0-28050-820-0 |
04 |
1 |
1406- |
| |
45 |
NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M12 & PT1/4 STRAIGHT
MAL
|
1-09650-074-1 |
01 |
1 |
1406- |
| |
49 |
PLUG; IDLE SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98037-773-0 |
01 |
1 |
1406- |
| |
67 |
PIN; STRAIGHT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
L=22
|
8-98238-799-0 |
02 |
1 |
1406- |
| |
82 |
SHAFT; INPUT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98134-904-0 |
01 |
1 |
1406- |
| |
83 |
BEARING; INPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
5-09820-017-0 |
02 |
1 |
1406- |
| |
84 |
COLLAR; INPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-800-0 |
01 |
1 |
1406- |
| |
85 |
GEAR; INPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=28
|
8-98238-795-0 |
01 |
1 |
1406- |
| |
131 |
BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M8X20 FLANGE
MAL
|
0-28050-820-0 |
08 |
1 |
1406- |
| |
134 |
BEARING; NEEDLE,OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-803-0 |
02 |
1 |
1406- |
| |
160 |
CLIP; PTO A/T SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
ID=8.5
|
5-09700-275-0 |
01 |
1 |
1406- |
| |
184 |
DOWEL; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
OD=11 L=8
|
9-11229-058-1 |
01 |
1 |
1406- |
| |
188 |
RING; SNAP,INPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=2.2
|
1-09587-103-1 |
01 |
1 |
1406- |
| |
195 |
BEARING; ROLLER,TAPER,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
NSK
|
8-97360-312-0 |
02 |
1 |
1406- |
| |
196 |
PIECE; THRUST
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.50
|
8-97106-724-0 |
02 |
1 |
1406- |
| |
196 |
PIECE; THRUST
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.60
|
8-97106-725-0 |
02 |
1 |
1406- |
| |
196 |
PIECE; THRUST
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.65
|
8-97106-726-0 |
02 |
1 |
1406- |
| |
196 |
PIECE; THRUST
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.70
|
8-97106-727-0 |
02 |
1 |
1406- |
| |
196 |
PIECE; THRUST
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.80
|
8-97106-728-0 |
02 |
1 |
1406- |
| |
196 |
PIECE; THRUST
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.85
|
8-97106-729-0 |
02 |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=0.1
|
5-33156-022-0 |
AR |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=0.2
|
5-33156-024-0 |
AR |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=0.15
|
8-98067-573-0 |
AR |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=0.40
|
8-98067-574-0 |
AR |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=0.65
|
8-98067-575-0 |
AR |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=0.80
|
8-98067-576-0 |
AR |
1 |
1406- |
| |
215 |
SHIM; BEARING,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
T=1.00
|
8-98134-917-0 |
AR |
1 |
1406- |
| |
220 |
COVER; IDLE SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98134-910-0 |
02 |
1 |
1406- |
| |
264 |
CLUTCH; OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-804-0 |
01 |
1 |
1406- |
| |
265 |
SLEEVE; OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-802-0 |
01 |
1 |
1406- |
| |
266 |
COLLAR; IDLE SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98238-806-0 |
01 |
1 |
1406- |
| |
304 |
PACKING; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98328-479-0 |
01 |
1 |
1406- |
