2-30 — GEAR SHIFTER AND QUADRANT BOX (#141071) — 116 parça

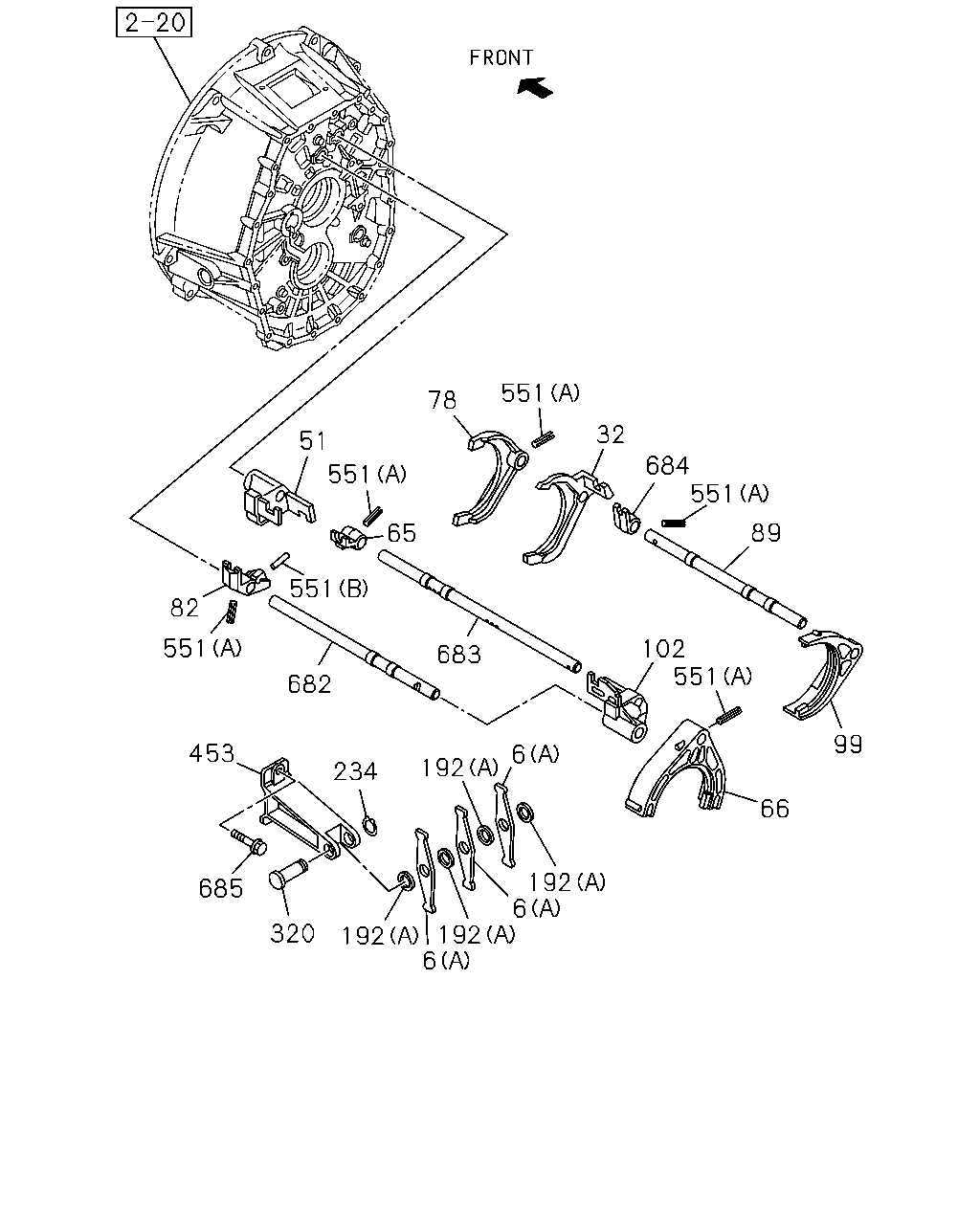

51 551 65 82 551 682 453 685 320 234 192 6 192 6 192 192 6 102 551 99 66 78 551 32 684 551 89 683 551

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1406-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1406-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1406-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1406-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1406-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1406-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1406-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1406-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1406-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1406-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1406-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1406-
192	WASHER; PL (B)	8-97305-661-0	02	1	1406-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1406-
320	SHAFT; LEVER	8-97377-928-0	01	1	1406-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1406-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1406-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1406-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1406-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1406-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1406-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1406-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1406-

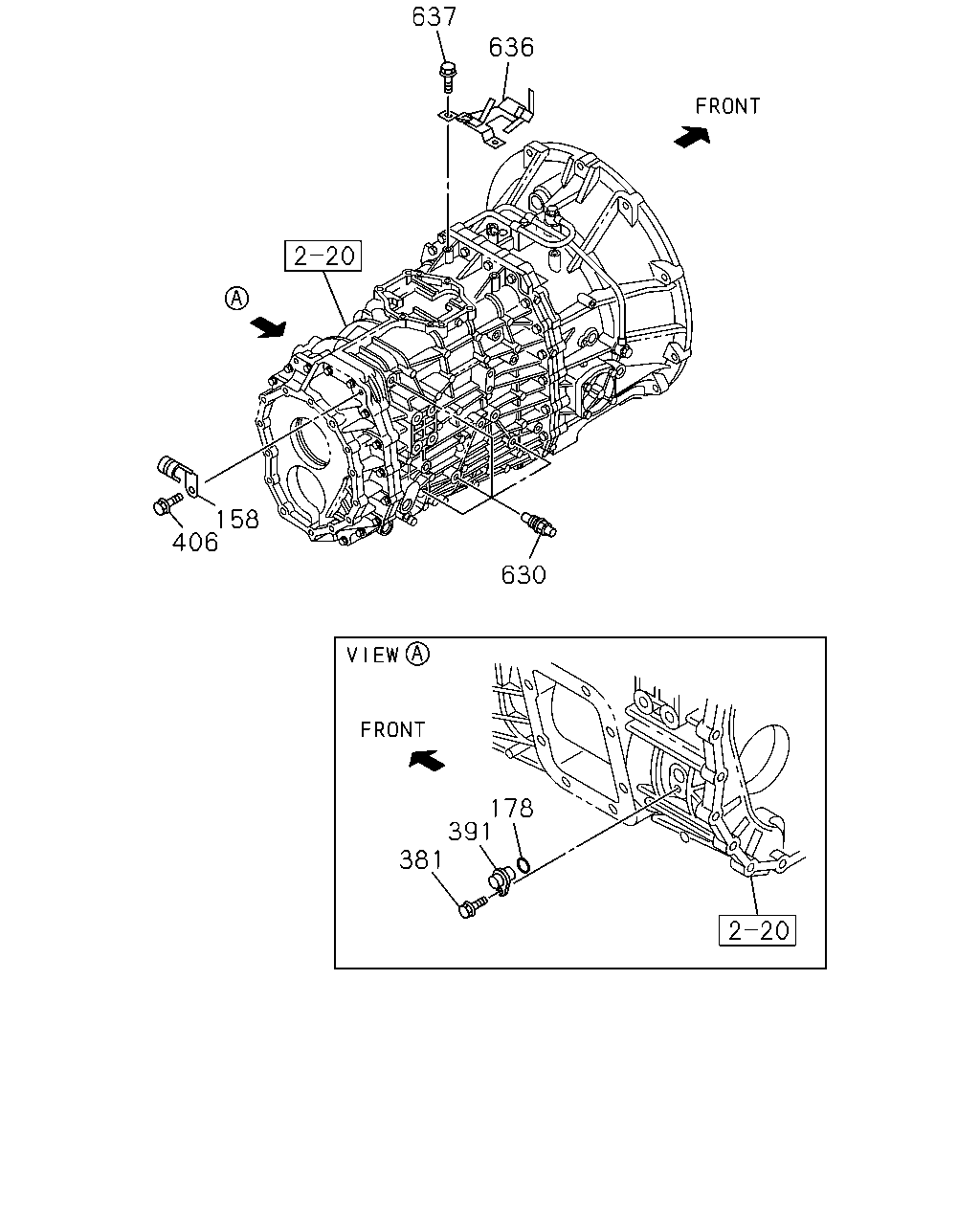

637 636 158 406 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1406-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1406-
381	BOLT M6X16 FLANGE MAL	0-28650-616-0	01	1	1406-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1406-
406	BOLT; HARNESS CLIP M8X16 FLANGE MAL	0-28050-816-0	02	1	1406-
630	DETENT ASM	8-98019-536-0	04	1	1406-
636	BRACKET; CLIP	8-97610-092-1	01	1	1406-1502
637	BOLT; BRACKET M8X16 FLANGE MAL	0-28050-816-0	02	1	1406-1502

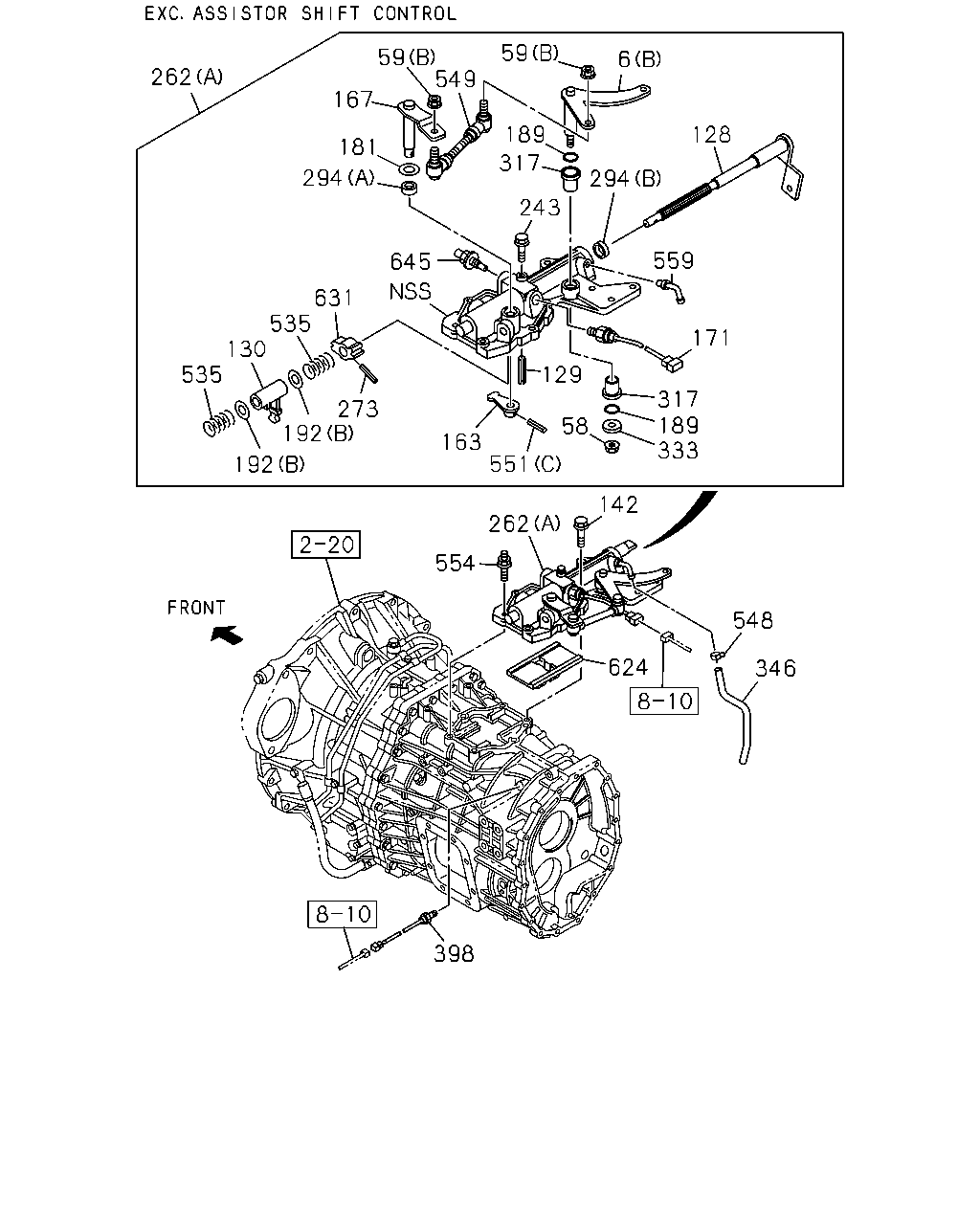

262 167 181 294 59 645 631 535 130 535 192 192 273 163 551 554 262 142 624 548 346 549 59 6 189 317 243 294 298 59 322 306 559 171 317 189 333 58 129 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1406-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1406-
58	NUT M10 FLANGE MAL	0-91180-110-0	01	1	1406-
59	NUT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1406-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12 MAL	0-91110-512-0	01	1	1406-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1406-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1406-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1406-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1406-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1406-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1406-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1406-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1406-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1406-
192	WASHER; PL (B)	8-97305-661-0	02	1	1406-
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1406-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1406-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1406-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1406-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1406-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1406-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1406-1507
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE MAL	0-28051-050-0	03	1	1406-
317	BUSHING; LEVER	1-09330-119-0	02	1	1406-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1406-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1406-
346	HOSE; AIR	8-97309-855-0	01	1	1406-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1406-
535	SPRING; LEVER	8-97385-713-0	02	1	1406-
548	CLIP; HOSE	8-97031-674-0	01	1	1406-
549	ROD; LINK	8-98023-095-0	01	1	1406-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1406-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1406-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1406-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1406-
559	PIPE; BREATHER	8-97358-318-0	01	1	1406-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1406-
631	STOPPER; SPRING	8-98014-158-0	01	1	1406-
645	DETENT ASM	8-98019-536-0	01	1	1406-

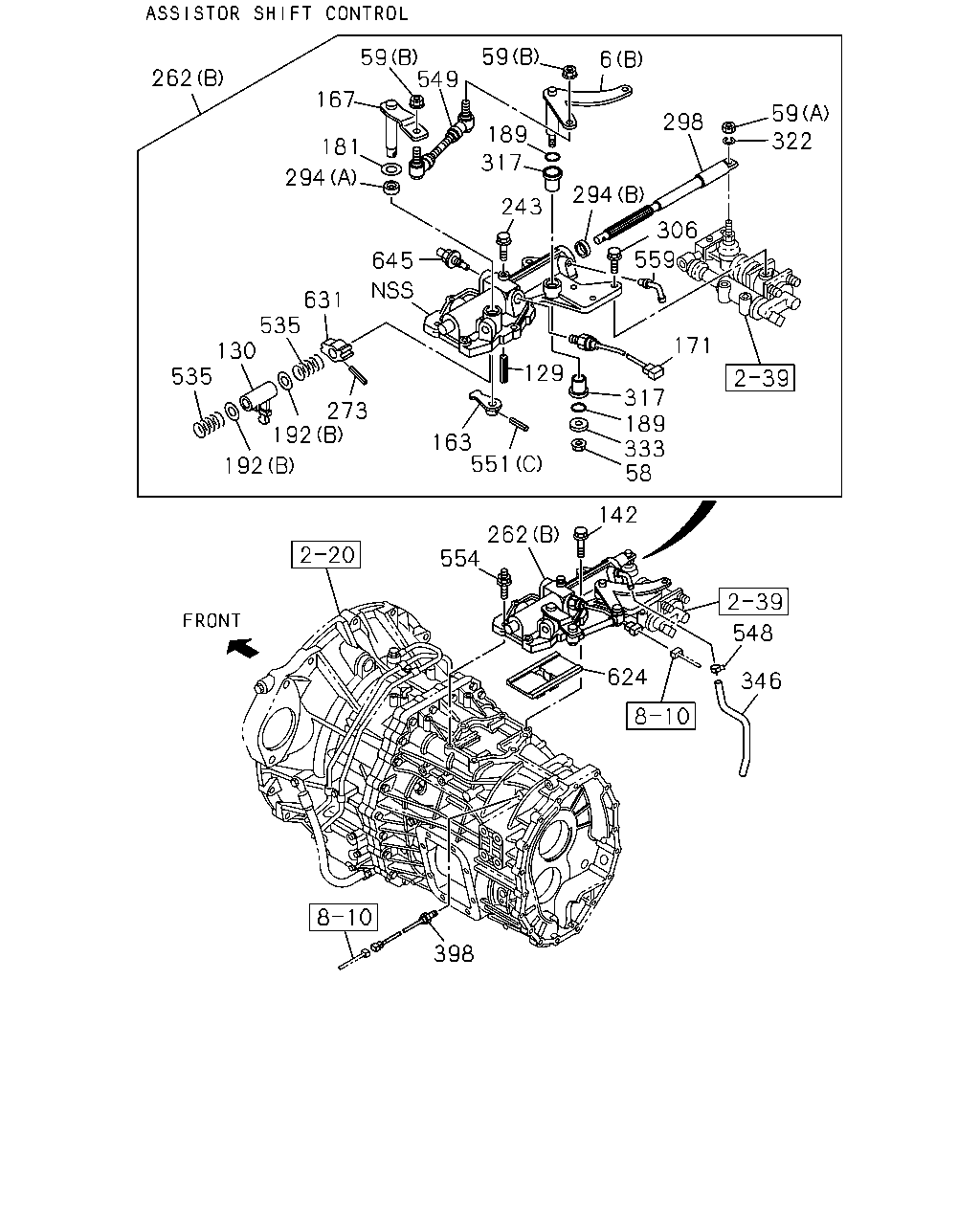

262 167 59 59 6 128 294 189 181 294 645 631 535 130 535 192 192 273 163 551 58 129 243 317 559 171 317 189 333 548 346 624 142 262 554 398 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1406-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1406-
58	NUT M10 FLANGE MAL	0-91180-110-0	01	1	1406-
59	NUT (B) M8 FLANGE MAL	0-91180-108-0	02	1	1406-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12 MAL	0-91110-512-0	01	1	1406-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1406-1507
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1406-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1406-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1406-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1406-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1406-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1406-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1406-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1406-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1406-
192	WASHER; PL (B)	8-97305-661-0	02	1	1406-
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1406-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1406-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1406-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1406-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1406-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1406-
317	BUSHING; LEVER	1-09330-119-0	02	1	1406-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1406-
346	HOSE; AIR	8-97309-855-0	01	1	1406-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1406-
535	SPRING; LEVER	8-97385-713-0	02	1	1406-
548	CLIP; HOSE	8-97031-674-0	01	1	1406-
549	ROD; LINK	8-98023-095-0	01	1	1406-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1406-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1406-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1406-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1406-
559	PIPE; BREATHER	8-97358-318-0	01	1	1406-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1406-
631	STOPPER; SPRING	8-98014-158-0	01	1	1406-
645	DETENT ASM	8-98019-536-0	01	1	1406-
