2-05 — CLUTCH PIPING (#141064) — 28 parça

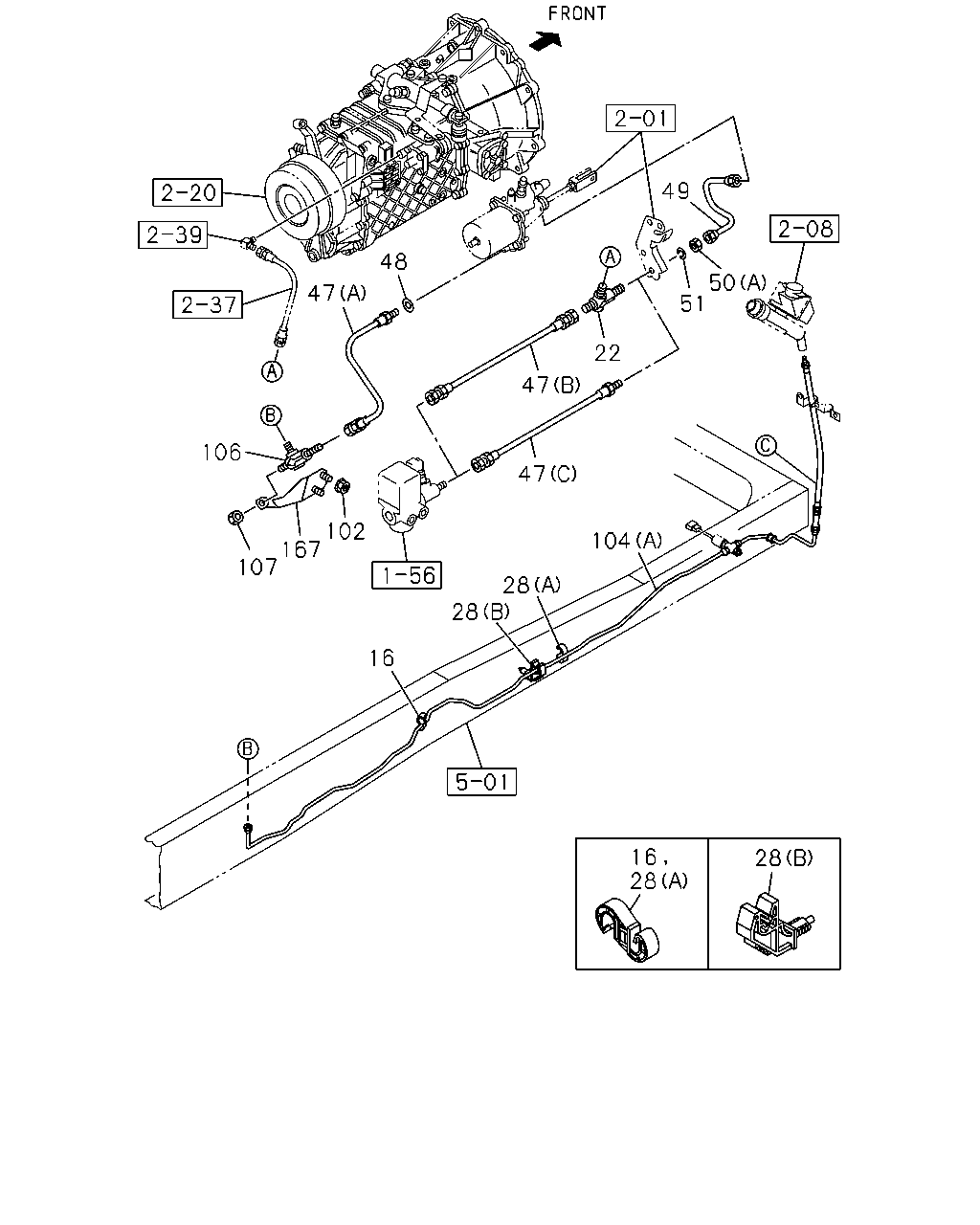

çizim 426228
50 51 49 48 47 106 107 167 102 47 47 22 104 28 28 16 16 28 28
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1406-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1406-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1406-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1406-
47 HOSE; FLEX,CLU CONT
(A) L=390 		8-98080-980-0 01 1 1406-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (B) L=500 		1-09363-733-0 01 1 1406-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=580 		1-09363-692-0 01 1 1406-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1406-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1406-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1406-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1406-
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL 		0-91510-812-0 01 1 1406-
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL 		0-91510-512-0 01 1 1406-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE MAL 		0-91180-210-0 02 1 1406-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2183 SERVICED BY L=2200 		1-47428-740-0 01 1 1406-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1406-
106 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1406-
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1406-
167 BRACKET; UNION 8-98078-147-0 01 1 1406-
çizim 426572
104 23 50 184 239 50 101 48 104
BalonParca AdiParca NoAdetTipApplied Date
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1406-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1406-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1406-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1406-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500 		8-98072-350-0 01 1 1406-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2183 SERVICED BY L=2200 		1-47428-740-0 01 1 1406-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1406-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1406-
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1406-
