1-41 — FUEL PIPING; CHASSIS (#141057) — 121 parça

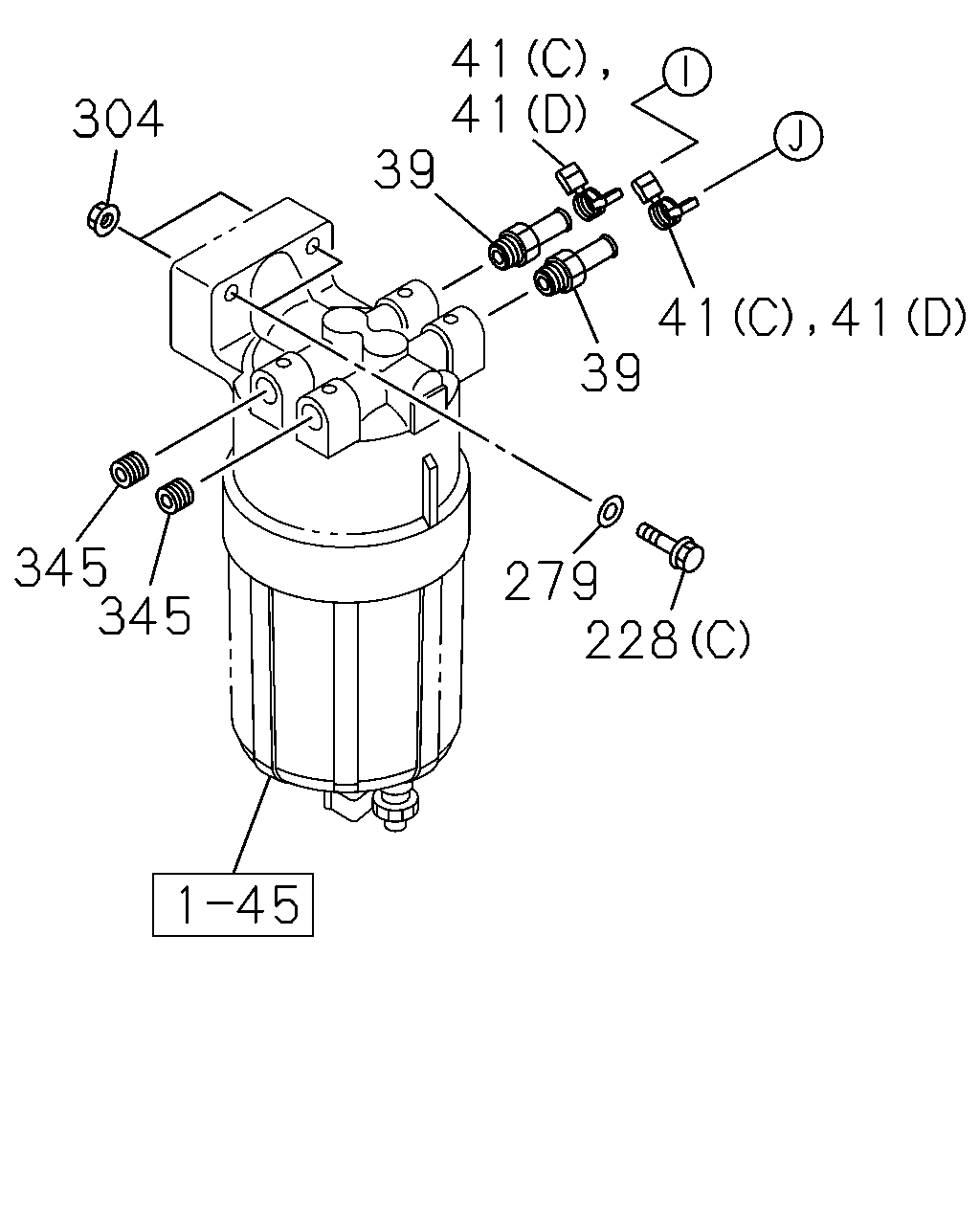

çizim 426138
304 39 41 41 41 41 39 279 228 345 345
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1406-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 		5-09707-030-1 05 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1406-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 		1-09704-102-0 06 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 05 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (E) L=250 		5-09707-030-1 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (D) ID=16 		8-94238-568-0 08 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1406-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1406-
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1406-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1406-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1406-
304 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 01 1 1406-
304 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 02 1 1406-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1406-

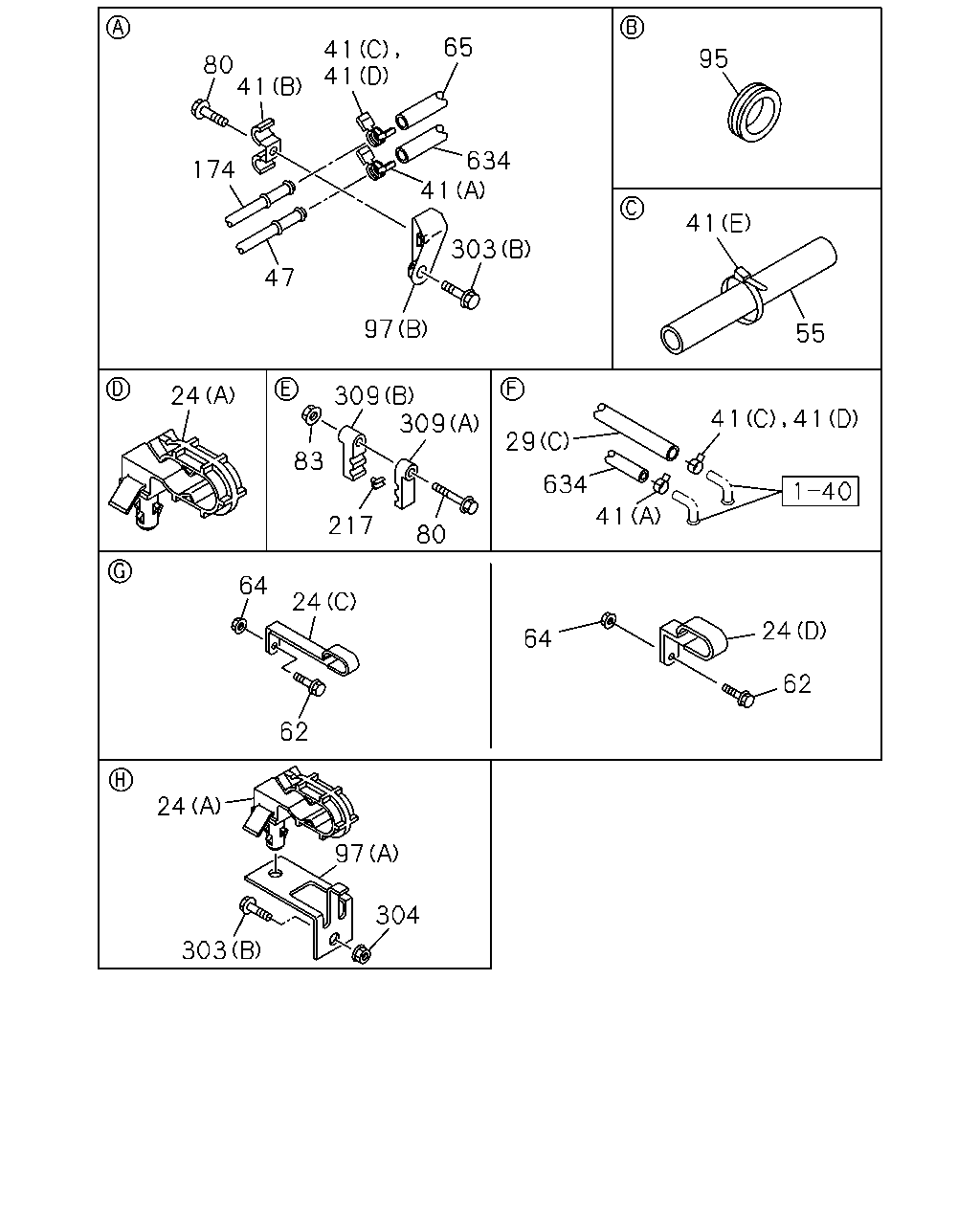

çizim 426176
65 41 41 41 634 95 41 55 41 41 41 24 62 64 80 217 24 64 62 97 304 303 24 24 309 83 309 29 634 97 303 41 174 47 80
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
BIO DIESEL FUEL B10<8NV> (D) ID=24 & 24 L=49 		1-09701-018-0 01 1 1512-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 02 1 1406-
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1406-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1406-1511
24 CLIP; FUEL HOSE
EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (A) 		8-98329-937-0 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (C) 		8-98330-199-0 01 1 1512-
29 HOSE; FUEL
(C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1406-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1406-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (A) ID=9.3 		8-98239-029-0 01 1 1512-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1406-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 		5-09707-030-1 05 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1406-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 		1-09704-102-0 06 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 05 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (E) L=250 		5-09707-030-1 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (D) ID=16 		8-94238-568-0 08 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1406-
47 PIPE; FUEL,RETURN
L=1619 		8-98239-080-0 01 1 1406-
55 COVER; PIPE,FUEL TANK
L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 1406-1511
55 COVER; PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 1512-
55 COVER; PIPE,FUEL TANK
ID=27 L=500 		8-98119-327-0 01 1 1406-1511
55 COVER; PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> ID=27 L=500 		8-98119-327-0 01 1 1512-
62 BOLT; CLIP FIX
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1406-
64 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
65 HOSE; FUEL,DELIVERY PIPE
BIO DIESEL FUEL B10<8NV> L=1450 		8-98330-200-0 01 1 1512-
65 HOSE; FUEL,DELIVERY PIPE
L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 1406-1511
65 HOSE; FUEL,DELIVERY PIPE
EXC. BIO DIESEL FUEL B10<8NV> L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE MAL 		0-28650-820-0 02 1 1406-
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 02 1 1406-
83 NUT; CLIP,FUEL TANK
M8 FLANGE MAL 		0-91180-108-0 03 1 1406-
95 BUSHING; PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1512-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1406-1511
95 BUSHING; PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512-
97 BRACKET; CLIP
(A) 		8-98109-768-0 01 1 1406-
97 BRACKET; CLIP
(B) 		8-98117-691-0 02 1 1406-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1406-
174 PIPE; FUEL,FEED,FRT
L=1488 		8-98239-079-0 01 1 1406-
217 COLLAR; FUEL PIPE FIX
ID=8 MAL 		1-47459-011-0 02 1 1406-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1406-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 03 1 1406-
304 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 01 1 1406-
304 NUT; BRKT
M10 FLANGE MAL 		0-91180-210-0 02 1 1406-
309 CLIP; PIPE
(A) ID=10 & 10 MAL 		1-09709-241-0 02 1 1406-
309 CLIP; PIPE
(B) ID=10 & 10 MAL 		1-09709-243-0 02 1 1406-
634 HOSE; RUBBER RETURN
L=1000 SERVICED BY L=3000 		0-01558-300-0 01 1 1406-

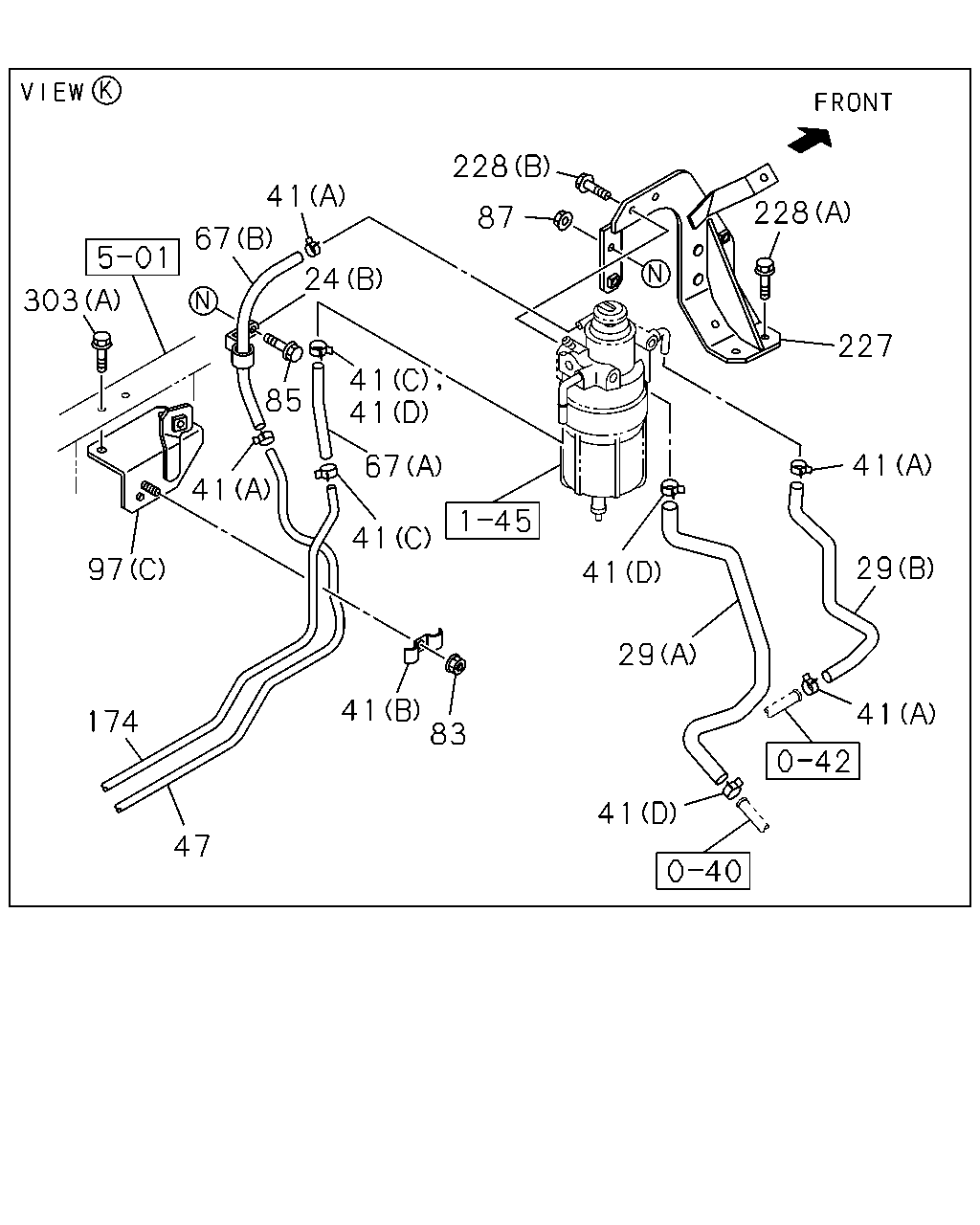

çizim 426179
41 67 303 41 97 174 47 41 83 41 67 41 41 85 24 228 87 228 227 41 29 41 41 29 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
BIO DIESEL FUEL B10<8NV> (D) ID=24 & 24 L=49 		1-09701-018-0 01 1 1512-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 02 1 1406-
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1406-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1406-1511
24 CLIP; FUEL HOSE
EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (A) 		8-98329-937-0 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (C) 		8-98330-199-0 01 1 1512-
29 HOSE; FUEL
(C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1406-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1406-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (A) ID=9.3 		8-98239-029-0 01 1 1512-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1406-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 		5-09707-030-1 05 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1406-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 		1-09704-102-0 06 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 05 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (E) L=250 		5-09707-030-1 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1406-1511
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (D) ID=16 		8-94238-568-0 08 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1406-
47 PIPE; FUEL,RETURN
L=1619 		8-98239-080-0 01 1 1406-
67 HOSE; FUEL,DELIVERY
BIO DIESEL FUEL B10<8NV> (A) L=190 SERVICED BY L=3000 		0-01859-300-0 01 1 1512-
67 HOSE; FUEL,DELIVERY
(A) L=190 SERVICED BY L=3000 		0-01260-300-0 01 1 1406-1511
67 HOSE; FUEL,DELIVERY
EXC. BIO DIESEL FUEL B10<8NV> (A) L=190 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
67 HOSE; FUEL,DELIVERY
(B) L=310 		0-01508-310-0 01 1 1406-
83 NUT; CLIP,FUEL TANK
M8 FLANGE MAL 		0-91180-108-0 03 1 1406-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1406-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
97 BRACKET; CLIP
(A) 		8-98109-768-0 01 1 1406-
97 BRACKET; CLIP
(B) 		8-98117-691-0 02 1 1406-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1406-
174 PIPE; FUEL,FEED,FRT
L=1488 		8-98239-079-0 01 1 1406-
227 BRACKET; FUEL SEDIMENTER 8-98208-173-0 01 1 1406-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1406-
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1406-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1406-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1406-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 03 1 1406-

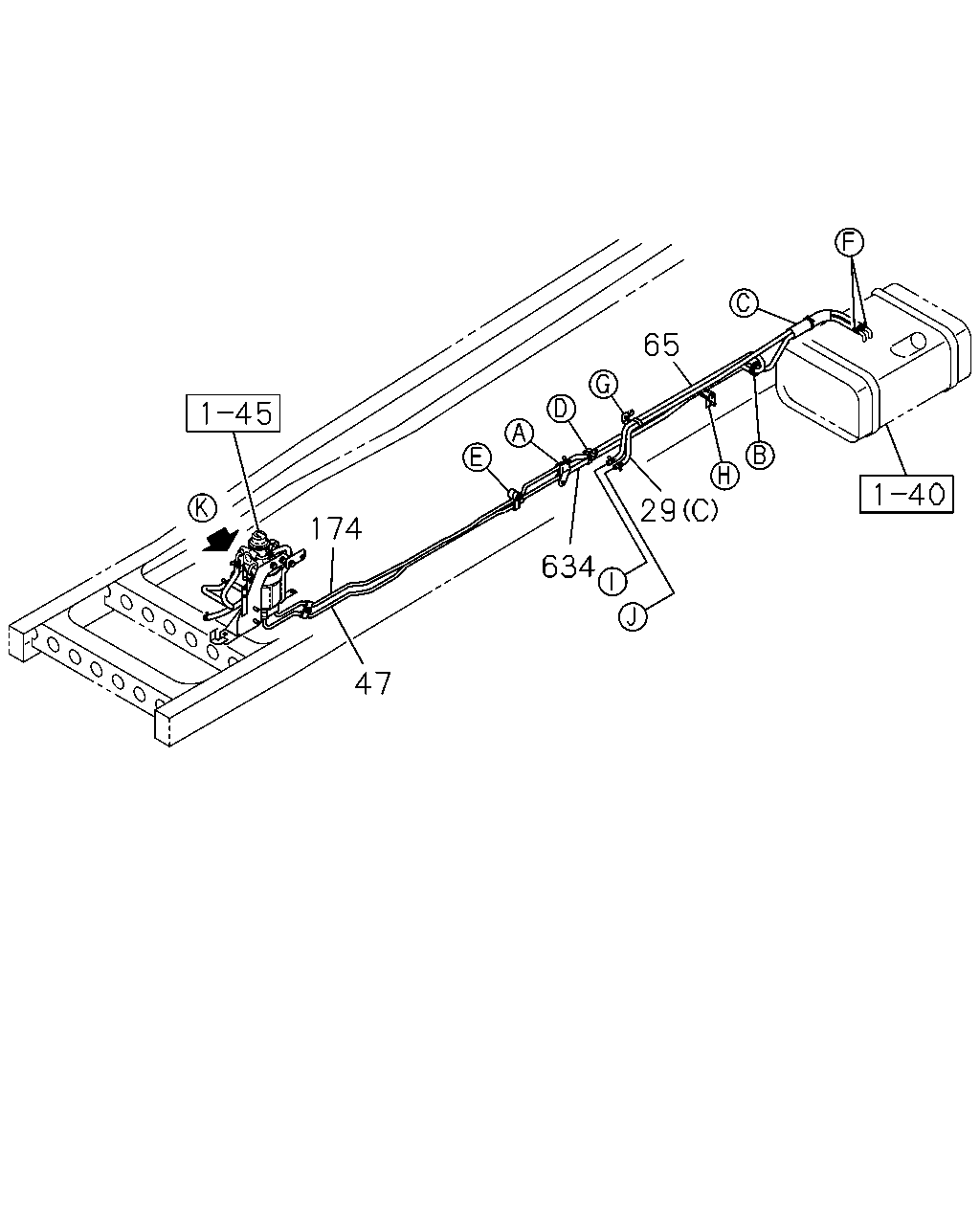

çizim 426517
174 47 634 29 65
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (A) 		8-98329-937-0 01 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (C) 		8-98330-199-0 01 1 1512-
29 HOSE; FUEL
(C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1406-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1406-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (A) ID=9.3 		8-98239-029-0 01 1 1512-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1406-
47 PIPE; FUEL,RETURN
L=1619 		8-98239-080-0 01 1 1406-
65 HOSE; FUEL,DELIVERY PIPE
BIO DIESEL FUEL B10<8NV> L=1450 		8-98330-200-0 01 1 1512-
65 HOSE; FUEL,DELIVERY PIPE
L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 1406-1511
65 HOSE; FUEL,DELIVERY PIPE
EXC. BIO DIESEL FUEL B10<8NV> L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
174 PIPE; FUEL,FEED,FRT
L=1488 		8-98239-079-0 01 1 1406-
634 HOSE; RUBBER RETURN
L=1000 SERVICED BY L=3000 		0-01558-300-0 01 1 1406-
