0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#141045) — 57 parça

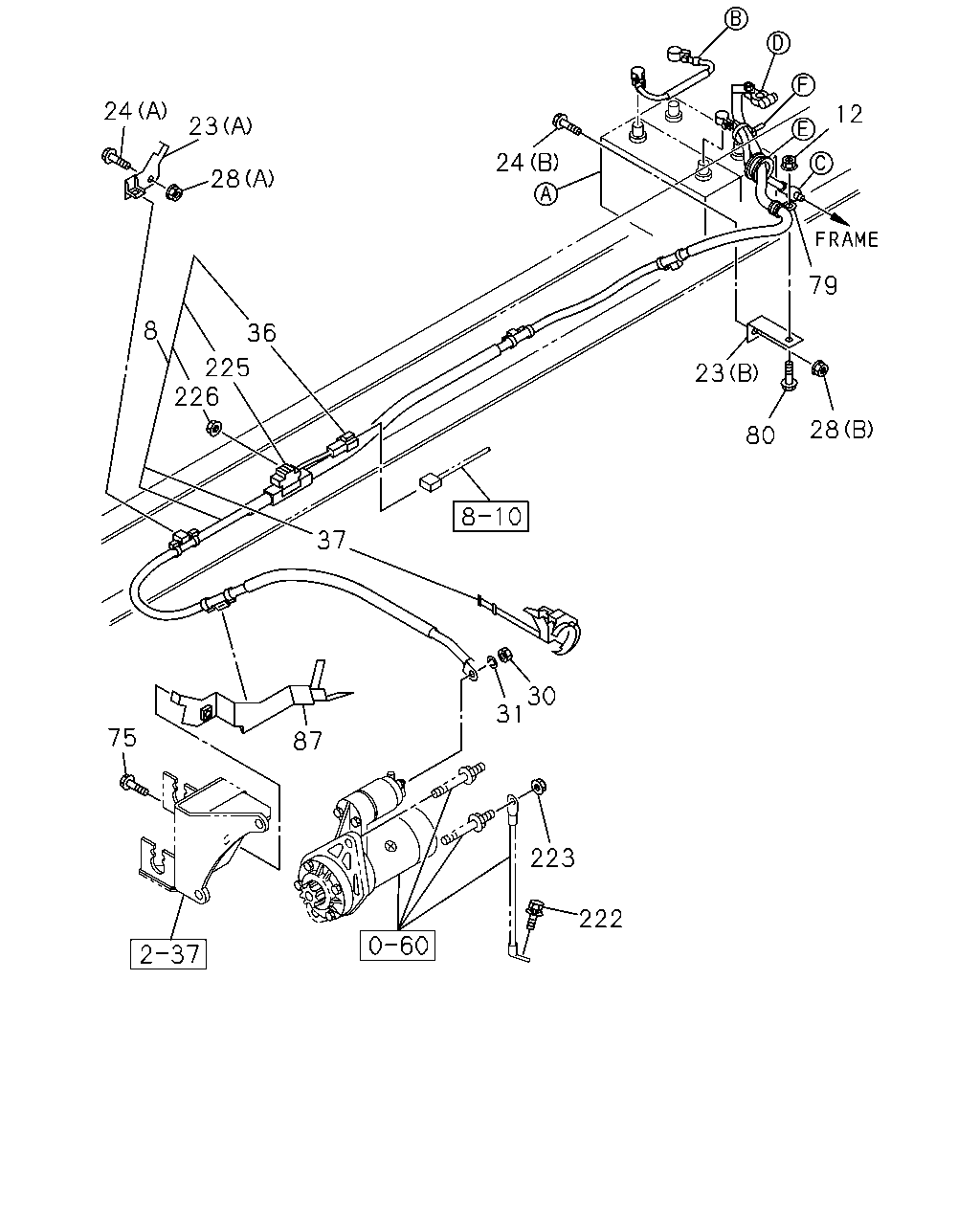

çizim 426152
24 23 28 8 36 225 226 37 87 75 30 31 223 222 28 80 23 24 12 79
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98212-432-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98295-640-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-430-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-638-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-431-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98295-639-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-429-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-637-0 01 1 1503-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1406-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=62 		1-21464-170-2 01 1 1406-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 1406-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98047-277-1 01 1 1406-
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1406-
24 BOLT; BRKT TO FRAME
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1406-
28 NUT; BRKT TO FRAME
(B) M8 FLANGE MAL 		0-91180-108-0 02 1 1406-
28 NUT; BRKT TO FRAME
(A) M10 FLANGE MAL 		0-91180-210-0 01 1 1406-
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1406-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1406-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1406-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
37 CAP; TERMINAL,BATTERY CABLE
MAL 		8-98042-507-0 01 1 1406-
75 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1406-
79 CLIP; BATTERY CABLE
ID=21 L=30 H=40 		1-09700-991-1 01 1 1406-
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1406-
87 BRACKET; HARNESS
ASSISTOR SHIFT CONTROL<WX8> 		8-98053-927-1 01 1 1406-
87 BRACKET; HARNESS
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98184-324-0 01 1 1406-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1406-
223 NUT; EARTH CABLE
M10 FLANGE MAL 		0-91180-210-0 01 1 1406-
225 BLOCK; TERMINAL
MAL 		8-98029-689-0 01 1 1406-1502
225 BLOCK; TERMINAL
MAL 		8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1406-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-

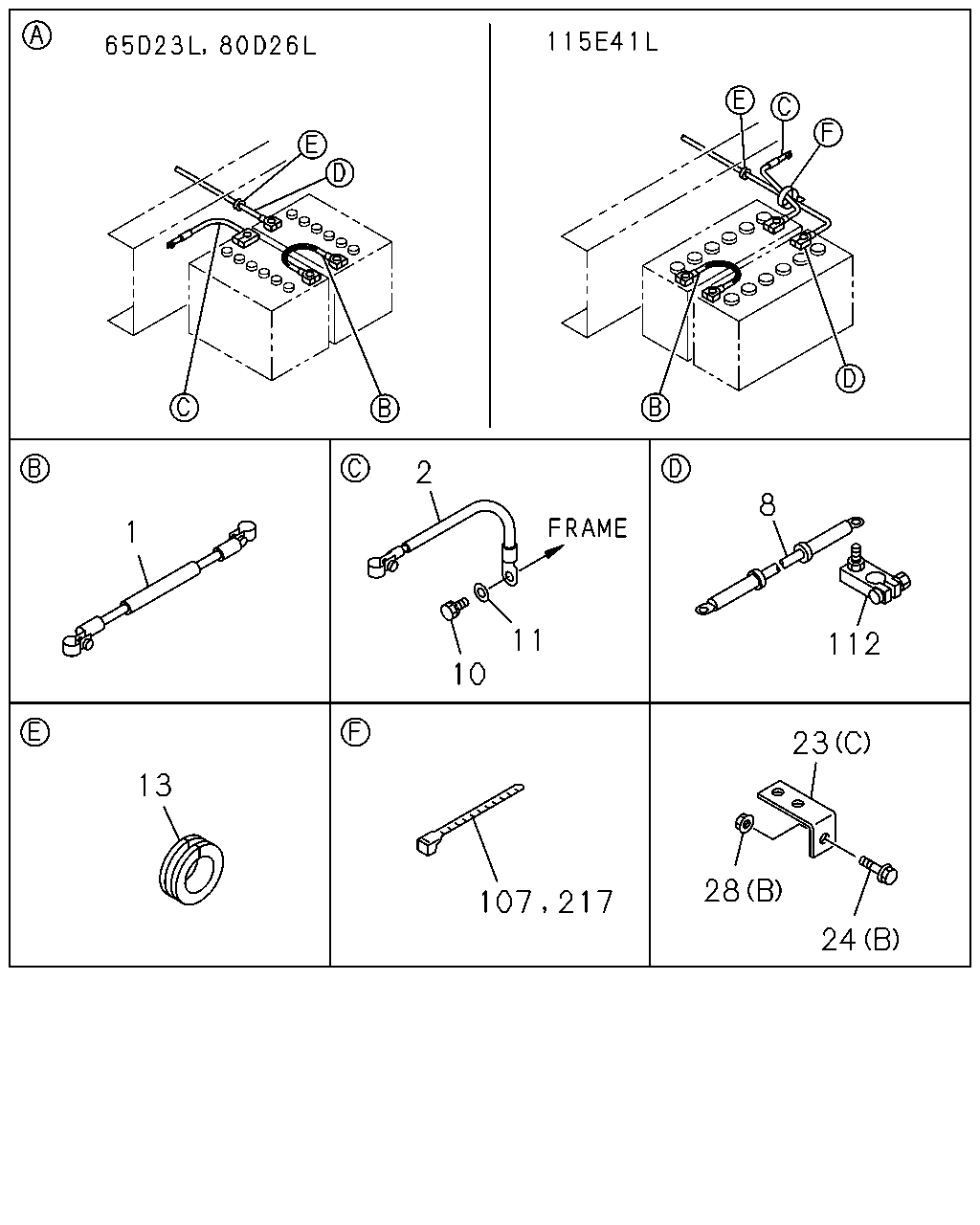

çizim 426154
2 11 10 112 23 28 24 217 107 13 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 MAL 		8-98025-412-3 01 1 1406-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1406-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		1-82650-403-1 01 1 1406-
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98212-432-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> 		8-98295-640-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-430-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-638-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98212-431-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> 		8-98295-639-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98212-429-0 01 1 1406-1502
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98295-637-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1406-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1406-
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1406-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=62 		1-21464-170-2 01 1 1406-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 1406-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98047-277-1 01 1 1406-
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1406-
24 BOLT; BRKT TO FRAME
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1406-
28 NUT; BRKT TO FRAME
(B) M8 FLANGE MAL 		0-91180-108-0 02 1 1406-
28 NUT; BRKT TO FRAME
(A) M10 FLANGE MAL 		0-91180-210-0 01 1 1406-
107 CLIP; BAND
L=140 MAL 		5-09707-031-1 01 1 1406-
112 TERMINAL; BATTERY
<+> MAL 		8-97365-771-0 01 1 1406-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
L=250 		5-09707-030-1 01 1 1406-
