0-32 — WATER PIPING; ENGINE (#141032) — 17 parça

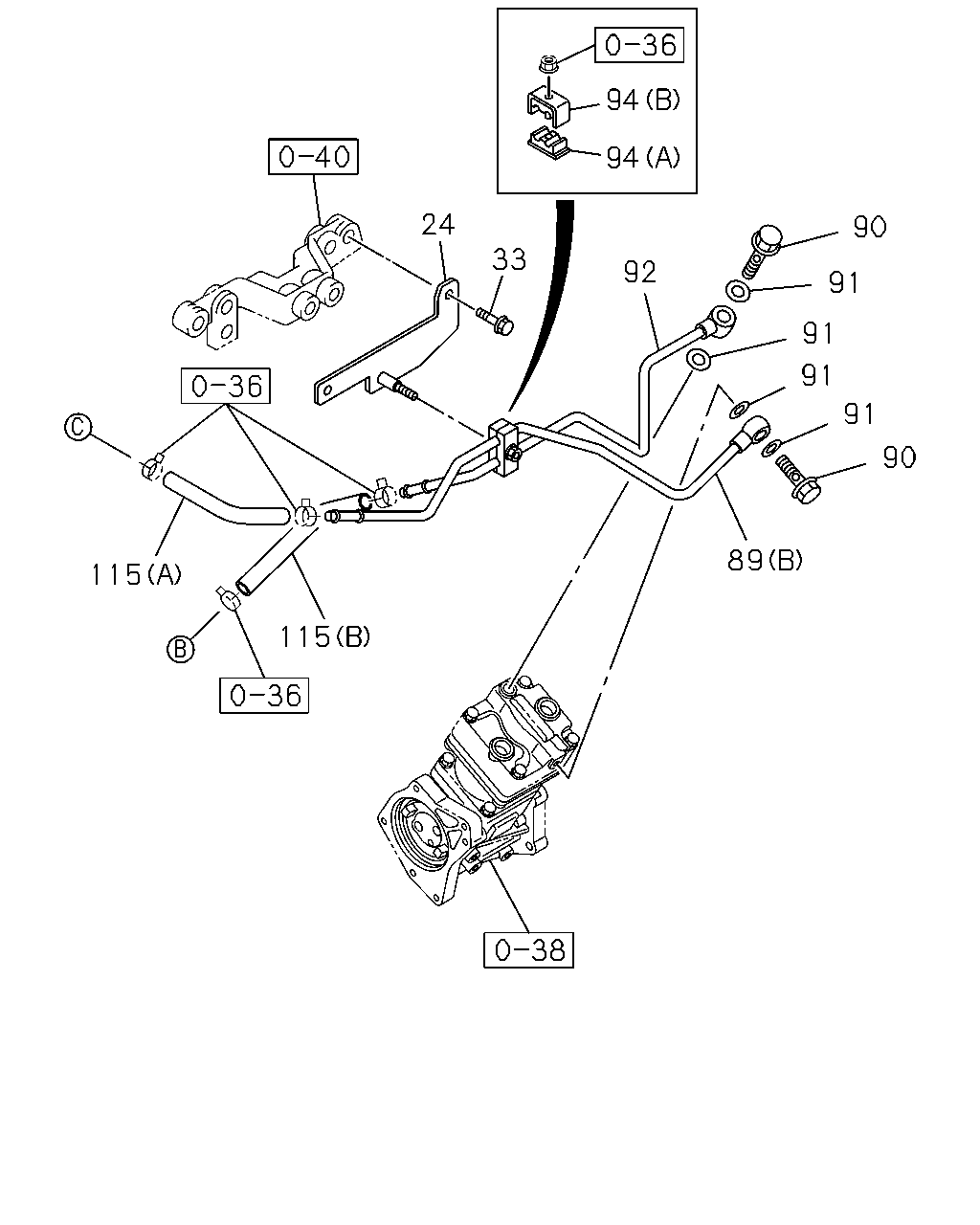

90 91 91 91 91 90 89 92 94 94 24 33 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE	8-97379-140-0	01	1	1406-
33	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	02	1	1406-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1406-
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1406-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	1406-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1406-
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1406-
94	CLIP; WATER PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1406-
94	CLIP; WATER PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1406-
115	HOSE; RUBBER (A)	8-98009-361-0	01	1	1406-
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1406-

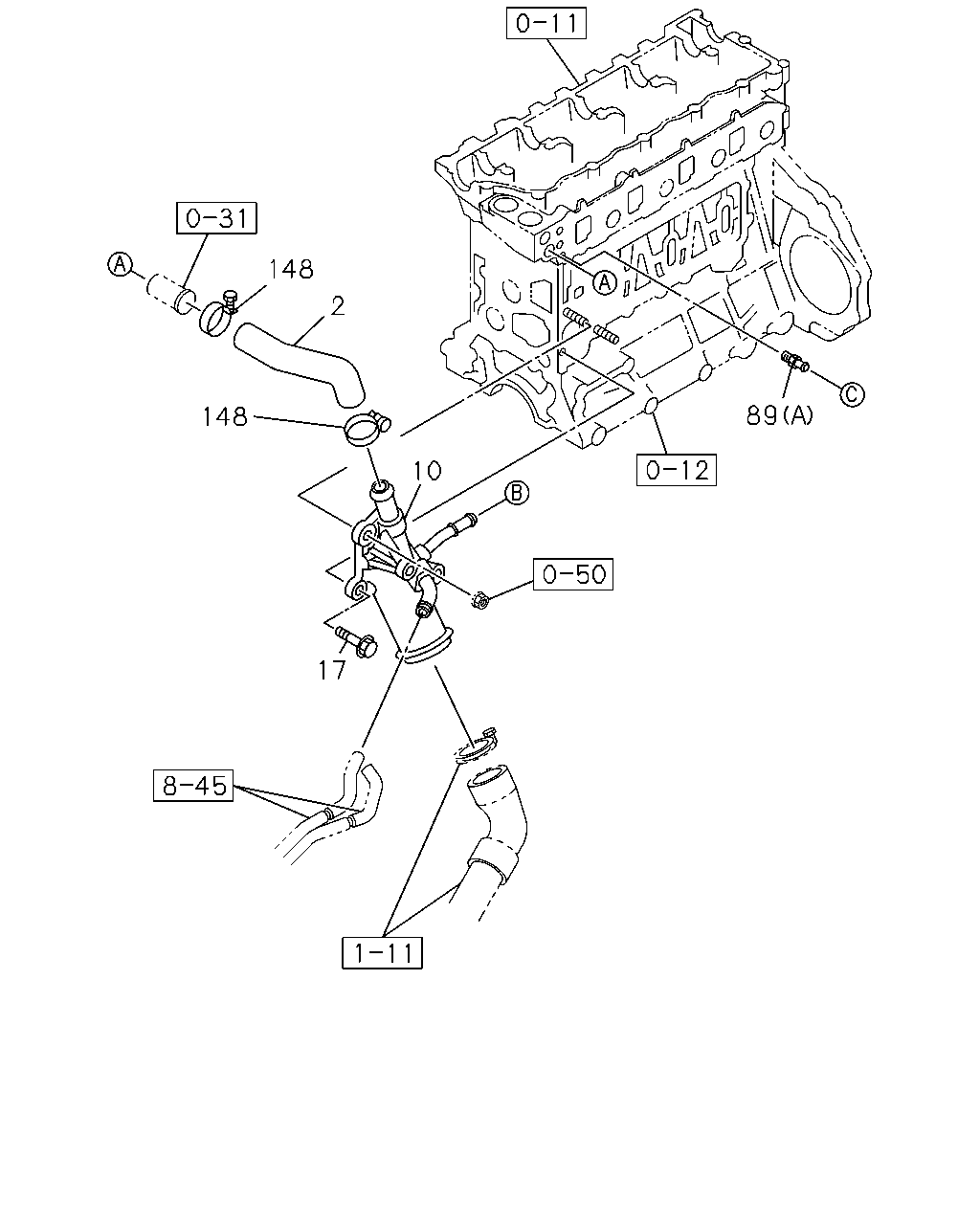

148 2 10 148 17 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1406-
10	PIPE; SUCTION	8-98166-995-0	01	1	1406-
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1406-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1406-
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1406-
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1406-
