◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11113 - CXY AUST EURO5/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#14103) — 401 parça

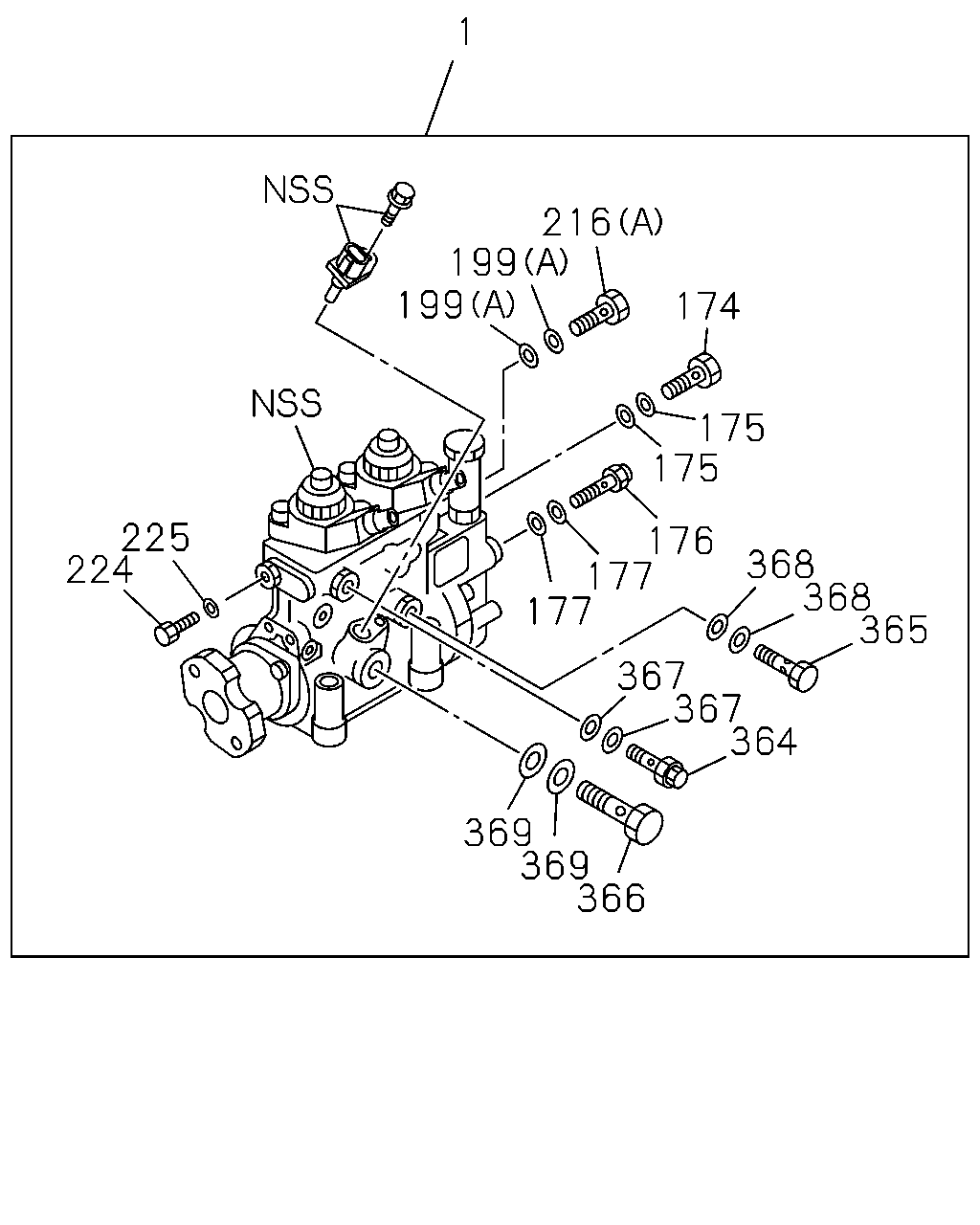

çizim 141982
1 216 199 199 174 175 175 225 224 176 177 177 368 368 365 367 367 364 369 369 366
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-98167-763-0 01 1 1108- ●
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710- ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0710-1107 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1108- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 0710-1107 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-507-0 02 1 1108- ● ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 0710-1107 ●
176 BOLT; EYE,FEED PUMP 1-15619-509-0 01 1 1108- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0710-1107 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1108- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1108- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1107 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1108- ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0710-1107 ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 1108- ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 0710-1107 ●
225 GASKET; PLUG 1-15619-502-0 01 1 1108- ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-1107 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1108- ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0710-1107 ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 1108- ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0710-1107 ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 1108- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-1107 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1108- ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 0710-1107 ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-508-0 02 1 1108- ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0710-1107 ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 1108- ● ●

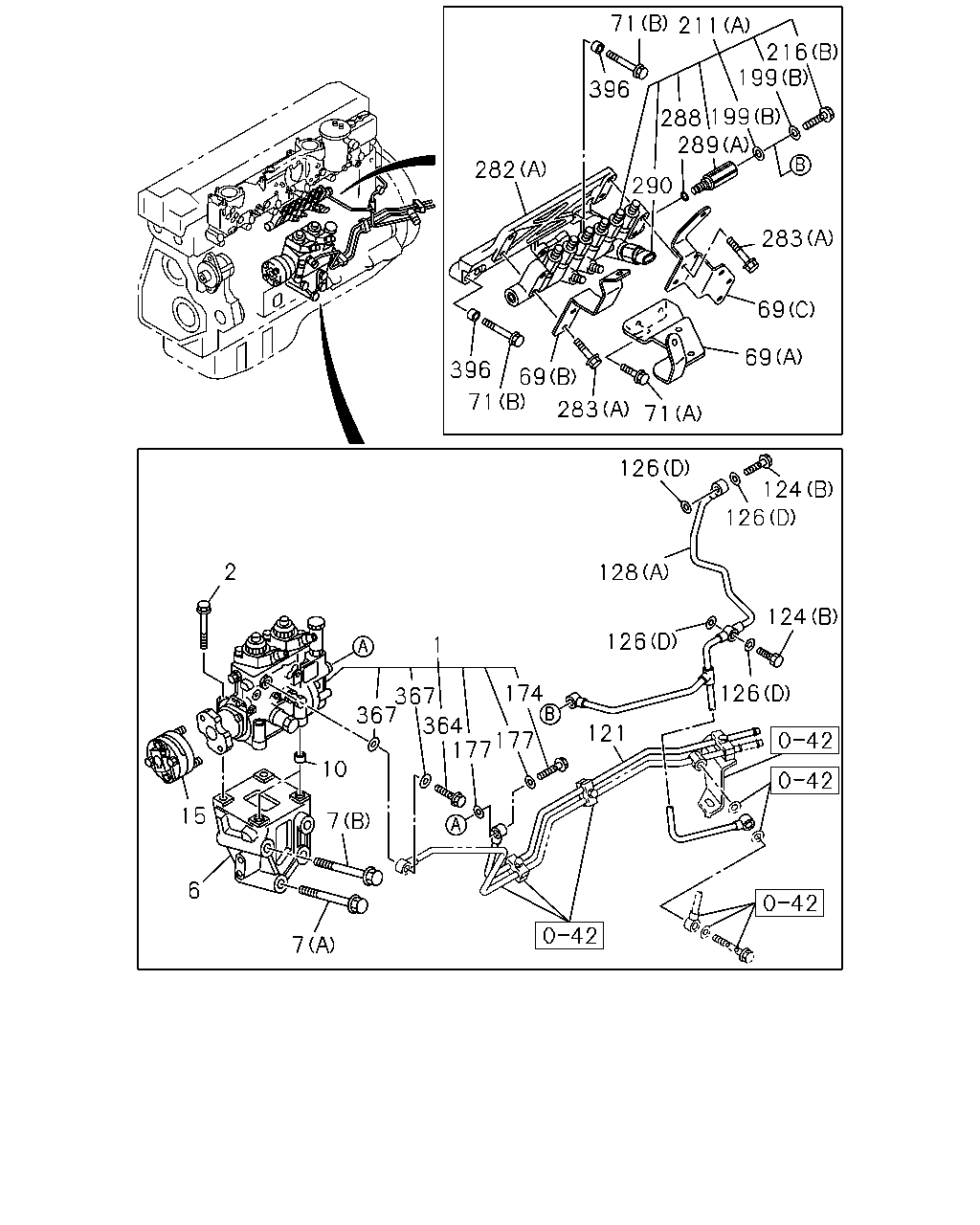

çizim 141983
71 211 216 199 396 199 288 289 282 290 283 69 69 396 69 71 283 71 126 124 126 2 128 124 126 1 174 126 367 367 15 364 177 177 121 10 7 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-98167-763-0 01 1 1108- ●
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710- ●
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 0710-1107 ●
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 1108- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97611-140-1 01 1 0710-1001 ●
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1002-1107 ●
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1108- ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0710-1107 ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 1108- ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0710-1107 ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 1108- ● ●
10 DOWEL; INJ PUMP
OD=14 L=10 		9-11319-065-3 02 1 0710-1001 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1002-1107 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1108- ● ●
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 0710-1107 ●
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 1108- ● ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-98098-854-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(F) 		8-98119-361-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98167-672-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97605-219-0 01 1 0710- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-97613-974-0 01 1 0710- ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-97613-988-0 01 1 0710- ●
71 BOLT; BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1108- ●
71 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●
71 BOLT; BRKT
(E) M10X20 FLANGE 		0-28151-020-0 02 1 1108- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1108- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97629-193-0 01 1 1108- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-908-1 01 1 0710- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1108-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1108- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1108-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1108- ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1108- ● ●
128 PIPE ASM; INJ
(B) 		8-98162-864-0 01 1 1108- ●
128 PIPE ASM; INJ
(A) 		8-97603-638-0 01 1 0710-1205 ●
128 PIPE ASM; INJ
(C) 		8-98218-280-0 01 1 1206- ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0710-1107 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1108- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0710-1107 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1108- ● ●
211 RAIL ASM; COMMON
(B) 		8-97622-718-1 01 1 1108-1501 ●
211 RAIL ASM; COMMON
(B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1108- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1107 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1108- ●
282 BRACKET; COMMON RAIL
(B) 		8-98098-852-0 01 1 1108- ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-122-2 01 1 0710- ●
283 BOLT; COMMON RAIL
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1108- ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 0710- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710- ●
289 LIMITER; FUEL PRESS
(B) 		8-98097-606-0 01 1 1108- ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 0710- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 1108- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-1102 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-1107 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1108- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-1107 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1108- ● ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0710-1107 ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 1108- ● ●

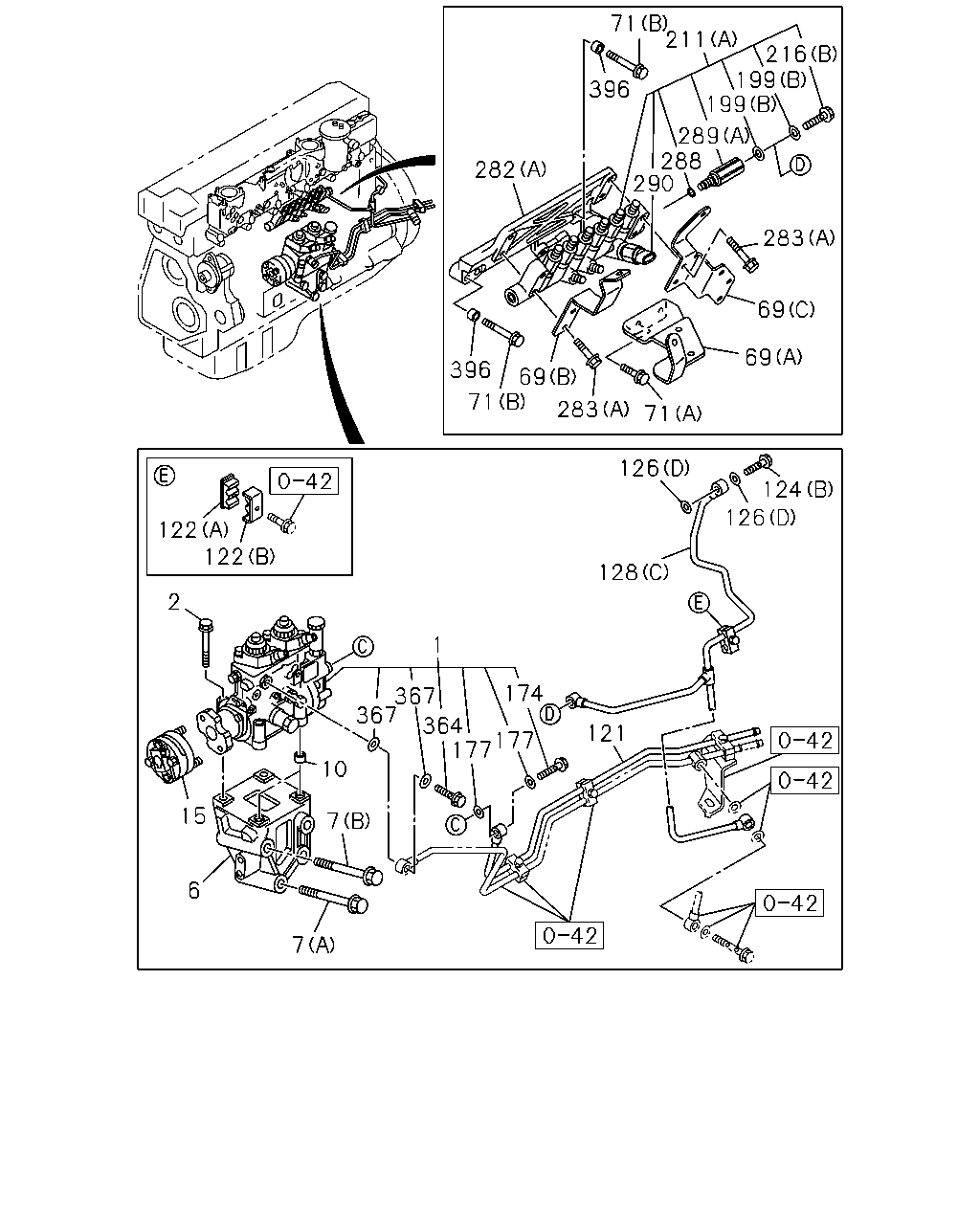

çizim 141984
211 216 199 199 289 288 290 283 69 69 71 283 69 71 396 282 126 128 126 124 121 174 177 177 364 367 1 367 10 7 7 6 15 2 122 122 396 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-98167-763-0 01 1 1108- ●
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710- ●
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 0710-1107 ●
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 1108- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97611-140-1 01 1 0710-1001 ●
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1002-1107 ●
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1108- ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0710-1107 ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 1108- ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0710-1107 ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 1108- ● ●
10 DOWEL; INJ PUMP
OD=14 L=10 		9-11319-065-3 02 1 0710-1001 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1002-1107 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1108- ● ●
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 0710-1107 ●
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 1108- ● ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-98098-854-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(F) 		8-98119-361-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98167-672-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97605-219-0 01 1 0710- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-97613-974-0 01 1 0710- ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-97613-988-0 01 1 0710- ●
71 BOLT; BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1108- ●
71 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●
71 BOLT; BRKT
(E) M10X20 FLANGE 		0-28151-020-0 02 1 1108- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1108- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97629-193-0 01 1 1108- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-908-1 01 1 0710- ●
122 CLIP; LEAK OFF PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 01 1 1206- ●
122 CLIP; LEAK OFF PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 01 1 1206- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1108-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1108- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1108-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1108- ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1108- ● ●
128 PIPE ASM; INJ
(B) 		8-98162-864-0 01 1 1108- ●
128 PIPE ASM; INJ
(A) 		8-97603-638-0 01 1 0710-1205 ●
128 PIPE ASM; INJ
(C) 		8-98218-280-0 01 1 1206- ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0710-1107 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1108- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0710-1107 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1108- ● ●
211 RAIL ASM; COMMON
(B) 		8-97622-718-1 01 1 1108-1501 ●
211 RAIL ASM; COMMON
(B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1108- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1107 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1108- ●
282 BRACKET; COMMON RAIL
(B) 		8-98098-852-0 01 1 1108- ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-122-2 01 1 0710- ●
283 BOLT; COMMON RAIL
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1108- ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 0710- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0710- ●
289 LIMITER; FUEL PRESS
(B) 		8-98097-606-0 01 1 1108- ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 0710- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 1108- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-1102 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-1107 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1108- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-1107 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1108- ● ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0710-1107 ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 1108- ● ●

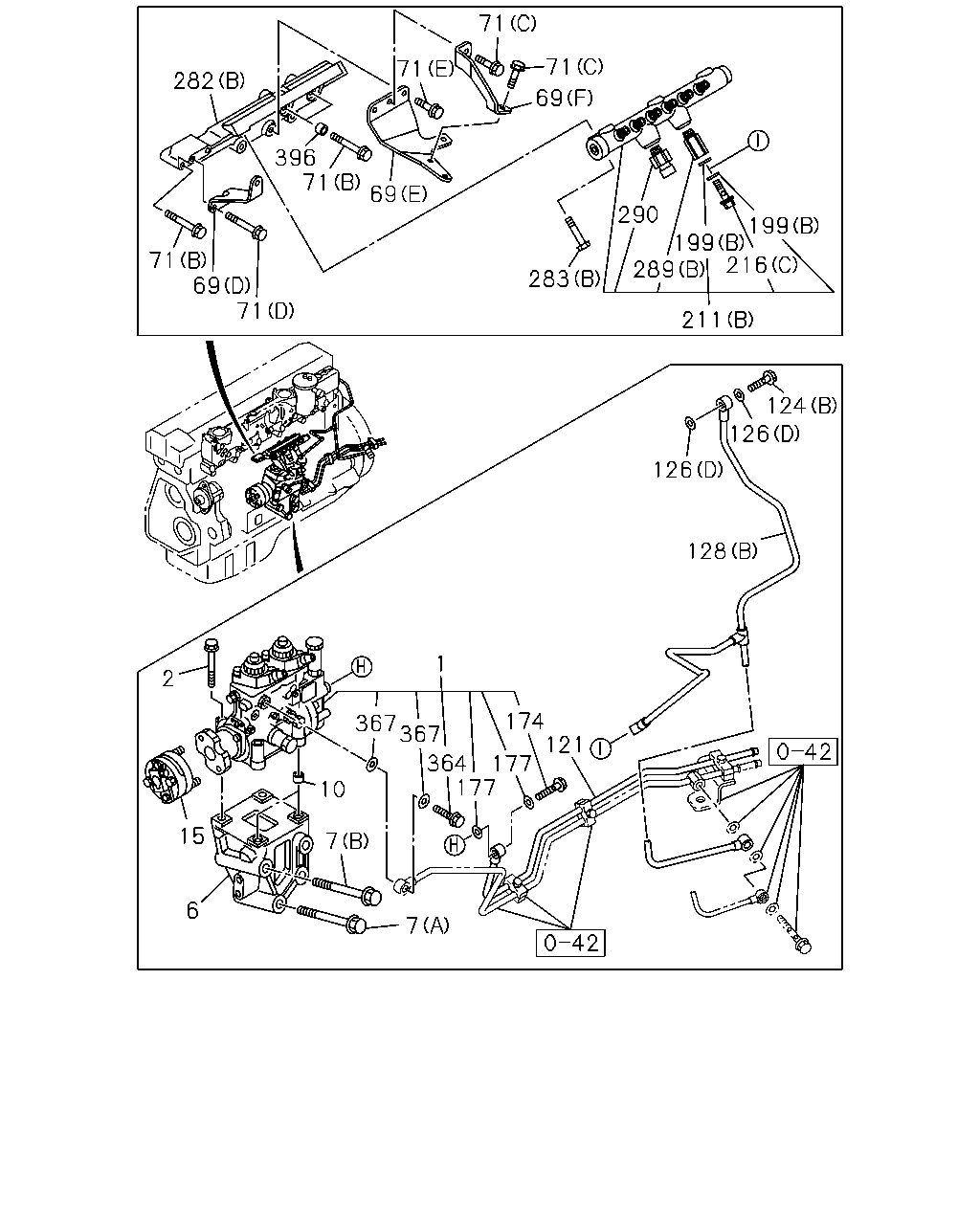

çizim 142262
7 6 15 7 10 177 364 367 367 1 174 121 177 128 126 126 124 211 289 199 199 216 283 290 69 71 71 71 69 71 396 282 71 69 71 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-98167-763-0 01 1 1108- ●
1 PUMP ASM; INJ 1-15603-515-3 01 1 0710- ●
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 0710-1107 ●
2 BOLT; INJ PUMP
M10X100 FLANGE 		0-28151-000-0 04 1 1108- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97611-140-1 01 1 0710-1001 ●
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1002-1107 ●
6 BRACKET; INJ PUMP TO C/BL 8-98147-419-0 01 1 1108- ● ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 0710-1107 ●
7 BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE 		0-28951-490-0 02 1 1108- ● ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 0710-1107 ●
7 BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE 		0-28956-412-0 02 1 1108- ● ●
10 DOWEL; INJ PUMP
OD=14 L=10 		9-11319-065-3 02 1 0710-1001 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1002-1107 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 1108- ● ●
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 0710-1107 ●
15 COUPLING ASM; INJ PUMP 8-97610-800-0 01 1 1108- ● ●
69 BRACKET; INJ PIPE CLIP
(E) 		8-98098-854-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(F) 		8-98119-361-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98167-672-0 01 1 1108- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-97605-219-0 01 1 0710- ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-97613-974-0 01 1 0710- ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-97613-988-0 01 1 0710- ●
71 BOLT; BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1108- ●
71 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●
71 BOLT; BRKT
(E) M10X20 FLANGE 		0-28151-020-0 02 1 1108- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 1108- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 02 1 0710- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97629-193-0 01 1 1108- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-908-1 01 1 0710- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1108-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1108- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1108-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1108- ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1108- ● ●
128 PIPE ASM; INJ
(B) 		8-98162-864-0 01 1 1108- ●
128 PIPE ASM; INJ
(A) 		8-97603-638-0 01 1 0710-1205 ●
128 PIPE ASM; INJ
(C) 		8-98218-280-0 01 1 1206- ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 0710-1107 ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 5-15759-003-0 01 1 1108- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 0710-1107 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-507-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 1108- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0710-1107 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1108- ● ●
211 RAIL ASM; COMMON
(B) 		8-97622-718-1 01 1 1108-1501 ●
211 RAIL ASM; COMMON
(B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1108- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0710- ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0710-1107 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1108- ●
282 BRACKET; COMMON RAIL
(B) 		8-98098-852-0 01 1 1108- ●
282 BRACKET; COMMON RAIL
(A) 		8-97603-122-2 01 1 0710- ●
283 BOLT; COMMON RAIL
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1108- ●
283 BOLT; COMMON RAIL
(A) M10X40 FLANGE 		0-28151-040-0 04 1 0710- ●
289 LIMITER; FUEL PRESS
(B) 		8-98097-606-0 01 1 1108- ●
289 LIMITER; FUEL PRESS
(A) 		8-98032-283-0 01 1 0710- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 1108- ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0710-1102 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1103- ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0710-1107 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 1108- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0710-1107 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 1108- ● ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 0710-1107 ●
396 DOWEL; RAIL ASM 1-13119-004-0 02 1 1108- ● ●

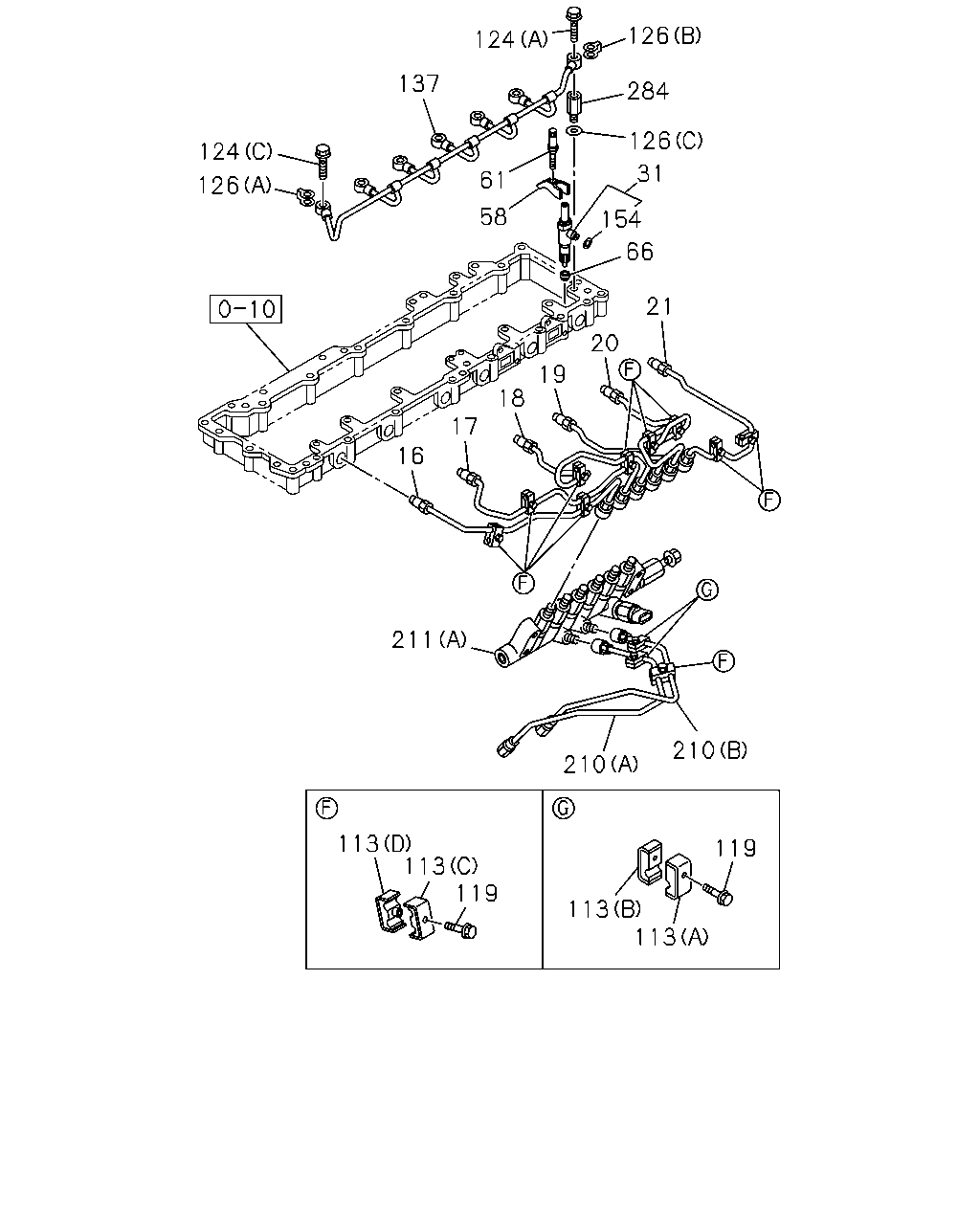

çizim 142305
126 284 126 31 154 21 66 20 19 18 17 16 211 210 210 119 113 113 119 113 113 126 124 137 124 61 58
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 8-97628-190-1 01 1 1108- ●
16 PIPE; INJ NO.1 1-15416-842-2 01 1 0710- ●
17 PIPE; INJ NO.2 8-97628-191-1 01 1 1108- ●
17 PIPE; INJ NO.2 1-15416-843-3 01 1 0710- ●
18 PIPE; INJ NO.3 8-97628-192-1 01 1 1108- ●
18 PIPE; INJ NO.3 1-15416-844-2 01 1 0710- ●
19 PIPE; INJ NO.4 8-97628-193-1 01 1 1108- ●
19 PIPE; INJ NO.4 1-15416-845-2 01 1 0710- ●
20 PIPE; INJ NO.5 8-97628-194-1 01 1 1108- ●
20 PIPE; INJ NO.5 1-15416-846-3 01 1 0710- ●
21 PIPE; INJ NO.6 8-97628-195-1 01 1 1108- ●
21 PIPE; INJ NO.6 1-15416-847-2 01 1 0710- ●
31 NOZZLE ASM; INJ 8-98139-816-3 06 1 1108- ●
31 NOZZLE ASM; INJ 8-97603-415-7 06 1 0710- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 0710-1107 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 1108- ● ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0710-1107 ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 1108- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 0710-1107 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 1108- ● ●
113 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 12 1 1108- ●
113 CLIP; INJ PIPE
(D) ID=7 & 7 L=22 		8-97330-119-3 12 1 1108- ●
113 CLIP; INJ PIPE
(B) 		1-09701-269-0 02 1 0710- ●
113 CLIP; INJ PIPE
(A) 		8-94396-371-0 02 1 0710- ●
113 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 13 1 0710- ●
113 CLIP; INJ PIPE
(D) ID=7 & 7 L=22 		8-97330-119-3 13 1 0710- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 12 1 1108- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 15 1 0710- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1108-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1108- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1108-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1108- ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1108- ● ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 0710-1107 ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 1108- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0710-1106 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-1107 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1108- ● ●
210 PIPE; INJ,C/R
(C) 		8-97628-196-0 01 1 1108- ●
210 PIPE; INJ,C/R
(D) 		8-97628-197-0 01 1 1108- ●
210 PIPE; INJ,C/R
(A) 		8-97610-904-1 01 1 0710- ●
210 PIPE; INJ,C/R
(B) 		8-97610-905-1 01 1 0710- ●
211 RAIL ASM; COMMON
(B) 		8-97622-718-1 01 1 1108-1501 ●
211 RAIL ASM; COMMON
(B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0710- ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0710-1107 ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 1108- ● ●

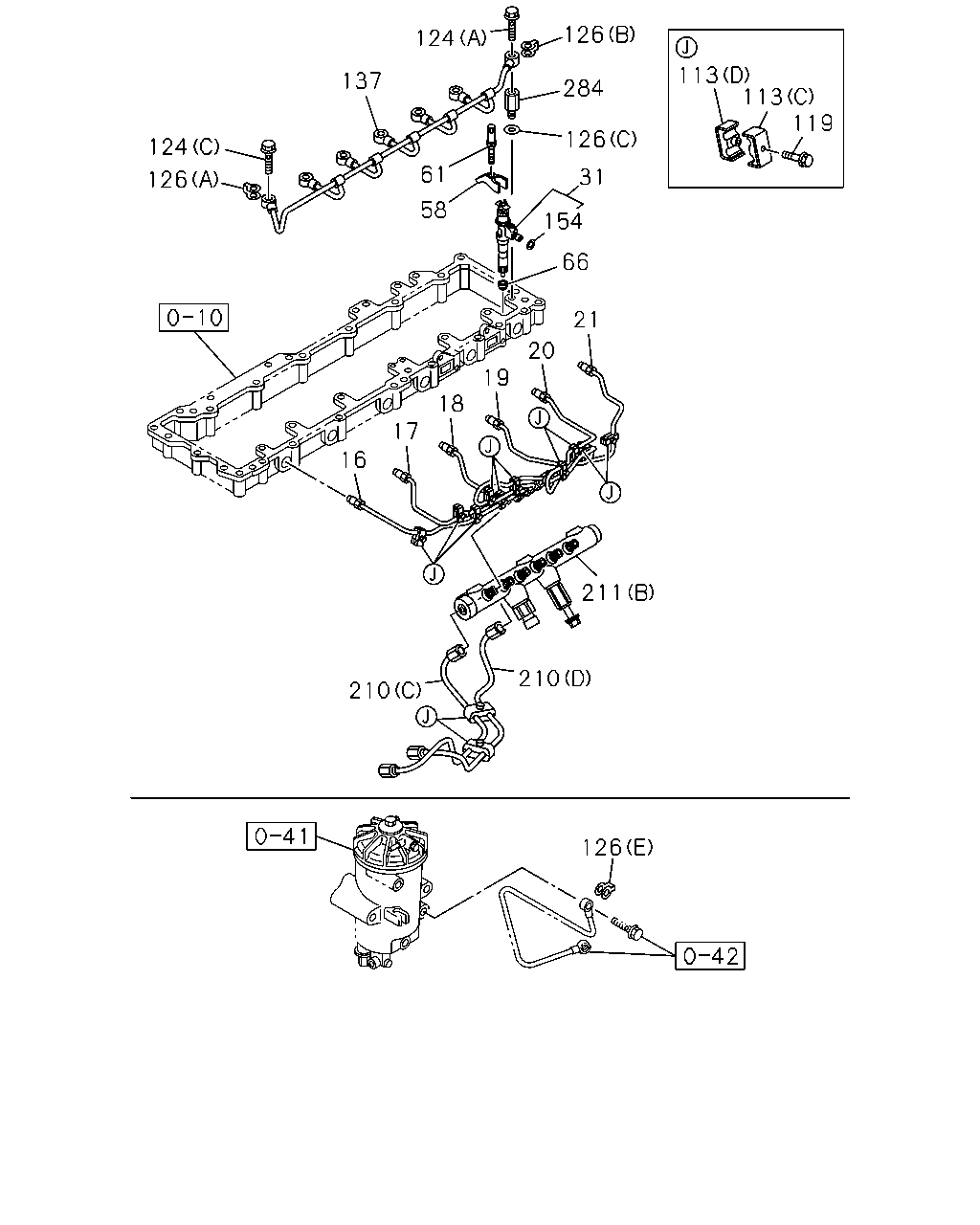

çizim 319042
126 210 210 211 16 17 18 19 20 21 66 154 31 126 284 126 124 137 61 126 124 58 113 113 119
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 8-97628-190-1 01 1 1108- ●
16 PIPE; INJ NO.1 1-15416-842-2 01 1 0710- ●
17 PIPE; INJ NO.2 8-97628-191-1 01 1 1108- ●
17 PIPE; INJ NO.2 1-15416-843-3 01 1 0710- ●
18 PIPE; INJ NO.3 8-97628-192-1 01 1 1108- ●
18 PIPE; INJ NO.3 1-15416-844-2 01 1 0710- ●
19 PIPE; INJ NO.4 8-97628-193-1 01 1 1108- ●
19 PIPE; INJ NO.4 1-15416-845-2 01 1 0710- ●
20 PIPE; INJ NO.5 8-97628-194-1 01 1 1108- ●
20 PIPE; INJ NO.5 1-15416-846-3 01 1 0710- ●
21 PIPE; INJ NO.6 8-97628-195-1 01 1 1108- ●
21 PIPE; INJ NO.6 1-15416-847-2 01 1 0710- ●
31 NOZZLE ASM; INJ 8-98139-816-3 06 1 1108- ●
31 NOZZLE ASM; INJ 8-97603-415-7 06 1 0710- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 0710-1107 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97603-469-0 06 1 1108- ● ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 0710-1107 ●
61 BOLT; CLAMP NOZZLE HOLDER 1-09070-121-0 06 1 1108- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 0710-1107 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10 		8-97216-082-0 06 1 1108- ● ●
113 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 12 1 1108- ●
113 CLIP; INJ PIPE
(D) ID=7 & 7 L=22 		8-97330-119-3 12 1 1108- ●
113 CLIP; INJ PIPE
(B) 		1-09701-269-0 02 1 0710- ●
113 CLIP; INJ PIPE
(A) 		8-94396-371-0 02 1 0710- ●
113 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 13 1 0710- ●
113 CLIP; INJ PIPE
(D) ID=7 & 7 L=22 		8-97330-119-3 13 1 0710- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 12 1 1108- ●
119 BOLT; CLIP,INJ PIPE
M6X30 FLANGE 		0-28050-630-0 15 1 0710- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1108-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 1206- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0710-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1108- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0710-1205 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 FLANGE 		1-09675-160-0 01 1 0710-0805 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-1107 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1108-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 02 1 1206- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=14.2 OD=21 		8-97251-047-0 01 1 1108- ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=14.2 OD=25 		1-09630-141-0 04 1 0710-1205 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=20 		8-98065-990-0 01 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1108- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 0710-1107 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.6 		8-98065-993-0 01 1 1108- ● ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 0710-1107 ●
137 PIPE ASM; LEAK OFF 8-97617-161-0 01 1 1108- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0710-1106 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-1107 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1108- ● ●
210 PIPE; INJ,C/R
(C) 		8-97628-196-0 01 1 1108- ●
210 PIPE; INJ,C/R
(D) 		8-97628-197-0 01 1 1108- ●
210 PIPE; INJ,C/R
(A) 		8-97610-904-1 01 1 0710- ●
210 PIPE; INJ,C/R
(B) 		8-97610-905-1 01 1 0710- ●
211 RAIL ASM; COMMON
(B) 		8-97622-718-1 01 1 1108-1501 ●
211 RAIL ASM; COMMON
(B) 		8-98299-773-0 01 1 1502- ●
211 RAIL ASM; COMMON
(A) 		8-97603-121-2 01 1 0710- ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 0710-1107 ●
284 ADAPTER; FUEL LEAK OFF 1-15419-525-2 01 1 1108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
