0-39 — AIR COMPRESSOR; BRAKE (#14102) — 121 parça

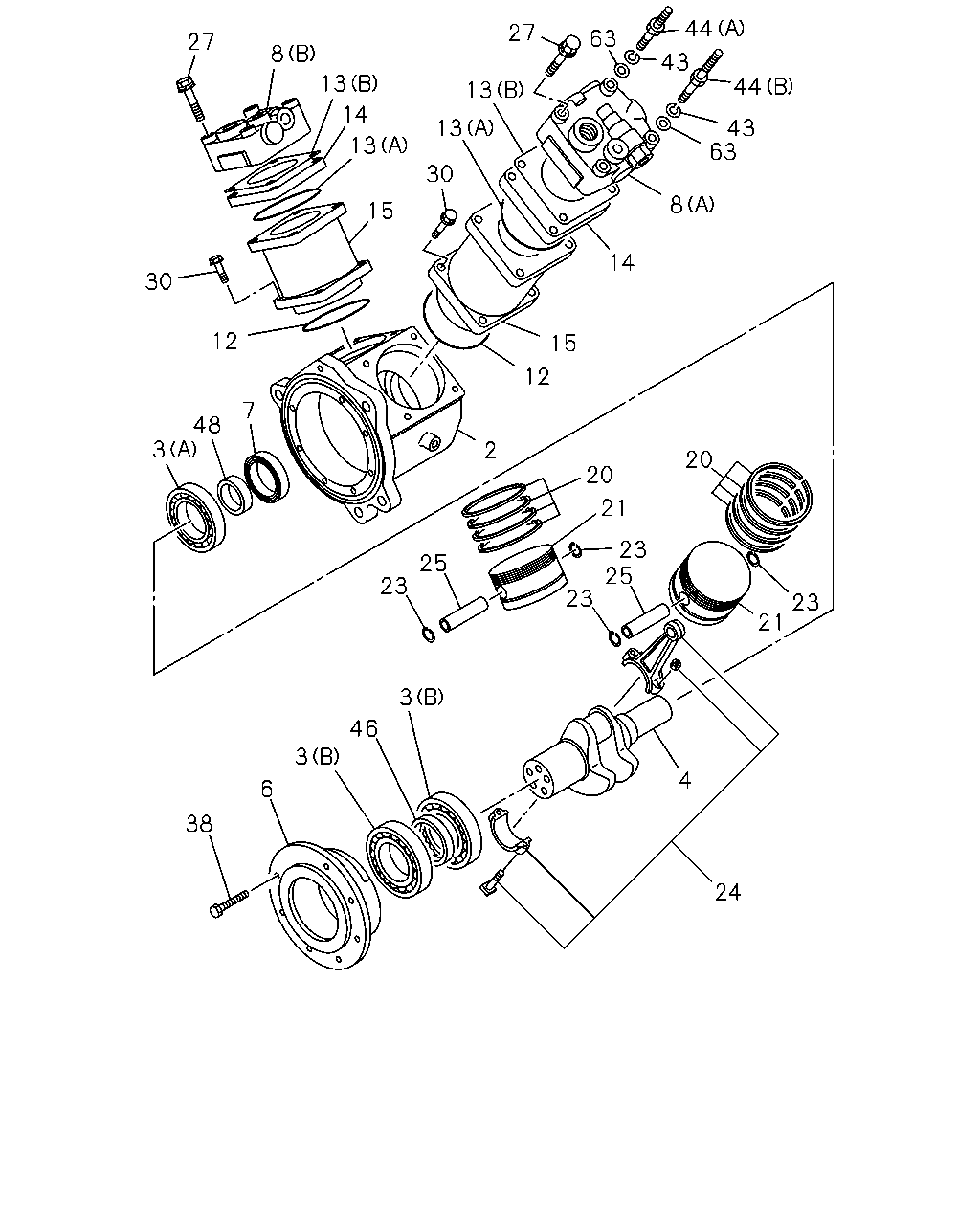

çizim 141979
44 27 63 27 8 43 13 44 13 14 13 43 63 13 30 8 15 14 30 12 15 12 7 48 3 2 20 20 21 23 25 25 23 23 23 21 3 46 3 4 6 38 24
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 0710-1107 ●
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 1108- ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 0710-1107 ●
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 1108- ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 0710-1107 ●
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 1108-1406 ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-088-0 01 1 0710-1107 ●
4 CRANKSHAFT; AIR CMPR 1-19171-088-0 01 1 1108-1406 ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 0710-1107 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 1108- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0710-1107 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 0710-1107 ●
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 0710-1107 ●
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 1108- ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 0710-1107 ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 1108-1112 ● ●
12 GASKET; AIR CMPR 8-98192-459-0 02 1 1201- ● ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 02 1 0710-1107 ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 02 1 1108-1112 ● ●
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 02 1 1201- ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 0710-1107 ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 1108- ● ●
14 PLATE; AIR CMPR 1-19130-008-0 02 1 0710-1107 ●
14 PLATE; AIR CMPR 1-19130-008-0 02 1 1108-1204 ● ●
14 PLATE; AIR CMPR 8-98208-785-0 02 1 1205- ● ●
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 0710-1107 ●
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 1108- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 0710-1107 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 1108- ● ●
21 PISTON; AIR CMPR 1-19161-026-0 02 1 0710-1107 ●
21 PISTON; AIR CMPR 1-19161-026-0 02 1 1108- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 0710-1012 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1101-1107 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1108- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 0710-1107 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 1108- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 0710-1107 ●
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 1108- ● ●
27 BOLT; HD
M10X80 		1-19119-024-0 06 1 0710-1012 ●
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1101-1107 ●
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1108- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 0710-1107 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 1108- ● ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 0710-1107 ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 1108- ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 0710-1107 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 1108- ● ●
44 STUD; CYL HD,AIR CMPR
(A) 		1-19119-025-0 01 1 0710-0808 ●
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 0809-1107 ●
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 1108- ● ●
44 STUD; CYL HD,AIR CMPR
(B) 		1-19119-038-0 01 1 0710-0808 ●
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 0809-1107 ●
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 1108- ● ●
46 SPACER; BRG 1-19179-016-0 01 1 0710-1107 ●
46 SPACER; BRG 1-19179-016-0 01 1 1108- ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 0710-1107 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 1108- ● ●
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 0710-1107 ●
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 1108- ● ●

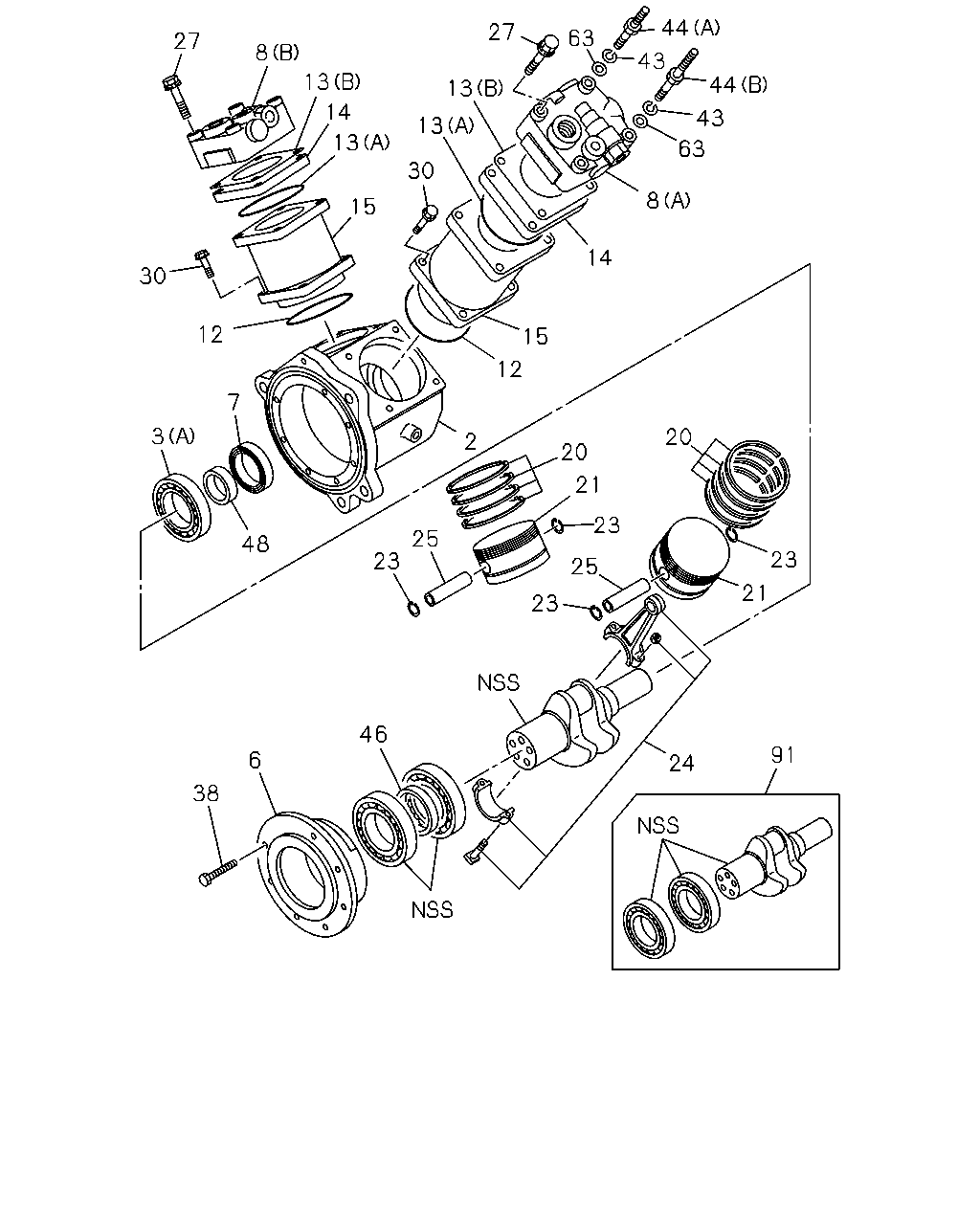

çizim 448557
27 44 43 63 44 43 63 8 14 15 12 2 30 13 13 14 15 13 8 27 30 12 7 3 48 20 20 23 21 21 25 23 23 25 23 91 24 46 6 38 13
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 0710-1107 ●
2 CRANKCASE; AIR CMPR 1-19151-269-6 01 1 1108- ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 0710-1107 ●
3 BEARING; AIR CMPR
(A) 		1-09800-232-0 01 1 1108- ● ●
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 0710-1107 ●
3 BEARING; AIR CMPR
(B) 		1-09800-246-0 02 1 1108-1406 ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 0710-1107 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-068-1 01 1 1108- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0710-1107 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 0710-1107 ●
8 HEAD ASM; CYL,AIR CMPR
(B) 		1-19110-073-0 01 1 1108- ● ●
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 0710-1107 ●
8 HEAD ASM; CYL,AIR CMPR
(A) 		1-19110-074-0 01 1 1108- ● ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 0710-1107 ●
12 GASKET; AIR CMPR 1-19623-539-0 02 1 1108-1112 ● ●
12 GASKET; AIR CMPR 8-98192-459-0 02 1 1201- ● ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 02 1 0710-1107 ●
13 GASKET; AIR CMPR
(A) 		1-09623-615-0 02 1 1108-1112 ● ●
13 GASKET; AIR CMPR
(A) 		8-98048-640-0 02 1 1201- ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 0710-1107 ●
13 GASKET; AIR CMPR
(B) 		1-19115-012-0 02 1 1108- ● ●
14 PLATE; AIR CMPR 1-19130-008-0 02 1 0710-1107 ●
14 PLATE; AIR CMPR 1-19130-008-0 02 1 1108-1204 ● ●
14 PLATE; AIR CMPR 8-98208-785-0 02 1 1205- ● ●
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 0710-1107 ●
15 CYLINDER; AIR CMPR 1-19163-067-0 02 1 1108- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 0710-1107 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 02 1 1108- ● ●
21 PISTON; AIR CMPR 1-19161-026-0 02 1 0710-1107 ●
21 PISTON; AIR CMPR 1-19161-026-0 02 1 1108- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 04 1 0710-1012 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1101-1107 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 04 1 1108- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 0710-1107 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-006-0 02 1 1108- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 0710-1107 ●
25 PIN; PISTON,AIR CMPR 1-19167-006-0 02 1 1108- ● ●
27 BOLT; HD
M10X80 		1-19119-024-0 06 1 0710-1012 ●
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1101-1107 ●
27 BOLT; HD
M10X75 		8-98167-018-0 06 1 1108- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 0710-1107 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 08 1 1108- ● ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 0710-1107 ●
38 BOLT; COVER FIX 1-19159-016-0 07 1 1108- ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 0710-1107 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 02 1 1108- ● ●
44 STUD; CYL HD,AIR CMPR
(A) 		1-19119-025-0 01 1 0710-0808 ●
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 0809-1107 ●
44 STUD; CYL HD,AIR CMPR
(A) 		8-97614-054-0 01 1 1108- ● ●
44 STUD; CYL HD,AIR CMPR
(B) 		1-19119-038-0 01 1 0710-0808 ●
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 0809-1107 ●
44 STUD; CYL HD,AIR CMPR
(B) 		8-98119-750-0 01 1 1108- ● ●
46 SPACER; BRG 1-19179-016-0 01 1 0710-1107 ●
46 SPACER; BRG 1-19179-016-0 01 1 1108- ● ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 0710-1107 ●
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 1108- ● ●
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 0710-1107 ●
63 WASHER; PL,STUD
ID=10.5 OD=18 		9-09160-510-0 02 1 1108- ● ●
91 SHAFT KIT; CRANK 8-98277-387-0 01 1 1407- ● ●
