Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-08C - PARKING BRAKE
▶

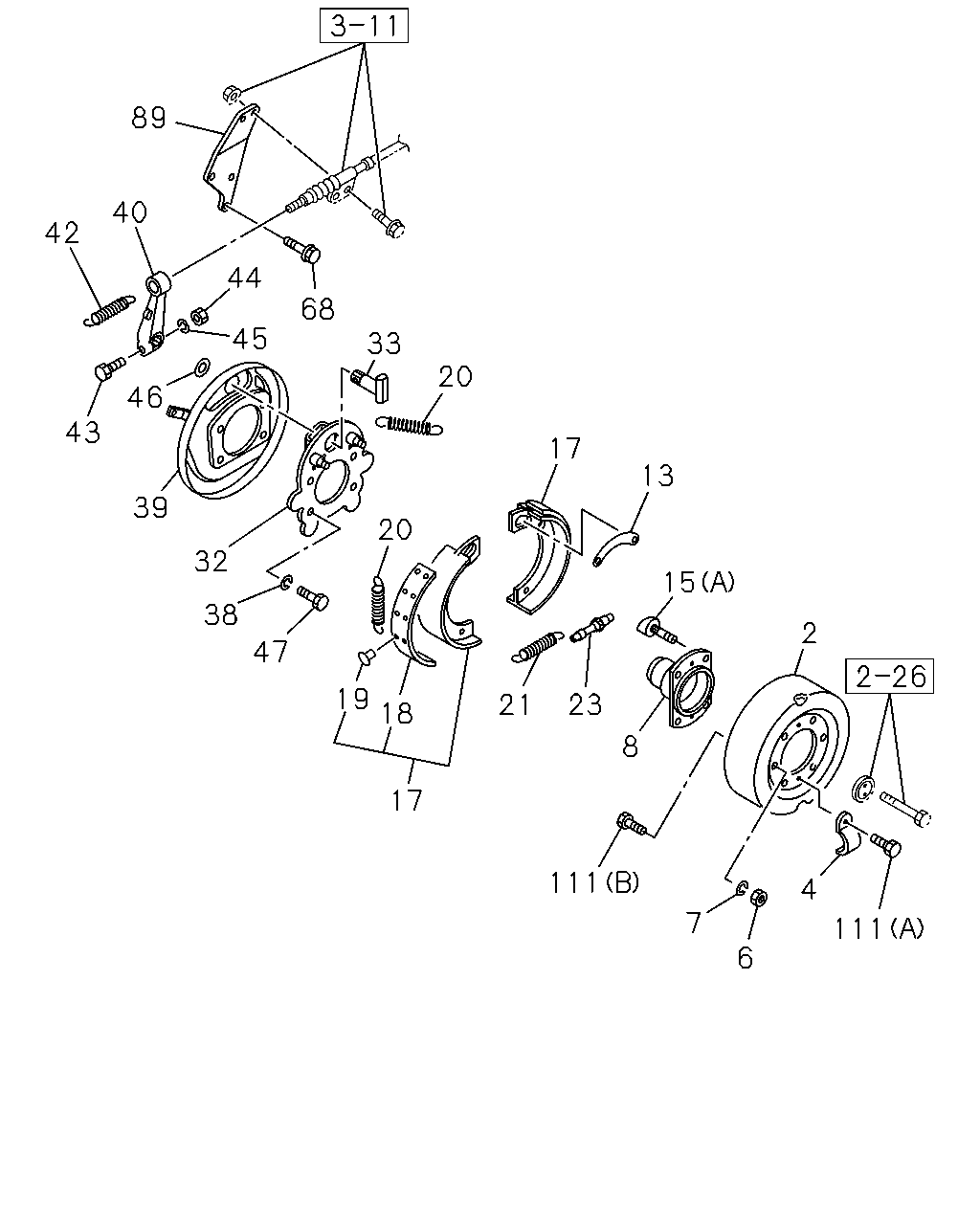

3-08C — PARKING BRAKE
(#141010) — 28 parça
89
40
42
44
45
46
43
39
32
38
47
68
33
20
20
19
18
17
21
17
13
23
15
8
111
7
6
2
4
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-026-1
01
1
1406-
4
COVER; ADJ HOLE
8-98031-861-0
02
1
1406-
6
NUT; FLANGE
M16 IDN
0-91110-516-0
02
1
1406-
7
WASHER; LK,FLANGE
ID=16.2
0-91510-516-0
02
1
1406-
8
FLANGE; PARKING BRK
8-98184-079-0
01
1
1406-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
1406-
15
BOLT; FLANGE
(A) M16X55
8-98023-172-0
04
1
1406-
17
SHOE; PARKING BRK
1-46220-022-1
02
1
1406-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
1406-
19
RIVET; LINING,PARKING BRK
1-09732-058-0
32
1
1406-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
1406-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
1406-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
1406-
32
PLATE; SUPPORT,PARKING BRK
1-46213-096-0
01
1
1406-
33
SHAFT; CAM,PARKING BRK
1-46251-010-0
01
1
1406-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
0-91510-516-0
04
1
1406-
39
COVER; DUST,PARKING BRK
1-46213-093-0
01
1
1406-
40
LEVER; CM/SHF,PARKING BRK
1-46252-046-0
01
1
1406-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
1406-
43
BOLT; LEVER TO CM/SHF
8-98061-595-0
01
1
1406-
44
NUT; LEVER TO CM/SHF
M10
0-91111-510-0
01
1
1406-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
0-91510-510-0
01
1
1406-
46
WASHER; LEVER
9-09855-362-0
01
1
1406-
47
BOLT; SUPPORT PLATE
M16X40
0-20851-640-0
04
1
1406-
68
BOLT; BRKT,PARKING BRK CONT
M10X25 FLANGE
0-28151-025-0
03
1
1406-
89
BRACKET; PARKING BRK CONT
1-46147-305-0
01
1
1406-
111
BOLT; COVER,CHECK HOLE
(B) M16X30
0-20801-630-0
02
1
1406-
111
BOLT; COVER,CHECK HOLE
(A) M8X20 W/LK WASHER
0-50540-820-0
02
1
1406-
