Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

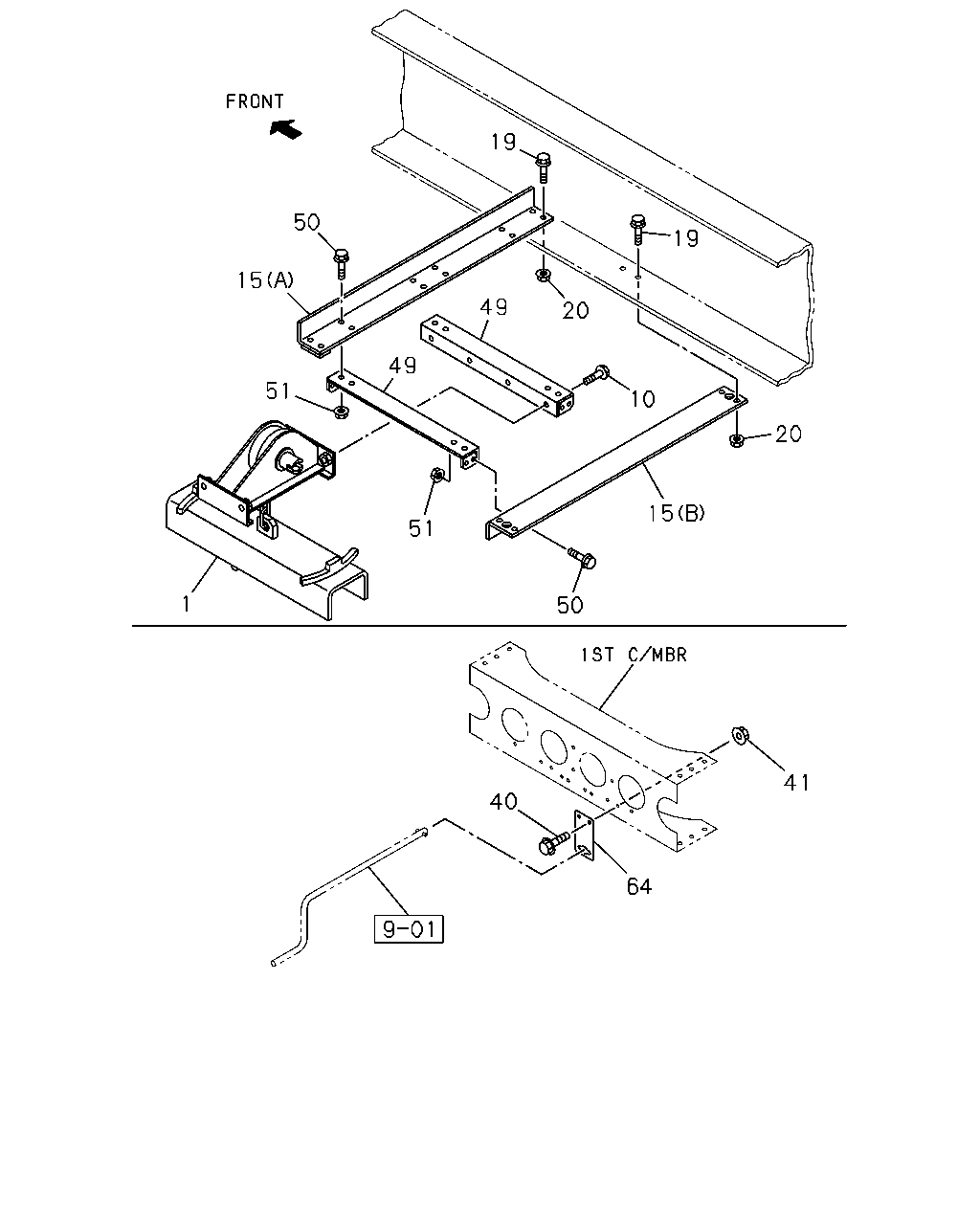

5-30 — SPARE TIRE CARRIER AND COVER
(#14101) — 21 parça
19
50
19
15
49
20
49
51
10
20
15
51
1
50
41
40
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER<SFB>
1-53630-210-2
01
1
0105-
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER<SFB> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
1-53630-208-2
01
1
0105-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER<SFB> M12X30 FLANGE
0-28681-230-0
04
1
0105-0512
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER<SFB> M12X30 FLANGE
0-28651-230-0
04
1
0601-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<SFB> (A)
1-53618-055-2
01
1
0105-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<SFB> (B)
1-53618-057-2
01
1
0105-
19
BOLT; C/MBR
SPARE WHEEL CARRIER<SFB> M12X35 FLANGE
0-28681-235-0
08
1
0105-0512
19
BOLT; C/MBR
SPARE WHEEL CARRIER<SFB> M12X35 FLANGE
0-28651-235-0
08
1
0601-
20
NUT; C/MBR
SPARE WHEEL CARRIER<SFB> M12 FLANGE
0-91150-212-0
08
1
0105-0602
20
NUT; C/MBR
SPARE WHEEL CARRIER<SFB> M12 FLANGE
0-91180-212-0
08
1
0603-
40
BOLT; GUIDE TO FRAME
SPARE WHEEL CARRIER<SFB> M8X25 FLANGE
0-28680-825-0
02
1
0105-0512
40
BOLT; GUIDE TO FRAME
SPARE WHEEL CARRIER<SFB> M8X25 FLANGE
0-28650-825-0
02
1
0601-
41
NUT; GUIDE
SPARE WHEEL CARRIER<SFB> M8 FLANGE
0-91150-108-0
02
1
0105-0602
41
NUT; GUIDE
SPARE WHEEL CARRIER<SFB> M8 FLANGE
0-91180-108-0
02
1
0603-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER<SFB>
1-53618-058-1
02
1
0105-0503
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER<SFB>
1-53618-066-0
02
1
0504-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12X40 FLANGE
0-28681-240-0
08
1
0105-0512
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12X40 FLANGE
0-28651-240-0
08
1
0601-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12 FLANGE
0-91150-212-0
08
1
0105-0602
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12 FLANGE
0-91180-212-0
08
1
0603-
64
GUIDE; HANDLE
SPARE WHEEL CARRIER<SFB>
1-53631-465-0
01
1
0105-
