2-26C — MANUAL TRANSMISSION GEAR (#141006) — 194 parça

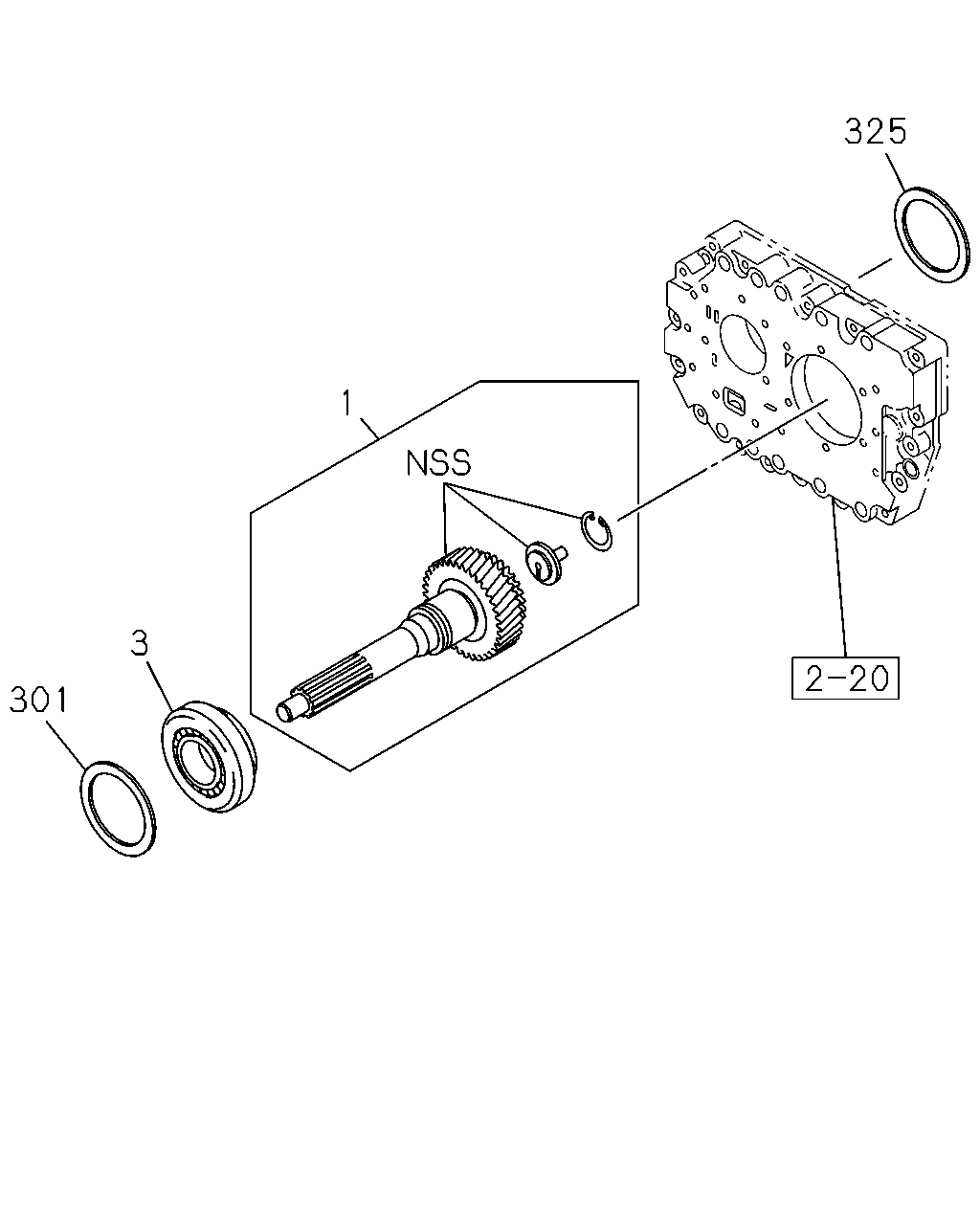

çizim 426201
301 3 1 325
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-040-0 01 1 1406-
3 BEARING; TOP GEAR SHAFT 1-33219-340-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1406-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1406-
çizim 426202
323 408 408 339 66 324 42 66 126 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1406-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1406-
323 INSERT
(B) 		1-33263-027-0 09 1 1406-
323 INSERT
(A) 		1-33263-030-0 06 1 1406-
324 HUB; CLU 1-33261-230-0 01 1 1406-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1406-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-649-0 01 1 1406-
408 SPRING
(B) 		1-33269-038-0 09 1 1406-
408 SPRING
(C) 		1-33269-039-0 09 1 1406-
408 SPRING
(A) 		1-33269-042-0 06 1 1406-

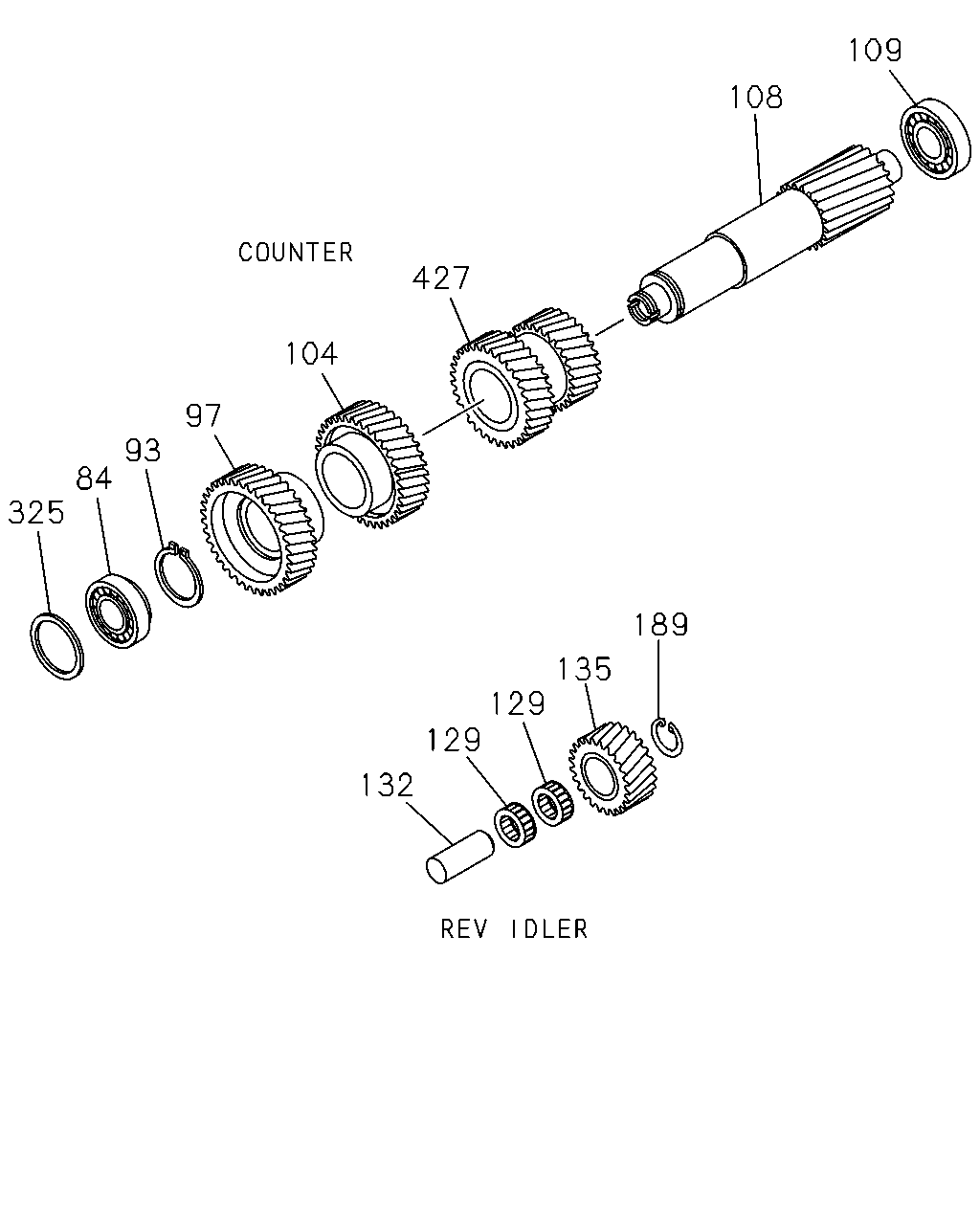

çizim 426241
325 84 93 97 104 427 108 109 132 129 129 135 189
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1406-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1406-
97 GEAR; 5TH,COUNTER 1-33338-407-0 01 1 1406-
104 GEAR; 4TH,COUNTER 1-33338-406-0 01 1 1406-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1406-
109 BEARING; COUNTER SHAFT,RR 1-33312-019-0 01 1 1406-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1406-
132 SHAFT; REV 1-33351-024-0 01 1 1406-
135 GEAR; REV IDLER 1-33361-096-0 01 1 1406-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1406-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1406-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1406-

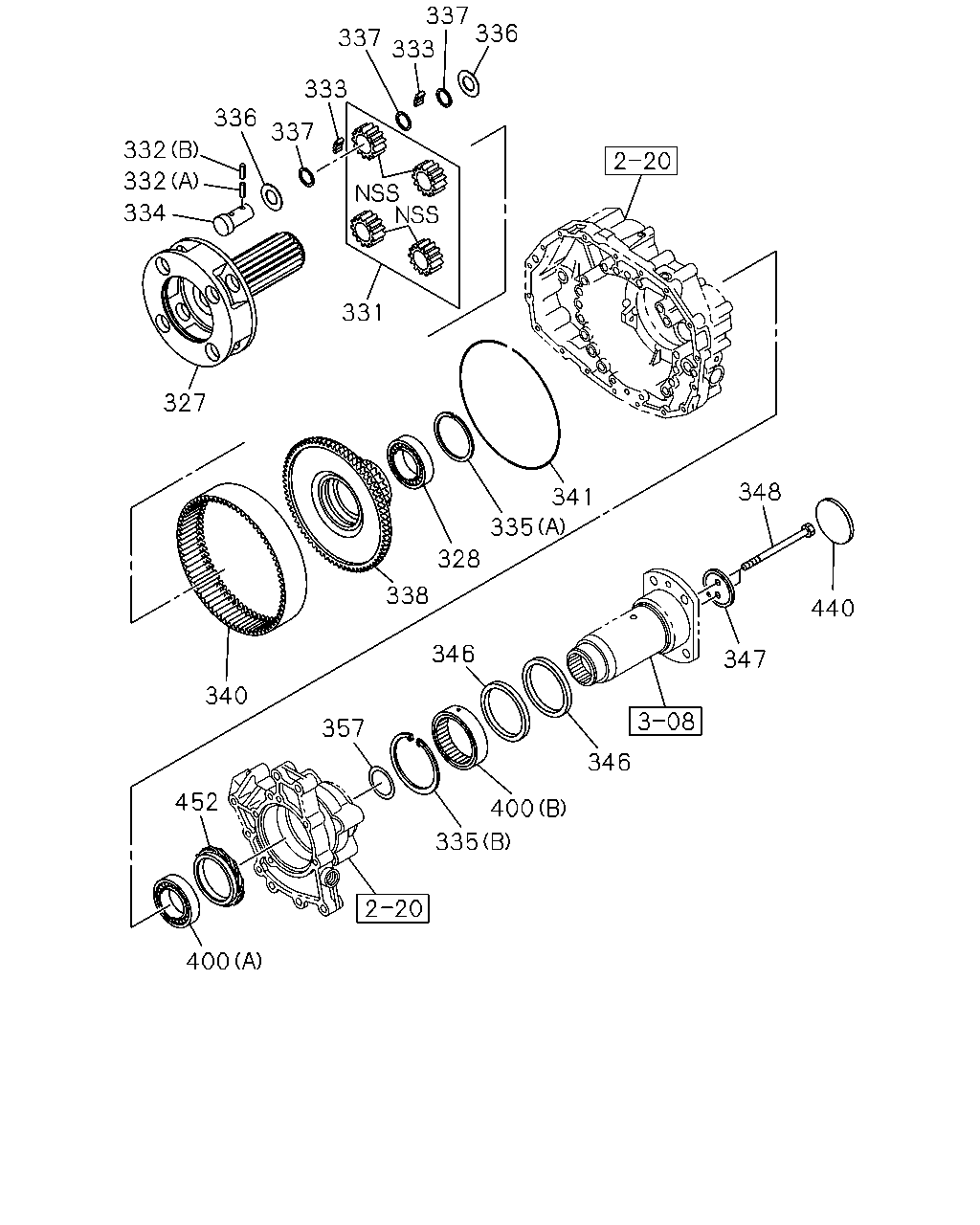

çizim 426242
332 332 334 336 337 333 337 333 337 336 327 331 340 338 328 335 341 348 452 357 346 400 335 400 346 347 440
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1406-
328 BEARING; CARRIER 1-33339-094-0 01 1 1406-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1406-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1406-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1406-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1406-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1406-
335 RING; SNAP,BEARING
(B) 		1-33339-050-0 01 1 1406-
335 RING; SNAP,BEARING
(A) T=2.50 		1-33339-075-0 01 1 1406-
335 RING; SNAP,BEARING
(A) T=2.40 		1-33339-076-0 01 1 1406-
335 RING; SNAP,BEARING
(A) T=2.30 		1-33339-077-0 01 1 1406-
335 RING; SNAP,BEARING
(A) T=2.20 		1-33339-078-0 01 1 1406-
335 RING; SNAP,BEARING
(A) T=2.10 		1-33339-079-0 01 1 1406-
335 RING; SNAP,BEARING
(A) T=2.00 		1-33339-080-0 01 1 1406-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1406-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1406-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1406-
340 GEAR; RING 1-33339-099-0 01 1 1406-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1406-
346 GASKET; FLANGE 1-33339-051-0 02 1 1406-
347 WASHER; FLANGE 1-09509-060-0 01 1 1406-
348 BOLT; SHAFT 1-09009-168-0 02 1 1406-
357 RING 1-33139-218-0 01 1 1406-
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-212-0 01 1 1406-
400 BEARING; OUTPUT SHAFT RR
(B) 		1-33339-098-0 01 1 1406-
440 COVER; FLANGE 1-37249-152-0 01 1 1406-
452 DISC; COUNTING 1-33139-217-0 01 1 1406-

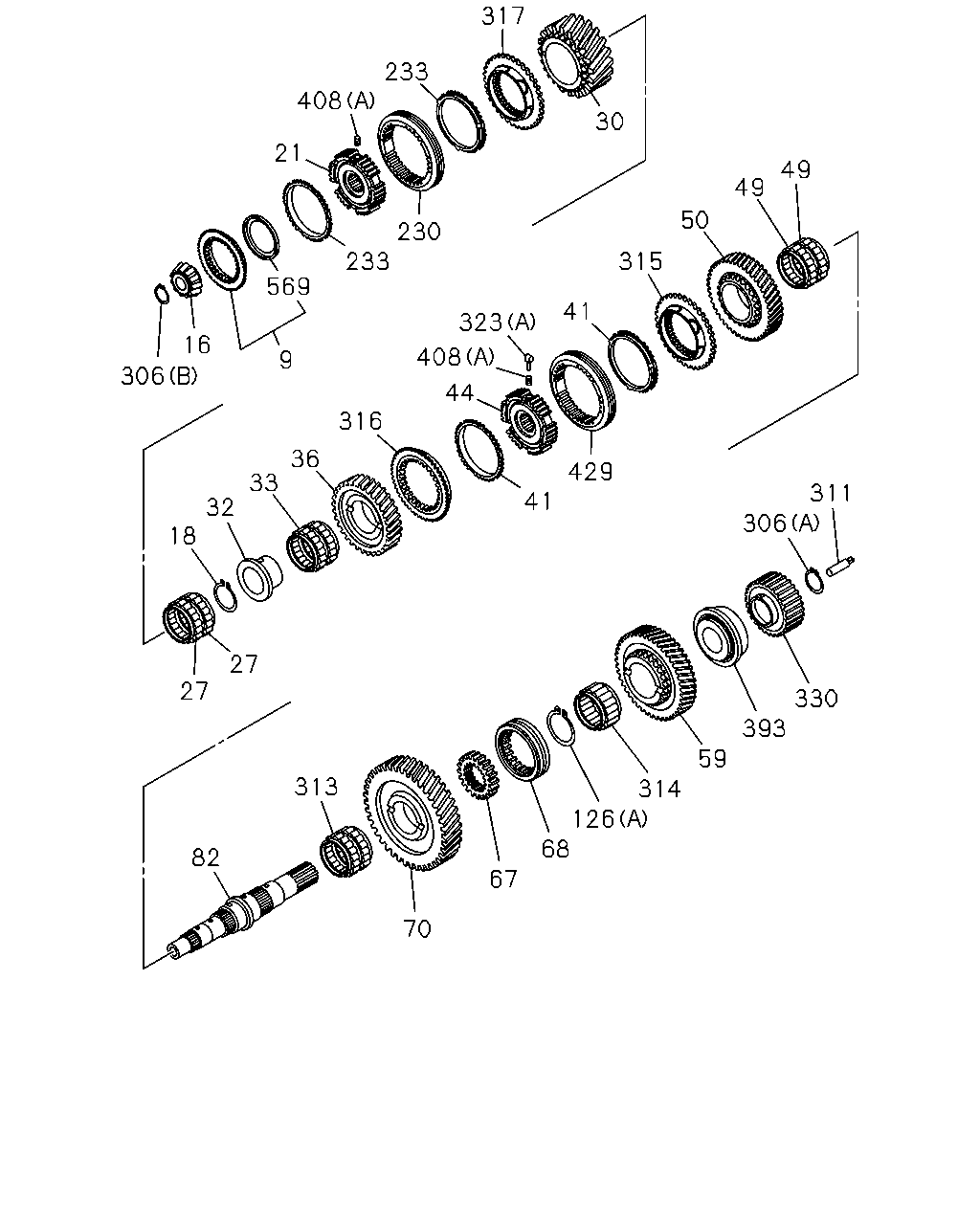

çizim 426477
306 16 569 233 230 21 408 233 317 30 18 32 33 36 316 408 323 41 44 315 50 49 49 9 27 27 41 429 306 311 70 67 68 126 314 393 59 330 313 82
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1406-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1406-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1406-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1406-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1406-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1406-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1406-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1406-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1406-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1406-
30 GEAR; 4TH,MAINSHAFT 1-33251-449-0 01 1 1406-
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1406-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1406-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1406-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1406-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1406-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1406-
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1406-
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1406-
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1406-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1406-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1406-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1406-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1406-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1406-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1406-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1406-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1406-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1406-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1406-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1406-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1406-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1406-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1406-
323 INSERT
(B) 		1-33263-027-0 09 1 1406-
323 INSERT
(A) 		1-33263-030-0 06 1 1406-
330 GEAR; SUN 1-33259-134-0 01 1 1406-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1406-
408 SPRING
(B) 		1-33269-038-0 09 1 1406-
408 SPRING
(C) 		1-33269-039-0 09 1 1406-
408 SPRING
(A) 		1-33269-042-0 06 1 1406-
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1406-
569 DAM; OIL 1-33269-097-0 01 1 1406-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
