Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01C - CLUTCH
▶
2-01C — CLUTCH
(#141002) — 49 parça
◀

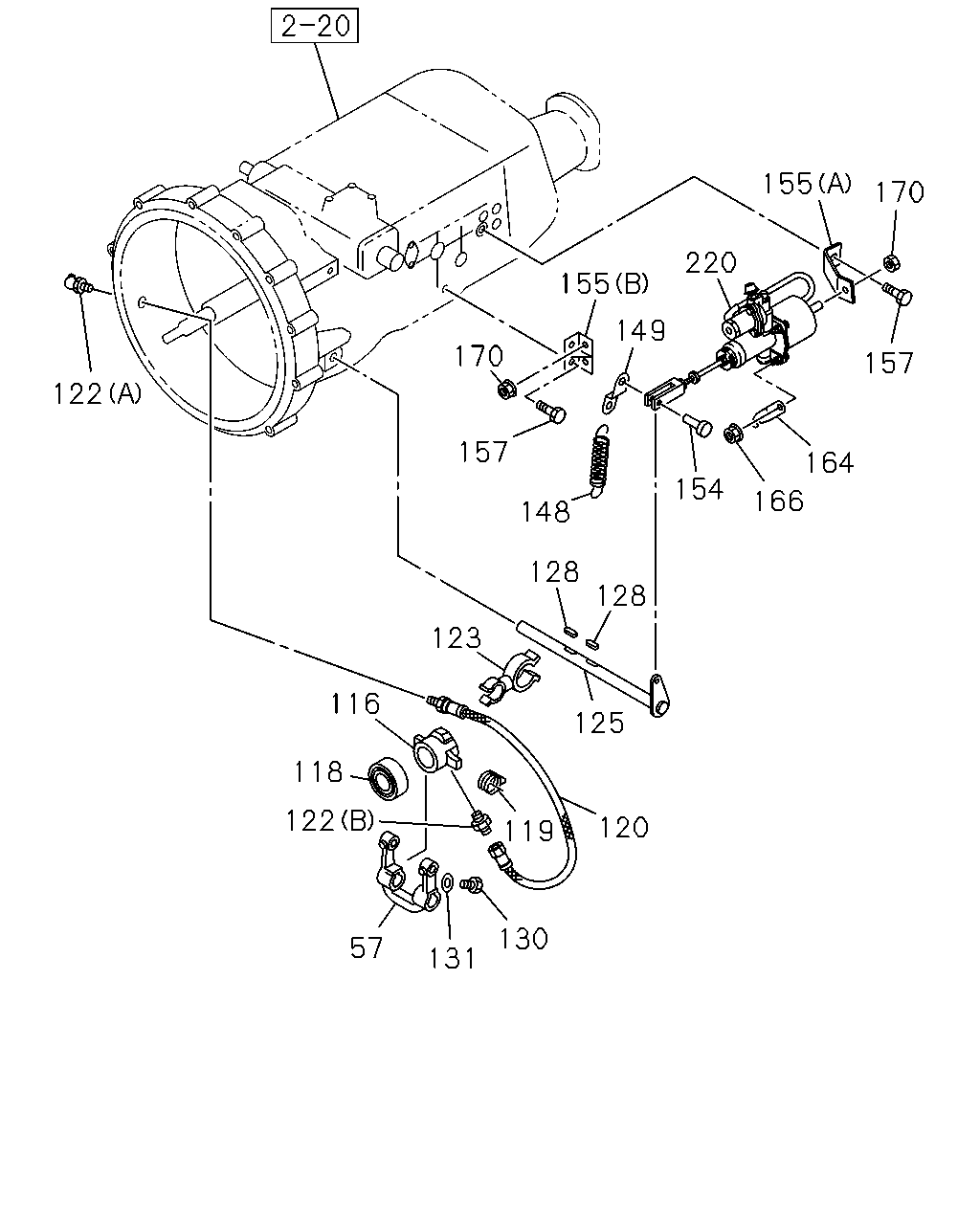

[201C] SHAFT AND CLUTCH BOOSTER (25 parça)

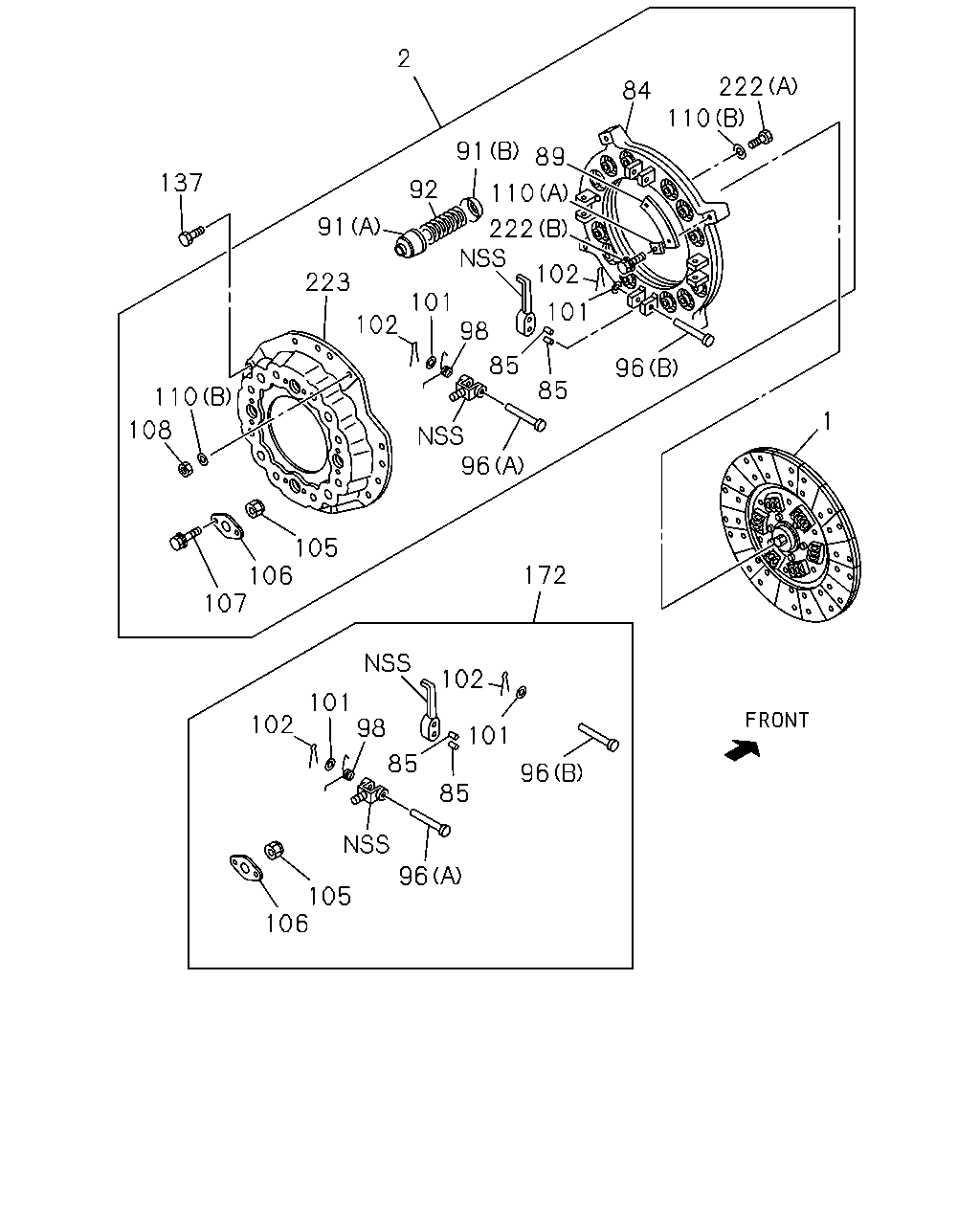

[201C] DISC AND PLATE (24 parça)
▶
170
157
148
128
128
154
166
164
157
155
170
220
155
149
123
125
120
130
119
131
57
122
118
116
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
1406-
116
BLOCK; SHIFT,CLU
1-31321-086-1
01
1
1406-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
1406-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
1406-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1406-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1406-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=360
1-09364-881-0
01
1
1406-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW
0-90301-610-0
01
1
1406-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
1406-
123
CLIP; FLEX HOSE,SHIFT BLOCK
8-97010-484-0
01
1
1406-
125
SHAFT; CLU
1-31342-336-0
01
1
1406-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1406-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
1406-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1406-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1406-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
1406-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1406-
155
BRACKET; MINIPACK
(B)
1-31429-472-1
01
1
1406-
155
BRACKET; MINIPACK
(A)
1-31429-473-0
01
1
1406-
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
1406-
164
EYE; SPRING
1-31426-050-0
01
1
1406-
166
NUT; SPRING EYE
M10 FLANGE
0-91180-210-0
01
1
1406-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
1406-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
1406-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1406-
1
96
85
85
98
101
102
223
91
92
2
91
110
89
84
222
110
222
102
101
137
110
108
106
105
172
102
101
96
85
85
98
101
102
96
105
106
107
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-972-1
01
1
1403-
2
PLATE ASM; PRESSURE,CLU
1-31220-416-0
01
1
1403-
84
PLATE; PRESSURE
15" IDN
1-31221-100-0
01
1
1406-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1406-
89
PLATE; STRAP
IDN
1-31229-050-0
16
1
1406-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1406-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1406-
92
SPRING; CLU
1-31214-074-0
12
1
1403-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1406-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1406-
98
SPRING; RETURN
1-31233-003-0
04
1
1406-
101
WASHER; RELEASE LEVER
IDN
1-31239-058-0
08
1
1406-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1406-
105
NUT; SUPPORT
IDN
1-31235-014-0
04
1
1406-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1406-
107
BOLT; LK PLATE
IDN
1-31239-061-0
08
1
1406-
108
NUT; STRAP
1-09449-036-0
04
1
1406-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1406-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1406-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1406-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
1403-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1406-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1406-
223
COVER; CLU
IDN
1-31211-019-1
01
1
1406-
