5-01 — FRAME AND OTHER PARTS
(#14099) — 114 parça
Tümü
A - WHEEL BASE 6200MM
B - WHEEL BASE 5500MM
◀
[501A] NO.1 (32 parça)
[501A] NO.2 (48 parça)
[501A] NO.3 (34 parça)
▶

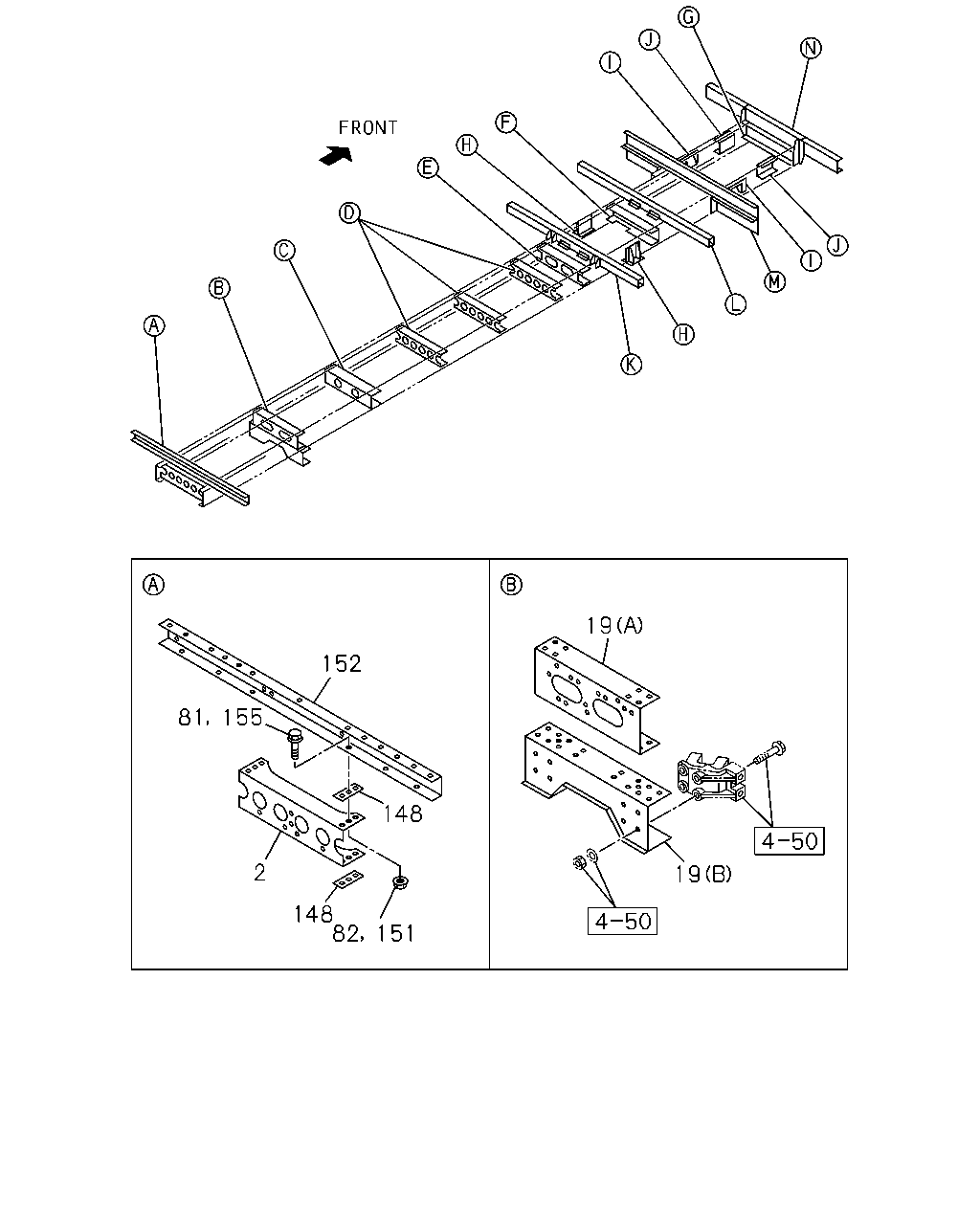

19
152
81
155
148
2
19
148
82
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53181-951-1
01
1
0105-
●
19
MEMBER; CROSS,2ND
(A) UPPER
1-53181-947-1
01
1
0105-
●
19
MEMBER; CROSS,2ND
(B) LOWER
1-53181-948-1
01
1
0105-
●
81
BOLT; BRKT
M12X30 FLANGE
0-28691-230-0
30
1
0105-0512
●
●
81
BOLT; BRKT
M12X30 FLANGE
0-28661-230-0
30
1
0601-
●
82
NUT; BRKT
M12 FLANGE
0-91150-212-0
20
1
0105-0602
●
●
82
NUT; BRKT
M12 FLANGE
0-91180-212-0
20
1
0603-
●
148
SPACER; C/MBR
UPPER
1-53167-554-0
01
1
0105-
●
148
SPACER; C/MBR
LOWER
1-53167-555-0
01
1
0105-
●
151
NUT; OUTRIGGER
M10 FLANGE
0-91150-210-0
06
1
0105-0602
●
●
151
NUT; OUTRIGGER
M10 FLANGE
0-91180-210-0
06
1
0603-
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91150-212-0
13
1
0105-0602
●
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
13
1
0603-
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91160-214-0
08
1
0105-0602
●
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
08
1
0603-
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91160-214-0
16
1
0105-0602
●
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
16
1
0603-
●
152
OUTRIGGER
1-53456-308-2
01
1
0105-
●
●
155
BOLT; OUTRIGGER
M10X35 FLANGE
0-28681-035-0
06
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M10X35 FLANGE
0-28651-035-0
06
1
0601-
●
155
BOLT; OUTRIGGER
M12X35 FLANGE
0-28681-235-0
02
1
0105-0107
●
●
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28681-240-0
02
1
0108-0512
●
●
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28651-240-0
02
1
0601-
●
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28691-230-0
11
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
11
1
0601-
●
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28691-430-0
08
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28661-430-0
08
1
0601-
●
155
BOLT; OUTRIGGER
M14X35
0-28691-435-0
08
1
0105-0210
●
●
155
BOLT; OUTRIGGER
M14X40 FLANGE
0-28691-440-0
08
1
0211-0512
●
155
BOLT; OUTRIGGER
M14X40 FLANGE
0-28661-440-0
08
1
0601-
●
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28891-445-0
16
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28861-445-0
16
1
0601-
●

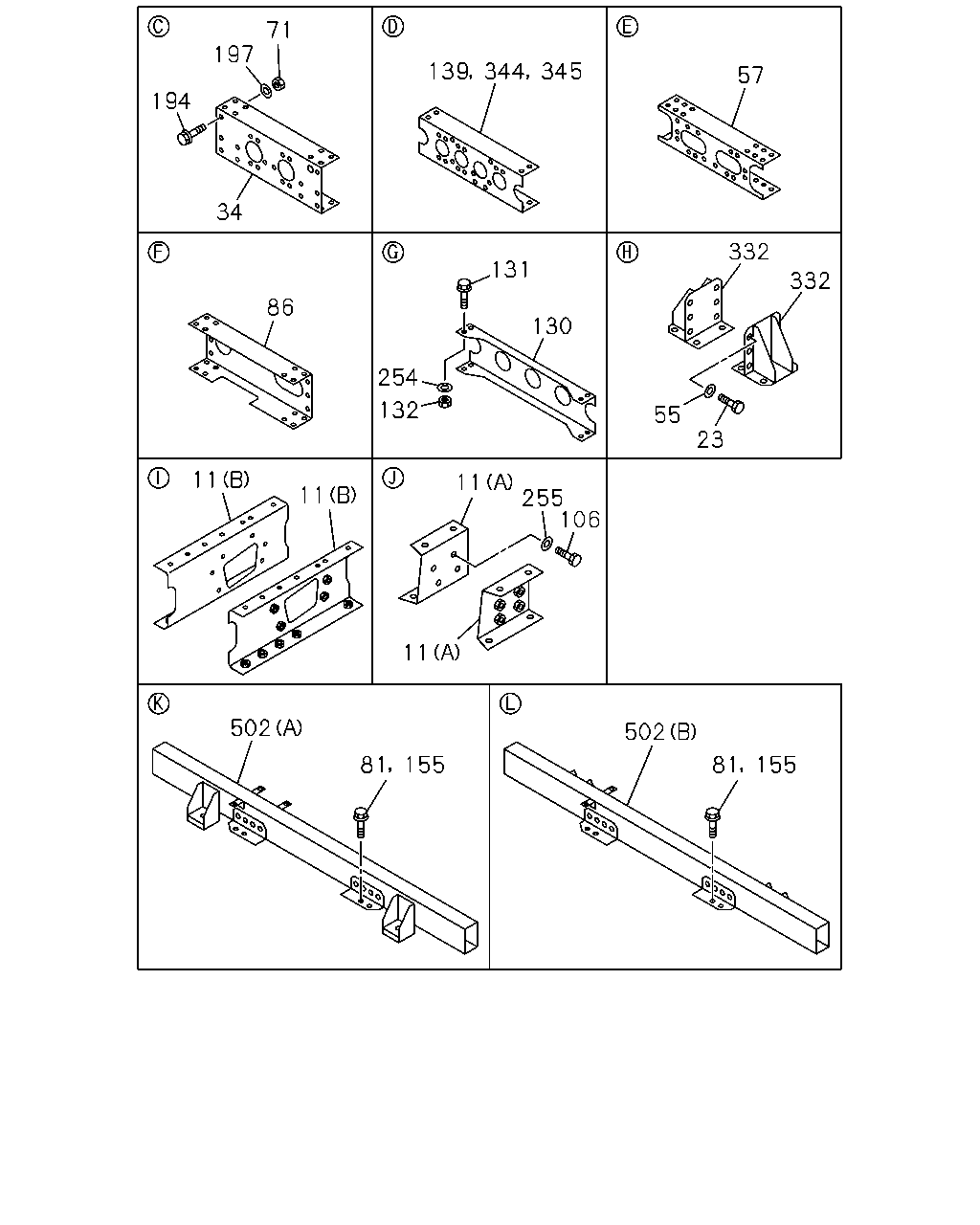

71
197
139
344
345
57
194
34
332
131
332
86
130
254
132
55
23
11
11
255
106
11
11
502
502
81
155
81
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BRACKET; ENG MTG
(A) FRONT
1-53211-290-0
01
1
0105-0211
●
11
BRACKET; ENG MTG
(A) FRONT
1-53211-363-0
01
1
0212-
●
11
BRACKET; ENG MTG
(B) REAR
1-53221-225-0
01
1
0105-
●
11
BRACKET; ENG MTG
(A) FRONT
1-53211-291-0
01
1
0105-0211
●
11
BRACKET; ENG MTG
(A) FRONT
1-53211-364-0
01
1
0212-
●
11
BRACKET; ENG MTG
(B) REAR
1-53221-224-0
01
1
0105-
●
23
BOLT; BRKT,SPR
M14X40
9-92061-440-0
12
1
0105-0512
●
23
BOLT; BRKT,SPR
M14X40
0-20951-440-0
12
1
0601-
●
34
MEMBER; CROSS,3RD
1-53181-950-1
01
1
0105-
●
55
WASHER; PL
ID=15
9-09651-069-0
12
1
0105-
●
57
MEMBER; CROSS,RR SUSP FRT
1-53181-945-1
01
1
0105-
●
71
NUT; 2ND C/MBR
M12
9-99110-512-0
08
1
0105-0512
●
71
NUT; 2ND C/MBR
M12
0-91110-512-0
08
1
0601-
●
81
BOLT; BRKT
M12X30 FLANGE
0-28691-230-0
30
1
0105-0512
●
●
81
BOLT; BRKT
M12X30 FLANGE
0-28661-230-0
30
1
0601-
●
86
MEMBER; CROSS,RR SUSP RR
1-53181-946-4
01
1
0105-
●
106
BOLT; BRKT
M14X40
9-92061-440-0
04
1
0105-0512
●
106
BOLT; BRKT
M14X40
0-20951-440-0
04
1
0601-
●
130
MEMBER; CROSS,END
1-53181-928-0
01
1
0105-
●
131
BOLT; END C/MBR
M14X30
9-92061-430-0
08
1
0105-0512
●
131
BOLT; END C/MBR
M14X30
0-20951-430-0
08
1
0601-
●
132
NUT; END C/MBR
M14
9-99110-514-0
08
1
0105-0512
●
132
NUT; END C/MBR
M14
0-91110-514-0
08
1
0601-
●
139
MEMBER; CROSS,6TH
1-53181-952-2
01
1
0105-
●
155
BOLT; OUTRIGGER
M10X35 FLANGE
0-28681-035-0
06
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M10X35 FLANGE
0-28651-035-0
06
1
0601-
●
155
BOLT; OUTRIGGER
M12X35 FLANGE
0-28681-235-0
02
1
0105-0107
●
●
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28681-240-0
02
1
0108-0512
●
●
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28651-240-0
02
1
0601-
●
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28691-230-0
11
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
11
1
0601-
●
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28691-430-0
08
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28661-430-0
08
1
0601-
●
155
BOLT; OUTRIGGER
M14X35
0-28691-435-0
08
1
0105-0210
●
●
155
BOLT; OUTRIGGER
M14X40 FLANGE
0-28691-440-0
08
1
0211-0512
●
155
BOLT; OUTRIGGER
M14X40 FLANGE
0-28661-440-0
08
1
0601-
●
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28891-445-0
16
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28861-445-0
16
1
0601-
●
194
BOLT; 2ND C/MBR
M12X35
9-92061-235-0
08
1
0105-0512
●
194
BOLT; 2ND C/MBR
M12X35
0-20951-235-0
08
1
0601-
●
197
WASHER; PL,2ND C/MBR
ID=12.5
9-09164-512-0
08
1
0105-
●
254
WASHER; PL,C/MBR
ID=15
9-09651-069-0
08
1
0105-
●
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
04
1
0105-
●
332
BRACKET; BUFFER RUBBER
1-53369-189-0
02
1
0105-
●
344
MEMBER; CROSS,4TH
1-53181-952-2
01
1
0105-
●
345
MEMBER; CROSS,5TH
1-53181-952-2
01
1
0105-
●
502
OUTRIGGER; RR SUSP
(A) FRONT
1-53456-366-1
01
1
0105-
●
●
502
OUTRIGGER; RR SUSP
(B) REAR
1-53456-367-2
01
1
0105-
●
●

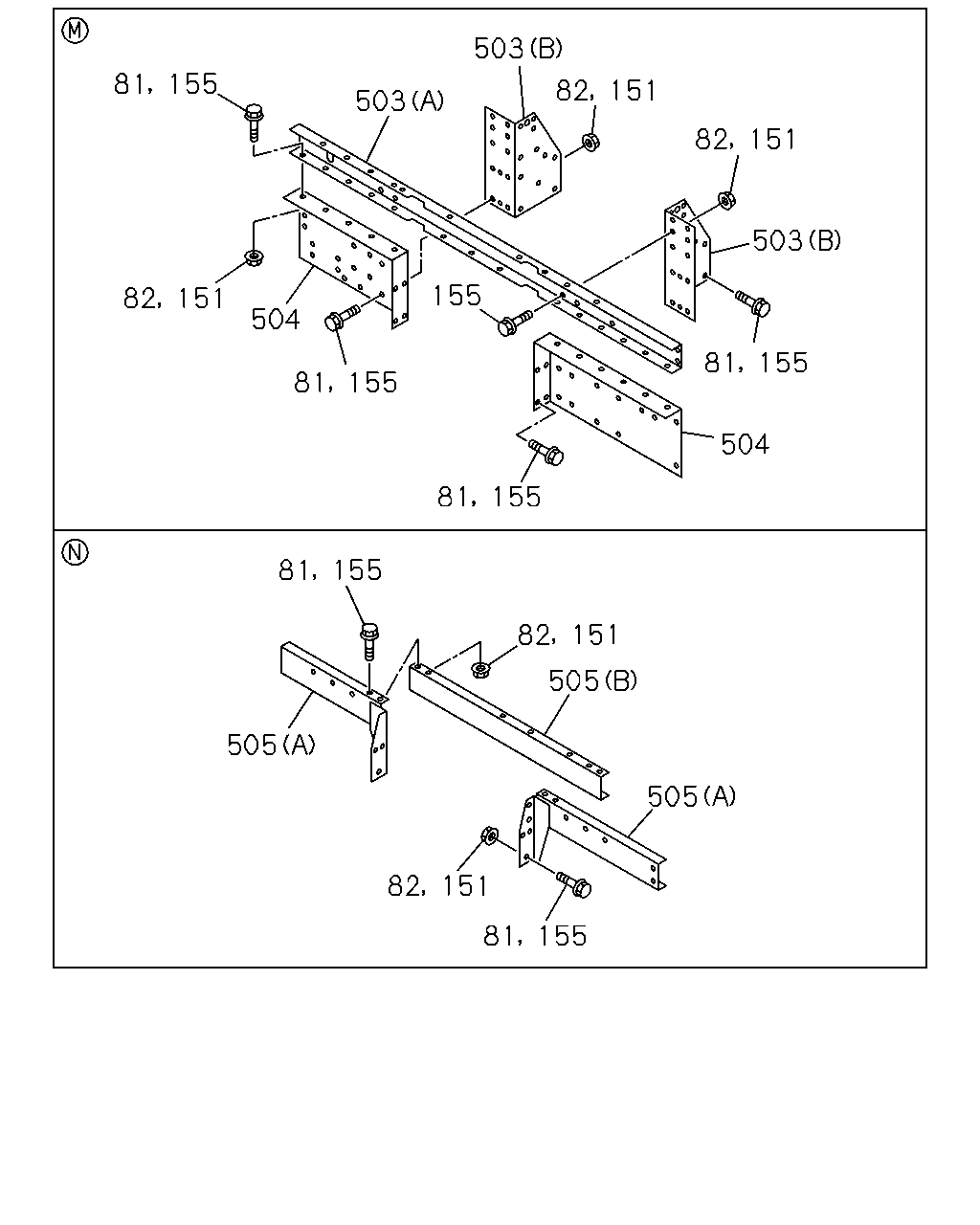

503
81
155
82
151
503
82
151
503
155
82
151
504
81
155
81
155
504
81
155
81
155
151
82
505
505
505
151
82
81
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
81
BOLT; BRKT
M12X30 FLANGE
0-28691-230-0
30
1
0105-0512
●
●
81
BOLT; BRKT
M12X30 FLANGE
0-28661-230-0
30
1
0601-
●
82
NUT; BRKT
M12 FLANGE
0-91150-212-0
20
1
0105-0602
●
●
82
NUT; BRKT
M12 FLANGE
0-91180-212-0
20
1
0603-
●
151
NUT; OUTRIGGER
M10 FLANGE
0-91150-210-0
06
1
0105-0602
●
●
151
NUT; OUTRIGGER
M10 FLANGE
0-91180-210-0
06
1
0603-
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91150-212-0
13
1
0105-0602
●
●
151
NUT; OUTRIGGER
M12 FLANGE
0-91180-212-0
13
1
0603-
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91160-214-0
08
1
0105-0602
●
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
08
1
0603-
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91160-214-0
16
1
0105-0602
●
●
151
NUT; OUTRIGGER
M14 FLANGE
0-91180-214-0
16
1
0603-
●
155
BOLT; OUTRIGGER
M10X35 FLANGE
0-28681-035-0
06
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M10X35 FLANGE
0-28651-035-0
06
1
0601-
●
155
BOLT; OUTRIGGER
M12X35 FLANGE
0-28681-235-0
02
1
0105-0107
●
●
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28681-240-0
02
1
0108-0512
●
●
155
BOLT; OUTRIGGER
M12X40 FLANGE
0-28651-240-0
02
1
0601-
●
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28691-230-0
11
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M12X30 FLANGE
0-28661-230-0
11
1
0601-
●
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28691-430-0
08
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M14X30 FLANGE
0-28661-430-0
08
1
0601-
●
155
BOLT; OUTRIGGER
M14X35
0-28691-435-0
08
1
0105-0210
●
●
155
BOLT; OUTRIGGER
M14X40 FLANGE
0-28691-440-0
08
1
0211-0512
●
155
BOLT; OUTRIGGER
M14X40 FLANGE
0-28661-440-0
08
1
0601-
●
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28891-445-0
16
1
0105-0512
●
●
155
BOLT; OUTRIGGER
M14X45 FLANGE
0-28861-445-0
16
1
0601-
●
503
OUTRIGGER; ENG RR
(A)
1-53456-359-6
01
1
0105-
●
●
503
OUTRIGGER; ENG RR
(B)
1-53456-361-2
01
1
0105-
●
●
503
OUTRIGGER; ENG RR
(B)
1-53456-360-3
01
1
0105-
●
●
504
OUTRIGGER; LWR
1-53456-363-3
01
1
0105-
●
●
504
OUTRIGGER; LWR
1-53456-362-4
01
1
0105-
●
●
505
OUTRIGGER; END
(B)
1-53456-364-0
01
1
0105-
●
●
505
OUTRIGGER; END
(A)
1-53456-358-1
01
1
0105-
●
●
505
OUTRIGGER; END
(A)
1-53456-357-3
01
1
0105-
●
●
