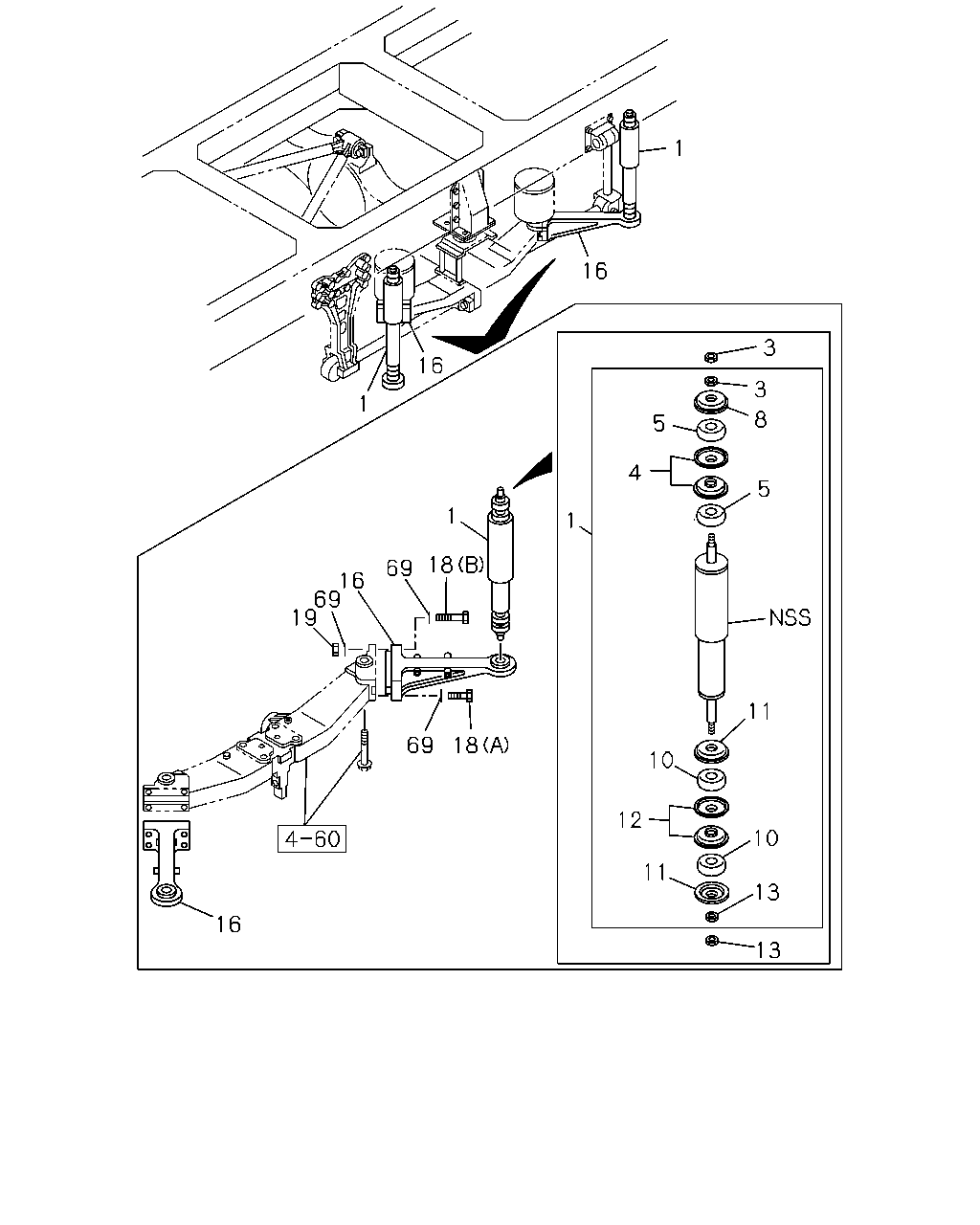

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#14093) — 20 parça
1
16
3
16
3
1
8
5
4
5
1
1
18
69
16
69
19
11
69
18
10
12
10
11
13
16
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-764-1
04
1
0105-
3
NUT; S/ABS
M18
9-99111-418-0
12
1
0105-0512
3
NUT; S/ABS
M18
9-99111-418-0
04
1
0601-
3
NUT; S/ABS
M18
0-91111-518-0
08
1
0601-
4
WASHER; CENTER,S/ABS
ID=24.4 OD=74 T=2.3
9-51631-045-0
08
1
0105-
5
BUSHING; RUBBER,S/ABS,UPR
9-51631-043-0
08
1
0105-
8
WASHER; S/ABS
ID=20.5 OD=74 T=6
9-51631-044-0
08
1
0105-
10
BUSHING; RUBBER,S/ABS
9-51631-043-0
08
1
0105-
11
WASHER; CENTER,LWR,RR S/ABS
ID=24.4 OD=74 T=2.3
9-51631-045-0
08
1
0105-
12
WASHER; S/ABS TO RR AXLE
ID=20.5 OD=74 T=6
9-51631-044-0
08
1
0105-
13
NUT; LWR,RR S/ABS
M18
9-99111-418-0
04
1
0105-
16
BRACKET; S/ABS,RR
1-52175-017-0
04
1
0105-
18
BOLT; S/ABS BRKT
(A) M18X78
1-09000-574-0
08
1
0105-
18
BOLT; S/ABS BRKT
(B) M18X80
9-91066-880-0
08
1
0105-0303
18
BOLT; S/ABS BRKT
(B) M18X75
9-91066-875-0
08
1
0304-0408
18
BOLT; S/ABS BRKT
(B) M18X75
1-09000-221-2
08
1
0409-0709
18
BOLT; S/ABS BRKT
(B) M18X75
8-98012-872-0
08
1
0710-
19
NUT; S/ABS BRKT
M18
9-99110-518-0
08
1
0105-0512
19
NUT; S/ABS BRKT
M18
0-91110-518-0
08
1
0601-
69
WASHER; PL
ID=18.5 OD=32 T=4
1-09503-255-0
24
1
0105-
