◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#14092) — 108 parça

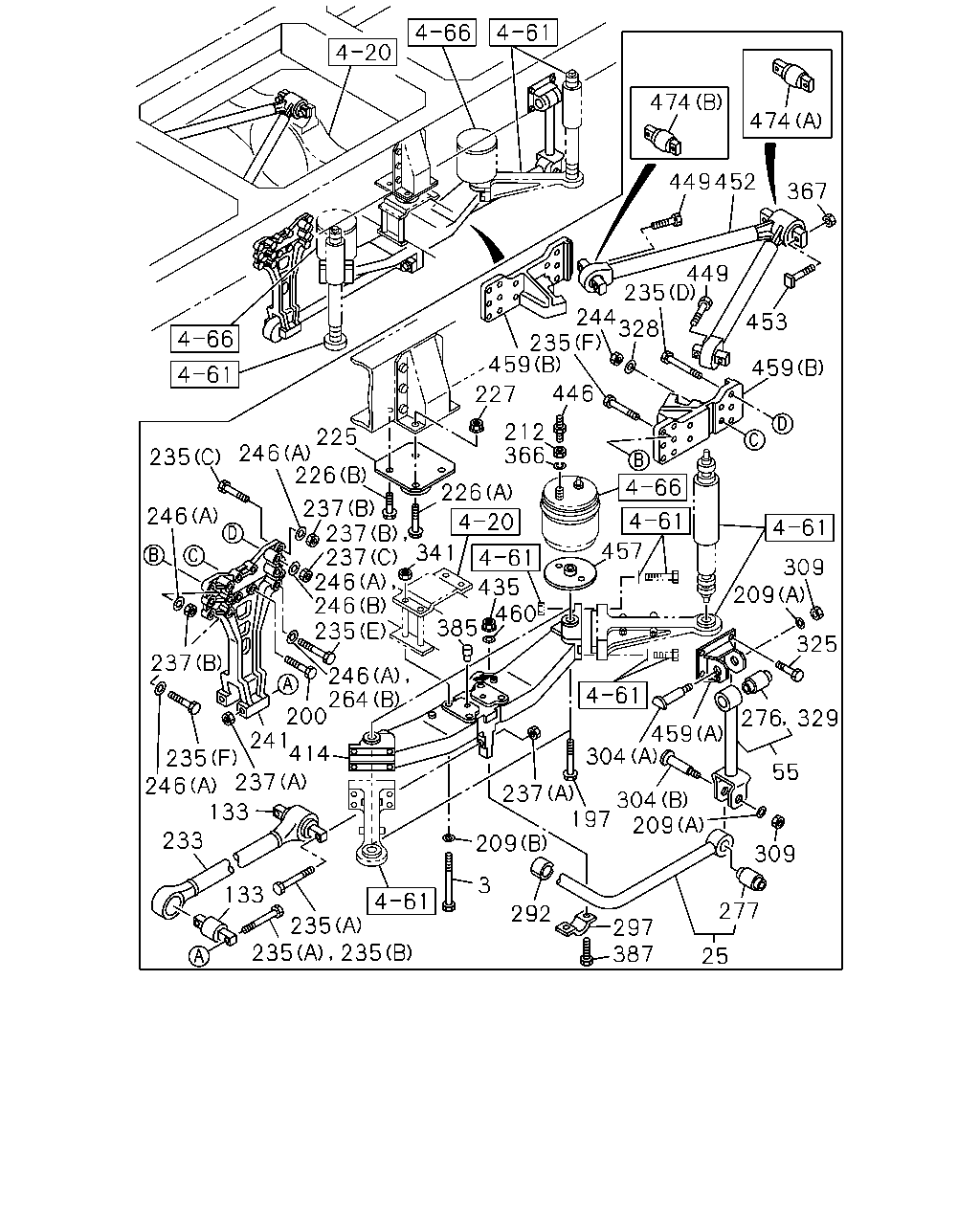

çizim 23570
474 474 367 449 235 244 328 235 459 227 453 459 446 212 366 225 246 226 235 226 237 237 341 246 246 235 246 457 309 209 325 237 435 460 385 246 264 200 241 414 276 329 459 304 235 246 237 133 55 237 304 197 209 209 233 309 3 133 277 292 235 297 387 25 235 235 449 452 237
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM
M24X295 		1-09000-622-2 08 1 0105-
25 BAR ASM; STAB,RR SUSP 1-51771-183-0 01 1 0105-
55 ROD; STAB 1-51773-088-1 02 1 0105-0711
55 ROD; STAB 1-51773-113-1 02 1 0712-
133 BUSHING; RUBBER,TORQUE ROD 1-51519-166-1 04 1 0105-0312
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0401-
197 BOLT
M16X110 FLANGE 		1-09044-100-1 04 1 0105-
200 BOLT; BRKT
M16X60 		9-91066-660-0 08 1 0105-0512
200 BOLT; BRKT
M16X60 		0-10956-660-0 08 1 0601-
209 WASHER; PL
(B) ID=25 		1-09503-282-0 08 1 0105-
209 WASHER; PL
(A) ID=21 		9-09164-520-0 04 1 0105-
212 NUT
M20 		9-99111-520-0 04 1 0105-0512
212 NUT
M20 		0-91111-520-0 04 1 0601-
225 RUBBER; CUSHION,RR SPR 1-51374-004-0 02 1 0105-
226 BOLT
(A) M12X30 FLANGE 		0-28691-230-0 04 1 0105-0512
226 BOLT
(A) M12X30 FLANGE 		0-28661-230-0 04 1 0601-
226 BOLT
(B) M12X40 FLANGE 		0-28691-240-0 04 1 0105-0512
226 BOLT
(B) M12X40 FLANGE 		0-28661-240-0 04 1 0601-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0105-0602
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603-
233 ROD ASM; TORQUE,RR SUSP
L=685 		1-51511-751-0 02 1 0105-
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0508-
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-627-0 04 1 0105-0505
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-568-0 08 1 0506-0507
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-568-0 04 1 0508-0805
235 BOLT; TORQUE ROD
(A) M18X102 		8-98012-877-0 04 1 0806-
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0105-0505
235 BOLT; TORQUE ROD
(C) M20X60 		1-09000-633-0 06 1 0105-
235 BOLT; TORQUE ROD
(D) M20X165 		1-09000-661-1 10 1 0105-0811
235 BOLT; TORQUE ROD
(D) M20X165 		8-98010-548-0 10 1 0812-
235 BOLT; TORQUE ROD
(E) M20X160 		1-09000-697-0 02 1 0105-
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-736-0 06 1 0105-0606
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-792-0 06 1 0607-
237 NUT; TORQUE ROD
(C) M20 		8-98010-408-0 10 1 0812-
237 NUT; TORQUE ROD
(A) M18 SELF LOCK 		1-09464-032-0 08 1 0105-
237 NUT; TORQUE ROD
(B) M20 		9-99110-520-0 20 1 0105-0512
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 20 1 0601-0811
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 10 1 0812-
241 BRACKET; TORQUE ROD 1-53361-081-2 02 1 0105-
244 NUT; BRKT
M16 		9-99110-516-0 08 1 0105-0512
244 NUT; BRKT
M16 		0-91110-516-0 08 1 0601-
246 WASHER; TORQUE ROD
(B) ID=21 		8-98010-403-0 10 1 0812-
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 24 1 0105-0811
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 14 1 0812-
276 BUSHING; STAB ROD 1-51779-055-0 02 1 0712-
277 BUSHING; STAB,RR UPR 1-51779-055-0 02 1 0105-
292 BUSHING; RUBBER,STAB 1-51779-100-0 04 1 0105-
297 CAP; STAB BAR 1-52175-013-1 02 1 0105-0108
297 CAP; STAB BAR 1-52175-024-0 02 1 0109-
304 PIN; STAB ROD
(A) 		1-51361-028-2 02 1 0105-
304 PIN; STAB ROD
(B) M20X110 		1-51361-029-2 02 1 0105-
309 NUT; STAB ROD
M20 FLANGE 		1-09440-060-0 04 1 0105-0805
309 NUT; STAB ROD
M20 FLANGE 		8-98010-392-0 04 1 0806-
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28691-440-0 08 1 0105-0512
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28661-440-0 08 1 0601-
328 WASHER; PL,BRKT
ID=16.2 		1-09503-223-0 16 1 0105-0903
328 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 16 1 0904-
329 BUSHING; STAB ROD 1-51779-055-0 02 1 0105-0711
341 NUT; BEAM
M24 		9-99110-524-0 08 1 0105-0512
341 NUT; BEAM
M24 		0-91110-524-0 08 1 0601-
366 WASHER; LK
ID=20.2 		9-09150-520-0 04 1 0105-0603
366 WASHER; LK
ID=20.2 		0-91510-520-0 04 1 0604-
367 NUT
M24 FLANGE 		1-42334-045-1 02 1 0105-0805
367 NUT
M24 FLANGE 		8-98019-963-0 02 1 0806-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 04 1 0105-
387 BOLT; CAP FIX,STAB BAR
M16X60 FLANGE 		1-09044-101-0 04 1 0105-0505
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28891-650-0 04 1 0506-0512
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28861-650-0 04 1 0601-
414 BEAM; AIR SPR 1-52170-104-0 01 1 0105-
414 BEAM; AIR SPR 1-52170-105-0 01 1 0105-
435 NUT; CAP
M16 		9-99110-516-0 04 1 0105-0512
435 NUT; CAP
M16 		0-91110-516-0 04 1 0601-
446 CONNECTOR; AIR SPRING
M12 & PT1/4 STRAIGHT 		1-09650-074-1 04 1 0105-
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 04 1 0105-0805
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 04 1 0806-1102
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 04 1 1103-
452 ROD ASM; V 1-51510-858-0 01 1 0105-
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0105-0805
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0806-
457 PLATE; AIR SPRING,UPR 1-52119-250-1 04 1 0105-
459 BRACKET; ROD
(A) 		1-51781-123-4 02 1 0105-
459 BRACKET; ROD
(B) 		1-53353-137-1 01 1 0105-
459 BRACKET; ROD
(B) 		1-53353-136-1 01 1 0105-
460 WASHER; CAP
ID=16.2 		1-09503-223-0 04 1 0105-0903
460 WASHER; CAP
ID=16.2 		1-09503-316-0 04 1 0904-
474 REPAIR KIT; V-ROD
(A) 		1-51519-173-0 01 1 0105-
474 REPAIR KIT; V-ROD
(B) 		1-51519-174-0 02 1 0105-

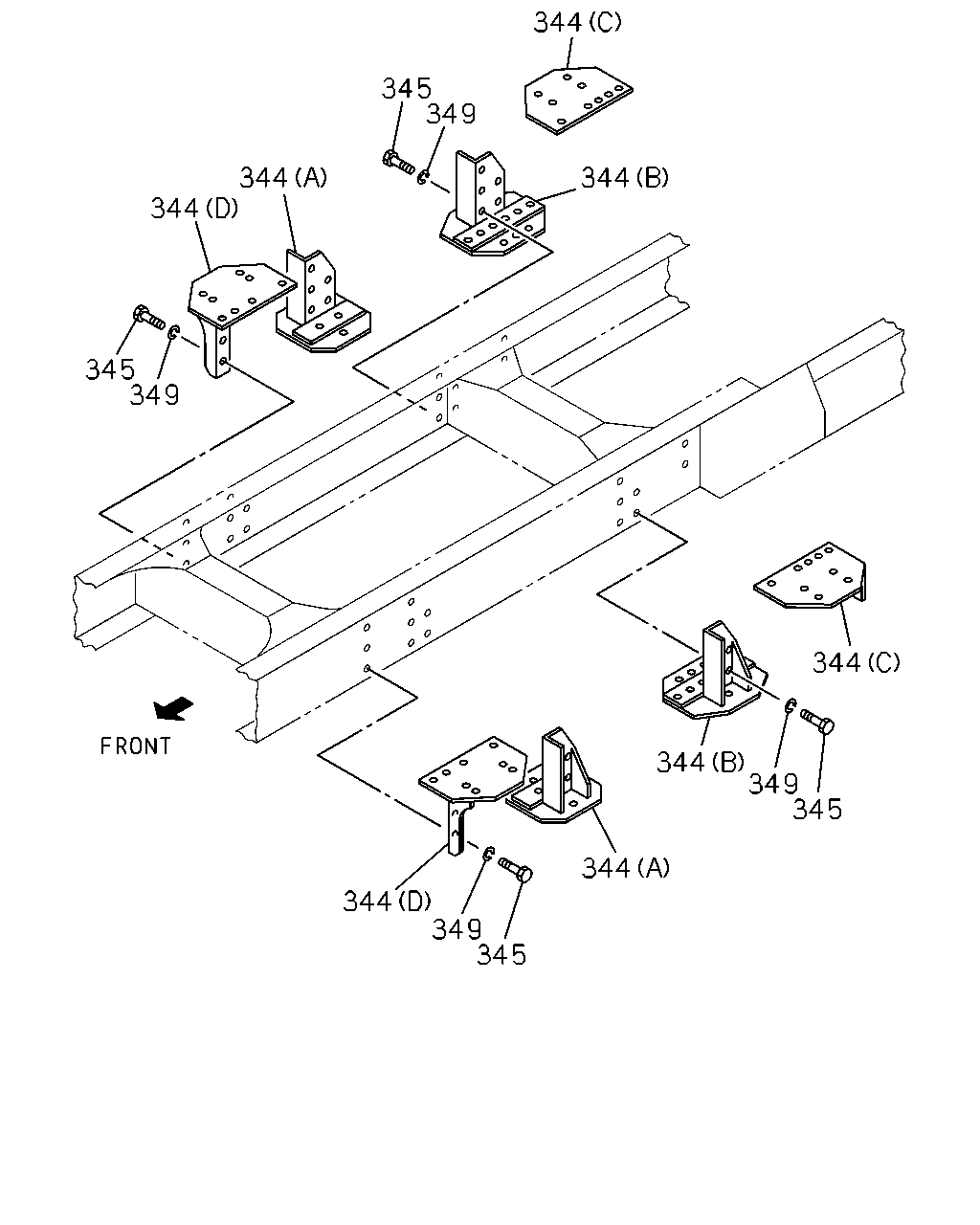

çizim 82446
344 345 349 344 344 344 345 349 344 344 349 345 344 344 349 345
BalonParca AdiParca NoAdetTipApplied Date
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (A) 		1-52171-196-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(A) 		1-52171-196-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) 		1-52171-199-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(B) 		1-52171-199-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) 		1-52171-203-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(C) 		1-52171-203-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (D) 		1-52171-215-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(D) 		1-52171-215-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (A) 		1-52171-197-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(A) 		1-52171-197-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) 		1-52171-198-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(B) 		1-52171-198-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) 		1-52171-202-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(C) 		1-52171-202-1 01 1 0204-
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (D) 		1-52171-216-1 01 1 0105-0203
344 BRACKET; AIR SPR,UPR
(D) 		1-52171-216-1 01 1 0204-
345 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> M14X40 		9-92061-440-0 30 1 0105-0203
345 BOLT; BRKT
M14X40 		9-92061-440-0 30 1 0204-0512
345 BOLT; BRKT
M14X40 		0-20951-440-0 30 1 0601-
349 WASHER; LK,AIR SPR
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> ID=15 		9-09651-069-0 30 1 0105-0203
349 WASHER; LK,AIR SPR
ID=15 		9-09651-069-0 30 1 0204-
