◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#14089) — 108 parça
çizim 21021
62 65 68 68 65 211 68 68 211
BalonParca AdiParca NoAdetTipApplied Date
62 ABSORBER ASM; SHOCK,FRT 1-51630-782-0 04 1 0105-
65 WASHER; S/ABS
(A) ID=33 		9-51631-030-0 04 1 0105-
65 WASHER; S/ABS
(B) ID=25 		9-51631-031-0 04 1 0105-
68 BUSHING; S/ABS 1-51631-122-0 16 1 0105-
211 WASHER; BRKT,SHOCK
(A) ID=33 		9-51631-030-0 04 1 0105-
211 WASHER; BRKT,SHOCK
(B) ID=25 		9-51631-031-0 04 1 0105-
371 WASHER; LK,AIR SPR
ID=20.2 		9-09150-520-0 02 1 0105-0603
371 WASHER; LK,AIR SPR
ID=20.2 		0-91510-520-0 02 1 0604-

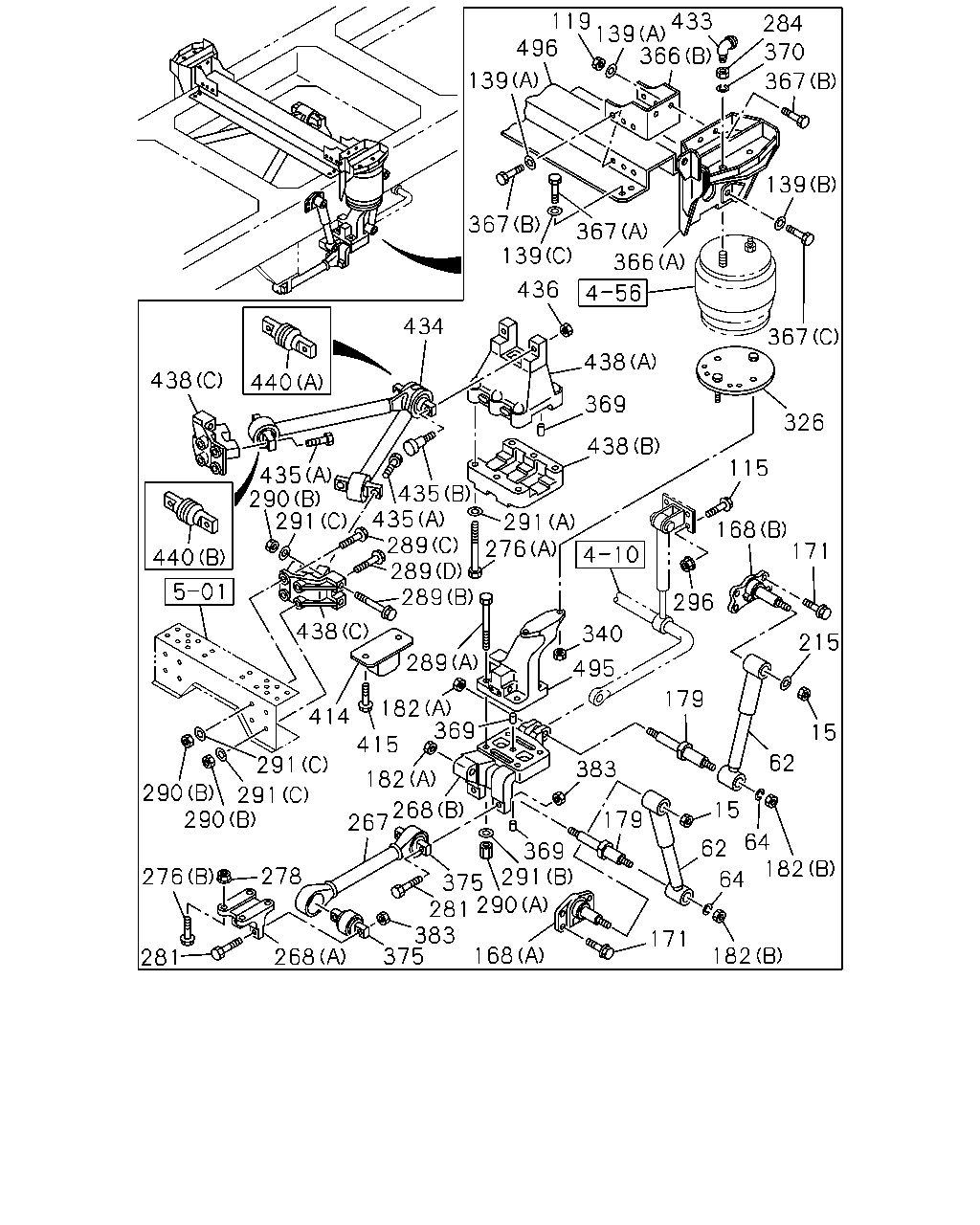

çizim 22836
119 433 139 496 366 284 370 139 367 139 367 367 139 366 436 367 434 438 438 440 369 326 438 115 435 290 291 435 435 289 289 289 291 276 168 171 440 296 438 340 495 215 289 182 369 179 414 15 415 62 291 268 267 383 182 290 291 290 15 179 64 182 62 369 291 375 290 281 383 375 278 276 64 171 168 182 268 281
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M24 		9-99110-524-0 04 1 0105-0512
15 NUT; S/ABS,UPR
M24 		0-91110-524-0 04 1 0601-
62 ABSORBER ASM; SHOCK,FRT 1-51630-782-0 04 1 0105-
64 WASHER; S/ABS,LWR
ID=24.5 		9-09150-624-0 04 1 0105-0603
64 WASHER; S/ABS,LWR
ID=24.5 		0-91510-624-0 04 1 0604-
115 BOLT; SUPPORT BRKT TO BODY
M14X40 FLANGE 		0-28691-440-0 08 1 0105-0512
115 BOLT; SUPPORT BRKT TO BODY
M14X40 FLANGE 		0-28661-440-0 08 1 0601-
119 NUT; BRKT
M16 		9-99110-516-0 04 1 0105-0512
119 NUT; BRKT
M16 		0-91110-516-0 04 1 0601-
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 0105-0903
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 16 1 0904-
139 WASHER; PL,BRKT
(B) ID=21 		9-09164-520-0 12 1 0105-
139 WASHER; PL,BRKT
(C) ID=15 		9-09651-069-0 08 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51682-112-2 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51682-148-1 02 1 0105-
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28891-450-0 16 1 0105-0512
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28861-450-0 16 1 0601-
179 PIN 1-51682-135-0 04 1 0105-
182 NUT; S/ABS LWR
(A) M18 SELF LOCK 		1-09464-032-0 04 1 0105-
182 NUT; S/ABS LWR
(B) M24 		9-99110-524-0 04 1 0105-0512
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 04 1 0601-
215 WASHER; S/ABS,UPR,OUTER
ID=24.5 		9-09150-624-0 04 1 0105-0603
215 WASHER; S/ABS,UPR,OUTER
ID=24.5 		0-91510-624-0 04 1 0604-
267 ROD; TORQUE,FRT SUSP
L=545 		1-51511-658-0 02 1 0105-
268 BRACKET; TORQUE ROD
(A) 		1-53363-099-1 02 1 0105-
268 BRACKET; TORQUE ROD
(B) 		1-53363-108-2 01 1 0105-
268 BRACKET; TORQUE ROD
(B) 		1-53363-107-2 01 1 0105-
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28891-660-0 08 1 0105-0512
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28861-660-0 08 1 0601-
276 BOLT; BRKT
(A) M20X165 		1-09000-661-1 06 1 0105-0811
276 BOLT; BRKT
(A) M20X165 		8-98010-548-0 06 1 0812-
278 NUT; BRKT
M16 		9-99110-516-0 06 1 0105-0512
278 NUT; BRKT
M16 		0-91110-516-0 06 1 0601-
281 BOLT; TORQUE ROD
M18X102 		1-09000-627-0 08 1 0105-0505
281 BOLT; TORQUE ROD
M18X102 		1-09000-568-0 08 1 0506-0805
281 BOLT; TORQUE ROD
M18X102 		8-98012-877-0 08 1 0806-
289 BOLT; BRKT
(A) M22X155 		9-09801-290-1 08 1 0105-
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) M16X100 		9-91066-600-0 04 1 0105-0203
289 BOLT; BRKT
(B) M16X100 		9-91066-600-0 04 1 0204-0512
289 BOLT; BRKT
(B) M16X100 		0-10956-600-0 04 1 0601-
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) M16X60 		9-91066-660-0 04 1 0105-0203
289 BOLT; BRKT
(C) M16X60 		9-91066-660-0 04 1 0204-0512
289 BOLT; BRKT
(C) M16X60 		0-10956-660-0 04 1 0601-
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (D) M16X70 		9-91066-670-0 04 1 0105-0203
289 BOLT; BRKT
(D) M16X70 		9-91066-670-0 04 1 0204-0512
289 BOLT; BRKT
(D) M16X70 		0-10956-670-0 04 1 0601-
290 NUT; LK,BRKT
(A) M22 		9-09112-822-0 08 1 0105-0512
290 NUT; LK,BRKT
(A) M22 		0-91112-822-0 08 1 0601-
290 NUT; LK,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) M16 		9-99110-516-0 12 1 0105-0203
290 NUT; LK,BRKT
(B) M16 		9-99110-516-0 12 1 0204-0512
290 NUT; LK,BRKT
(B) M16 		0-91110-516-0 12 1 0601-
291 WASHER; PL,BRKT
(A) ID=21 		9-09164-520-0 06 1 0105-
291 WASHER; PL,BRKT
(B) ID=23 		9-09164-522-0 08 1 0105-0605
291 WASHER; PL,BRKT
(B) ID=23 		0-91614-522-0 08 1 0606-
291 WASHER; PL,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) ID=16.2 		1-09503-223-0 24 1 0105-0203
291 WASHER; PL,BRKT
(C) ID=16.2 		1-09503-223-0 24 1 0204-0903
291 WASHER; PL,BRKT
(C) ID=16.2 		1-09503-316-0 24 1 0904-
296 NUT; SUPPORT,STABILIZER
M14 FLANGE 		0-91160-214-0 08 1 0105-0602
296 NUT; SUPPORT,STABILIZER
M14 FLANGE 		0-91180-214-0 08 1 0603-
326 PLATE; AIR SPR 1-52119-249-0 02 1 0105-
340 NUT; FIX
M12 FLANGE 		0-91150-212-0 04 1 0105-0602
340 NUT; FIX
M12 FLANGE 		0-91180-212-0 04 1 0603-
366 BRACKET; UPR,AIR SPR
(B) 		1-52171-249-0 02 1 0105-
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-248-1 01 1 0105-
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-247-1 01 1 0105-
367 BOLT; BRKT,AIR SPR
(A) M14X40 		9-92061-440-0 08 1 0105-0512
367 BOLT; BRKT,AIR SPR
(A) M14X40 		0-20951-440-0 08 1 0601-
367 BOLT; BRKT,AIR SPR
(B) M16X50 		9-92061-650-0 16 1 0105-0512
367 BOLT; BRKT,AIR SPR
(B) M16X50 		0-20951-650-0 16 1 0601-
367 BOLT; BRKT,AIR SPR
(C) M20X50 		9-92062-050-0 12 1 0105-
369 PIN; KNOCK,BRKT 1-52179-036-2 02 1 0105-
369 PIN; KNOCK,BRKT 1-52179-036-2 04 1 0105-
370 NUT; AIR SPR
M20 		9-99111-520-0 02 1 0105-0512
370 NUT; AIR SPR
M20 		0-91111-520-0 02 1 0601-
371 WASHER; LK,AIR SPR
ID=20.2 		9-09150-520-0 02 1 0105-0603
371 WASHER; LK,AIR SPR
ID=20.2 		0-91510-520-0 02 1 0604-
375 BUSHING; RUBBER,TORQUE ROD 1-51519-166-1 04 1 0105-0312
375 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0401-
383 NUT; TORQUE ROD
M18 SELF LOCK 		1-09464-032-0 08 1 0105-
414 RUBBER; BUFFER 1-53366-182-0 02 1 0105-
415 BOLT; RUBBER
M12X35 FLANGE 		0-28691-235-0 04 1 0105-0512
415 BOLT; RUBBER
M12X35 FLANGE 		0-28661-235-0 04 1 0601-
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0105-0306
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0307-
434 ROD ASM; V 1-51510-769-1 01 1 0105-
435 BOLT; V-ROD
(A) M18X70 FLANGE 		1-09044-102-1 04 1 0105-0805
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98010-540-0 04 1 0806-1102
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98183-506-0 04 1 1103-
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0105-0805
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0806-
436 NUT; V-ROD
M24 FLANGE 		1-42334-045-1 02 1 0105-0805
436 NUT; V-ROD
M24 FLANGE 		8-98019-963-0 02 1 0806-
438 BRACKET; V-ROD
(A) 		1-53363-109-0 01 1 0105-
438 BRACKET; V-ROD
(B) 		1-53363-110-0 01 1 0105-
438 BRACKET; V-ROD
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) 		1-53353-117-1 02 1 0105-0203
438 BRACKET; V-ROD
(C) 		1-53353-117-1 02 1 0204-
440 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 01 1 0105-
440 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 02 1 0105-
495 BRACKET; AIR SPR 1-53363-111-0 02 1 0105-
496 CROSSMEMBER 1-53456-365-0 01 1 0105-
