Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#14085) — 392 parça

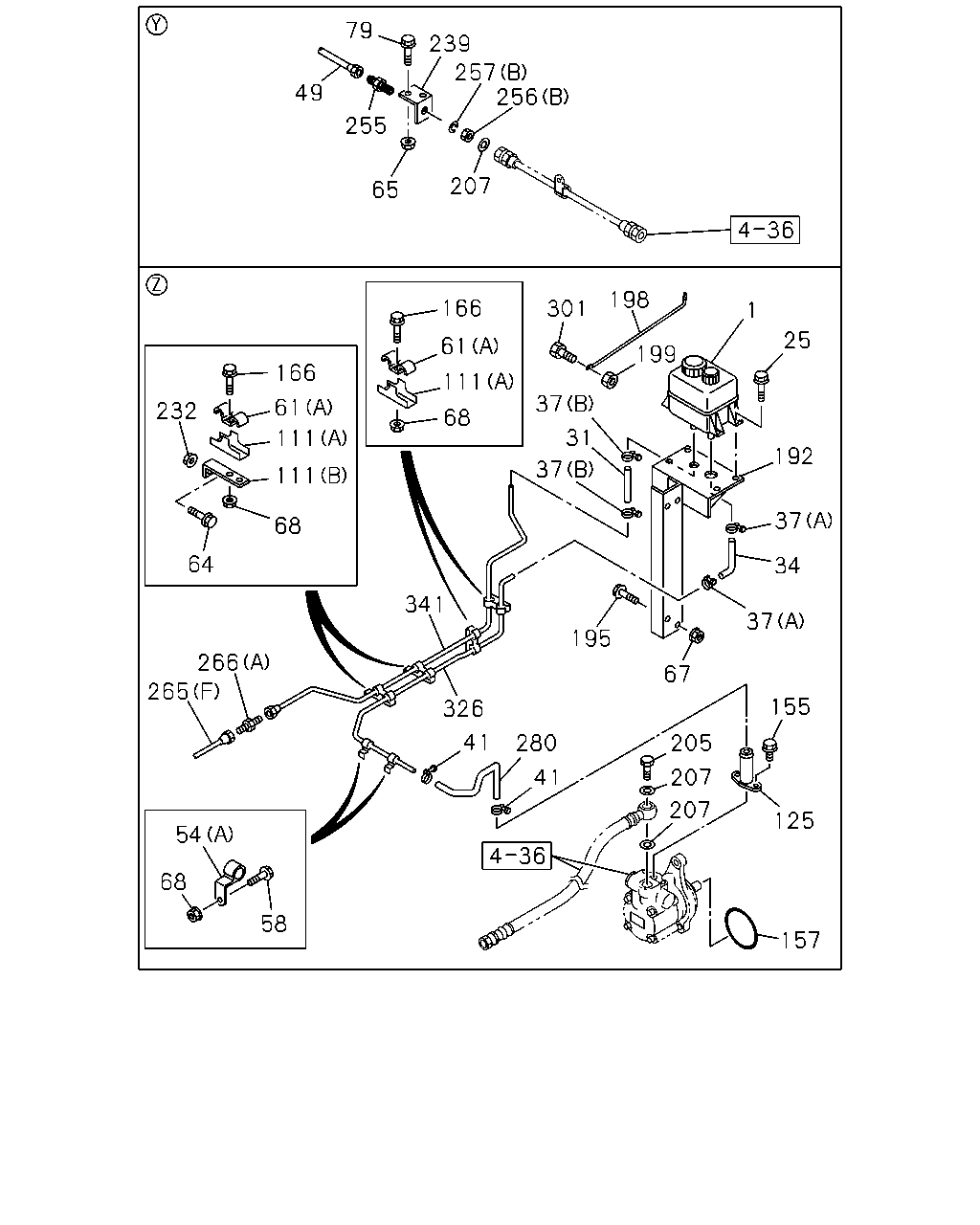

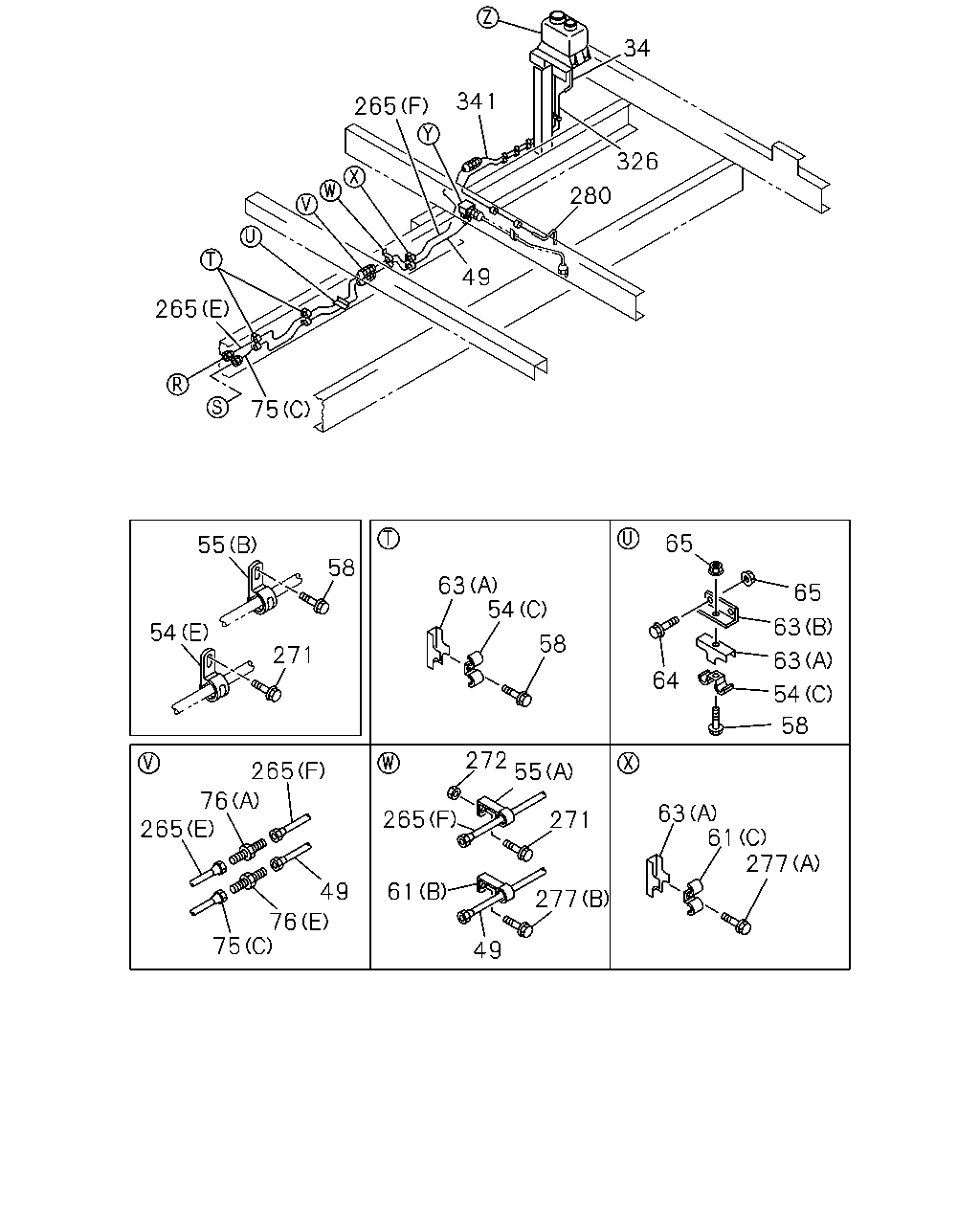

34 341 265 326 280 49 265 75 65 55 58 63 54 65 63 54 58 271 63 64 54 58 272 55 265 76 265 63 61 277 265 271 49 61 277 76 75 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET	1-21116-306-0	01	1	0105-
49	PIPE; OIL,FLEX HOSE TO UNION	1-21116-939-0	01	1	0105-
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0105-
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0105-0606
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-
55	CLIP; P/S RUBBER HOSE (A) ID=15 H=30 L=30	1-09700-832-0	02	1	0105-
55	CLIP; P/S RUBBER HOSE (B) ID=16 L=20	9-09525-535-0	01	1	0105-0606
55	CLIP; P/S RUBBER HOSE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	08	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	03	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	05	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	05	1	0601-
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0105-
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	0105-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21116-759-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1374	1-21117-097-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (A)	1-21116-746-0	01	1	0105-0203
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0204-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-763-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21117-099-0	01	1	0107-0203
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0204-
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0105-0607
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0105-0607
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0105-0607
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0105-0607
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0105-0607
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0105-
265	PIPE; OIL,UNION TO UNION (B) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-761-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (D)	1-21116-767-1	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (F)	1-21116-901-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (F)	1-21117-102-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E)	1-21116-953-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0107-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0601-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0105-0602
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0603-
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
277	BOLT; HOSE CLIP (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21116-740-1	01	1	0105-
326	PIPE; OIL,OIL TANK TO PUMP	1-21116-903-0	01	1	0105-
341	PIPE; OIL,UNION TO OIL TANK	1-21116-902-0	01	1	0105-0106
341	PIPE; OIL,UNION TO OIL TANK	1-21117-103-0	01	1	0107-

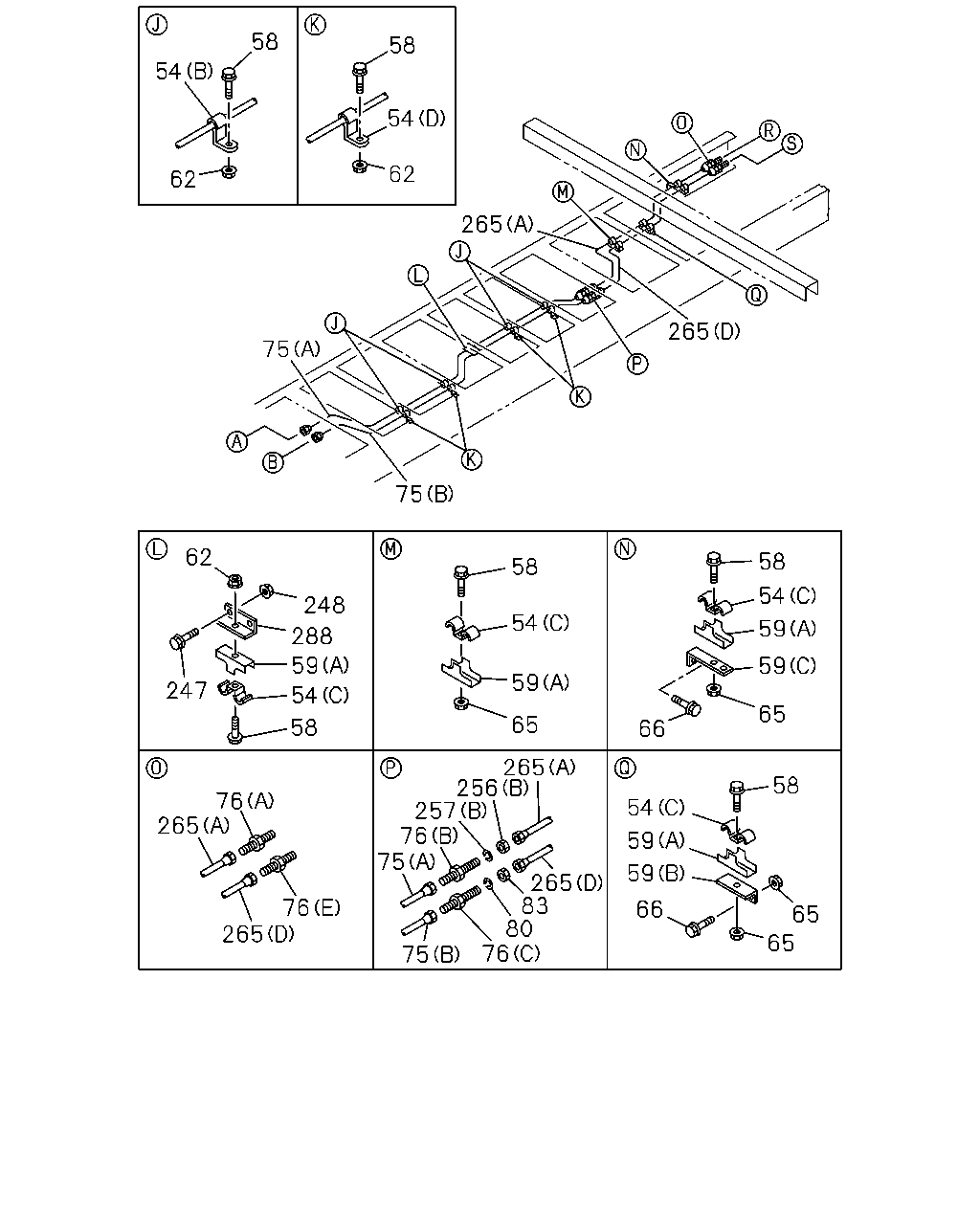

58 58 54 54 62 62 265 265 75 75 62 58 58 54 248 54 59 288 59 59 59 247 54 65 65 58 66 265 256 257 76 75 58 76 265 54 59 265 83 80 76 59 76 265 66 65 65 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0105-
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0105-0606
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	08	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	03	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	05	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47478-918-0	01	1	0105-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0105-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	05	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0601-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21116-759-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1374	1-21117-097-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (A)	1-21116-746-0	01	1	0105-0203
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0204-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-763-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21117-099-0	01	1	0107-0203
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0204-
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0105-0607
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0105-0607
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0105-0607
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0105-0607
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0105-0607
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	02	1	0105-0603
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	02	1	0604-0903
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	02	1	0904-
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	02	1	0105-0512
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	02	1	0601-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
248	NUT; BRKT,CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0105-0512
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (B) M20	9-99111-420-0	01	1	0105-0512
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0601-
256	NUT; UNION (C) M20	9-99111-420-0	04	1	0105-0512
256	NUT; UNION (C) M20	0-91111-520-0	04	1	0601-
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	0105-0603
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0105-0603
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0105-
265	PIPE; OIL,UNION TO UNION (B) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-761-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (D)	1-21116-767-1	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (F)	1-21116-901-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (F)	1-21117-102-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E)	1-21116-953-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0107-
288	BRACKET; CLIP,P/S	1-47478-408-0	01	1	0105-

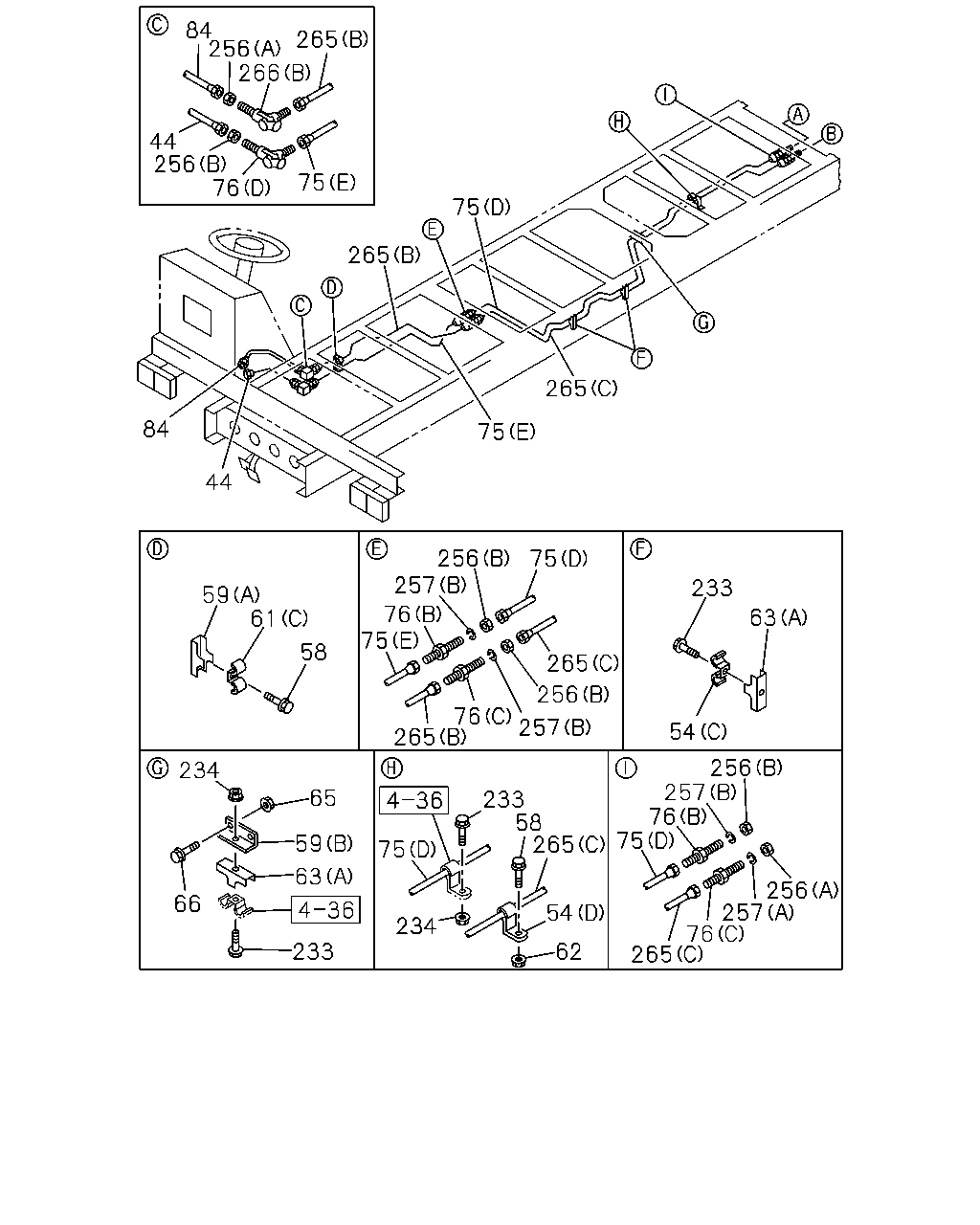

84 256 266 265 44 256 76 75 75 265 265 84 75 44 256 257 75 233 59 61 76 75 63 58 265 256 76 257 265 54 256 257 76 75 234 65 233 58 265 59 75 63 256 257 76 265 66 54 234 233 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21116-754-0	01	1	0105-
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0105-
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0105-0606
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	08	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	03	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	05	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	05	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	03	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47478-918-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0105-
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0105-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0105-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47478-408-0	01	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	05	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0601-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-750-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION (E)	1-21116-759-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1374	1-21117-097-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (A)	1-21116-746-0	01	1	0105-0203
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-746-0	01	1	0204-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-763-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21117-099-0	01	1	0107-0203
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21117-099-0	01	1	0204-
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0105-0607
76	UNION; OIL PIPE (E) M20 STRAIGHT	9-09233-012-1	01	1	0105-0607
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE (A) M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (B) M20 & M20	9-09233-312-1	03	1	0105-0607
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (C) M22	9-09233-315-1	03	1	0105-0607
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (D) M20	9-09235-212-1	01	1	0105-0607
76	UNION; OIL PIPE (D) M20	0-92135-212-0	01	1	0608-
84	HOSE; FLEX,P/S L=520	0-09671-520-0	01	1	0105-0607
84	HOSE; FLEX,P/S L=520	0-89671-520-0	01	1	0608-0611
84	HOSE; FLEX,P/S L=520	8-98072-097-0	01	1	0612-
233	BOLT; PIPE CLIP,P/S M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
233	BOLT; PIPE CLIP,P/S M8X20 FLANGE	0-28650-820-0	02	1	0601-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28680-840-0	03	1	0105-0512
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	03	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	03	1	0105-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	03	1	0603-
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0105-0512
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (B) M20	9-99111-420-0	01	1	0105-0512
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0601-
256	NUT; UNION (C) M20	9-99111-420-0	04	1	0105-0512
256	NUT; UNION (C) M20	0-91111-520-0	04	1	0601-
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	0105-0603
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0105-0603
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0105-
265	PIPE; OIL,UNION TO UNION (B) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-761-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (D)	1-21116-767-1	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (F)	1-21116-901-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (F)	1-21117-102-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E)	1-21116-953-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0107-
266	UNION; OIL PIPE,P/S (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
266	UNION; OIL PIPE,P/S (A) M22	1-09654-409-0	01	1	0105-

79 239 257 256 49 255 207 65 198 166 301 1 25 61 199 166 111 37 61 232 68 31 111 192 37 111 37 68 64 34 341 37 195 266 67 265 155 326 41 280 205 207 41 207 125 54 68 58 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	0-09814-120-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-306-0	01	1	0105-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0105-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0105-
49	PIPE; OIL,FLEX HOSE TO UNION	1-21116-939-0	01	1	0105-
54	CLIP; OIL PIPE (A) D=24 L=21	1-09700-380-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	04	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0105-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	02	1	0105-
54	CLIP; OIL PIPE (D) ID=15 H=30 L=30	1-09700-832-0	04	1	0105-
54	CLIP; OIL PIPE (E) ID=13 L=20	9-09525-235-0	01	1	0105-0606
54	CLIP; OIL PIPE (E) ID=13 L=20	0-95235-235-0	01	1	0607-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	08	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	03	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0601-
58	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	05	1	0105-0512
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	05	1	0601-
61	CLIP; OIL PIPE (A) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0105-
61	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0105-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M6 FLANGE	0-91150-106-0	04	1	0105-0602
68	NUT; CLIP,OIL PIPE M6 FLANGE	0-91180-106-0	04	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	04	1	0105-
111	BRACKET; OIL PIPE (B)	1-47478-918-0	02	1	0105-
125	CONNECTOR; P/S PUMP	1-21122-022-0	01	1	0105-
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0105-0906
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50640-818-0	02	1	0907-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0105-
166	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	04	1	0105-0512
166	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	04	1	0601-
192	BRACKET; P/S OIL TANK	1-65600-636-2	01	1	0105-
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
195	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
198	STAY; OIL TANK,POWER STEERING	1-47479-079-0	01	1	0105-0403
198	STAY; OIL TANK,POWER STEERING	1-47479-996-0	01	1	0404-
199	NUT; STAY,OIL TANK M8 FLANGE	0-91150-108-0	02	1	0105-0602
199	NUT; STAY,OIL TANK M8 FLANGE	0-91180-108-0	02	1	0603-
205	BOLT; EYE,FLEX HOSE,P/S M18X39	1-09675-114-0	01	1	0105-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
239	BRACKET; FLEX HOSE	1-47479-141-0	01	1	0105-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	02	1	0105-0512
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (B) M20	9-99111-420-0	01	1	0105-0512
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0601-
256	NUT; UNION (C) M20	9-99111-420-0	04	1	0105-0512
256	NUT; UNION (C) M20	0-91111-520-0	04	1	0601-
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	0105-0603
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	01	1	0604-
257	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	03	1	0105-0603
257	WASHER; LK,UNION (B) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (A) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-744-1	01	1	0105-
265	PIPE; OIL,UNION TO UNION (B) L=1341 SERVICED BY L=1450	1-49115-489-0	01	1	0105-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-761-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-098-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (D)	1-21116-767-1	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (D)	1-21117-100-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (F)	1-21116-901-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (F)	1-21117-102-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (E)	1-21116-953-0	01	1	0105-0106
265	PIPE; OIL,UNION TO UNION (E) L=1323	1-21117-101-0	01	1	0107-
266	UNION; OIL PIPE,P/S (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
266	UNION; OIL PIPE,P/S (A) M22	1-09654-409-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21116-740-1	01	1	0105-
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-
326	PIPE; OIL,OIL TANK TO PUMP	1-21116-903-0	01	1	0105-
341	PIPE; OIL,UNION TO OIL TANK	1-21116-902-0	01	1	0105-0106
341	PIPE; OIL,UNION TO OIL TANK	1-21117-103-0	01	1	0107-

1 2 7 8 20 2 19 3 12 5 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	0105-0508
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
