Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

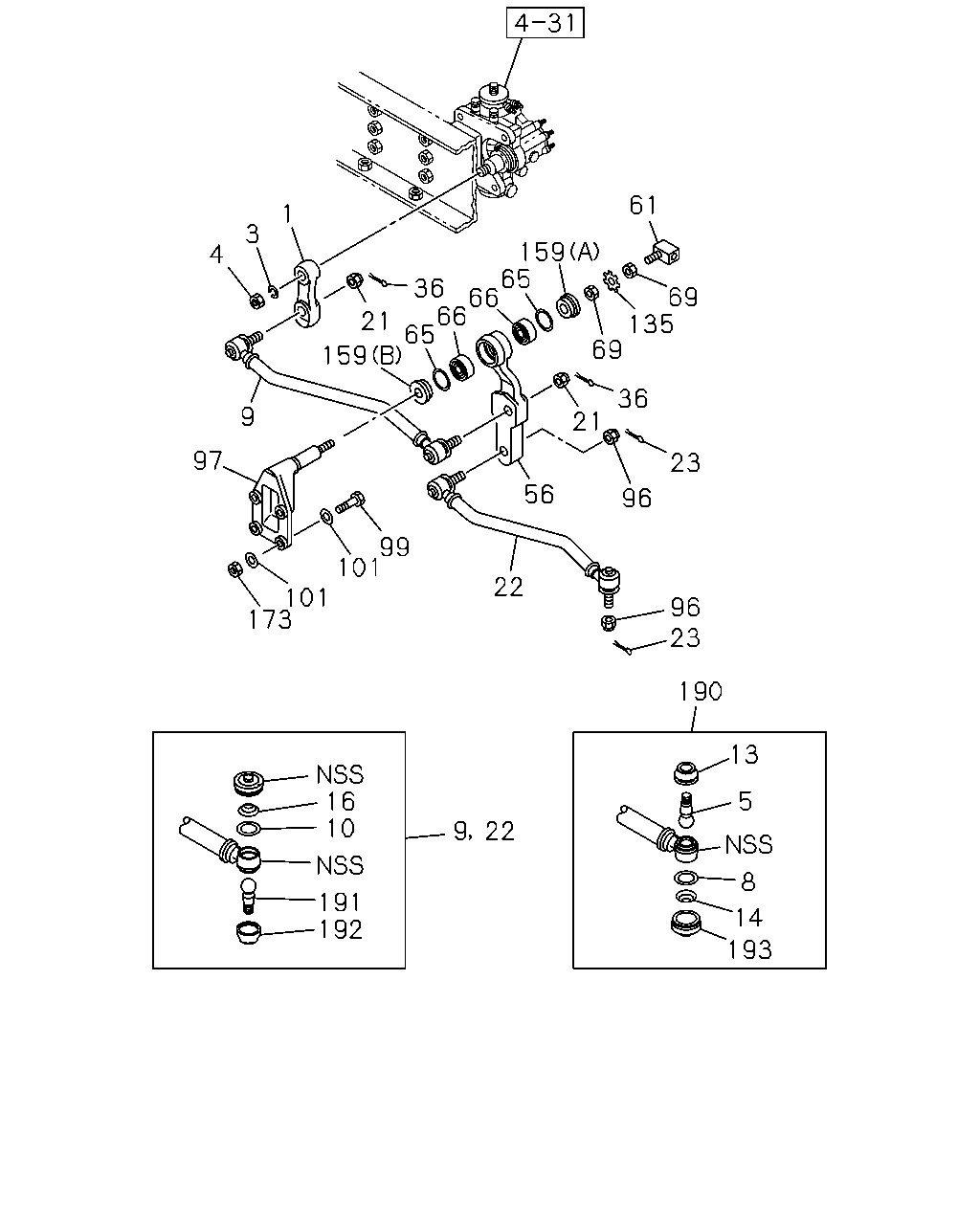

4-33 — STEERING LINKAGE
(#14084) — 45 parça
61
1
3
159
65
36
66
66
65
159
4
69
135
69
21
36
9
21
97
23
56
96
99
101
22
101
173
96
23
190
13
16
10
5
9
22
8
191
192
14
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-472-3
01
1
0105-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0105-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0105-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0105-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0105-
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0105-
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0105-
9
LINK; DRAG
1-44380-247-3
01
1
0105-
10
SEAT; JOINT BALL
1-43159-075-0
02
1
0105-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0105-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0105-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0105-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0105-
16
SPRING; ROD END
1-43159-074-0
02
1
0105-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0105-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
22
LINK; DRAG,2ND
1-44380-248-2
01
1
0105-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
9-08115-035-0
02
1
0105-0606
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
0607-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0105-0606
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-174-0
01
1
0105-
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
9-09031-210-0
01
1
0105-0512
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
0-90301-610-0
01
1
0601-
65
SEAL; DUST,LINK ARM
9-44349-040-1
02
1
0105-
66
BEARING; LINK ARM
9-00030-207-0
02
1
0105-
69
NUT; LINK ARM
M24
9-09840-264-0
02
1
0105-
96
NUT; LINK ARM
M24 SLOTTED
1-09442-020-0
02
1
0105-0805
96
NUT; LINK ARM
M24
1-09442-032-0
02
1
0806-
97
BRACKET; LINK ARM
1-44348-078-1
01
1
0105-
99
BOLT; BRKT
M14X50
9-92061-450-0
04
1
0105-0512
99
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0601-
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
08
1
0105-0106
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
04
1
0107-
135
WASHER; LK,PIN SET,LINK ARM
9-09853-842-0
01
1
0105-
159
WASHER; LINK ARM
(A) ID=24 T=8
9-44349-039-0
01
1
0105-
159
WASHER; LINK ARM
(B) ID=35 T=9
9-44349-046-0
01
1
0105-
173
NUT; BRKT,LINK ASM
M14
9-99110-514-0
04
1
0105-0106
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0105-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0105-
191
JOINT; BALL
1-44361-105-1
02
1
0105-
192
BOOT; ROD END
1-43159-107-0
02
1
0105-
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0105-
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0105-
