◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#14078) — 140 parça

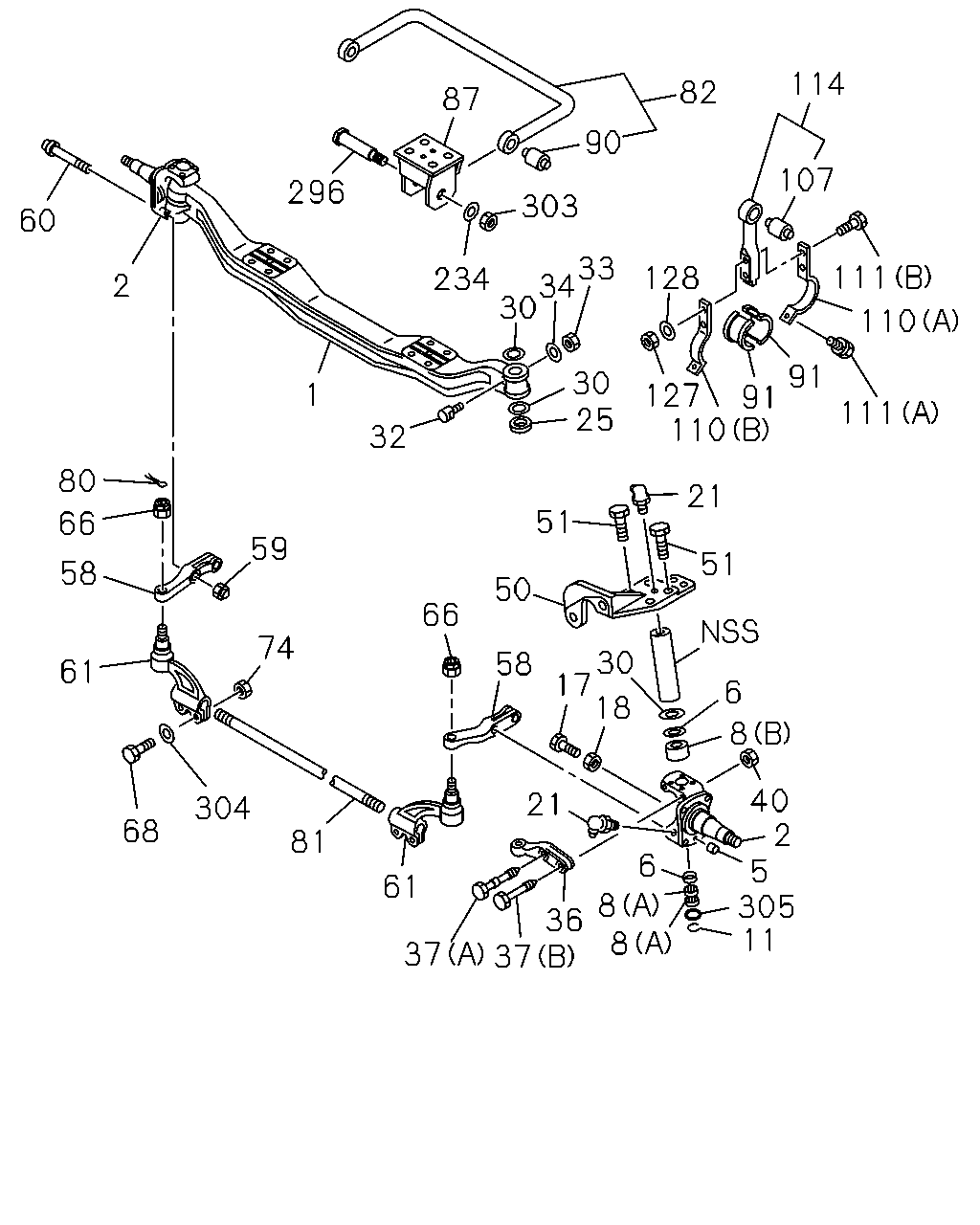

çizim 22256
114 82 87 90 107 296 303 60 33 234 34 30 111 128 2 110 30 25 110 91 1 111 32 80 21 51 66 59 51 58 50 66 74 30 17 18 58 61 6 8 21 40 2 5 305 11 304 68 81 6 61 8 8 36 37 37 127 91
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-157-2 01 1 0105-1004
1 AXLE; FRT 8-98162-922-0 01 1 1005-
2 KNUCKLE; FRT AXLE 1-43131-079-1 01 1 0105-
2 KNUCKLE; FRT AXLE 1-43132-079-1 01 1 0105-
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 04 1 0105-
6 SEAL; KING PIN 9-09926-024-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0105-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 0105-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1005-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0105-0705
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 0706-
18 NUT; STOPPER BOLT,KNUCKLE
M18 		1-09469-011-1 01 1 1005-
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 0105-0512
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 0601-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5? 		9-09031-110-0 04 1 0105-0512
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5? 		0-90301-510-0 04 1 0601-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0105-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0105-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0105-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0105-0512
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0105-0603
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604-
36 ARM; KNUCKLE 1-43133-064-2 01 1 0105-
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 0105-0704
37 BOLT; KNUCKLE ARM
(A) M22X179 		8-98052-380-0 01 1 0705-
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 0105-0704
37 BOLT; KNUCKLE ARM
(B) M22X167 		8-98052-381-0 01 1 0705-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0105-0704
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0705-
50 BRACKET; POWER CHAMBER 1-43145-030-0 01 1 0105-
50 BRACKET; POWER CHAMBER 1-43145-029-0 01 1 0105-
51 BOLT; POWER CHAMBER BRKT
M12X25 FLANGE 		0-28681-225-0 04 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 0601-
51 BOLT; POWER CHAMBER BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
M12X40 FLANGE 		0-28651-240-0 04 1 0601-
58 ARM; TIE ROD
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> 		1-43135-048-3 01 1 0105-
58 ARM; TIE ROD
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-43135-048-3 01 1 0105-
58 ARM; TIE ROD
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> 		1-43134-048-3 01 1 0105-
58 ARM; TIE ROD
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-43134-048-3 01 1 0105-
58 ARM; TIE ROD
WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-43135-042-3 01 1 0105-
58 ARM; TIE ROD
WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-43134-042-3 01 1 0105-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0105-0704
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0705-
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 04 1 0105-0704
60 BOLT; TIE ROD ARM
M22X193 		8-98052-379-0 04 1 0705-
61 ROD END; TIE ROD 1-43150-804-0 01 1 0105-
61 ROD END; TIE ROD 1-43150-803-0 01 1 0105-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0105-0805
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0105-0709
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 0710-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0105-0512
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0105-0606
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0607-
81 ROD; TIE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> 		1-43151-150-0 01 1 0105-
81 ROD; TIE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-43151-150-0 01 1 0105-
81 ROD; TIE
WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-43151-148-0 01 1 0105-
82 BAR; STAB,FRT SUSP 1-51770-169-0 01 1 0105-
87 BRACKET; STABILIZER 1-51781-123-4 02 1 0105-
90 BUSHING; RUBBER,STAB BAR 1-51779-067-0 02 1 0105-
91 BUSHING; RUBBER,STAB BAR 1-51779-112-1 04 1 0105-1102
91 BUSHING; RUBBER,STAB BAR 8-98183-355-0 04 1 1103-
107 BUSHING; STABILIZER BAR 1-51779-055-0 02 1 0105-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0105-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0105-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0105-0910
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 0911-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0105-0910
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 0911-
114 ROD; STAB BAR 1-51773-105-0 02 1 0105-
127 NUT; CLAMP
M12 		9-99110-412-0 06 1 0105-0512
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 0601-
128 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0105-0603
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0604-1002
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1003-
234 WASHER; STAB
ID=20.2 		9-09150-620-0 02 1 0105-0603
234 WASHER; STAB
ID=20.2 		0-91510-620-0 02 1 0604-
296 PIN; STAB 1-51361-028-2 02 1 0105-
303 NUT; PIN
M20 		9-99110-520-0 02 1 0105-0512
303 NUT; PIN
M20 		0-91110-520-0 02 1 0601-
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0105-0709
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 0710-
305 COVER; KNUCKLE 1-43175-021-0 02 1 0105-0704
305 COVER; KNUCKLE 8-98052-291-0 02 1 0705-
çizim 79139
274 268 51 50 274 267 268 272
BalonParca AdiParca NoAdetTipApplied Date
50 BRACKET; POWER CHAMBER 1-43145-030-0 01 1 0105-
50 BRACKET; POWER CHAMBER 1-43145-029-0 01 1 0105-
51 BOLT; POWER CHAMBER BRKT
M12X25 FLANGE 		0-28681-225-0 04 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 0601-
51 BOLT; POWER CHAMBER BRKT
M12X40 FLANGE 		0-28681-240-0 04 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
M12X40 FLANGE 		0-28651-240-0 04 1 0601-
267 CLIP; HARNESS
ID=11 L=16 		9-09525-025-0 04 1 0105-0606
267 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 04 1 0607-1003
267 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 02 1 1004-
268 CLIP; HARNESS
(B) ID=11 L=16 		9-09525-025-0 09 1 0105-0606
268 CLIP; HARNESS
(B) ID=11 L=16 		0-95235-025-0 09 1 0607-
268 CLIP; HARNESS
(A) ID=11 L=50 		9-09525-085-0 01 1 0105-0606
268 CLIP; HARNESS
(A) ID=11 L=50 		0-95235-085-0 01 1 0607-
272 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
274 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 12 1 0105-0512
274 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 12 1 0601-
274 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
274 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
274 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
274 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
çizim 81181
3 61 8 32 275 6 312 25 34 33 6 8 8 305 11 275 311
BalonParca AdiParca NoAdetTipApplied Date
3 KING PIN SET 1-87830-738-4 02 1 0105-
6 SEAL; KING PIN 9-09926-024-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0105-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 0105-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0105-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0105-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0105-0512
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0105-0603
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604-
61 ROD END; TIE ROD 1-43150-804-0 01 1 0105-
61 ROD END; TIE ROD 1-43150-803-0 01 1 0105-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0105-
305 COVER; KNUCKLE 1-43175-021-0 02 1 0105-0704
305 COVER; KNUCKLE 8-98052-291-0 02 1 0705-
311 REPAIR KIT; ROD END,TIE 1-85574-041-0 02 1 0105-
312 JOINT; BALL,ROD END,TIE 1-44361-105-1 02 1 0105-
