◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#14077) — 25 parça

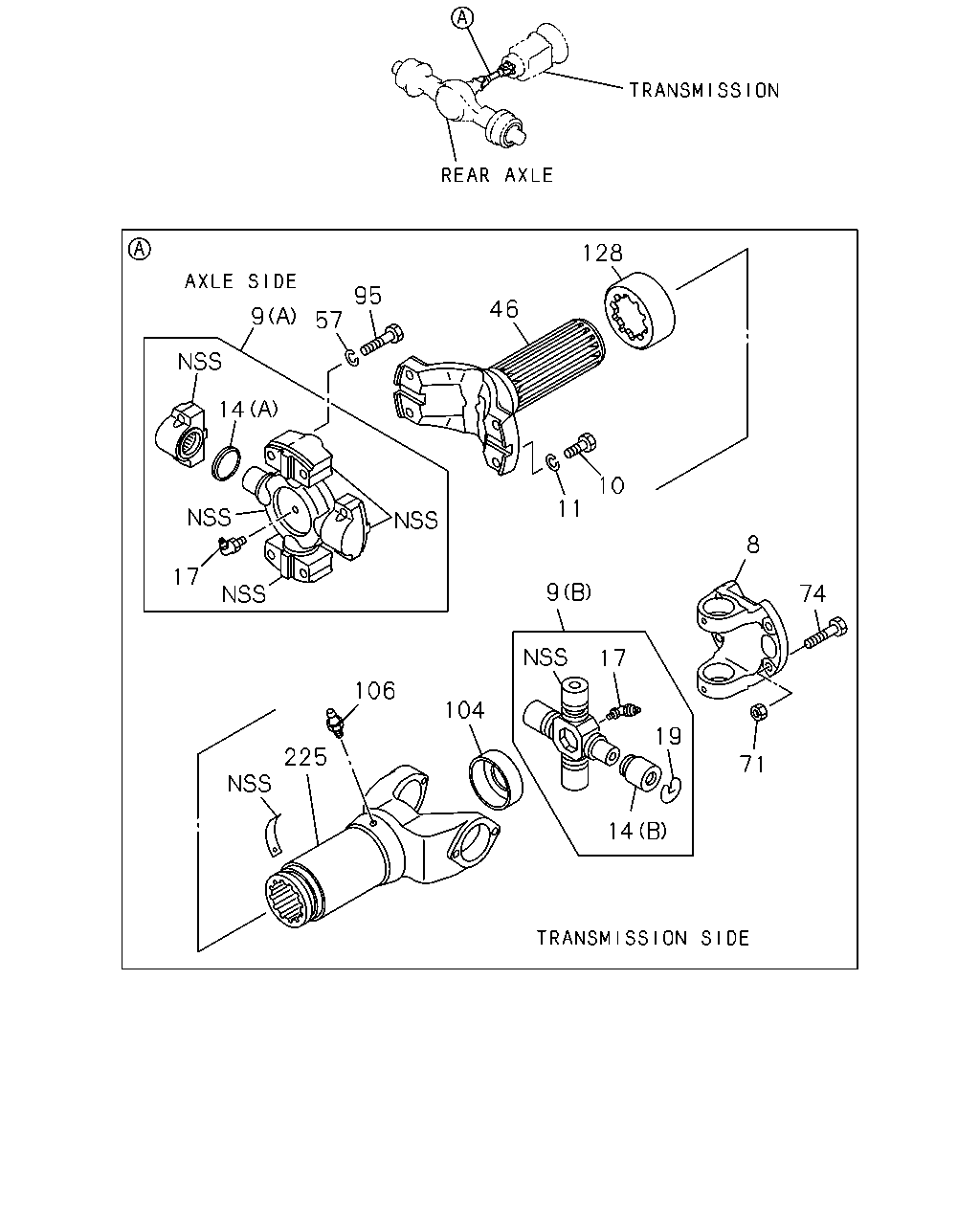

çizim 80825
128 95 46 9 57 14 10 11 8 17 9 74 17 106 104 19 225 71 14
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-110-0 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-088-0 01 1 0105- ● ●
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0105-0805 ● ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-130-0 04 1 0105- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
L=285 		1-37171-154-0 01 1 0105- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 04 1 0604- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-0805 ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
74 BOLT; YOKE,TRANS
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) M14X50 		1-09000-645-0 04 1 0105-0106 ● ●
95 BOLT; YOKE,FINAL
M12X45 		9-91066-245-0 04 1 0105-0805 ● ●
95 BOLT; YOKE,FINAL
M12X45 		8-98036-382-0 04 1 0806- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0105- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE 1-37247-018-0 01 1 0105- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 		1-37241-124-0 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
