◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#14076) — 87 parça

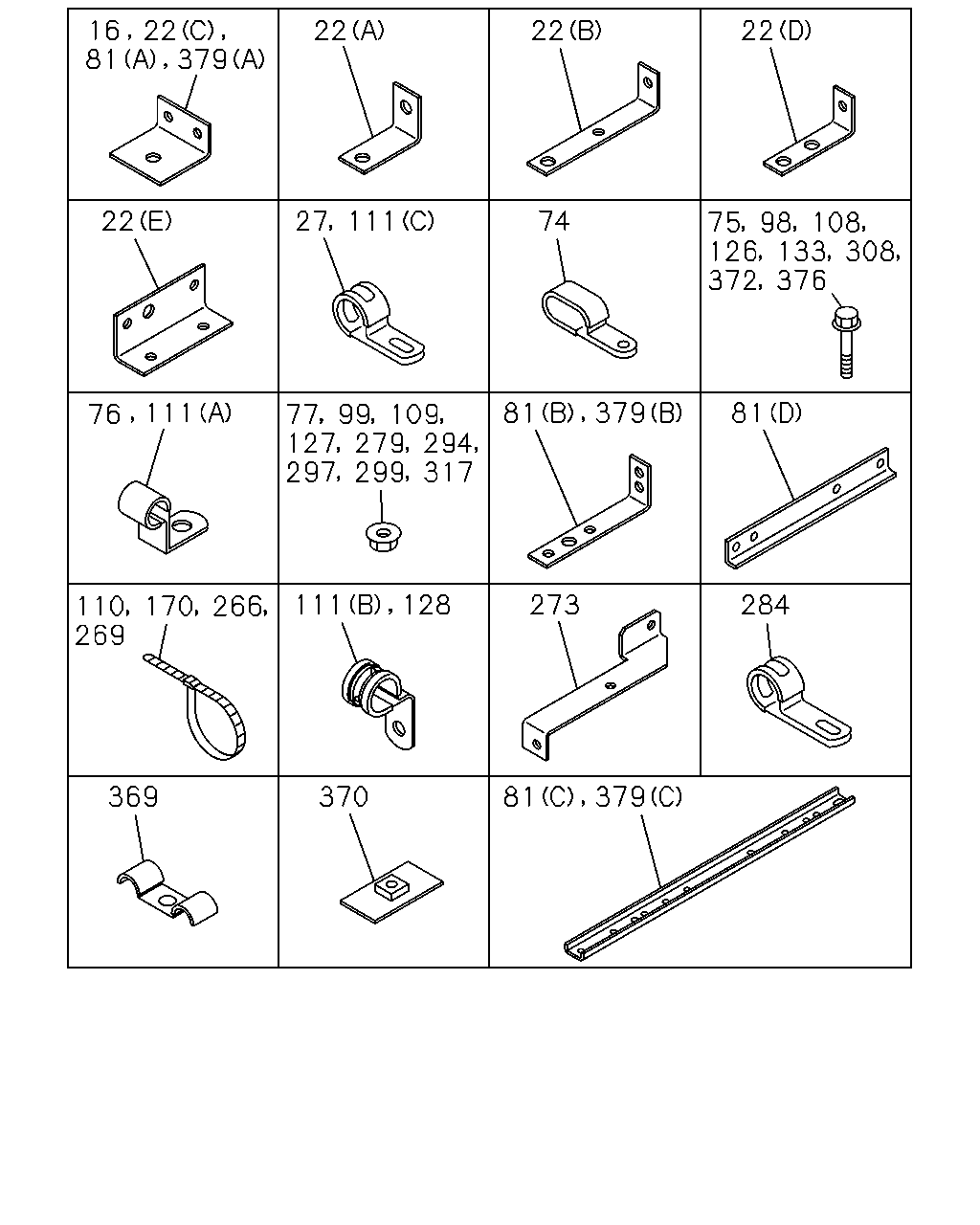

çizim 21335
22 22 22 27 111 74 22 81 111 76 111 128 273 284 110 269 170 266 369 370 16 22 379 81 75 98 108 308 133 376 126 372 379 81 317 294 109 99 279 299 77 127 297 379 81
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP 1-47478-422-0 01 1 0105-
22 BRACKET; CLIP
(B) L=100 		1-47477-715-3 01 1 0105-
22 BRACKET; CLIP
(B) L=45 B=20 		1-47477-716-1 01 1 0105-
22 BRACKET; CLIP
(A) L=40 		1-47478-410-0 01 1 0105-
22 BRACKET; CLIP
(C) 		1-47478-422-0 01 1 0105-
22 BRACKET; CLIP
(D) 		1-47478-901-0 02 1 0105-
22 BRACKET; CLIP
(E) 		1-47478-924-0 01 1 0105-
27 CLIP; FLEX HOSE
ID=19 L=28 		9-09525-855-0 01 1 0105-0606
27 CLIP; FLEX HOSE
ID=19 L=28 		0-95235-855-0 01 1 0607-
74 CLIP; NYLON TUBE
ID=13X2 L=16 		9-09535-225-0 02 1 0105-0606
74 CLIP; NYLON TUBE
ID=13X2 L=16 		0-95325-225-0 02 1 0607-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
75 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
76 CLIP; NYLON TUBE
ID=13 H=40 L=25 		1-09700-620-0 01 1 0105-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 32 1 0105-0602
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 32 1 0603-
81 BRACKET; CLIP
(A) 		1-47478-422-0 02 1 0105-
81 BRACKET; CLIP
(B) 		1-47478-903-0 06 1 0105-
81 BRACKET; CLIP
(C) HOLE 11 		1-47478-909-0 01 1 0105-0303
81 BRACKET; CLIP
(C) HOLE 11 		1-47479-557-1 01 1 0304-
81 BRACKET; CLIP
(C) HOLE 15 		1-47478-913-0 02 1 0105-
81 BRACKET; CLIP
(D) 		1-47478-952-0 01 1 0105-
98 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
98 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0601-
99 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
99 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
110 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 02 1 0105-
111 CLIP; AIR PIPE
(A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0105-
111 CLIP; AIR PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
111 CLIP; AIR PIPE
(C) ID=13 L=50 		9-09525-286-0 01 1 0105-0606
111 CLIP; AIR PIPE
(C) ID=13 L=50 		0-95235-286-0 01 1 0607-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 0105-0602
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
128 CLIP; NYLON TUBE
ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
170 CLIP; NYLON TUBE
L=250 		1-09707-126-0 28 1 0105-0109
170 CLIP; NYLON TUBE
L=250 		1-09707-126-0 26 1 0110-0207
170 CLIP; NYLON TUBE
L=250 		1-09707-126-0 27 1 0208-
266 CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		1-09707-126-0 25 1 0105-0109
266 CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		1-09707-126-0 24 1 0110-
266 CLIP; NYLON TUBE
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		1-09707-126-0 23 1 0105-0109
266 CLIP; NYLON TUBE
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		1-09707-126-0 22 1 0110-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 02 1 0105-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 04 1 0105-
273 BRACKET; CLIP 1-47479-081-1 01 1 0105-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
284 CLIP; FLEX HOSE
ID=14.5 L=20 		1-09701-012-0 04 1 0105-
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
294 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 36 1 0105-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 36 1 0603-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
308 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
308 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
369 CLIP; AIR PIPE
ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0105-
370 BRACKET; PIPE CLIP
L=50 		1-47475-299-2 01 1 0105-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 82 1 0105-0512
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 82 1 0601-
376 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
379 BRACKET; NYLON TUBE
(A) 		1-47478-422-0 01 1 0105-
379 BRACKET; NYLON TUBE
(B) 		1-47478-903-0 04 1 0105-
379 BRACKET; NYLON TUBE
(C) HOLE 7 		1-47478-904-0 01 1 0105-0303
379 BRACKET; NYLON TUBE
(C) HOLE 7 		1-47479-555-0 01 1 0304-
379 BRACKET; NYLON TUBE
(C) HOLE 11 		1-47478-906-0 01 1 0105-0303
379 BRACKET; NYLON TUBE
(C) HOLE 11 		1-47479-556-0 01 1 0304-
