Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶

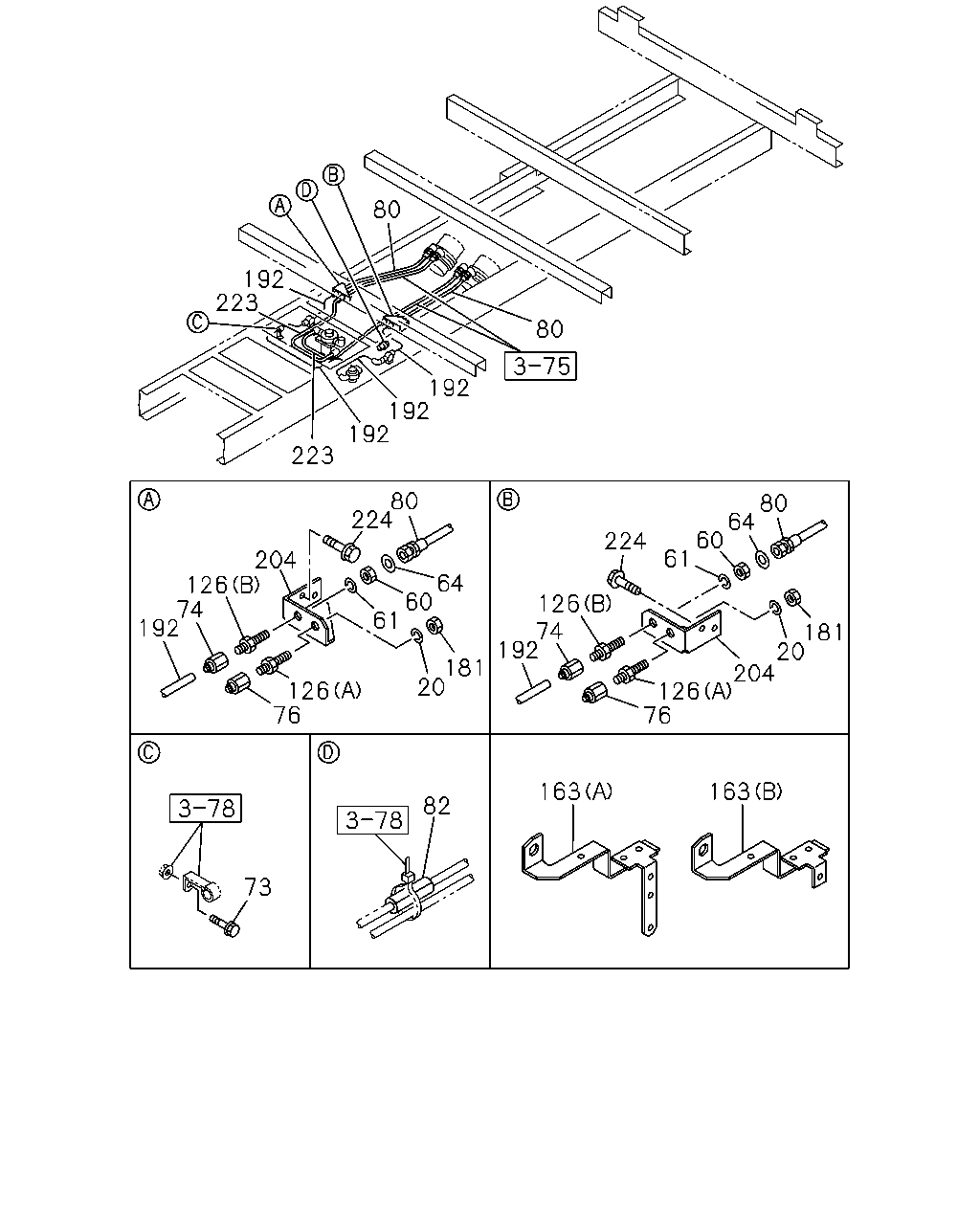

3-77 — BRAKE PIPING; AIR,REAR
(#14075) — 32 parça
80
192
223
80
192
192
192
223
80
224
80
64
60
61
224
204
126
74
192
64
60
61
126
74
192
181
20
204
181
20
126
76
126
76
163
163
82
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
WASHER; LK,PIPE UNION
ID=16.2
9-09150-516-0
02
1
0105-0603
20
WASHER; LK,PIPE UNION
ID=16.2
0-91510-516-0
02
1
0604-
60
NUT; NIPPLE,AIR PIPE
M16
9-99111-416-0
02
1
0105-0512
60
NUT; NIPPLE,AIR PIPE
M16
0-91111-516-0
02
1
0601-
61
WASHER; LK,NIPPLE
ID=16.2
9-09150-516-0
02
1
0105-0603
61
WASHER; LK,NIPPLE
ID=16.2
0-91510-516-0
02
1
0604-
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0105-0411
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0105-0512
73
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0601-
74
ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0105-
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0105-
80
HOSE; FLEX,POWER CHAMBER
L=550
0-07909-550-0
02
1
0105-0112
80
HOSE; FLEX,POWER CHAMBER
L=550
0-07908-550-0
02
1
0201-0411
80
HOSE; FLEX,POWER CHAMBER
L=640
1-09363-747-0
02
1
0412-
82
SLEEVE; RUBBER,NYLON TUBE
ID=14 OD=18 L=60
1-09337-030-0
01
1
0105-
126
UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT
1-09650-338-2
02
1
0105-0411
126
UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT
1-09654-016-2
02
1
0105-0411
163
BRACKET; FLEX HOSE
(A)
1-82698-303-0
01
1
0105-1003
163
BRACKET; FLEX HOSE
(B)
8-98163-881-0
01
1
1004-
163
BRACKET; FLEX HOSE
(A)
1-82698-302-0
01
1
0105-1003
163
BRACKET; FLEX HOSE
(B)
8-98163-880-0
01
1
1004-
181
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0105-0512
181
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0601-
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
01
1
0105-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
01
1
0105-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
02
1
0105-
204
BRACKET; TUBE UNION
1-47478-955-0
01
1
0105-
204
BRACKET; TUBE UNION
1-47478-956-0
01
1
0105-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
02
1
0105-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
02
1
0105-
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28681-030-0
04
1
0105-0512
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
04
1
0601-
