3-70 — BRAKE PIPING; AIR,AIR MASTER (#14073) — 118 parça

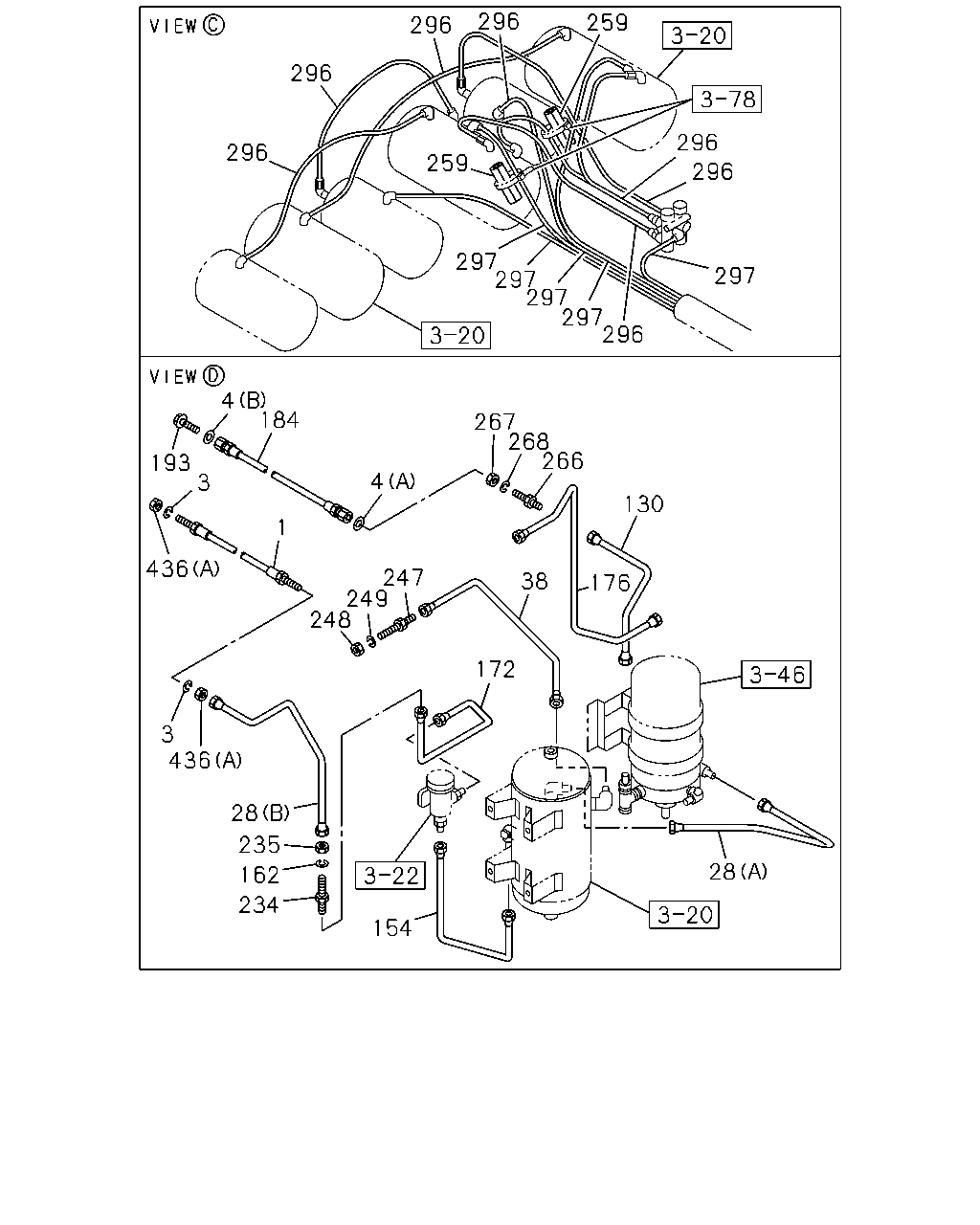

çizim 22801
296 259 296 296 296 296 259 296 297 297 297 297 296 297 4 184 267 268 266 193 3 4 130 1 436 247 249 248 38 176 172 3 436 28 235 28 162 234 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-863-0 01 1 0105-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 02 1 0105-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 02 1 0604-0903
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-622-0 02 1 0904-
4 GASKET; FLEX HOSE
(A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105-
4 GASKET; FLEX HOSE
(B) ID=11 OD=18 		9-09572-510-0 01 1 0105-
28 PIPE; AIR,AIR DRYER
(A) 		1-49122-301-0 01 1 0105-
28 PIPE; AIR,AIR DRYER
(B) 		1-49122-567-0 01 1 0105-
38 PIPE; AIR,MAIN TANK TO UNION 1-49122-302-0 01 1 0105-
130 PIPE; AIR,UNION TO UNION 1-49122-582-0 01 1 0105-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-297-0 01 1 0105-
162 WASHER; LK,NIPPLE
ID=12.2 		9-09150-512-0 01 1 0105-0603
162 WASHER; LK,NIPPLE
ID=12.2 		0-91510-512-0 01 1 0604-
172 PIPE; AIR,GOV TO UNION 1-49121-796-0 01 1 0105-
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-298-0 01 1 0105-
184 HOSE; FLEX,AIR GOV
L=730 		0-07532-730-1 01 1 0105-0605
184 HOSE; FLEX,AIR GOV
L=730 		0-57532-730-1 01 1 0606-
193 BOLT; EYE,FLEX HOSE,GOV LINE
M14X27 FLANGE 		1-09675-086-0 01 1 0105-
234 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0105-0607
234 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608-
235 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0105-
247 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 0105-0607
247 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0608-
248 NUT; PIPE UNION
M22 		9-09111-422-0 01 1 0105-0512
248 NUT; PIPE UNION
M22 		0-91111-522-0 01 1 0601-
249 WASHER; LK,PIPE UNION
ID=22.5 		9-09150-522-0 01 1 0105-0603
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-522-0 01 1 0604-0903
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-622-0 01 1 0904-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0105-
266 UNION; AIR PIPE 1-09654-185-1 01 1 0105-
267 NUT; UNION
M12 		9-09840-280-0 01 1 0105-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105-0603
268 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0105-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 02 1 0105-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0105-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 02 1 0105-
296 TUBE; NYLON
DOOR CONTROL AIR W/SUB AIR TANK<SGW> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0105-
297 TUBE; NYLON
AIR HORN(WB8) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0212
297 TUBE; NYLON
AIR HORN(WB8) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
436 NUT; CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
436 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
(A) M22 		9-09111-422-0 02 1 0105-0512
436 NUT; CLIP
(A) M22 		0-91111-522-0 02 1 0601-
çizim 79324
435 444 89 229 434 80 90 258 436 341 421
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT(A56) AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0105-
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
229 ADAPTER; NYLON TUBE
DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0105-0306
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0105-0306
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) 		1-09660-707-1 01 1 0105-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0105-0512
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601-
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
434 CLIP
(B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0105-
434 CLIP
AIR HORN(WB8) (A) L=250 		1-09707-126-0 04 1 0105-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
436 NUT; CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
436 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
(A) M22 		9-09111-422-0 02 1 0105-0512
436 NUT; CLIP
(A) M22 		0-91111-522-0 02 1 0601-
444 BOLT; UNION
AIR HORN(WB8) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
444 BOLT; UNION
AIR HORN(WB8) M8X12 FLANGE 		0-28050-812-0 01 1 0601-

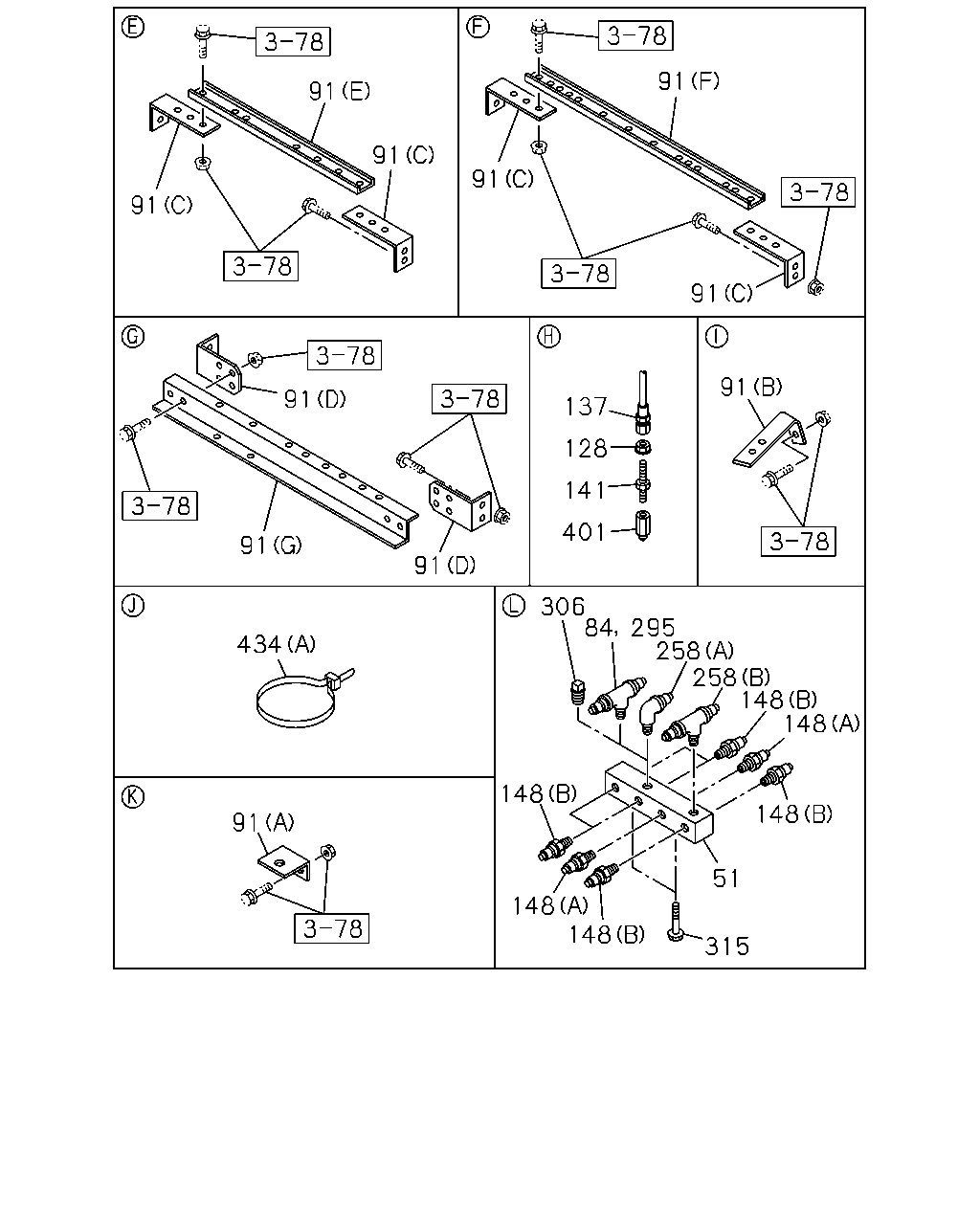

çizim 82576
91 91 91 91 91 91 91 91 137 128 141 401 91 91 306 84 295 258 258 148 148 434 148 148 91 51 148 148 315
BalonParca AdiParca NoAdetTipApplied Date
51 UNION 1-09661-346-0 01 1 0105-
84 UNION; NYLON TUBE
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT(A56) 		1-09660-788-0 01 1 0105-0306
84 UNION; NYLON TUBE
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT(A56) 		1-09661-133-0 01 1 0307-
91 BRACKET; TUBE CLIP
(A) 		1-47478-422-0 03 1 0105-
91 BRACKET; TUBE CLIP
(B) 		1-47478-900-0 01 1 0105-
91 BRACKET; TUBE CLIP
(C) 		1-47478-903-0 08 1 0105-
91 BRACKET; TUBE CLIP
(D) 		1-47478-910-0 04 1 0105-
91 BRACKET; TUBE CLIP
(E) 		1-47478-911-0 02 1 0105-0303
91 BRACKET; TUBE CLIP
(E) 		1-47479-558-0 02 1 0304-
91 BRACKET; TUBE CLIP
(F) 		1-47478-913-0 02 1 0105-
91 BRACKET; TUBE CLIP
(G) 		1-47478-914-1 02 1 0105-
128 NUT; PIPE UNION
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0603-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 02 1 0105-0605
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0606-
141 UNION; FLEX HOSE 1-09650-270-1 02 1 0105-
148 CONNECTOR; UNION
(A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 0105-0306
148 CONNECTOR; UNION
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0307-
148 CONNECTOR; UNION
(B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 06 1 0105-0306
148 CONNECTOR; UNION
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 06 1 0307-
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0105-0306
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0105-0306
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) 		1-09660-707-1 01 1 0105-
295 CONNECTOR; NYLON TUBE 1-09660-771-1 01 1 0105-0306
295 CONNECTOR; NYLON TUBE 1-09661-128-0 01 1 0307-
306 PLUG; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT(A56),AIR HORN(WB8) PT1/4 		9-99204-513-0 01 1 0105-
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28080-812-0 03 1 0105-0512
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 0601-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0105-
434 CLIP
(B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0105-
434 CLIP
AIR HORN(WB8) (A) L=250 		1-09707-126-0 04 1 0105-

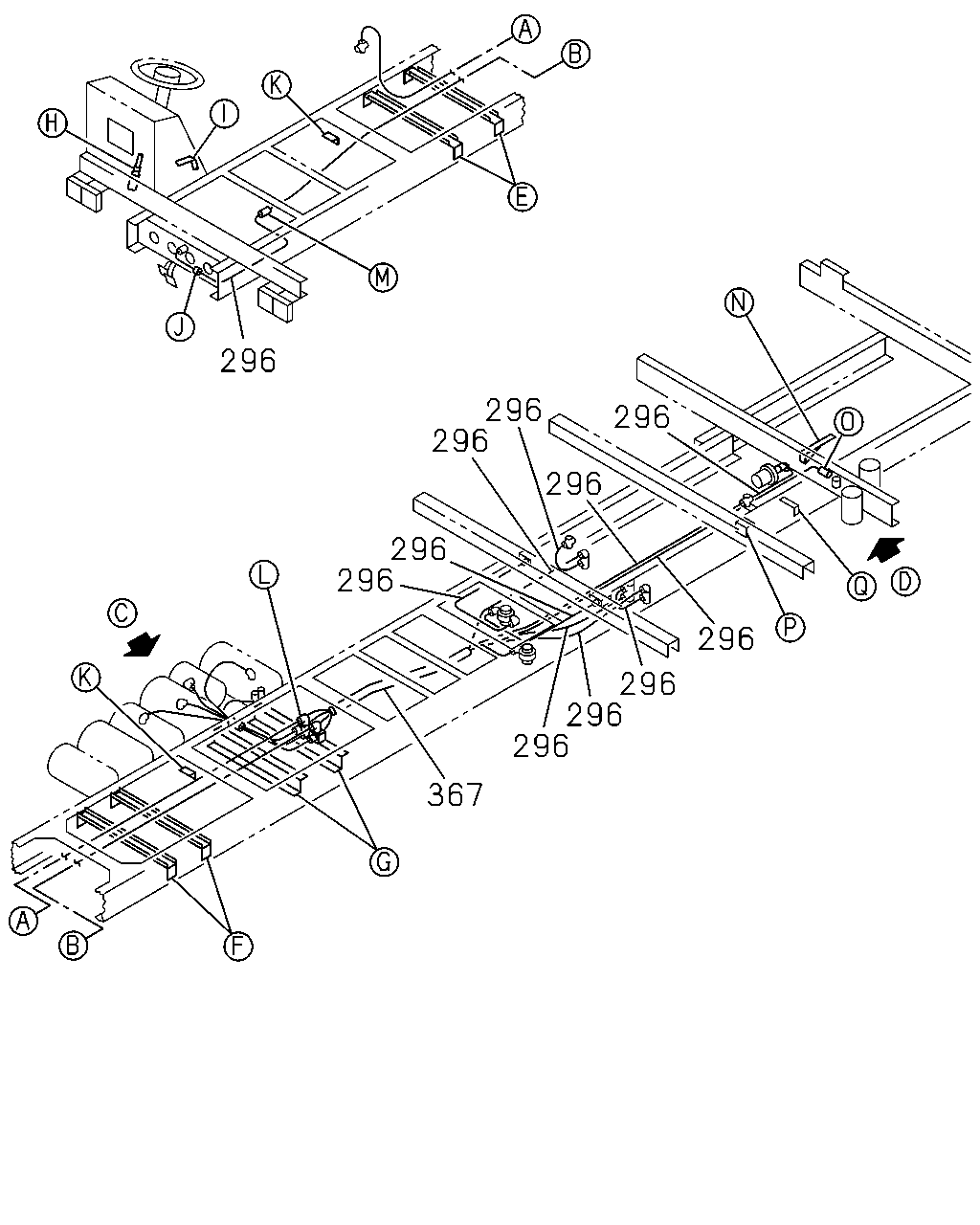

çizim 82991
296 296 296 296 296 296 296 296 296 296 296 367
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0105-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 02 1 0105-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 02 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0105-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 02 1 0105-
296 TUBE; NYLON
DOOR CONTROL AIR W/SUB AIR TANK<SGW> SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0209-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 02 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 02 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 0105-
