Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

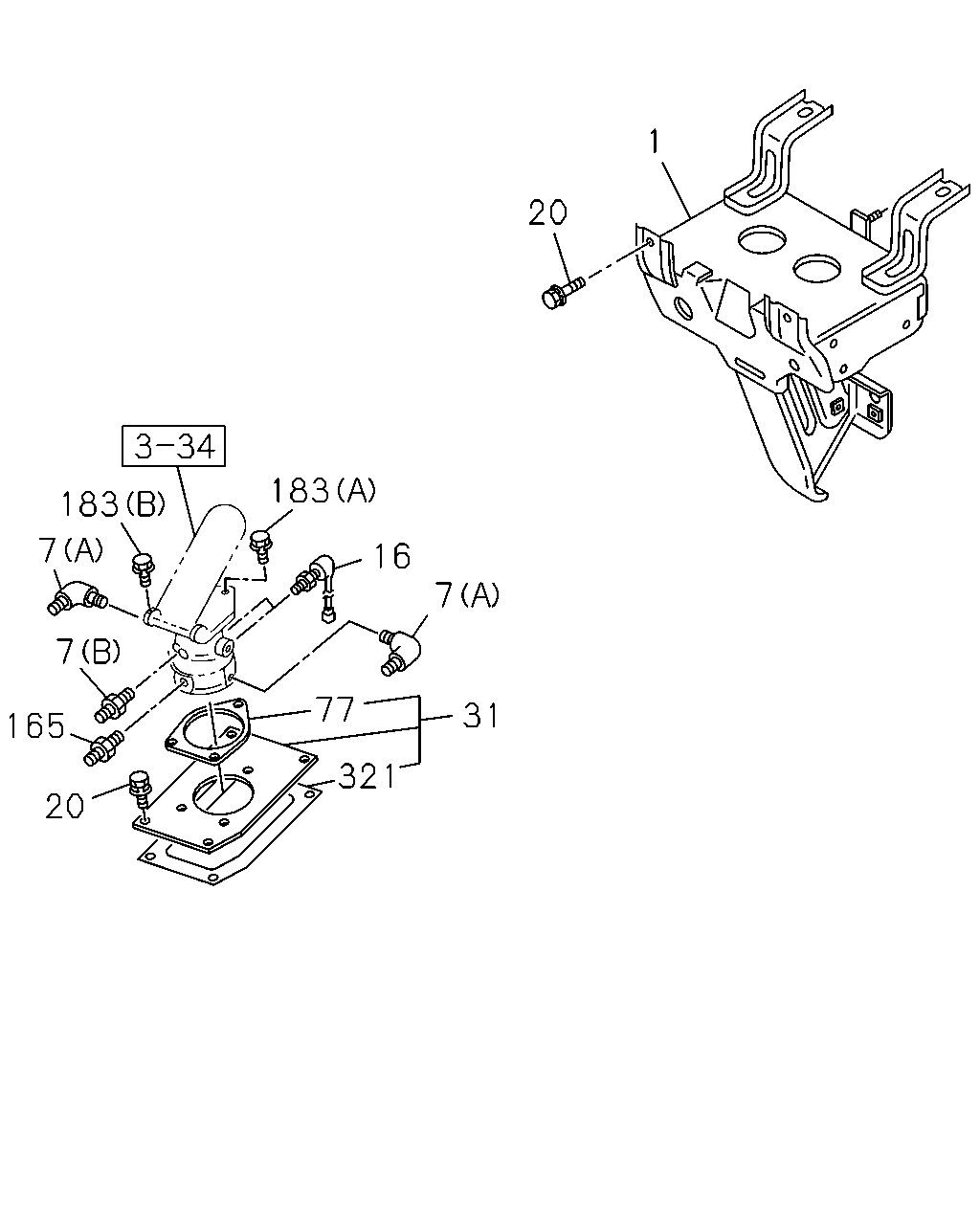

3-10 — BRAKE PEDAL AND CONTROL
(#14064) — 20 parça
1
20
183
183
7
16
7
7
77
31
165
321
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-280-1
01
1
0105-
7
CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 ELBOW
1-09660-653-1
02
1
0105-0306
7
CONNECTOR; BRK VALVE
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0307-
7
CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT
1-09660-669-1
01
1
0105-0306
7
CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0307-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0105-
20
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
02
1
0105-0512
20
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
0601-
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0105-0904
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
31
PLATE; MTG,BRKT VLV
1-73990-030-0
01
1
0105-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0105-
165
CONNECTOR; SECONDARY DELIVERY
DIN12 & R3/8 STRAIGHT
1-09660-669-1
01
1
0105-0306
165
CONNECTOR; SECONDARY DELIVERY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0307-
183
BOLT; BRK VLV
(A) M10X30 FLANGE
0-28681-030-0
01
1
0105-0512
183
BOLT; BRK VLV
(A) M10X30 FLANGE
0-28651-030-0
01
1
0601-0811
183
BOLT; BRK VLV
(A) M10X25 FLANGE
0-28651-025-0
01
1
0812-
183
BOLT; BRK VLV
(B) M10X40 FLANGE
0-28681-040-0
02
1
0105-0512
183
BOLT; BRK VLV
(B) M10X40 FLANGE
0-28651-040-0
02
1
0601-
321
SEAL; VALVE
1-73990-033-0
01
1
0105-
