3-08 — PARKING BRAKE (#14063) — 127 parça

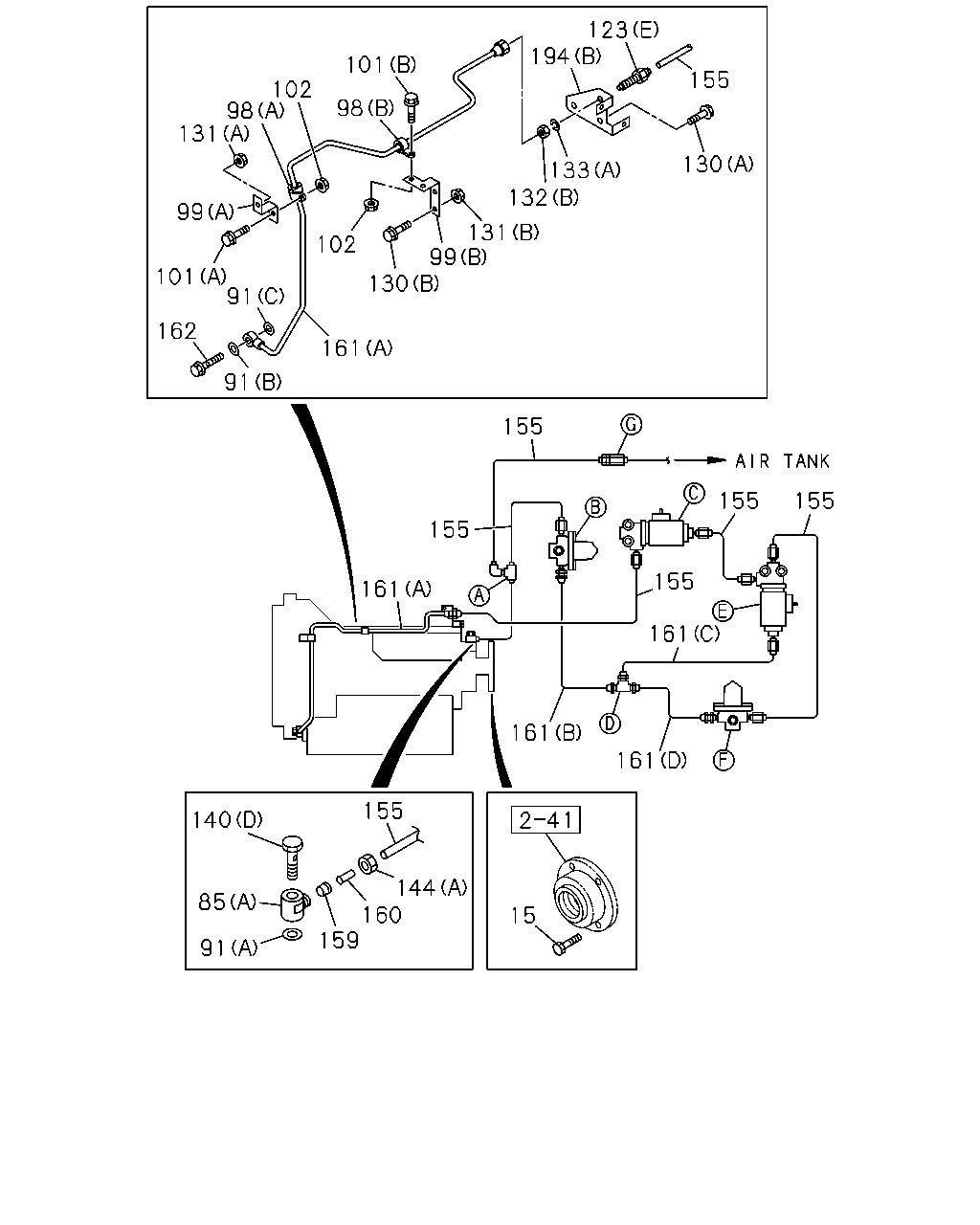

çizim 21498
123 194 101 155 102 98 98 131 130 133 132 99 131 99 130 102 101 91 162 161 91 155 155 155 155 155 161 161 161 161 155 140 144 160 159 85 15 91
BalonParca AdiParca NoAdetTipApplied Date
15 BOLT; FLANGE
M14X50 		1-09000-645-0 04 1 0107-
85 CONNECTOR; RETARDER
(A) 		1-09660-239-0 01 1 0105-
85 CONNECTOR; RETARDER
(B) DIN8 & M12 STRAIGHT 		1-09660-766-0 02 1 0105-0306
85 CONNECTOR; RETARDER
(B) DIN8 & M12 STRAIGHT 		1-09661-176-0 02 1 0307-
91 GASKET
(B) ID=10.5 		1-09630-074-1 01 1 0105-
91 GASKET
(A) ID=12.2 		9-09571-412-0 09 1 0105-
91 GASKET
(C) ID=14.2 		9-09851-004-0 01 1 0105-
98 CLIP; AIR PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0105-
98 CLIP; AIR PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 0105-0606
98 CLIP; AIR PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 0607-
99 BRACKET; CLIP
(A) 		1-47478-917-0 01 1 0105-
99 BRACKET; CLIP
(B) 		1-47479-133-0 01 1 0105-
101 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
101 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
101 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
101 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
102 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
102 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
123 UNION
(E) DIN8 & M14 STRAIGHT 		1-09660-726-2 01 1 0105-
123 UNION
(C) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0105-
123 UNION
(A) 		1-09660-807-2 01 1 0105-
123 UNION
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
123 UNION
(D) M12 		9-09228-806-1 01 1 0105-0607
123 UNION
(D) M12 		0-92138-806-0 01 1 0608-
130 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0105-0512
130 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
130 BOLT; BRKT
(A) M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512
130 BOLT; BRKT
(A) M16X25 FLANGE 		0-28851-625-0 02 1 0601-
131 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 06 1 0105-0602
131 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 0603-
131 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0105-0602
131 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0603-
132 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0105-
132 NUT; UNION
(B) M14 		9-99111-414-0 01 1 0105-0512
132 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
132 NUT; UNION
(C) M16 		9-99111-416-0 01 1 0105-0512
132 NUT; UNION
(C) M16 		0-91111-516-0 01 1 0601-
133 WASHER; UNION
(A) ID=14.2 		9-09150-514-0 01 1 0105-0603
133 WASHER; UNION
(A) ID=14.2 		0-91510-514-0 01 1 0604-0903
133 WASHER; UNION
(A) ID=14.2 		0-91510-814-0 01 1 0904-
133 WASHER; UNION
(B) ID=16.2 		9-09150-516-0 01 1 0105-0603
133 WASHER; UNION
(B) ID=16.2 		0-91510-516-0 01 1 0604-
140 BOLT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
140 BOLT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
140 BOLT
(B) M8X60 FLANGE 		0-28080-860-0 02 1 0105-0512
140 BOLT
(B) M8X60 FLANGE 		0-28050-860-0 02 1 0601-
140 BOLT
(C) M10X20 FLANGE 		0-28781-020-0 02 1 0105-0512
140 BOLT
(C) M10X20 FLANGE 		0-28751-020-0 02 1 0601-
140 BOLT
(D) M12 L=35.5 		1-09675-169-0 01 1 0105-
144 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
144 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
144 NUT
(A) M14 		1-09660-767-0 02 1 0105-
155 TUBE
SERVICED BY L=2000 OD=8 		1-87410-073-0 03 1 0105-0212
155 TUBE
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
159 SLEEVE
ID=8.2 L=9.5 		1-09666-067-0 02 1 0105-
160 INSERT
ID=5 OD=5.9 L=16 		1-09669-122-0 02 1 0105-
161 PIPE; AIR,RETADER
(B) 		1-49122-830-0 01 1 0105-
161 PIPE; AIR,RETADER
(C) 		1-49122-831-0 01 1 0105-
161 PIPE; AIR,RETADER
(D) 		1-49122-832-0 01 1 0105-
161 PIPE; AIR,RETADER
(A) 		1-49123-064-0 01 1 0105-
162 BOLT; EYE 1-09675-234-0 01 1 0105-
194 BRACKET; UNION
(A) 		1-47479-130-0 01 1 0105-
194 BRACKET; UNION
(B) 		1-47479-131-0 01 1 0105-

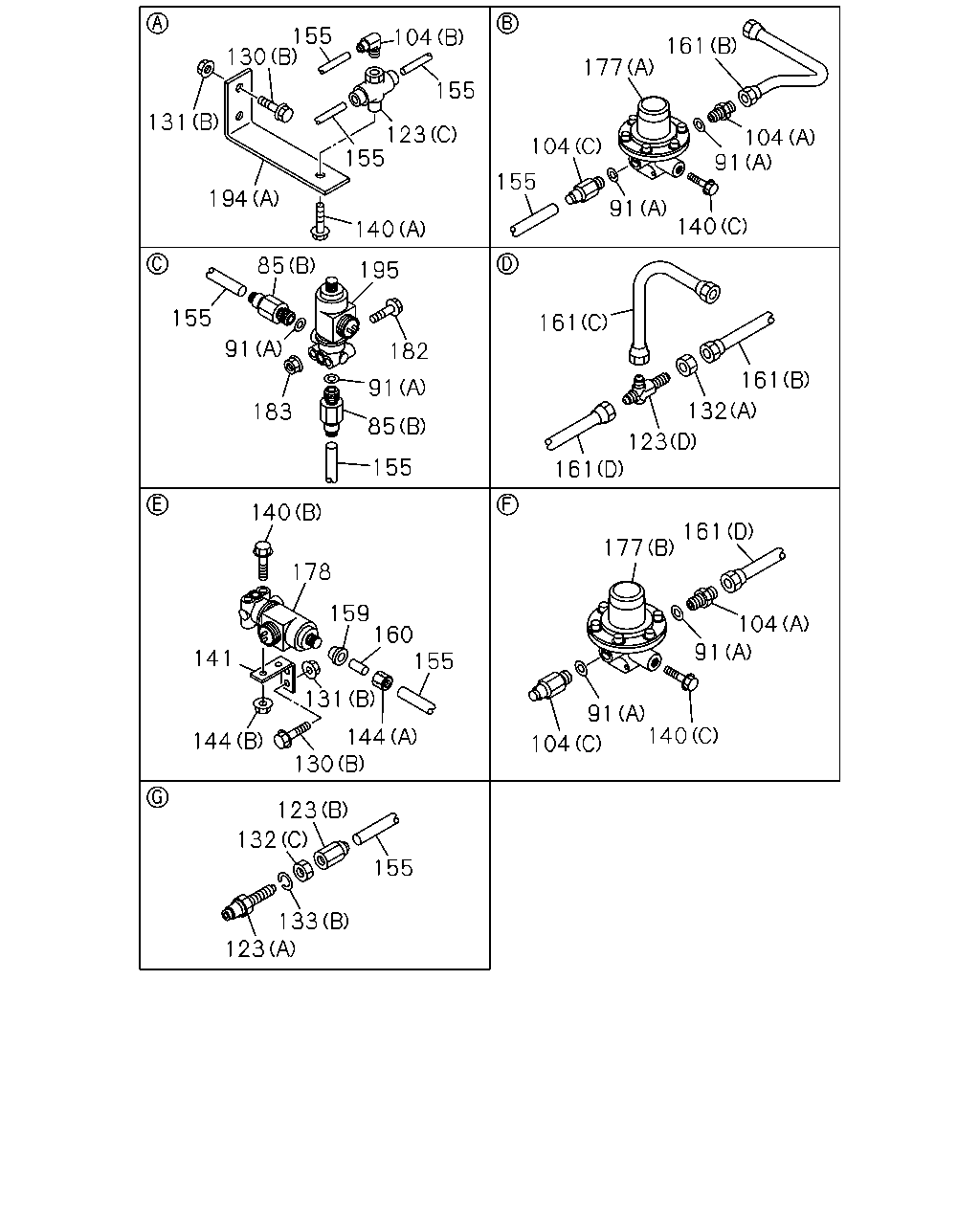

çizim 22349
155 130 104 161 177 155 131 123 155 104 91 104 155 194 91 140 140 85 195 155 161 91 182 161 91 132 183 85 123 161 155 140 161 177 178 159 160 155 104 91 141 131 91 140 144 130 144 104 123 132 155 133 123
BalonParca AdiParca NoAdetTipApplied Date
85 CONNECTOR; RETARDER
(A) 		1-09660-239-0 01 1 0105-
85 CONNECTOR; RETARDER
(B) DIN8 & M12 STRAIGHT 		1-09660-766-0 02 1 0105-0306
85 CONNECTOR; RETARDER
(B) DIN8 & M12 STRAIGHT 		1-09661-176-0 02 1 0307-
91 GASKET
(B) ID=10.5 		1-09630-074-1 01 1 0105-
91 GASKET
(A) ID=12.2 		9-09571-412-0 09 1 0105-
91 GASKET
(C) ID=14.2 		9-09851-004-0 01 1 0105-
104 CONNECTOR
(A) M12 STRAIGHT 		1-09654-246-0 03 1 0105-
104 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0105-0306
104 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
104 CONNECTOR
(C) DIN8 & M12 STRAIGHT 		1-09660-766-0 03 1 0105-0306
104 CONNECTOR
(C) DIN8 & M12 STRAIGHT 		1-09661-176-0 03 1 0307-
123 UNION
(E) DIN8 & M14 STRAIGHT 		1-09660-726-2 01 1 0105-
123 UNION
(C) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0105-
123 UNION
(A) 		1-09660-807-2 01 1 0105-
123 UNION
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
123 UNION
(D) M12 		9-09228-806-1 01 1 0105-0607
123 UNION
(D) M12 		0-92138-806-0 01 1 0608-
130 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0105-0512
130 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
130 BOLT; BRKT
(A) M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512
130 BOLT; BRKT
(A) M16X25 FLANGE 		0-28851-625-0 02 1 0601-
131 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 06 1 0105-0602
131 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 06 1 0603-
131 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0105-0602
131 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 01 1 0603-
132 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0105-
132 NUT; UNION
(B) M14 		9-99111-414-0 01 1 0105-0512
132 NUT; UNION
(B) M14 		0-91111-514-0 01 1 0601-
132 NUT; UNION
(C) M16 		9-99111-416-0 01 1 0105-0512
132 NUT; UNION
(C) M16 		0-91111-516-0 01 1 0601-
133 WASHER; UNION
(A) ID=14.2 		9-09150-514-0 01 1 0105-0603
133 WASHER; UNION
(A) ID=14.2 		0-91510-514-0 01 1 0604-0903
133 WASHER; UNION
(A) ID=14.2 		0-91510-814-0 01 1 0904-
133 WASHER; UNION
(B) ID=16.2 		9-09150-516-0 01 1 0105-0603
133 WASHER; UNION
(B) ID=16.2 		0-91510-516-0 01 1 0604-
140 BOLT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
140 BOLT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
140 BOLT
(B) M8X60 FLANGE 		0-28080-860-0 02 1 0105-0512
140 BOLT
(B) M8X60 FLANGE 		0-28050-860-0 02 1 0601-
140 BOLT
(C) M10X20 FLANGE 		0-28781-020-0 02 1 0105-0512
140 BOLT
(C) M10X20 FLANGE 		0-28751-020-0 02 1 0601-
140 BOLT
(D) M12 L=35.5 		1-09675-169-0 01 1 0105-
141 BRACKET 1-47479-132-0 01 1 0105-
144 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
144 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
144 NUT
(A) M14 		1-09660-767-0 02 1 0105-
155 TUBE
SERVICED BY L=2000 OD=8 		1-87410-073-0 03 1 0105-0212
155 TUBE
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0301-
159 SLEEVE
ID=8.2 L=9.5 		1-09666-067-0 02 1 0105-
160 INSERT
ID=5 OD=5.9 L=16 		1-09669-122-0 02 1 0105-
161 PIPE; AIR,RETADER
(B) 		1-49122-830-0 01 1 0105-
161 PIPE; AIR,RETADER
(C) 		1-49122-831-0 01 1 0105-
161 PIPE; AIR,RETADER
(D) 		1-49122-832-0 01 1 0105-
161 PIPE; AIR,RETADER
(A) 		1-49123-064-0 01 1 0105-
177 VALVE; PRESS REDUCTION
(B) 1.20BAR 		1-48110-084-0 01 1 0105-
177 VALVE; PRESS REDUCTION
(A) 3.00BAR 		1-48110-085-0 01 1 0105-
178 VALVE; SOLENOID 1-82563-581-1 01 1 0105-
182 BOLT; VLV
M8X60 FLANGE 		0-28080-860-0 02 1 0105-0512
182 BOLT; VLV
M8X60 FLANGE 		0-28050-860-0 02 1 0601-
183 NUT; VLV
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
183 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-
194 BRACKET; UNION
(A) 		1-47479-130-0 01 1 0105-
194 BRACKET; UNION
(B) 		1-47479-131-0 01 1 0105-
195 VALVE; RETARDER CONT 1-82563-763-1 01 1 0105-
