2-53 — TRANSMISSION OIL COOLER SYSTEM (#14060) — 96 parça

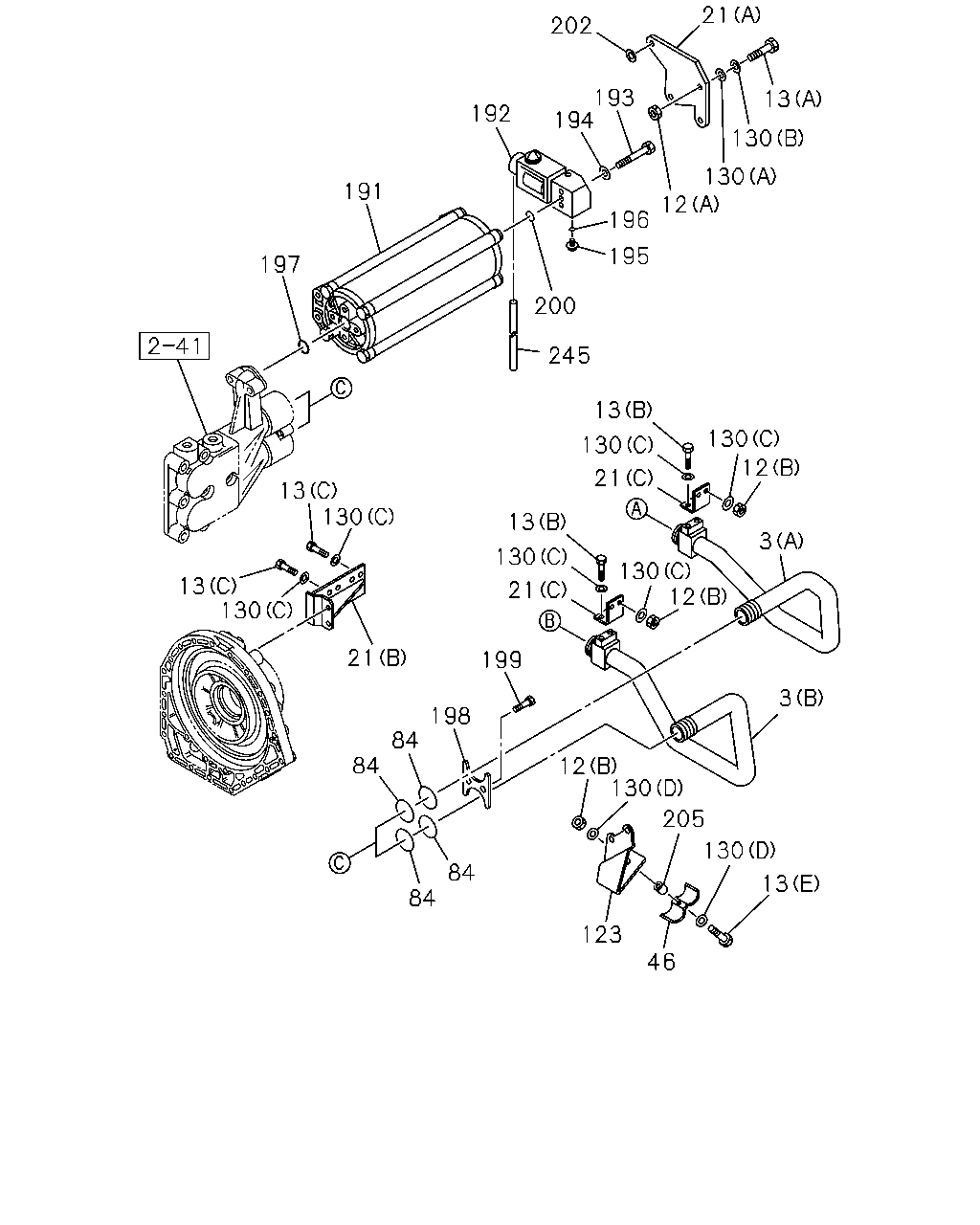

çizim 23107
21 202 193 194 13 192 130 130 12 191 196 195 197 200 245 13 130 130 12 21 13 130 13 3 130 130 12 13 130 21 21 199 3 198 84 12 130 84 205 130 84 13 84 123 46
BalonParca AdiParca NoAdetTipApplied Date
3 PIPE; OIL,A/T TO OIL COOLER
(A) 		1-21719-074-0 01 1 0105-
3 PIPE; OIL,A/T TO OIL COOLER
(B) 		1-21719-075-0 01 1 0105-
12 NUT; BRKT
(C) M10 FLANGE 		0-91150-110-0 06 1 0105-0602
12 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 06 1 0603-
12 NUT; BRKT
(A) M8 		1-21719-024-0 02 1 0105-
12 NUT; BRKT
(B) 		1-33529-056-0 05 1 0105-
13 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 06 1 0105-0512
13 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 06 1 0601-
13 BOLT; BRKT
(B) 		1-21719-077-0 04 1 0105-
13 BOLT; BRKT
(C) 		1-21719-078-0 04 1 0105-
13 BOLT; BRKT
(A) 		1-33129-003-0 02 1 0105-
13 BOLT; BRKT
(E) 		1-34149-005-0 01 1 0105-
21 BRACKET; COOLER
(A) 		1-21719-037-0 01 1 0105-
21 BRACKET; COOLER
(B) 		1-21719-076-0 01 1 0105-
21 BRACKET; COOLER
(C) 		1-21719-079-0 02 1 0105-
21 BRACKET; COOLER
(D) 		1-47479-135-0 01 1 0105-
46 BRACKET; OIL PIPE 1-34129-106-0 02 1 0105-
84 GASKET; OIL PIPE 1-09623-609-0 04 1 0105-
123 BRACKET; OIL PIPE 1-34125-008-0 01 1 0105-
130 WASHER; PL,BRKT
(D) 		1-09469-010-0 02 1 0105-
130 WASHER; PL,BRKT
(A) T=1.20 		1-21719-018-0 01 1 0105-
130 WASHER; PL,BRKT
(A) T=1.00 		1-21719-019-0 01 1 0105-
130 WASHER; PL,BRKT
(A) T=0.80 		1-21719-020-0 01 1 0105-
130 WASHER; PL,BRKT
(A) T=0.60 		1-21719-021-0 01 1 0105-
130 WASHER; PL,BRKT
(A) T=0.40 		1-21719-022-0 01 1 0105-
130 WASHER; PL,BRKT
(A) T=0.20 		1-21719-023-0 01 1 0105-
130 WASHER; PL,BRKT
(B) 		1-33549-159-0 02 1 0105-
130 WASHER; PL,BRKT
(C) 		1-34119-082-0 12 1 0105-
191 ACCUMULATOR; OIL 1-34129-117-0 01 1 0105-
192 VALVE; SOLENOID 1-34531-030-0 01 1 0105-0108
192 VALVE; SOLENOID 1-34531-045-0 01 1 0109-
193 BOLT; VALVE
M8X60 		1-09089-010-0 02 1 0105-
194 WASHER; VALVE 1-33549-159-0 02 1 0105-
195 PLUG; VALVE 1-34129-104-0 01 1 0105-
196 GASKET; PLUG 1-33549-129-0 01 1 0105-
197 GASKET; ACCUMULATOR 1-09623-607-0 01 1 0105-
198 PLATE; PIPE 1-21719-035-0 01 1 0105-
199 BOLT; PLATE 1-34129-105-0 02 1 0105-
200 GASKET; VALVE 1-09623-608-0 01 1 0105-
202 SHIM; BRKT
T=2.50 		1-21719-011-0 02 1 0105-
202 SHIM; BRKT
T=2.00 		1-21719-012-0 02 1 0105-
202 SHIM; BRKT
T=1.50 		1-21719-013-0 02 1 0105-
202 SHIM; BRKT
T=0.50 		1-21719-014-0 02 1 0105-
202 SHIM; BRKT
T=0.30 		1-21719-015-0 02 1 0105-
202 SHIM; BRKT
T=0.20 		1-21719-016-0 02 1 0105-
205 COLLAR; BRKT 1-21719-060-0 02 1 0105-
245 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0109-0212
245 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0301-

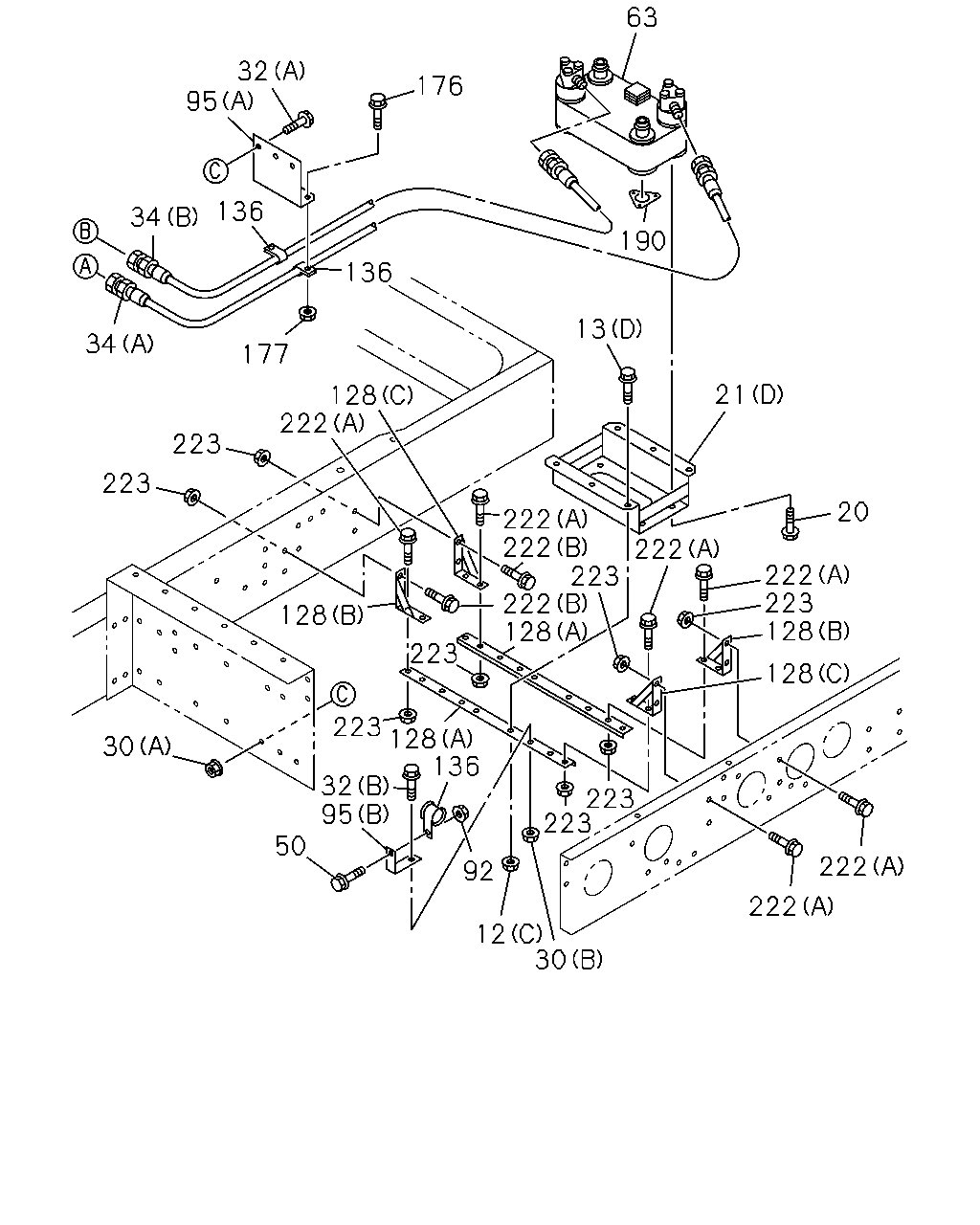

çizim 23327
63 32 95 176 136 34 190 136 13 34 177 21 128 222 223 223 20 222 222 223 222 128 222 222 223 128 128 223 128 223 128 136 30 32 95 223 223 50 222 92 222 12 30
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; BRKT
(C) M10 FLANGE 		0-91150-110-0 06 1 0105-0602
12 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 06 1 0603-
12 NUT; BRKT
(A) M8 		1-21719-024-0 02 1 0105-
12 NUT; BRKT
(B) 		1-33529-056-0 05 1 0105-
13 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 06 1 0105-0512
13 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 06 1 0601-
13 BOLT; BRKT
(B) 		1-21719-077-0 04 1 0105-
13 BOLT; BRKT
(C) 		1-21719-078-0 04 1 0105-
13 BOLT; BRKT
(A) 		1-33129-003-0 02 1 0105-
13 BOLT; BRKT
(E) 		1-34149-005-0 01 1 0105-
20 BOLT; COOLER TO BRKT
M10X16 FLANGE 		0-28181-016-0 04 1 0105-0512
20 BOLT; COOLER TO BRKT
M10X16 FLANGE 		0-28151-016-0 04 1 0601-
21 BRACKET; COOLER
(A) 		1-21719-037-0 01 1 0105-
21 BRACKET; COOLER
(B) 		1-21719-076-0 01 1 0105-
21 BRACKET; COOLER
(C) 		1-21719-079-0 02 1 0105-
21 BRACKET; COOLER
(D) 		1-47479-135-0 01 1 0105-
30 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0602
30 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
30 NUT; BRKT
(B) M10 FLANGE 		0-91150-110-0 01 1 0105-0602
30 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0603-
32 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512
32 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
32 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512
32 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
34 HOSE; FLEX,RAD TO OIL COOLER PIPE
(A) 		1-09365-182-0 01 1 0105-
34 HOSE; FLEX,RAD TO OIL COOLER PIPE
(B) 		1-09365-183-0 01 1 0105-
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
63 COOLER; OIL 1-21700-365-0 01 1 0105-
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
95 BRACKET; CLIP
(A) 		1-47479-138-0 01 1 0105-
95 BRACKET; CLIP
(B) 		1-47479-139-0 01 1 0105-
128 BRACKET; COOLER
(A) 		1-47479-136-0 02 1 0105-
128 BRACKET; COOLER
(B) 		1-47479-137-0 02 1 0105-
128 BRACKET; COOLER
(C) 		1-47479-140-0 02 1 0105-
136 CLIP; FLEX HOSE
ID=45.5 		8-94232-636-0 03 1 0105-
176 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
176 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
177 NUT; HOSE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
177 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
190 GASKET; COVER 1-21719-041-0 02 1 0105-
222 BOLT; BRKT,COOLER
(A) M10X25 FLANGE 		0-28681-025-0 12 1 0105-0512
222 BOLT; BRKT,COOLER
(A) M10X25 FLANGE 		0-28651-025-0 12 1 0601-
222 BOLT; BRKT,COOLER
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0105-0512
222 BOLT; BRKT,COOLER
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
223 NUT; BRKT,COOLER
M10 FLANGE 		0-91150-110-0 14 1 0105-0602
223 NUT; BRKT,COOLER
M10 FLANGE 		0-91180-110-0 14 1 0603-
