10885 - LV423(THAI)BMTA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶

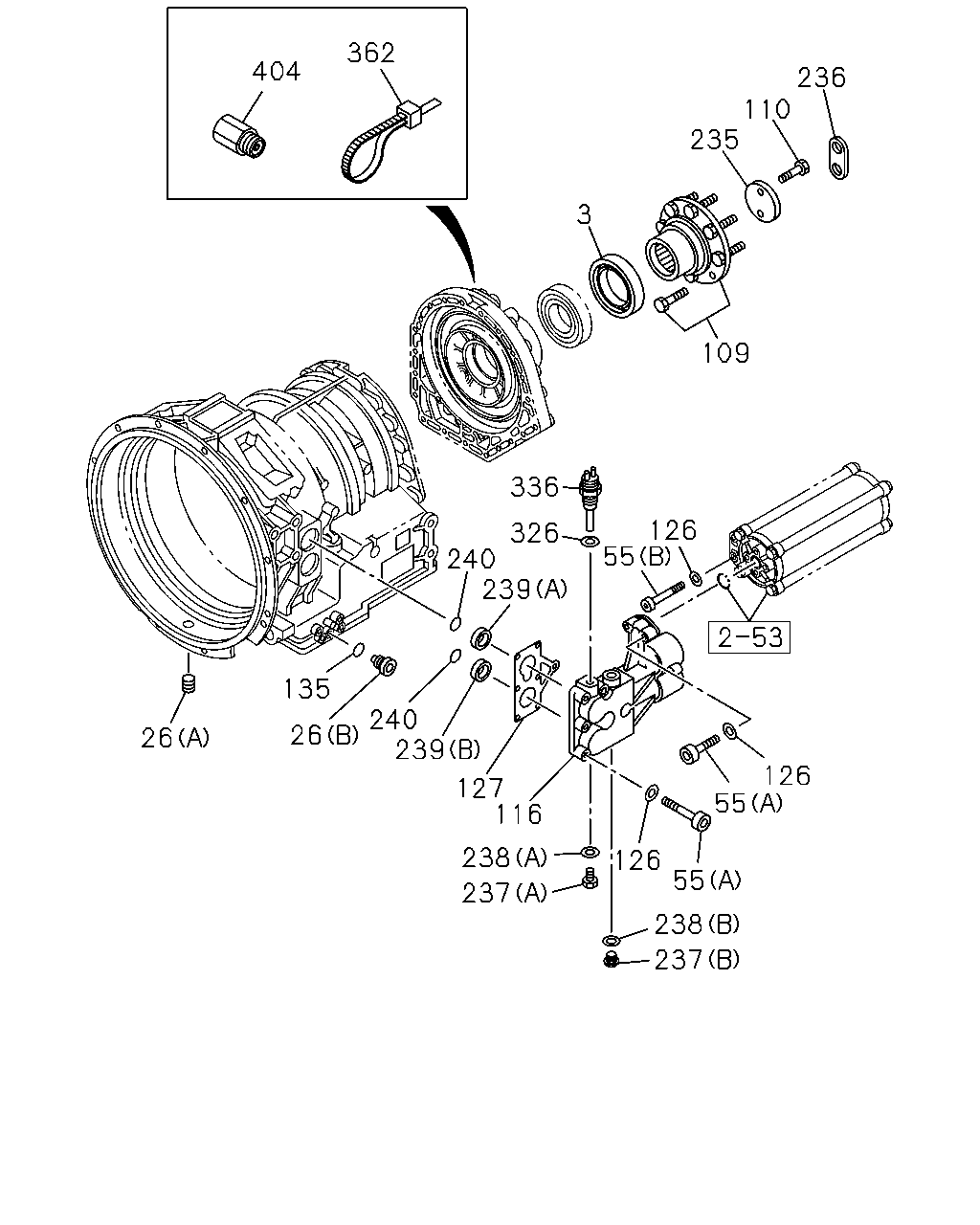

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#14056) — 24 parça
362
404
236
110
235
3
109
336
126
55
326
240
239
135
240
26
239
26
126
55
127
116
238
126
55
237
238
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
SEAL; OIL,RR COVER,A/T
1-09625-594-0
01
1
0105-
26
PLUG; TRANS CASE
(B)
1-34119-008-0
05
1
0105-
26
PLUG; TRANS CASE
(A)
1-34119-010-0
01
1
0105-
55
BOLT; COVER
(A) M8X45
1-09089-012-0
07
1
0105-
55
BOLT; COVER
(B)
1-34119-057-0
02
1
0105-
109
DRIVER; COUPLING,A/T
1-37243-386-0
01
1
0105-
110
BOLT; COUPLING DRIVER,A/T
1-36139-003-0
02
1
0105-
116
COVER; TRANS CASE
1-34125-005-0
01
1
0105-
126
WASHER; CASE COVER
1-33549-159-0
09
1
0105-
127
GASKET; CASE TO COVER
1-34129-062-0
01
1
0105-
135
GASKET; PLUG,A/T CASE
1-33549-149-0
05
1
0105-
235
WASHER; PL,COUPLING
1-34149-020-0
01
1
0105-
236
WASHER; LK,COUPLING
1-37249-065-0
01
1
0105-
237
PLUG; COVER
(A)
1-34119-008-0
01
1
0105-
237
PLUG; COVER
(B)
1-34129-061-0
01
1
0105-
238
GASKET; PLUG
(B)
1-33549-137-0
01
1
0105-
238
GASKET; PLUG
(A)
1-33549-149-0
01
1
0105-
239
INSERT; COVER
(A)
1-34129-064-0
01
1
0105-
239
INSERT; COVER
(B)
1-34129-065-0
01
1
0105-
240
GASKET; INSERT
1-34129-063-0
02
1
0105-
326
GASKET; TEMP SENSOR
1-33549-137-0
01
1
0105-
336
SENSOR; THERMO
1-81535-045-0
01
1
0105-
362
CLIP; HARNESS
L=250
1-09707-126-0
01
1
0105-
404
ADAPTER; SPEEDO SENSOR
1-80249-006-0
01
1
0105-
