Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

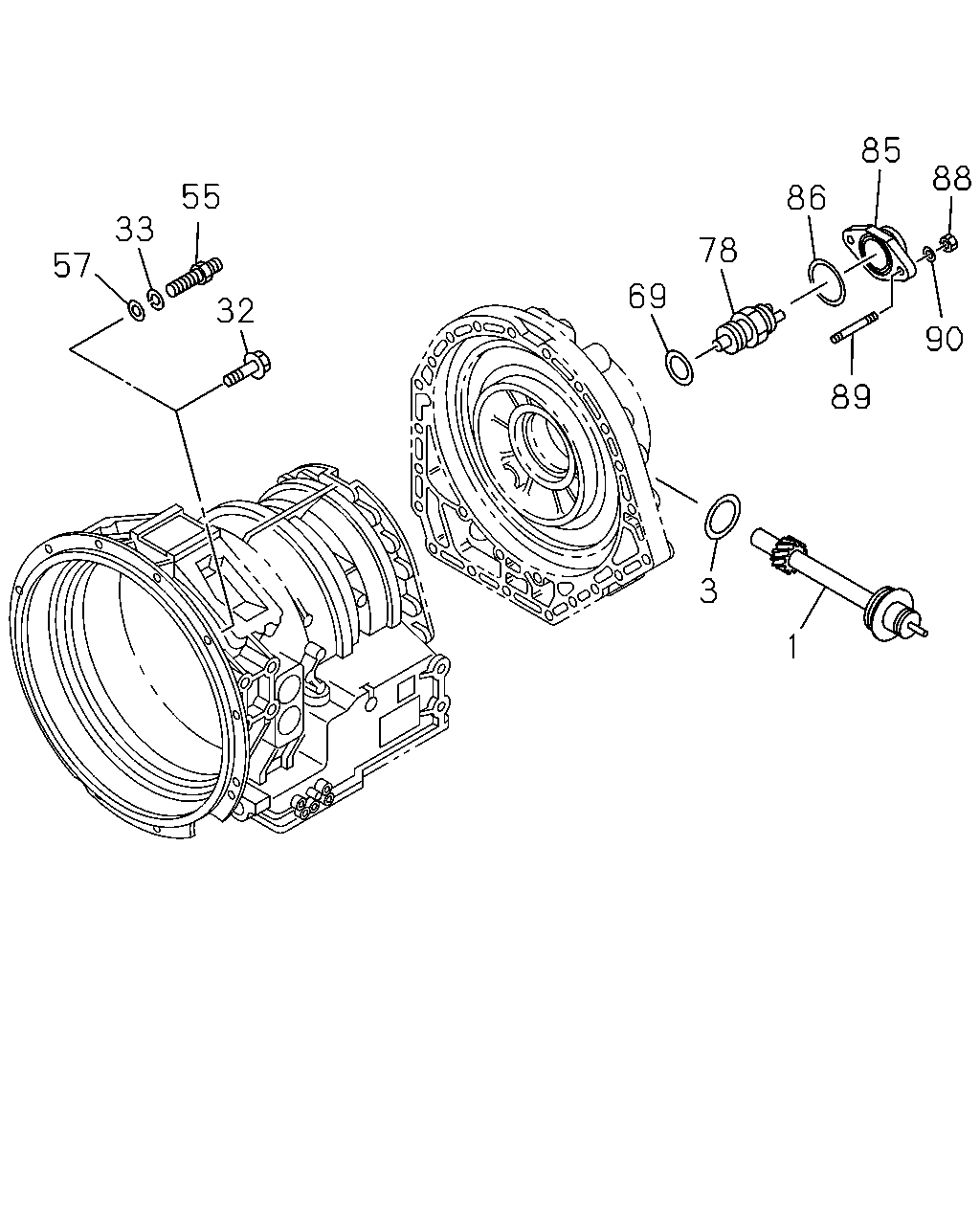

2-25 — SPEEDOMETER DRIVEN GEAR
(#14052) — 48 parça
85
88
55
86
33
78
57
69
32
90
89
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
1-33372-192-0
01
1
0105-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09635-399-0
01
1
0105-
32
BOLT; CLU HSG TO FLYWHEEL HSG
M12X50 FLANGE
0-28181-250-0
08
1
0105-0512
32
BOLT; CLU HSG TO FLYWHEEL HSG
M12X50 FLANGE
0-28151-250-0
08
1
0601-
33
WASHER; LK,CLU HSG
ID=12.2
9-09150-612-0
03
1
0105-0603
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
03
1
0604-
55
STUD; FLYWHEEL HSG
M10X16,M12X50 L=74
1-09029-101-0
03
1
0105-
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
03
1
0105-
69
WASHER; PL
T=6.00
1-34149-052-0
02
1
0105-
69
WASHER; PL
T=5.80
1-34149-053-0
02
1
0105-
69
WASHER; PL
T=5.60
1-34149-054-0
02
1
0105-
69
WASHER; PL
T=5.40
1-34149-055-0
02
1
0105-
69
WASHER; PL
T=5.20
1-34149-056-0
02
1
0105-
69
WASHER; PL
T=5.00
1-34149-057-0
02
1
0105-
69
WASHER; PL
T=4.80
1-34149-058-0
02
1
0105-
69
WASHER; PL
T=4.60
1-34149-059-0
02
1
0105-
69
WASHER; PL
T=4.40
1-34149-060-0
02
1
0105-
69
WASHER; PL
T=4.20
1-34149-061-0
02
1
0105-
69
WASHER; PL
T=4.00
1-34149-062-0
02
1
0105-
69
WASHER; PL
T=3.80
1-34149-063-0
02
1
0105-
69
WASHER; PL
T=3.60
1-34149-064-0
02
1
0105-
69
WASHER; PL
T=3.20
1-34149-065-0
02
1
0105-
69
WASHER; PL
T=3.00
1-34149-066-0
02
1
0105-
69
WASHER; PL
T=2.80
1-34149-067-0
02
1
0105-
69
WASHER; PL
T=2.60
1-34149-068-0
02
1
0105-
69
WASHER; PL
T=2.40
1-34149-069-0
02
1
0105-
69
WASHER; PL
T=2.20
1-34149-070-0
02
1
0105-
69
WASHER; PL
T=2.00
1-34149-071-0
02
1
0105-
69
WASHER; PL
T=1.80
1-34149-072-0
02
1
0105-
69
WASHER; PL
T=1.60
1-34149-073-0
02
1
0105-
69
WASHER; PL
T=1.40
1-34149-074-0
02
1
0105-
69
WASHER; PL
T=1.20
1-34149-075-0
02
1
0105-
69
WASHER; PL
T=1.00
1-34149-076-0
02
1
0105-
69
WASHER; PL
T=0.80
1-34149-077-0
02
1
0105-
69
WASHER; PL
T=2.90
1-34149-079-0
02
1
0105-
69
WASHER; PL
T=2.70
1-34149-080-0
02
1
0105-
69
WASHER; PL
T=2.50
1-34149-081-0
02
1
0105-
69
WASHER; PL
T=2.10
1-34149-082-0
02
1
0105-
69
WASHER; PL
T=1.90
1-34149-083-0
02
1
0105-
69
WASHER; PL
T=1.70
1-34149-084-0
02
1
0105-
69
WASHER; PL
T=1.50
1-34149-085-0
02
1
0105-
69
WASHER; PL
T=1.30
1-34149-086-0
02
1
0105-
78
SENSOR; SPD
1-34149-078-0
01
1
0105-
85
COVER; SENSOR
1-34141-021-0
01
1
0105-
86
GASKET; SENSOR COVER
1-34142-030-0
01
1
0105-
88
NUT; SENSOR COVER
1-34149-039-0
02
1
0105-
89
STUD; SENSOR COVER
1-34149-040-0
02
1
0105-
90
WASHER; SENSOR COVER
1-34539-080-0
02
1
0105-
