1 |

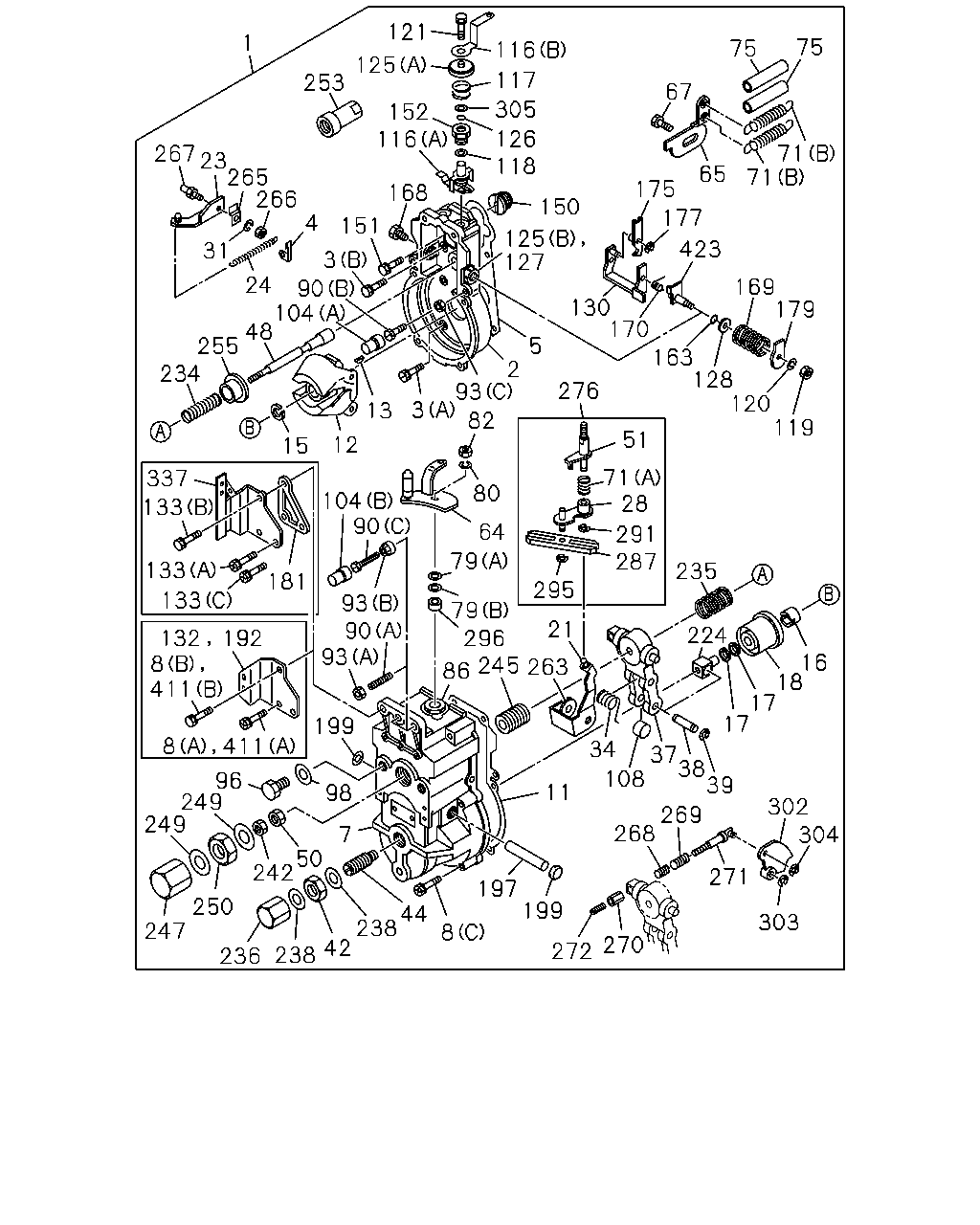

GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15602-152-2
|
1-15770-409-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: B = 1-15602-760-1
|
1-15770-592-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: C = 1-15602-812-0
|
1-15770-632-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: D = 1-15602-903-0
|
1-15770-699-0 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: E = 1-15602-905-0
|
1-15770-701-0 |
01 |
1 |
- |
| |
2 |
HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15721-092-0 |
01 |
1 |
- |
| |
3 |
BOLT; GOV HSG,INJ PUMP
(A), M6X15
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-027-0 |
05 |
1 |
- |
| |
3 |
BOLT; GOV HSG,INJ PUMP
(B), M6X16
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-071-0 |
01 |
1 |
- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-809-0 |
01 |
1 |
- |
| |
5 |
GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-000-1 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
D = 1-15602-903-0, E = 1-15602-905-0
|
1-15721-161-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: C = 1-15602-812-0
|
1-15721-271-0 |
01 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1
|
1-15719-005-0 |
02 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
(C) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-033-0 |
07 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
(B), M8X16 W/LK WASHER
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1
|
9-01900-816-0 |
01 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
D = 1-15602-903-0, E = 1-15602-905-0
|
1-15729-804-0 |
01 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15602-152-2
|
5-15729-020-0 |
01 |
1 |
- |
| |
12 |
FLYWEIGHT ASM; GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15722-014-0 |
01 |
1 |
- |
| |
13 |
KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-19619-049-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-034-0 |
01 |
1 |
- |
| |
16 |
NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-086-0 |
01 |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-891-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-892-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-893-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-286-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-287-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-088-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-551-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-552-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-553-0 |
AR |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-372-0 |
01 |
1 |
- |
| |
21 |
LEVER ASM; GUIDE,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-220-0 |
01 |
1 |
- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-221-0 |
01 |
1 |
- |
| |
24 |
SPRING; START,GOV,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15723-044-0 |
01 |
1 |
- |
| |
28 |
LEVER; SUPPORTING,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-223-0 |
01 |
1 |
- |
| |
31 |
WASHER; LK,CONT RACK,GOV
ID=5 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-83539-044-0 |
01 |
1 |
- |
| |
34 |
SPRING; SPD CONT LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15723-039-1 |
01 |
1 |
- |
| |
37 |
LEVER ASM; TENSION,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-579-0 |
01 |
1 |
- |
| |
38 |
PIN; TENSION LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-370-0 |
01 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-88410-201-0 |
02 |
1 |
- |
| |
42 |
NUT; SPRING CAPSULE,IDLE CONT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-285-0 |
01 |
1 |
- |
| |
44 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15723-098-0 |
01 |
1 |
- |
| |
44 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
5-15723-158-0 |
01 |
1 |
- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
8-94172-279-0 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-059-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: C = 1-15602-812-0
|
1-15729-601-2 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
D = 1-15602-903-0, E = 1-15602-905-0
|
1-15729-952-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-224-0 |
01 |
1 |
- |
| |
65 |
BRACKET; RETURN SPRING,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-678-0 |
01 |
1 |
- |
| |
67 |
BOLT; SPRING BRKT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15619-039-0 |
01 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15723-138-0 |
02 |
1 |
- |
| |
75 |
TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-074-0 |
02 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.95
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-076-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.20
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-077-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.25
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-078-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.30
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-079-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.35
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-080-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.40
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-081-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.50
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-082-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.30
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-565-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.70
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-617-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.90
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-618-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.80
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-619-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.20
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-702-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.40
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-703-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-822-0 |
01 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.35
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-826-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.25
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-827-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-828-0 |
01 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.60
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-896-0 |
AR |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B), T=0.60
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
8-94344-427-0 |
AR |
1 |
- |
| |
80 |
WASHER; LK,CONT LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-83579-492-0 |
01 |
1 |
- |
| |
82 |
NUT; CONT LEVER FIX,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-236-0 |
01 |
1 |
- |
| |
86 |
BUSHING; CONT SHAFT,GOV COVER
ASM PART: A = 1-15602-152-2
|
5-15729-192-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-238-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M8X62
ASM PART: B = 1-15602-760-1
|
1-15729-642-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M8X65
ASM PART: C = 1-15602-812-0, E = 1-15602-905-0
|
1-15729-761-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X33
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-799-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X34
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-800-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X35
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-801-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X36
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-802-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X37
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-803-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X31
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-842-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M6X32
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-843-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), L=62
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
5-15729-123-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), L=62
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
5-15729-123-0 |
02 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-643-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-807-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
9-81325-081-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
9-84410-027-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
9-84410-027-0 |
02 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-050-0 |
01 |
1 |
- |
| |
98 |
GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-022-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: E = 1-15602-905-0
|
8-97085-021-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: E = 1-15602-905-0
|
8-97085-022-0 |
01 |
1 |
- |
| |
108 |
COLLAR; SWIVEL LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-371-1 |
01 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
(A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-217-0 |
01 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
(B) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-370-0 |
01 |
1 |
- |
| |
117 |
SPRING; STOP LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15723-131-0 |
01 |
1 |
- |
| |
118 |
COLLAR; CONT SHAFT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-181-0 |
01 |
1 |
- |
| |
119 |
NUT; ENG STOP LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-236-0 |
01 |
1 |
- |
| |
120 |
WASHER; LK,SPD ADJ LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-83579-492-0 |
01 |
1 |
- |
| |
121 |
BOLT; ENG STOP LEVER,GOV
M6X16 W/LK WASHER
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-01900-616-0 |
01 |
1 |
- |
| |
125 |
CAP; STOP LEVER SPRING,GOV
(A) ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-210-0 |
01 |
1 |
- |
| |
126 |
GASKET; STOP LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81391-906-0 |
01 |
1 |
- |
| |
127 |
BUSHING; CONT SHAFT,GOV HSG
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
D = 1-15602-903-0, E = 1-15602-905-0
|
9-81325-429-0 |
01 |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
T=0.20
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-294-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
T=0.25
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-295-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
T=0.30
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-296-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
T=0.35
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-297-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
T=0.40
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-298-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
T=0.50
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-299-0 |
AR |
1 |
- |
| |
130 |
LEVER; CONT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
D = 1-15602-903-0, E = 1-15602-905-0
|
1-15725-216-0 |
01 |
1 |
- |
| |
130 |
LEVER; CONT,GOV
ASM PART: C = 1-15602-812-0
|
1-15725-463-0 |
01 |
1 |
- |
| |
132 |
BRACKET; ADJ SCREW,GOV
ASM PART: C = 1-15602-812-0
|
1-15729-717-0 |
01 |
1 |
- |
| |
132 |
BRACKET; ADJ SCREW,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1
|
1-15729-779-0 |
01 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
(A), M6X25
ASM PART: D = 1-15602-903-0, E = 1-15602-905-0
|
1-15729-242-0 |
02 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
(B), M8X30 W/LK WASHER
ASM PART: D = 1-15602-903-0, E = 1-15602-905-0
|
9-01900-830-0 |
01 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
(C) ASM PART: D = 1-15602-903-0, E = 1-15602-905-0
|
9-88410-094-0 |
01 |
1 |
- |
| |
150 |
ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81315-065-0 |
01 |
1 |
- |
| |
151 |
BOLT; ADAPTER,GOV HSG,INJ PUMP
M8X18 W/LK WASHER
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-01900-818-0 |
01 |
1 |
- |
| |
152 |
BUSHING; GOV SHAFT,HSG,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
D = 1-15602-903-0, E = 1-15602-905-0
|
9-81325-429-0 |
01 |
1 |
- |
| |
163 |
GASKET; CONT SHAFT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81391-906-0 |
01 |
1 |
- |
| |
168 |
PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-029-0 |
01 |
1 |
- |
| |
169 |
SPRING; LEVER SET,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15723-131-0 |
01 |
1 |
- |
| |
170 |
SPRING; LEVER TO LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15723-132-0 |
01 |
1 |
- |
| |
175 |
LEVER; GOV,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-369-0 |
01 |
1 |
- |
| |
177 |
RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-445-0 |
01 |
1 |
- |
| |
179 |
LEVER; SPD ADJ,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15725-062-0 |
01 |
1 |
- |
| |
181 |
SPACER; BRKT
ASM PART: D = 1-15602-903-0, E = 1-15602-905-0
|
8-94419-135-1 |
01 |
1 |
- |
| |
197 |
SHAFT; LEVER,GOV COVER
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15725-008-0 |
01 |
1 |
- |
| |
199 |
PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-076-0 |
02 |
1 |
- |
| |
224 |
SHIFTER; TENSION LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-036-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15723-257-0 |
01 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15723-265-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15723-256-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
8-94478-849-0 |
01 |
1 |
- |
| |
236 |
CAP; SPRING CAPSULE,IDLE CONT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-212-0 |
01 |
1 |
- |
| |
238 |
GASKET; SPRING CAPSULE CAP,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-211-0 |
02 |
1 |
- |
| |
242 |
NUT; LK,GOV SHAFT
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-067-0 |
01 |
1 |
- |
| |
245 |
SCREW; GUIDE,GOV SHAFT,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-040-0 |
01 |
1 |
- |
| |
247 |
CAP; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-041-0 |
01 |
1 |
- |
| |
249 |
GASKET; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-021-0 |
02 |
1 |
- |
| |
250 |
NUT; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-350-0 |
01 |
1 |
- |
| |
253 |
LIMITTER; GOV CONT
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-435-0 |
01 |
1 |
- |
| |
255 |
SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
8-94171-173-0 |
01 |
1 |
- |
| |
263 |
COLLAR; GUIDE LEVER,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-031-0 |
02 |
1 |
- |
| |
265 |
PLATE; CONN LINK,CONT RACK,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-375-0 |
01 |
1 |
- |
| |
266 |
NUT; PIN TO LINK,CONT RACK,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-374-0 |
01 |
1 |
- |
| |
267 |
BOLT; CONN,CONT RACK,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-182-0 |
01 |
1 |
- |
| |
268 |
SPRING; ROD INNER,TORQUE CAM,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15723-056-0 |
01 |
1 |
- |
| |
269 |
SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15723-070-1 |
01 |
1 |
- |
| |
270 |
NUT; TORQUE ROD LK,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-051-0 |
01 |
1 |
- |
| |
271 |
ROD; TORQUE CAM,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15725-009-1 |
01 |
1 |
- |
| |
272 |
SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-030-0 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
D = 1-15602-903-0, E = 1-15602-905-0
|
1-15725-382-2 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: C = 1-15602-812-0
|
1-15725-697-0 |
01 |
1 |
- |
| |
287 |
LEVER; GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-542-0 |
01 |
1 |
- |
| |
291 |
RING; SNAP,CONT SHAFT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-445-0 |
01 |
1 |
- |
| |
295 |
RING; SNAP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-81325-445-0 |
01 |
1 |
- |
| |
296 |
SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15729-875-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-767-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: B = 1-15602-760-1
|
1-15779-092-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: C = 1-15602-812-0, E = 1-15602-905-0
|
1-15779-128-0 |
01 |
1 |
- |
| |
303 |
RING; SNAP,CAM PLATE,GOV
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
5-15729-023-0 |
01 |
1 |
- |
| |
304 |
RING; SNAP,LINK TO CAM PLATE,GOV
ID=4 ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
9-09185-404-0 |
01 |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.20
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-294-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.25
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-295-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.30
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-296-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.35
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-297-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.40
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-298-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.50
ASM PART: B = 1-15602-760-1, C = 1-15602-812-0,
E = 1-15602-905-0
|
1-15729-299-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.30
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-564-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.20
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-700-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.40
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
1-15729-701-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.60
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
8-94344-423-0 |
AR |
1 |
- |
| |
305 |
SHIM; STOP LEVER,GOV
T=0.90
ASM PART: A = 1-15602-152-2, D = 1-15602-903-0
|
8-94362-696-0 |
AR |
1 |
- |
| |
337 |
BRACKET; SPACER,GOV
ASM PART: D = 1-15602-903-0, E = 1-15602-905-0
|
1-15729-717-0 |
01 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 1-15602-152-2, B = 1-15602-760-1,
C = 1-15602-812-0, D = 1-15602-903-0,
E = 1-15602-905-0
|
1-15725-500-0 |
01 |
1 |
- |
