Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

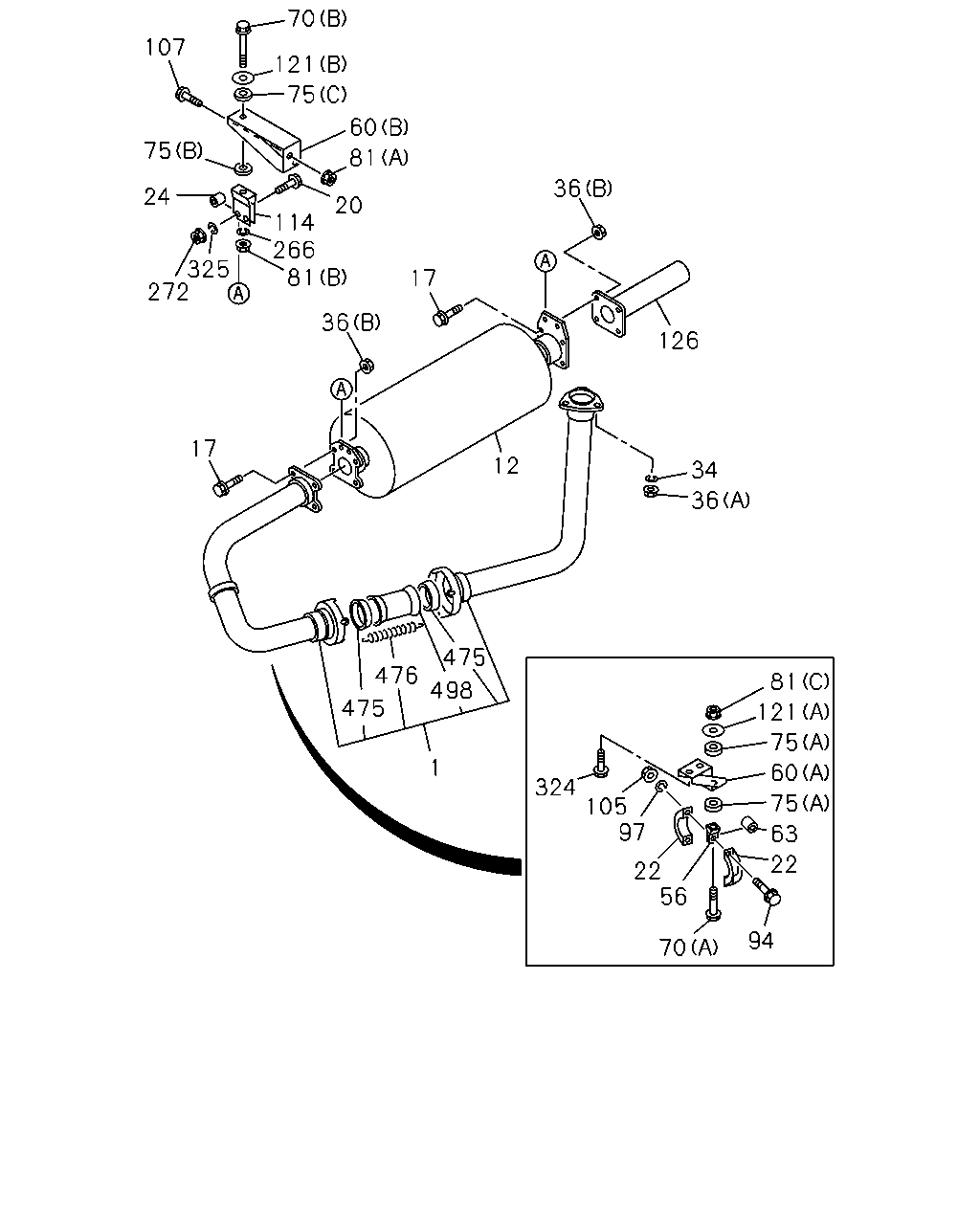

1-50 — EXHAUST PIPE AND SILENCER
(#14048) — 54 parça
70
107
121
75
60
81
20
75
36
24
114
266
81
325
272
17
36
126
17
12
34
36
475
476
498
475
81
121
75
60
75
63
22
1
324
105
97
22
56
94
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
1-22123-238-1
01
1
0105-
12
SILENCER ASM; EXH
1-22140-938-0
01
1
0105-
17
BOLT; EXH PIPE
M12X35 FLANGE
0-28781-235-0
08
1
0105-0512
17
BOLT; EXH PIPE
M12X35 FLANGE
0-28751-235-0
08
1
0601-
20
BOLT; FLANGE,EXH PIPE
M10X50 FLANGE
0-28081-050-0
04
1
0105-0106
20
BOLT; FLANGE,EXH PIPE
M10X40 FLANGE
0-28681-040-0
04
1
0107-0512
20
BOLT; FLANGE,EXH PIPE
M10X40 FLANGE
0-28651-040-0
04
1
0601-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
0105-
24
COLLAR; DIST,CLAMP
L=8.5
1-22139-057-0
04
1
0105-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09556-020-0
03
1
0105-
36
NUT; EXH PIPE
(A) M12
1-09400-010-0
03
1
0105-0303
36
NUT; EXH PIPE
(A) M12
1-09400-131-0
03
1
0304-
36
NUT; EXH PIPE
(B) M12
1-09400-012-0
08
1
0105-
56
BRACKET; CLAMP,EXH PIPE
H=74
1-22139-045-0
01
1
0105-
60
BRACKET; FRAME TO BRKT
(A)
1-22151-839-0
01
1
0105-
60
BRACKET; FRAME TO BRKT
(B)
1-22151-840-1
02
1
0105-
63
TUBE; DIST,BRKT
L=12.5
1-22139-022-0
01
1
0105-
70
BOLT; BRKT
(A) M10X50
0-10806-050-0
01
1
0105-0512
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
01
1
0601-
70
BOLT; BRKT
(B) M10X53
1-09009-171-0
02
1
0105-
75
RUBBER; SUPPORT,BRKT
(A) OD=30
1-22159-106-1
02
1
0105-
75
RUBBER; SUPPORT,BRKT
(B)
1-22159-135-0
02
1
0105-
75
RUBBER; SUPPORT,BRKT
(C)
1-22159-136-0
02
1
0105-
81
NUT; BRKT
(A) M10 FLANGE
0-91150-210-0
04
1
0105-0602
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
04
1
0603-
81
NUT; BRKT
(B) M10
9-09111-510-0
02
1
0105-0512
81
NUT; BRKT
(B) M10
0-91111-510-0
02
1
0601-
81
NUT; BRKT
(C) M10 LOCK NUT
9-09131-510-0
01
1
0105-0603
81
NUT; BRKT
(C) M10 LOCK NUT
0-91370-010-0
01
1
0604-
94
BOLT; CLAMP
M10X40 FLANGE
0-28681-040-0
02
1
0105-0512
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
0601-
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
02
1
0105-
105
NUT; CLAMP
M10
9-09111-410-0
02
1
0105-0512
105
NUT; CLAMP
M10
0-91111-510-0
02
1
0601-
107
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
04
1
0105-0512
107
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
04
1
0601-
114
BRACKET; EXH SILENCER
1-22139-123-0
02
1
0105-
121
WASHER; PL,BRKT
(A) ID=10.5 OD=18
9-09160-510-0
02
1
0208-0605
121
WASHER; PL,BRKT
(A) ID=10.5
0-91610-510-0
02
1
0606-
121
WASHER; PL,BRKT
(A) ID=10.5 OD=32
9-09164-810-0
01
1
0105-0605
121
WASHER; PL,BRKT
(A) ID=10.5 OD=32
0-91614-810-0
01
1
0606-
121
WASHER; PL,BRKT
(B) ID=15 OD=52
9-09164-814-0
02
1
0105-
126
PIPE; EXH,RR
1-22123-470-0
01
1
0105-
266
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
02
1
0105-0603
266
WASHER; LK,BRKT
ID=10.2
0-91510-510-0
02
1
0604-
272
NUT; FLANGE
M10
9-09110-410-0
04
1
0105-0512
272
NUT; FLANGE
M10
0-91110-510-0
04
1
0601-
324
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0105-0512
324
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
325
WASHER; LK,EXH PIPE MTG BRKT
ID=10.2
9-09150-510-0
04
1
0105-0603
325
WASHER; LK,EXH PIPE MTG BRKT
ID=10.2
0-91510-510-0
04
1
0604-
475
BEARING; SEAL,VIBNON,EXH PIPE
OD=112
1-22119-294-0
02
1
0105-
476
SPRING; VIBNON,EXH PIPE
1-09583-248-0
04
1
0105-
498
PIPE ASM
1-22123-309-0
01
1
0105-
