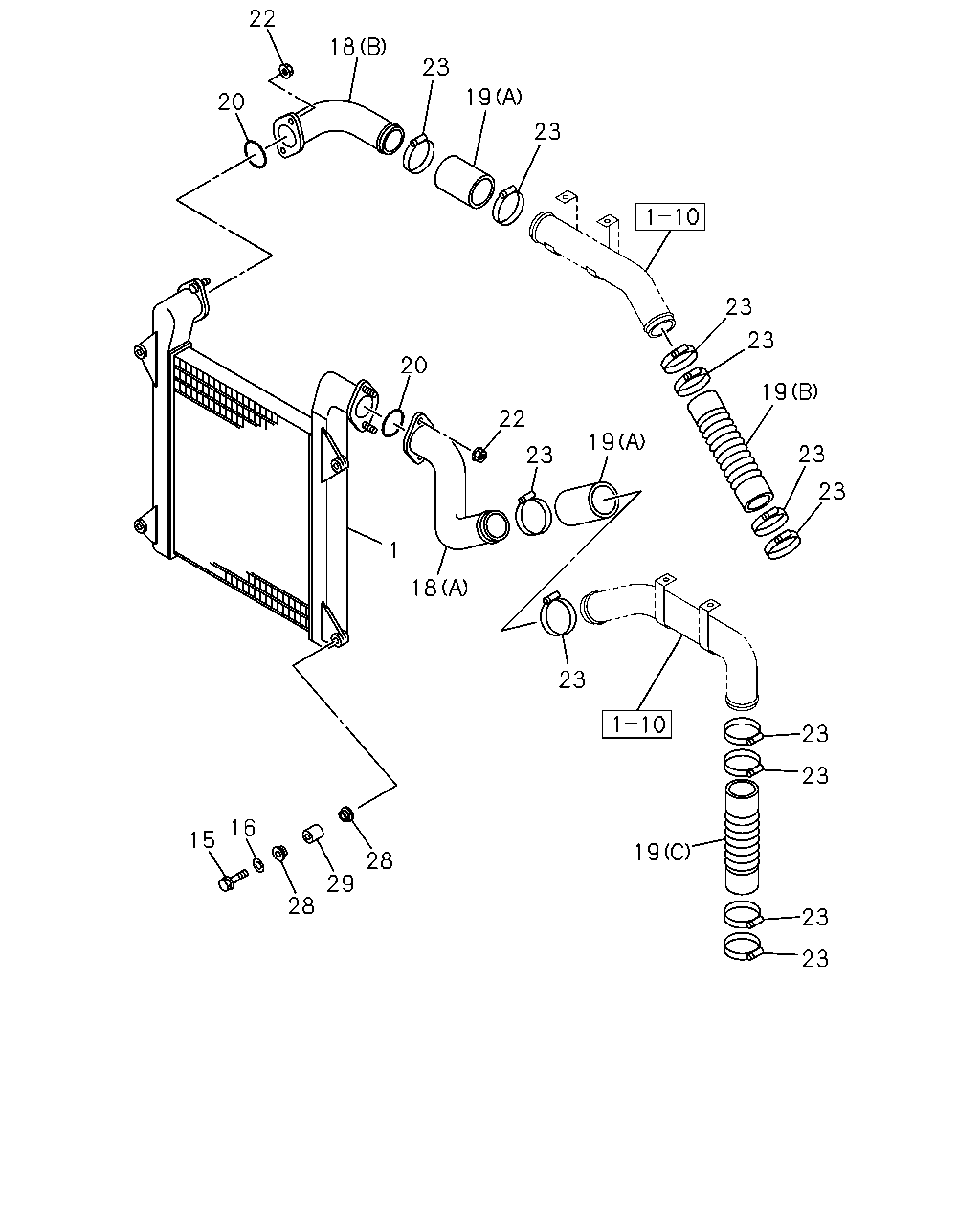

1-35 — CHARGE AIR COOLER
(#14044) — 20 parça
22
18
23
19
23
20
23
23
20
19
22
19
23
23
23
1
18
23
23
23
16
15
19
28
29
28
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-042-1
01
1
0105-
15
BOLT; CHARGE AIR COOLER
M8X50 FLANGE
0-28080-850-0
04
1
0105-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0105-0302
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
08
1
0303-
18
ADAPTER
(A)
1-14112-684-0
01
1
0105-
18
ADAPTER
(B)
1-14112-685-0
01
1
0105-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09360-797-1
02
1
0105-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09360-911-0
01
1
0105-0212
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-118-0
01
1
0301-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-94395-023-1
01
1
0105-
20
GASKET
ID=84.6
1-09623-431-0
02
1
0105-
22
NUT
M10 FLANGE
0-91150-210-0
04
1
0105-0602
22
NUT
M10 FLANGE
0-91180-210-0
04
1
0603-
23
CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
12
1
1002-
23
CLIP; HOSE
ID=58-79
8-94126-771-0
12
1
0105-0306
23
CLIP; HOSE
ID=58-76
1-09707-203-0
12
1
0307-0811
23
CLIP; HOSE
ID=55-75
8-98133-349-0
12
1
0812-1001
23
CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
12
1
1002-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-018-0
08
1
0105-
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0105-
