Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

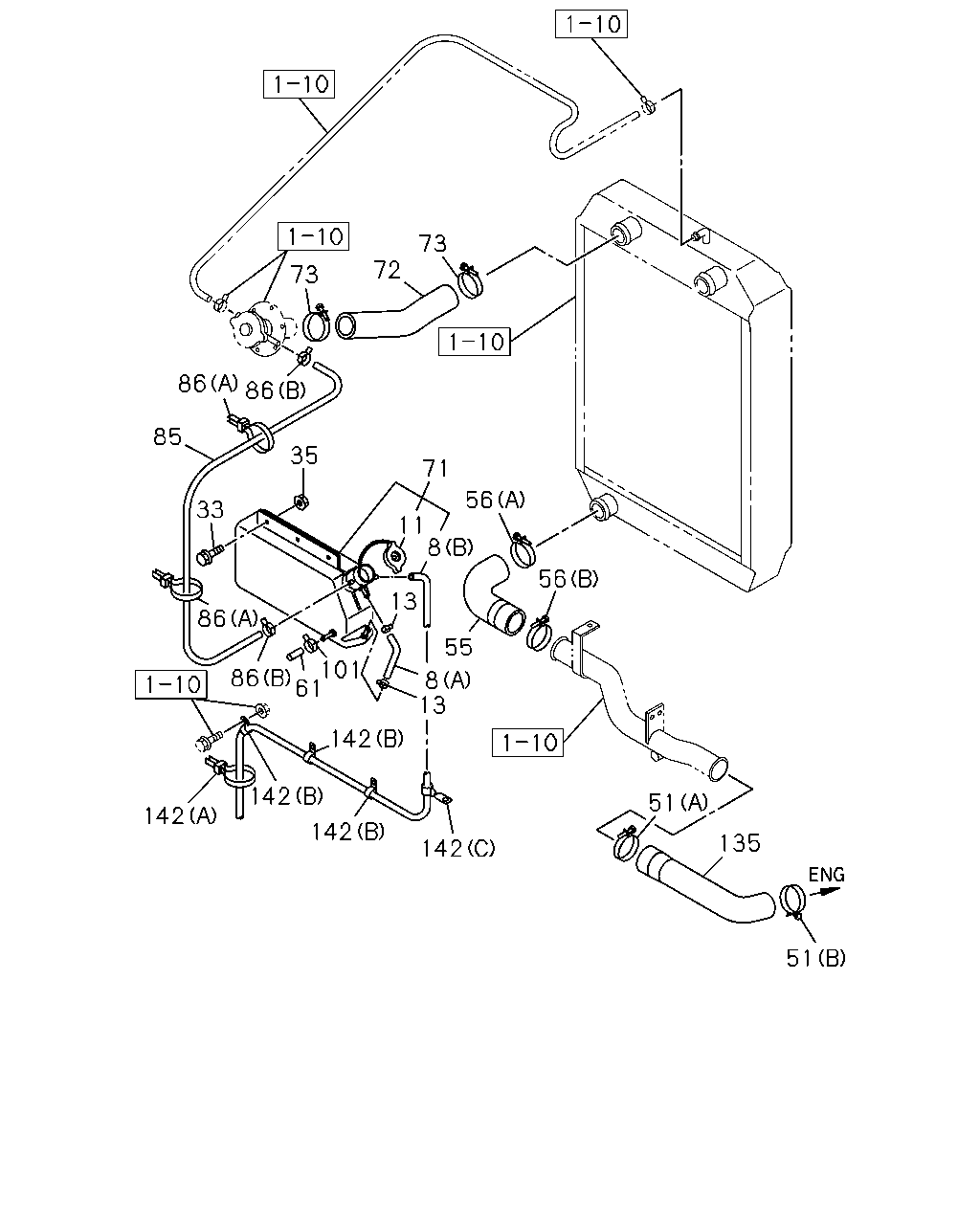

1-11 — RADIATOR HOSE AND SUB TANK
(#14040) — 26 parça
73
72
73
86
86
85
35
71
56
33
11
8
13
56
86
55
8
13
101
86
61
142
142
142
51
142
135
142
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HOSE; VINYL
(B) L=1400 SERVICED BY L=2850
1-09366-061-0
01
1
0105-
8
HOSE; VINYL
(A) L=150 SERVICED BY L=10000
9-09914-701-0
01
1
0105-
11
CAP; RESERVE TANK
1-21489-184-0
01
1
0105-
13
CLIP; HOSE,SURGE TANK
ID=14
1-09704-102-0
02
1
0105-
33
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
06
1
0105-0512
33
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
06
1
0601-
35
NUT
M8 FLANGE
0-91150-108-0
06
1
0105-0602
35
NUT
M8 FLANGE
0-91180-108-0
06
1
0603-
51
CLIP; WATER HOSE,RAD
(A) ID=76
1-09704-069-0
01
1
0105-
51
CLIP; WATER HOSE,RAD
(B) ID=68
1-09704-074-0
01
1
0105-
55
HOSE; WATER,RAD OUTLET
1-21437-799-1
01
1
0105-
56
CLIP; WATER HOSE,RAD
(A) ID=72
1-09704-068-0
01
1
0105-
56
CLIP; WATER HOSE,RAD
(B) ID=76
1-09704-069-0
01
1
0105-
61
CAP; DRAIN
8-94107-603-0
01
1
0105-
71
TANK ASM; RESERVE
1-21480-103-1
01
1
0105-
72
HOSE; RUBBER FILLER TO TANK
1-21437-567-0
01
1
0105-
73
CLIP; RUBBER HOSE
ID=44
1-09704-077-0
02
1
0105-
85
HOSE; RUB,WATER FILLER TO SURGE TANK
L=660 SERVICED BY L=3000
0-03557-300-0
01
1
0105-
86
CLIP; RUB HOSE,WATER FILLER
(A) L=250
1-09707-126-0
02
1
0105-
86
CLIP; RUB HOSE,WATER FILLER
(B) ID=12
8-94238-610-0
02
1
0105-
101
CLIP; RUBBER HOSE & FILLER
ID=12
8-94238-610-0
01
1
0105-
135
HOSE; WATER,ENG TO CONN
1-21437-800-0
01
1
0105-
142
CLIP; VINYL HOSE
(A) L=250
1-09707-126-0
02
1
0105-
142
CLIP; VINYL HOSE
(C) ID=11 L=40
8-94123-171-1
01
1
0105-
142
CLIP; VINYL HOSE
(B) ID=11 L=32
9-09525-065-0
03
1
0105-0606
142
CLIP; VINYL HOSE
(B) ID=11 L=32
0-95235-065-0
03
1
0607-
