1-01 — ACCELERATOR PEDAL AND CONTROL (#14038) — 193 parça

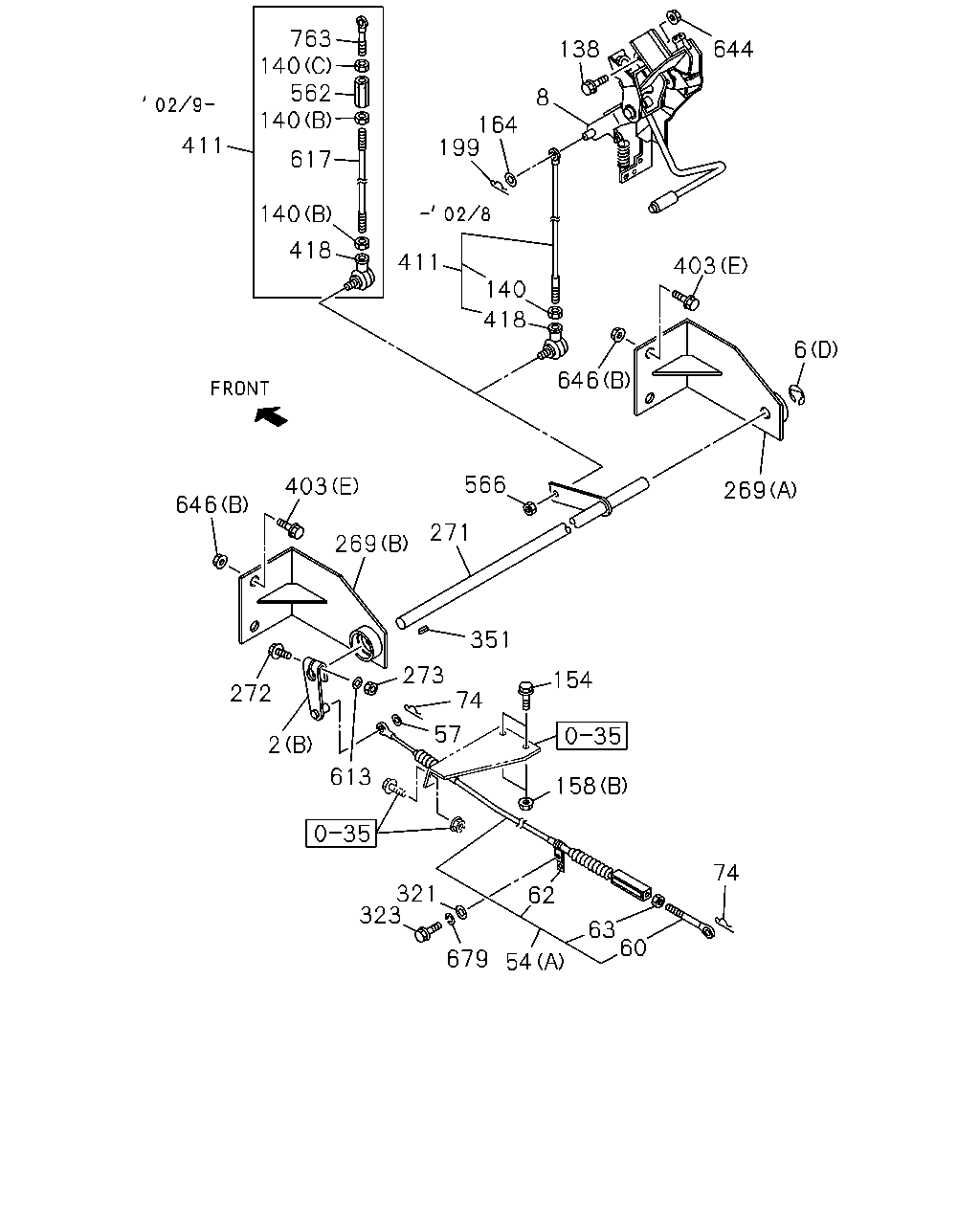

çizim 23191
763 140 562 140 138 644 8 164 199 411 617 140 418 411 403 140 418 6 646 566 403 269 646 271 269 351 273 154 272 74 57 2 613 158 74 62 321 323 63 60 679 54
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT
(A) 		1-23310-585-0 01 1 0105-
2 LEVER; ENG CONT
(B) 		1-23311-368-0 01 1 0105-
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0105-0604
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605-
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 0105-0604
6 RING; SNAP,LINK TO LINK
(B) ID=6 		0-91805-506-0 01 1 0605-
6 RING; SNAP,LINK TO LINK
(C) ID=8 		9-09185-408-0 01 1 0105-0604
6 RING; SNAP,LINK TO LINK
(C) ID=8 		0-91805-508-0 01 1 0605-
6 RING; SNAP,LINK TO LINK
(D) ID=9 		9-09185-409-0 01 1 0105-0604
6 RING; SNAP,LINK TO LINK
(D) ID=9 		0-91805-509-0 01 1 0605-
8 LINK ASM; ENG CONT 1-23240-107-0 01 1 0105-
54 CABLE; ENG CONT
(A) L=9965 		1-23230-410-3 01 1 0105-
54 CABLE; ENG CONT
(B) L=1230 		1-23230-411-3 01 1 0105-
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 02 1 0105-0605
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
60 BOLT; CABLE 1-23219-118-0 02 1 0105-
62 CLIP; ENG CONT CABLE 1-09701-289-0 02 1 0105-
63 NUT; LOCK,BRKT
M6 		9-09111-406-0 02 1 0105-
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 02 1 0105-
138 BOLT; LINK ROD
M6X16 FLANGE 		0-28080-616-0 03 1 0105-0512
138 BOLT; LINK ROD
M6X16 FLANGE 		0-28050-616-0 03 1 0601-
140 NUT; BALL JOINT
(B) 		1-09400-162-0 02 1 0209-
140 NUT; BALL JOINT
(C) 		1-09400-163-0 01 1 0209-
140 NUT; BALL JOINT
(A) M6 		9-09110-406-0 01 1 0105-0208
154 BOLT; CABLE BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
154 BOLT; CABLE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
158 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
158 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
158 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
158 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
164 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 0105-0605
164 WASHER; PL
ID=8.4 OD=16 		0-91610-508-0 01 1 0606-
199 PIN; SNAP
L=27.7 		1-09747-005-0 01 1 0105-
269 BRACKET; RELAY LEVER
(A) 		1-23335-522-0 01 1 0105-
269 BRACKET; RELAY LEVER
(B) 		1-23335-524-0 01 1 0105-
271 SHAFT; ENG CONT 1-23331-131-0 01 1 0105-
272 BOLT; LEVER
M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0105-0512
272 BOLT; LEVER
M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 0601-
273 NUT; LEVER
M6 		9-09110-406-0 01 1 0105-0512
273 NUT; LEVER
M6 		0-91110-506-0 01 1 0601-
321 WASHER; PL,CLIP FIX
ID=6.4 OD=14 		9-09164-606-0 06 1 0105-
323 BOLT; CLIP
M6X30 FLANGE 		0-28680-630-0 06 1 0105-0512
323 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 06 1 0601-
351 KEY; SHAFT,ENG CONT 9-08030-410-0 01 1 0105-
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(C) M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(E) M10X30 FLANGE 		0-28681-030-0 04 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
411 WIRE; ENG CONT 1-23230-258-0 01 1 0105-0208
411 WIRE; ENG CONT 1-23230-418-0 01 1 0209-
418 JOINT; BALL,ENG CONT 1-09760-141-0 01 1 0209-
418 JOINT; BALL,ENG CONT 1-09760-004-0 01 1 0105-0208
562 JOINT; LINK ROD 1-09765-313-0 01 1 0209-
566 NUT; LK,JOINT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
566 NUT; LK,JOINT
M6 FLANGE 		0-91180-106-0 01 1 0603-
613 WASHER; PL,SPACER
ID=6.4 		9-09160-506-0 01 1 0105-
617 ROD; LINK,ENG CONT 1-09765-312-0 01 1 0209-
644 NUT; LINK,ENG CONT
M6 FLANGE 		0-91150-106-0 03 1 0105-0602
644 NUT; LINK,ENG CONT
M6 FLANGE 		0-91180-106-0 03 1 0603-
646 NUT; BRKT,LEVER
(A) M8 FLANGE 		0-91150-108-0 05 1 0105-0602
646 NUT; BRKT,LEVER
(A) M8 FLANGE 		0-91180-108-0 05 1 0603-
646 NUT; BRKT,LEVER
(B) M10 FLANGE 		0-91150-210-0 04 1 0105-0602
646 NUT; BRKT,LEVER
(B) M10 FLANGE 		0-91180-210-0 04 1 0603-
679 WASHER; LK,CLIP
ID=6.1 		9-09150-506-0 06 1 0105-0603
679 WASHER; LK,CLIP
ID=6.1 		0-91510-506-0 06 1 0604-
763 END; EYE 1-33653-139-0 01 1 0209-

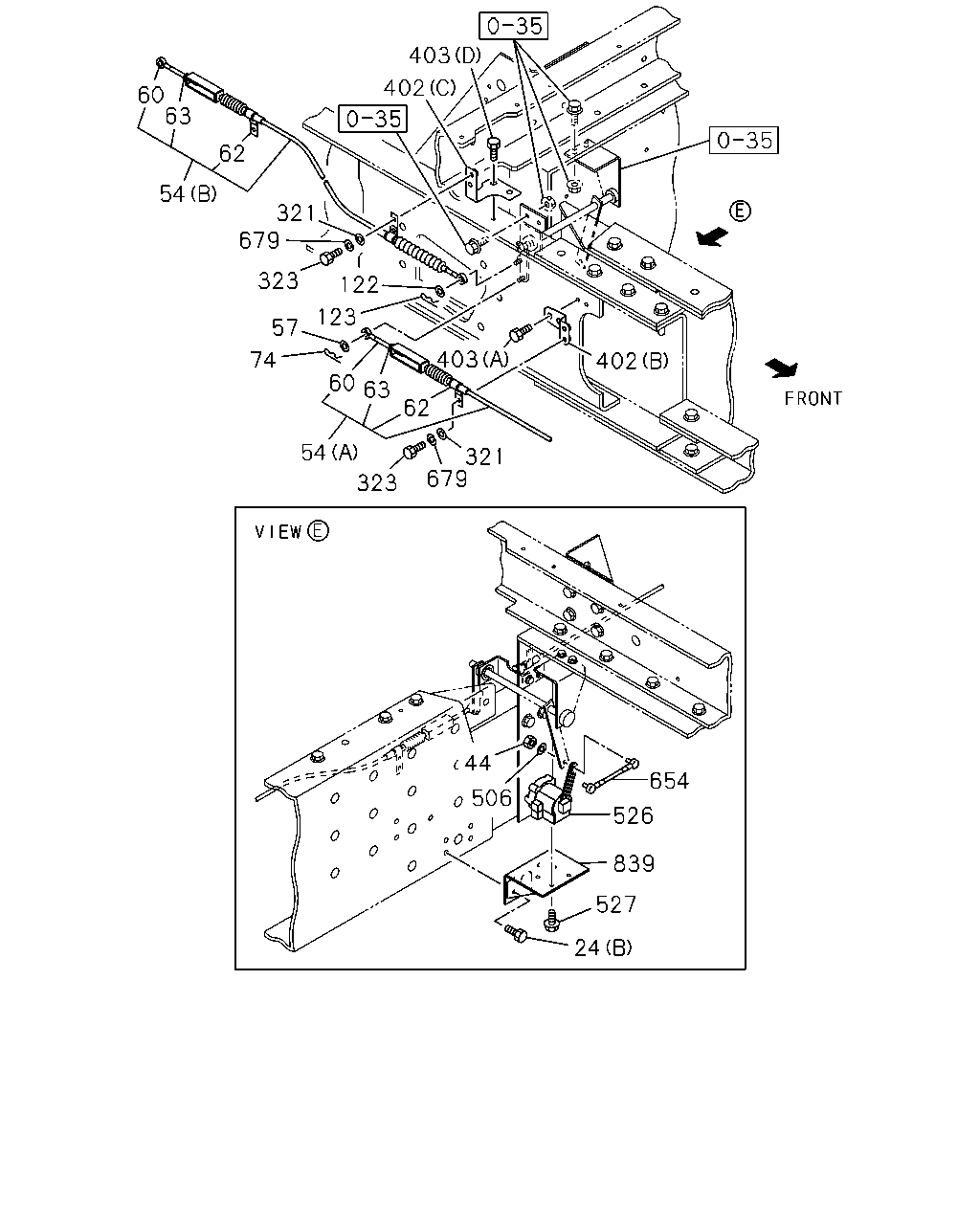

çizim 79216
403 402 60 63 62 54 321 679 122 323 123 57 403 74 402 60 63 62 54 321 679 323 44 654 506 526 839 527 24
BalonParca AdiParca NoAdetTipApplied Date
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
24 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0105-0512
24 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
44 WASHER; ACCEL CONT PEDAL
ID=5.1 		9-09150-505-0 02 1 0105-0603
44 WASHER; ACCEL CONT PEDAL
ID=5.1 		0-91510-505-0 02 1 0604-
54 CABLE; ENG CONT
(A) L=9965 		1-23230-410-3 01 1 0105-
54 CABLE; ENG CONT
(B) L=1230 		1-23230-411-3 01 1 0105-
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 02 1 0105-0605
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
60 BOLT; CABLE 1-23219-118-0 02 1 0105-
62 CLIP; ENG CONT CABLE 1-09701-289-0 02 1 0105-
63 NUT; LOCK,BRKT
M6 		9-09111-406-0 02 1 0105-
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 02 1 0105-
122 WASHER; PL,CABLE
ID=8.4 		9-09160-508-0 02 1 0105-0605
122 WASHER; PL,CABLE
ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
123 PIN; SNAP,CABLE
L=27.7 		1-09747-005-0 02 1 0105-
321 WASHER; PL,CLIP FIX
ID=6.4 OD=14 		9-09164-606-0 06 1 0105-
323 BOLT; CLIP
M6X30 FLANGE 		0-28680-630-0 06 1 0105-0512
323 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 06 1 0601-
402 BRACKET; CABLE CLIP
(A) 		1-47478-409-0 01 1 0105-
402 BRACKET; CABLE CLIP
(B) 		1-47479-193-0 01 1 0105-
402 BRACKET; CABLE CLIP
(C) 		1-47479-194-0 01 1 0105-
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(C) M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(E) M10X30 FLANGE 		0-28681-030-0 04 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
506 NUT; LK,LINK ROD
M5 		9-99110-405-0 02 1 0105-0512
506 NUT; LK,LINK ROD
M5 		0-91110-505-0 02 1 0601-
526 SENSOR; ACCEL 1-80250-008-0 01 1 0105-
527 BOLT; ACCEL SENSOR
M6X12 FLANGE 		0-28080-612-0 04 1 0105-0512
527 BOLT; ACCEL SENSOR
M6X12 FLANGE 		0-28050-612-0 04 1 0601-
654 ROD ASM; LINK,ACCEL SENSOR 1-23314-184-0 01 1 0105-
679 WASHER; LK,CLIP
ID=6.1 		9-09150-506-0 06 1 0105-0603
679 WASHER; LK,CLIP
ID=6.1 		0-91510-506-0 06 1 0604-
839 BRACKET; THROTTLE SENSOR 1-47479-192-0 01 1 0105-

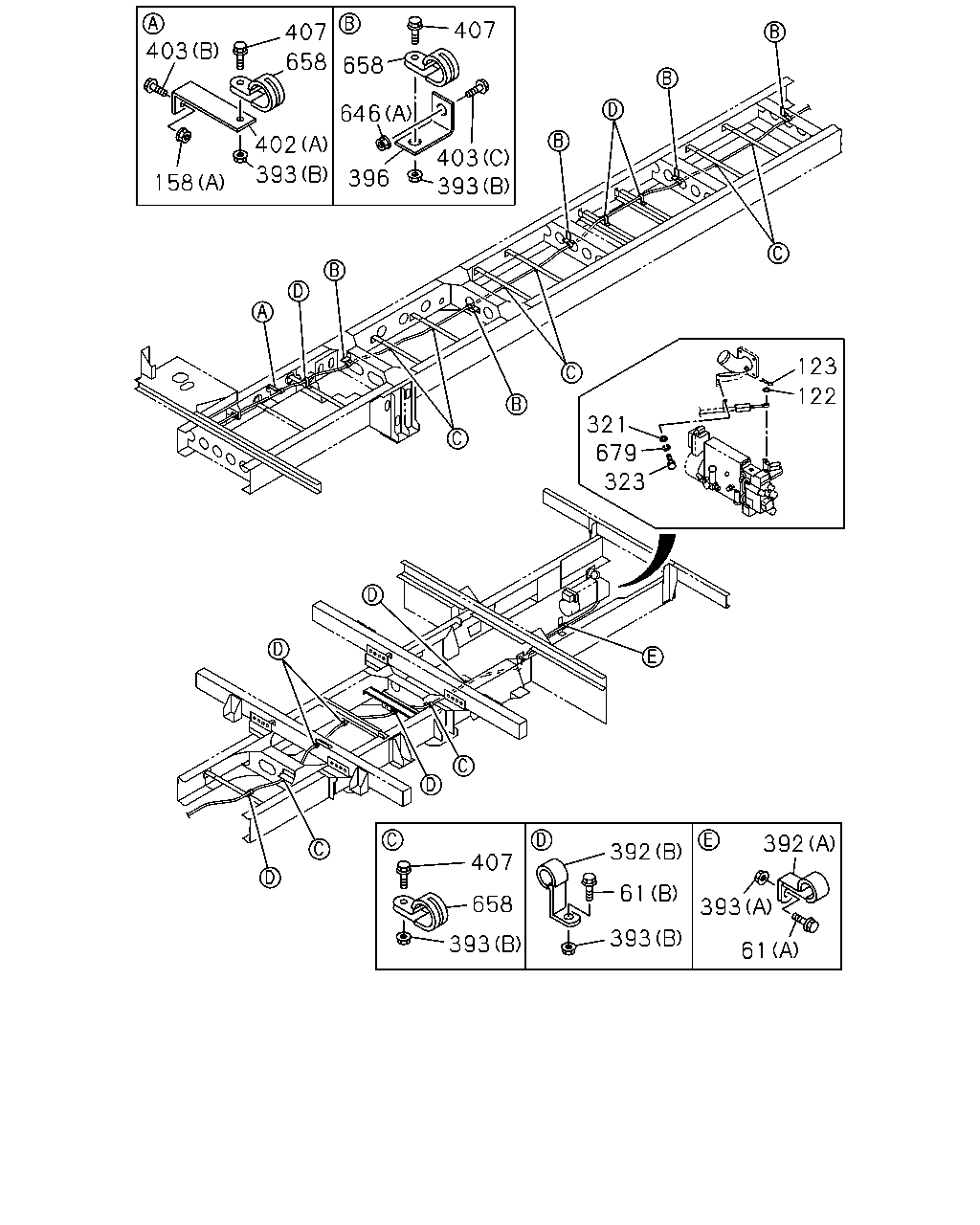

çizim 82958
407 407 403 658 658 403 646 402 393 396 158 393 123 122 321 679 323 392 392 407 61 658 393 393 393 61
BalonParca AdiParca NoAdetTipApplied Date
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M8X25 FLANGE 		0-28680-825-0 08 1 0105-0512
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M8X25 FLANGE 		0-28650-825-0 08 1 0601-
122 WASHER; PL,CABLE
ID=8.4 		9-09160-508-0 02 1 0105-0605
122 WASHER; PL,CABLE
ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
123 PIN; SNAP,CABLE
L=27.7 		1-09747-005-0 02 1 0105-
158 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
158 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
158 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
158 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
321 WASHER; PL,CLIP FIX
ID=6.4 OD=14 		9-09164-606-0 06 1 0105-
323 BOLT; CLIP
M6X30 FLANGE 		0-28680-630-0 06 1 0105-0512
323 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 06 1 0601-
392 CLIP; ACCEL CONT CABLE
(A) ID=9 H=20 L=25 		1-09701-073-0 01 1 0105-
392 CLIP; ACCEL CONT CABLE
(B) ID=9 H=20 L=25 		1-09701-073-0 08 1 0105-
393 NUT; CLIP TO FRAME
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
393 NUT; CLIP TO FRAME
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
393 NUT; CLIP TO FRAME
(B) M8 FLANGE 		0-91150-108-0 22 1 0105-0602
393 NUT; CLIP TO FRAME
(B) M8 FLANGE 		0-91180-108-0 22 1 0603-
396 BRACKET; CLIP
L=40 		1-47478-410-0 05 1 0105-
402 BRACKET; CABLE CLIP
(A) 		1-47478-409-0 01 1 0105-
402 BRACKET; CABLE CLIP
(B) 		1-47479-193-0 01 1 0105-
402 BRACKET; CABLE CLIP
(C) 		1-47479-194-0 01 1 0105-
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(C) M8X25 FLANGE 		0-28680-825-0 05 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
403 BOLT; BRKT,ACCEL PEDAL
(E) M10X30 FLANGE 		0-28681-030-0 04 1 0105-0512
403 BOLT; BRKT,ACCEL PEDAL
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
407 BOLT; CLIP TO ENG
M8X20 FLANGE 		0-28680-820-0 14 1 0105-0512
407 BOLT; CLIP TO ENG
M8X20 FLANGE 		0-28650-820-0 14 1 0601-
646 NUT; BRKT,LEVER
(A) M8 FLANGE 		0-91150-108-0 05 1 0105-0602
646 NUT; BRKT,LEVER
(A) M8 FLANGE 		0-91180-108-0 05 1 0603-
646 NUT; BRKT,LEVER
(B) M10 FLANGE 		0-91150-210-0 04 1 0105-0602
646 NUT; BRKT,LEVER
(B) M10 FLANGE 		0-91180-210-0 04 1 0603-
658 CLIP; ENG CONT CABLE
ID=9 L=20 		9-09524-835-0 14 1 0105-0606
658 CLIP; ENG CONT CABLE
ID=9 L=20 		0-95234-835-0 14 1 0607-
679 WASHER; LK,CLIP
ID=6.1 		9-09150-506-0 06 1 0105-0603
679 WASHER; LK,CLIP
ID=6.1 		0-91510-506-0 06 1 0604-

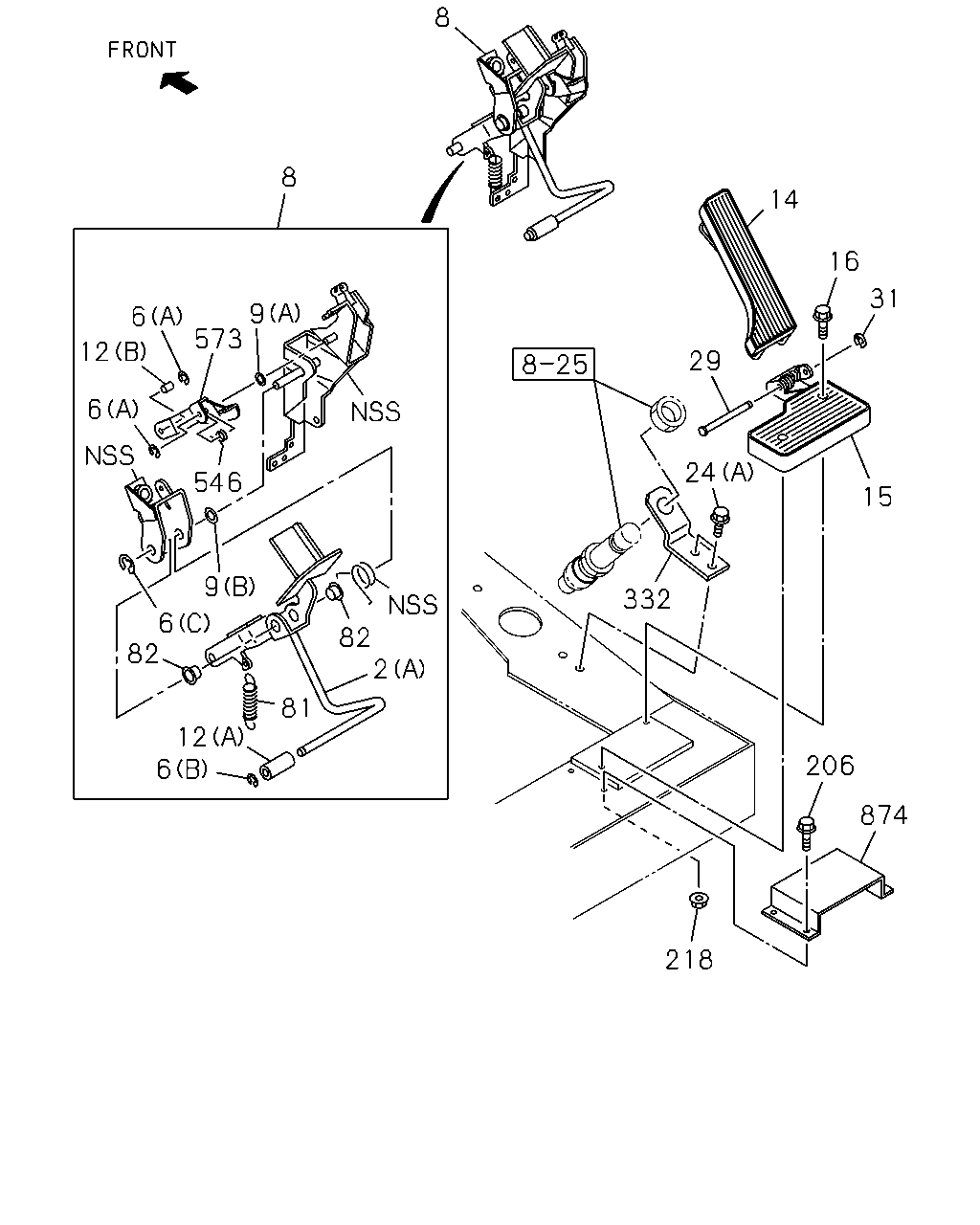

çizim 83001
8 8 14 16 31 9 573 6 12 29 6 24 546 15 9 332 6 82 82 2 81 12 6 206 874 218
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT
(A) 		1-23310-585-0 01 1 0105-
2 LEVER; ENG CONT
(B) 		1-23311-368-0 01 1 0105-
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0105-0604
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605-
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 0105-0604
6 RING; SNAP,LINK TO LINK
(B) ID=6 		0-91805-506-0 01 1 0605-
6 RING; SNAP,LINK TO LINK
(C) ID=8 		9-09185-408-0 01 1 0105-0604
6 RING; SNAP,LINK TO LINK
(C) ID=8 		0-91805-508-0 01 1 0605-
6 RING; SNAP,LINK TO LINK
(D) ID=9 		9-09185-409-0 01 1 0105-0604
6 RING; SNAP,LINK TO LINK
(D) ID=9 		0-91805-509-0 01 1 0605-
8 LINK ASM; ENG CONT 1-23240-107-0 01 1 0105-
9 WASHER; PL,CONT LINK
(A) ID=6.5 OD=14 		1-09985-140-0 01 1 0105-
9 WASHER; PL,CONT LINK
(B) ID=10.5 OD=16 		9-09855-178-0 01 1 0105-
12 ROLLER; ENG CONT LEVER
(A) 		1-09989-007-0 01 1 0105-
12 ROLLER; ENG CONT LEVER
(B) 		1-09989-010-0 01 1 0105-
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0105-
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0105-
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0105-
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
24 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0105-0512
24 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 0105-
31 RING; SNAP,ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 0105-0604
31 RING; SNAP,ACCEL PEDAL
ID=6 		0-91805-506-0 01 1 0605-
81 SPRING; RETURN,ENG CONT LEVER 8-94414-815-0 01 1 0105-
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 0105-
206 BOLT; COVER
M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512
206 BOLT; COVER
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
218 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
218 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
332 BRACKET; ACCEL PEDAL STOPPER 1-23335-518-1 01 1 0105-
546 SPRING; CONT LEVER,ACCEL SW 1-09985-143-2 01 1 0105-
573 LEVER; ACCEL SW 1-73997-731-2 01 1 0105-
874 COVER; STAND 1-47479-232-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
