0-60 — ENGINE ELECTRICAL CONTROL PARTS (#14029) — 112 parça

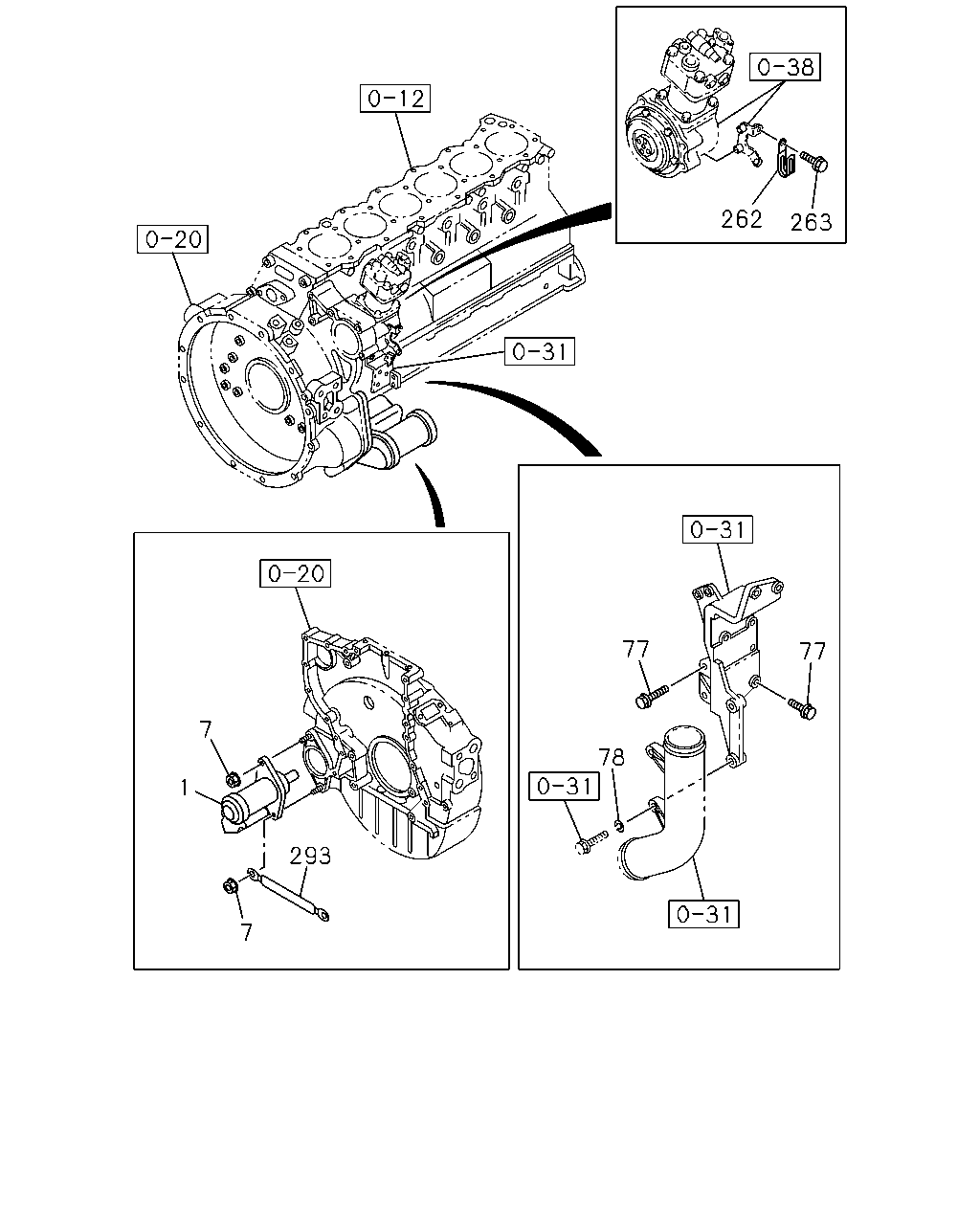

262 263 77 77 7 78 1 293 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-246-3	01	1	0105-
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	0105-
77	BOLT; BRIDGE BRKT M10X60	0-16806-060-0	02	1	0105-0512
77	BOLT; BRIDGE BRKT M10X60	0-16856-060-0	02	1	0601-
77	BOLT; BRIDGE BRKT M10X25 FLANGE	0-28781-025-0	01	1	0105-0512
77	BOLT; BRIDGE BRKT M10X25 FLANGE	0-28751-025-0	01	1	0601-
77	BOLT; BRIDGE BRKT M10X35 FLANGE	0-28781-035-0	01	1	0105-0512
77	BOLT; BRIDGE BRKT M10X35 FLANGE	0-28751-035-0	01	1	0601-
78	WASHER; LK,BRIDGE BRKT ID=10.2	9-09150-510-0	02	1	0105-0603
78	WASHER; LK,BRIDGE BRKT ID=10.2	0-91510-510-0	02	1	0604-
262	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	0105-0801
262	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-
263	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
263	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0105-

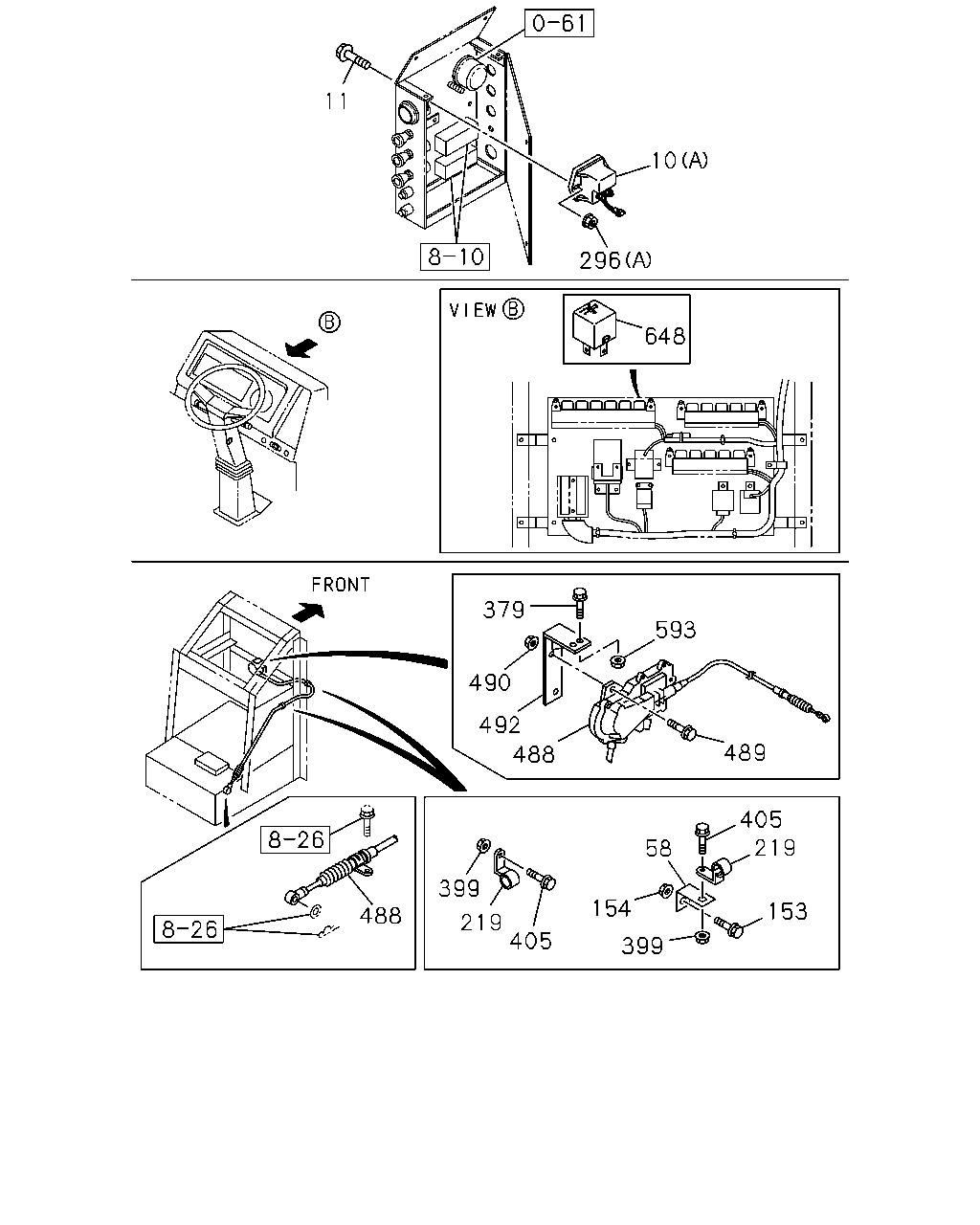

11 10 296 648 379 593 490 492 489 488 405 219 58 399 154 153 488 219 405 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) SAWAFUJI	1-81171-082-0	01	1	0105-0109
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-0	01	1	0110-
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0105-
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28680-620-0	02	1	0105-0512
11	BOLT; RELAY STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6X20 FLANGE	0-28650-620-0	02	1	0601-
58	BRACKET; CLIP RADIATOR FAN DUCT<WF8> L=40	1-47478-410-0	01	1	0105-
153	BOLT; BRKT FIX RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
153	BOLT; BRKT FIX RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-
154	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0105-0602
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0105-0602
154	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-
219	CLIP; ENG STOP CABLE ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
219	CLIP; ENG STOP CABLE RADIATOR FAN DUCT<WF8> ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0105-0602
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
379	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
379	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
399	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0105-0602
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
399	NUT; CLIP RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
405	BOLT; CLIP,CABLE M8X25 FLANGE	0-28650-825-0	01	1	0601-
405	BOLT; CLIP,CABLE RADIATOR FAN DUCT<WF8> M8X25 FLANGE	0-28650-825-0	01	1	0601-
488	STOPPER; ENG	1-82840-133-2	01	1	0105-
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
489	BOLT; ENG STOPPER M8X30 FLANGE	0-28650-830-0	02	1	0601-
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	0105-0602
490	NUT; ENG STOP M8 FLANGE	0-91180-108-0	02	1	0603-
492	BRACKET; ENG STOPPER	1-47478-982-0	01	1	0105-
593	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
593	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
648	RELAY; ENG STOPPER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
648	RELAY; ENG STOPPER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-0902
648	RELAY; ENG STOPPER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0903-

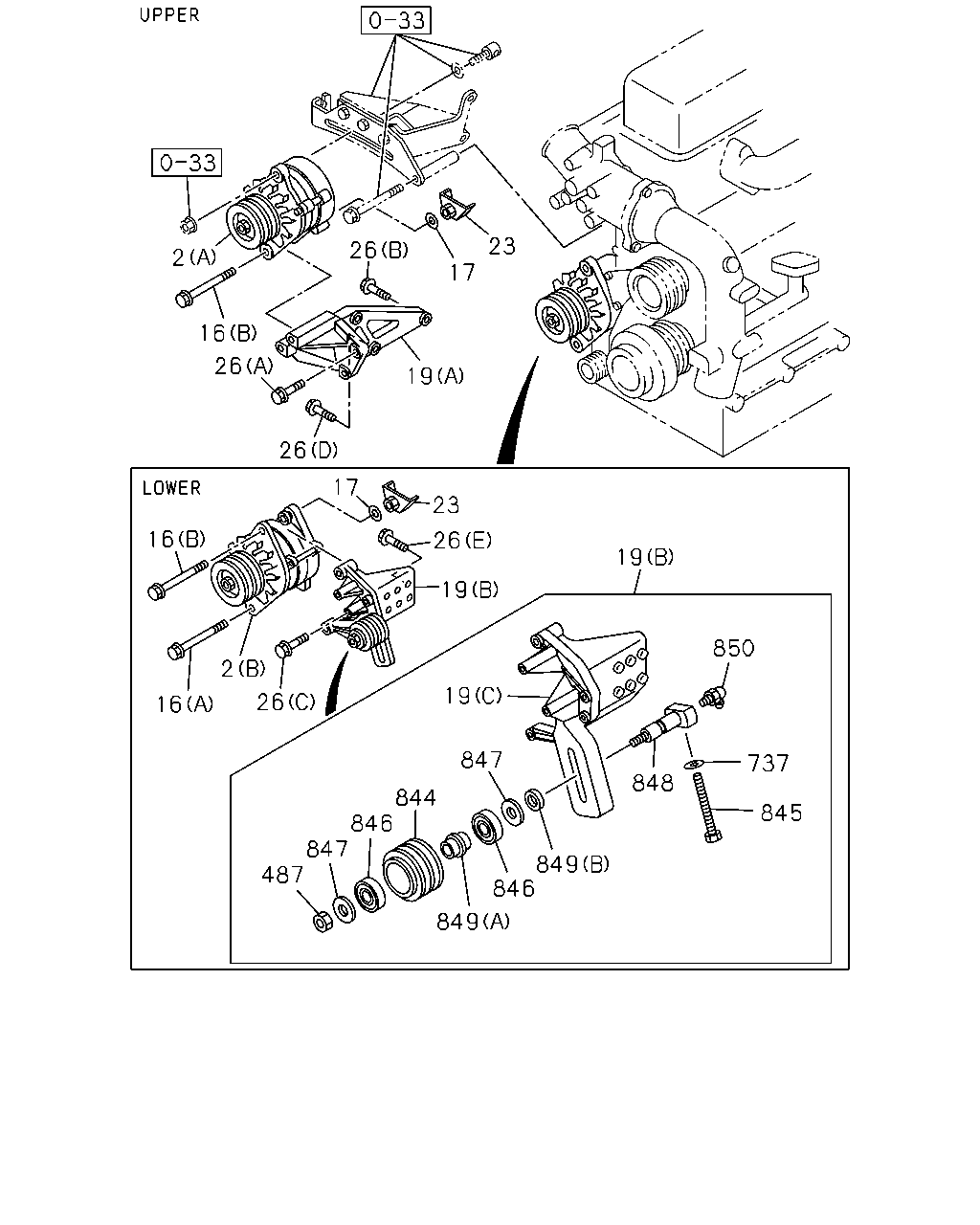

23 26 2 17 16 26 19 26 17 23 16 26 19 19 850 2 19 26 16 847 737 848 844 846 847 487 845 849 846 849

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (B) LOWER 24V 110A MITSUBISHI	1-81200-542-2	01	1	0105-0305
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (B) LOWER 24V 110A MITSUBISHI	1-81200-628-1	01	1	0306-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (A) UPPER 24V 110A MITSUBISHI	1-81200-561-2	01	1	0105-0305
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. (A) UPPER 24V 110A MITSUBISHI	1-81200-632-2	01	1	0306-
16	BOLT; GEN (A) M12X50 FLANGE	0-28181-250-0	01	1	0105-0512
16	BOLT; GEN (A) M12X50 FLANGE	0-28151-250-0	01	1	0601-
16	BOLT; GEN (B) M14X157	1-09000-071-1	02	1	0105-
17	WASHER; PL,GEN ID=15	9-09160-514-0	02	1	0105-0605
17	WASHER; PL,GEN ID=15	0-91610-514-0	02	1	0606-
19	BRACKET; GEN (A)	1-19711-107-0	01	1	0105-
19	BRACKET; GEN (B)	1-19711-115-1	01	1	0105-
19	BRACKET; GEN (C)	1-19711-116-0	01	1	0105-
23	NUT; GEN M14 W/BRKT	1-19711-029-0	02	1	0105-
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
26	BOLT; GEN BRKT (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28181-050-0	02	1	0105-0512
26	BOLT; GEN BRKT (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28181-060-0	02	1	0105-0512
26	BOLT; GEN BRKT (C) M10X60 FLANGE	0-28151-060-0	02	1	0601-
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28186-011-0	01	1	0105-0512
26	BOLT; GEN BRKT (D) M10X110 FLANGE	0-28156-011-0	01	1	0601-
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28781-040-0	06	1	0105-0512
26	BOLT; GEN BRKT (E) M10X40 FLANGE	0-28751-040-0	06	1	0601-
487	NUT M18	9-99111-518-0	01	1	0105-0512
487	NUT M18	0-91111-518-0	01	1	0601-
737	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	0105-0605
737	WASHER; PL ID=10.5	0-91610-510-0	01	1	0606-
844	PULLEY; IDLE	1-13663-067-0	01	1	0105-
845	BOLT; ADJ M10X160	1-09000-118-1	01	1	0105-
846	BEARING; IDLE PULLEY	1-09800-176-0	02	1	0105-0907
846	BEARING; IDLE PULLEY	8-97633-017-0	02	1	0908-
847	COVER; DUST	1-13664-009-2	02	1	0105-
848	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	0105-
849	SPACER; IDLE PULLEY (A)	1-13666-007-0	01	1	0105-
849	SPACER; IDLE PULLEY (B)	1-13666-032-0	01	1	0105-
850	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	9-09031-210-0	01	1	0105-0512
850	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	0601-

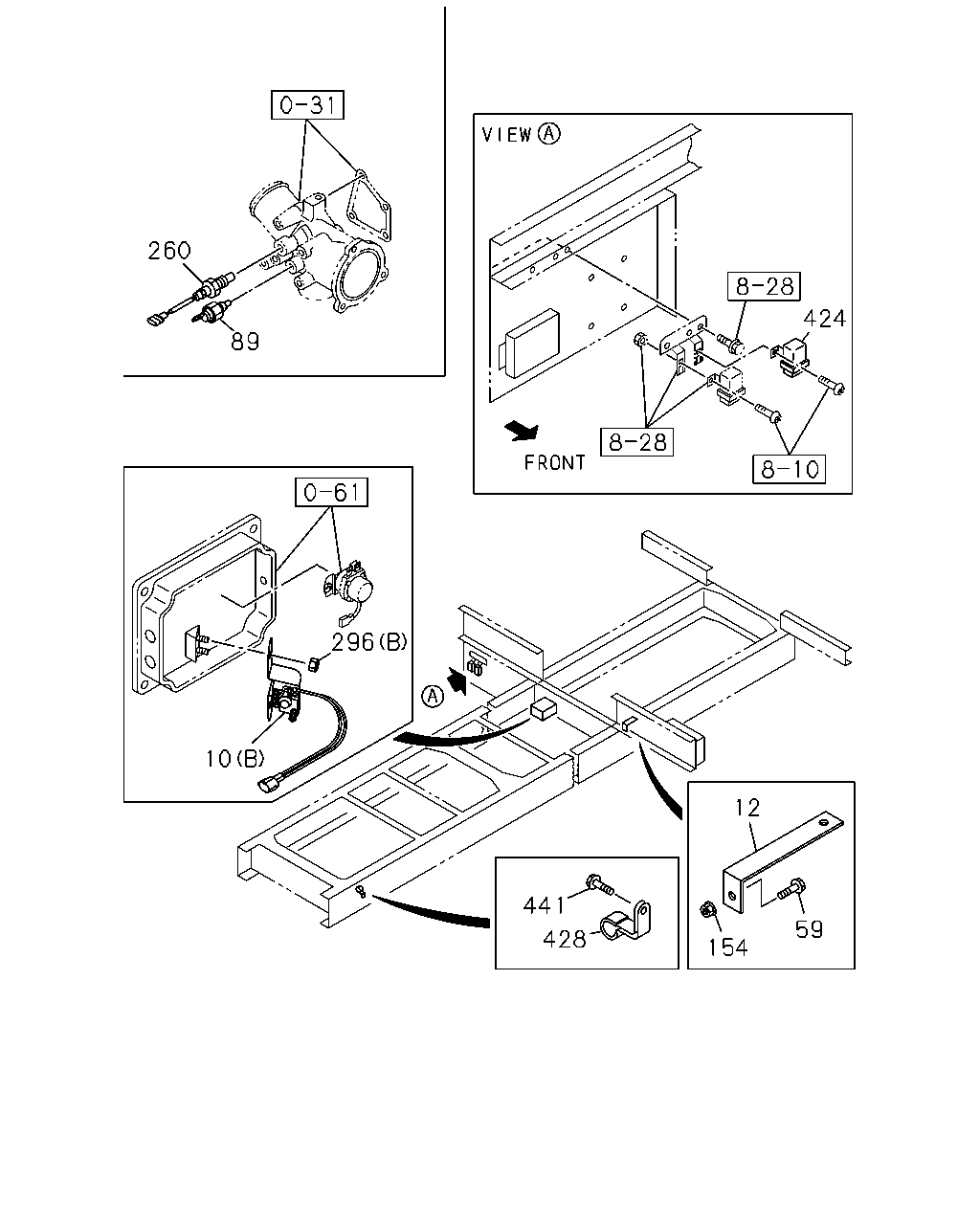

260 424 89 296 10 12 441 59 428 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) SAWAFUJI	1-81171-082-0	01	1	0105-0109
10	RELAY; STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-81171-096-0	01	1	0110-
10	RELAY; STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) HITACHI	1-81171-088-0	01	1	0105-
12	BRACKET; STARTER RELAY L=160 B=25	1-53441-518-0	01	1	0105-
59	BOLT; BRKT,HARNESS CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
59	BOLT; BRKT,HARNESS CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	0105-
154	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0105-0602
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	01	1	0105-0602
154	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0603-
154	NUT; BRKT FIX RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	01	1	0603-
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	0105-
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91150-106-0	02	1	0105-0602
296	NUT; RELAY,STARTER ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE	0-91180-106-0	02	1	0603-
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91150-108-0	02	1	0105-0602
296	NUT; RELAY,STARTER EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
424	RELAY; SAFETY,STARTER 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
424	RELAY; SAFETY,STARTER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
428	CLIP; HARNESS ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0105-
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28650-835-0	01	1	0601-
