0-52 — OIL AND VACUUM PIPING; ENGINE (#14028) — 69 parça

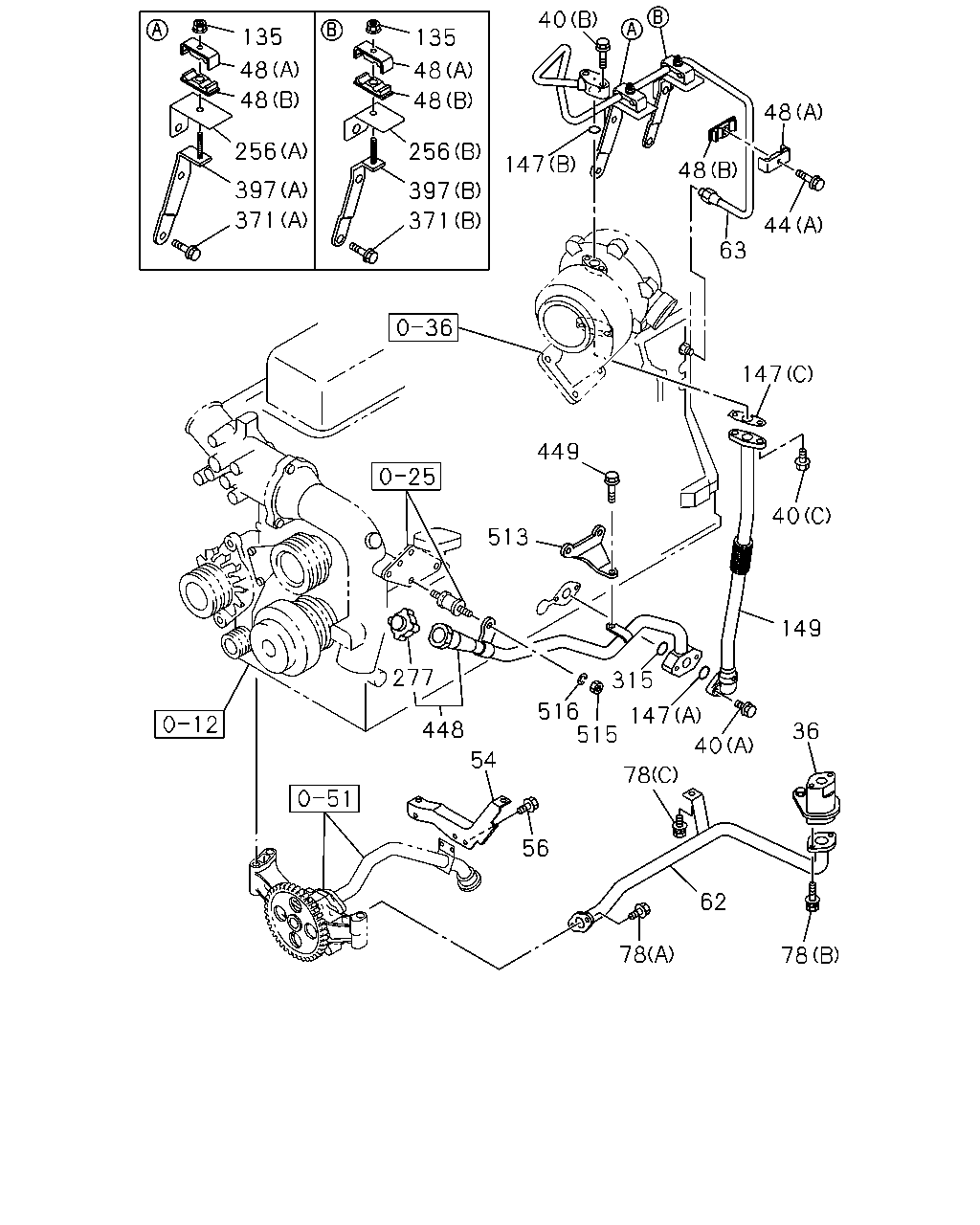

çizim 23105
40 135 135 48 48 48 48 48 256 256 147 48 397 397 371 371 44 63 147 449 40 513 149 277 315 516 515 147 448 36 40 54 78 56 62 78 78
BalonParca AdiParca NoAdetTipApplied Date
36 SPACER; DRAIN BACK 1-13260-108-0 01 1 0105-
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0105-0512
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601-
40 BOLT; OIL PIPE
(A) M8X60 FLANGE 		0-28080-860-0 02 1 0105-0512
40 BOLT; OIL PIPE
(A) M8X60 FLANGE 		0-28050-860-0 02 1 0601-
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 0105-
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28080-635-0 01 1 0105-0512
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0601-
44 BOLT; CLIP,OIL PIPE
(B) M6X25 W/LK WASHER 		0-50040-625-0 01 1 0105-0906
44 BOLT; CLIP,OIL PIPE
(B) M6X25 W/LK WASHER 		0-50540-625-0 01 1 0907-
48 CLIP; OIL PIPE
(A) 		1-09701-228-2 03 1 0105-
48 CLIP; OIL PIPE
(B) 		1-09701-229-1 03 1 0105-
54 STAY; OIL STRAINER 1-13345-130-1 01 1 0105-
56 BOLT; STAY TO BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
56 BOLT; STAY TO BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
62 PIPE; OIL,PUMP TO C/BL 1-13313-274-0 01 1 0105-
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-567-0 01 1 0105-
78 BOLT; OIL PIPE,PUMP TO BODY
(A) M8X18 FLANGE 		0-28080-818-0 02 1 0105-
78 BOLT; OIL PIPE,PUMP TO BODY
(B) M8X100 W/LK&PL WASHER 		0-50140-800-0 02 1 0105-0906
78 BOLT; OIL PIPE,PUMP TO BODY
(B) M8X100 W/LK&PL WASHER 		0-50640-800-0 02 1 0907-
78 BOLT; OIL PIPE,PUMP TO BODY
(C) M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 0105-0512
78 BOLT; OIL PIPE,PUMP TO BODY
(C) M8X16 W/LK&PL WASHER 		0-50640-816-0 01 1 0601-
135 NUT; CLIP
M6 FLANGE 		0-91150-106-0 02 1 0105-0602
135 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 0603-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-09623-297-0 01 1 0105-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0105-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-09637-058-2 01 1 0105-
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-782-0 01 1 0105-
256 PROTECTOR; HEAT,PIPE
(A) 		1-14181-293-0 01 1 0105-
256 PROTECTOR; HEAT,PIPE
(B) 		1-14181-294-0 01 1 0105-
277 CAP; OIL FILLER 1-11750-020-0 01 1 0105-
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-297-0 01 1 0105-
371 BOLT; STAY
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
371 BOLT; STAY
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
371 BOLT; STAY
(B) M10X16 FLANGE 		0-28181-016-0 02 1 0105-0512
371 BOLT; STAY
(B) M10X16 FLANGE 		0-28151-016-0 02 1 0601-
397 STAY; OIL PIPE
(A) 		1-13319-038-0 01 1 0105-
397 STAY; OIL PIPE
(B) 		1-13319-039-0 01 1 0105-
448 FILLER; OIL 1-11740-260-0 01 1 0105-0109
448 FILLER; OIL 1-11740-278-0 01 1 0110-
449 BOLT; OIL FILLER
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0109
449 BOLT; OIL FILLER
M8X25 FLANGE 		0-28680-825-0 01 1 0110-0512
449 BOLT; OIL FILLER
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
513 BRACKET; OIL FILLER 1-11769-179-0 01 1 0105-0109
515 NUT; MOUNT RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0105-0109
516 WASHER; PL,MOUNT RUBBER
ID=8.4 OD=26 		9-09164-808-0 01 1 0105-0605
516 WASHER; PL,MOUNT RUBBER
ID=8.4 OD=26 		0-91614-808-0 01 1 0606-

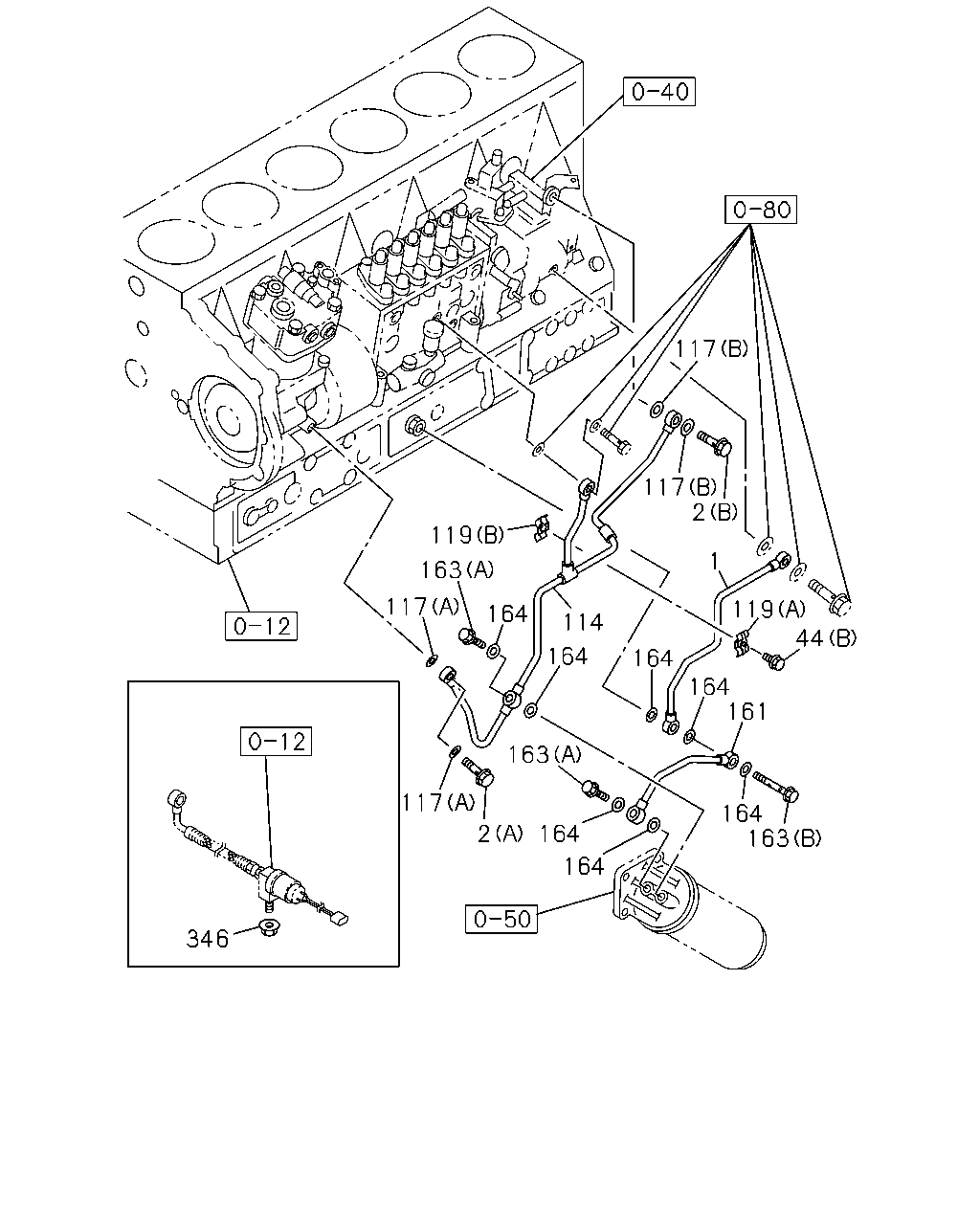

çizim 79325
117 117 2 119 1 163 117 119 44 164 114 164 164 164 161 163 117 164 163 2 164 346 164
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; OIL,INJ PUMP TO C/BL 1-13313-754-0 01 1 0105-
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 01 1 0105-0805
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-160-0 01 1 0105-0805
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		8-98037-826-0 01 1 0806-
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28080-635-0 01 1 0105-0512
44 BOLT; CLIP,OIL PIPE
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0601-
44 BOLT; CLIP,OIL PIPE
(B) M6X25 W/LK WASHER 		0-50040-625-0 01 1 0105-0906
44 BOLT; CLIP,OIL PIPE
(B) M6X25 W/LK WASHER 		0-50540-625-0 01 1 0907-
114 PIPE ASM; OIL,BODY 1-13313-891-0 01 1 0105-0207
114 PIPE ASM; OIL,BODY 1-13314-030-1 01 1 0208-
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0105-
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 02 1 0105-
119 CLIP; OIL PIPE,BODY TO CMPR
(A) WO/NUT 		1-09700-079-0 01 1 0105-
119 CLIP; OIL PIPE,BODY TO CMPR
(B) W/NUT 		1-09700-080-0 01 1 0105-
161 PIPE; OIL,PARTIAL FILTER RETURN 1-13313-753-0 01 1 0105-
163 BOLT; EYE,OIL PIPE,PARTIAL FILTER
(A) M14X27 FLANGE 		1-09675-086-0 02 1 0105-
163 BOLT; EYE,OIL PIPE,PARTIAL FILTER
(B) M14X42 		1-09675-090-0 01 1 0105-0805
163 BOLT; EYE,OIL PIPE,PARTIAL FILTER
(B) M14X43 		8-98037-829-0 01 1 0806-
164 GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 07 1 0105-
346 NUT; CONNECTOR
M10 FLANGE 		0-91150-110-0 01 1 0105-0602
346 NUT; CONNECTOR
M10 FLANGE 		0-91180-110-0 01 1 0603-
