Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

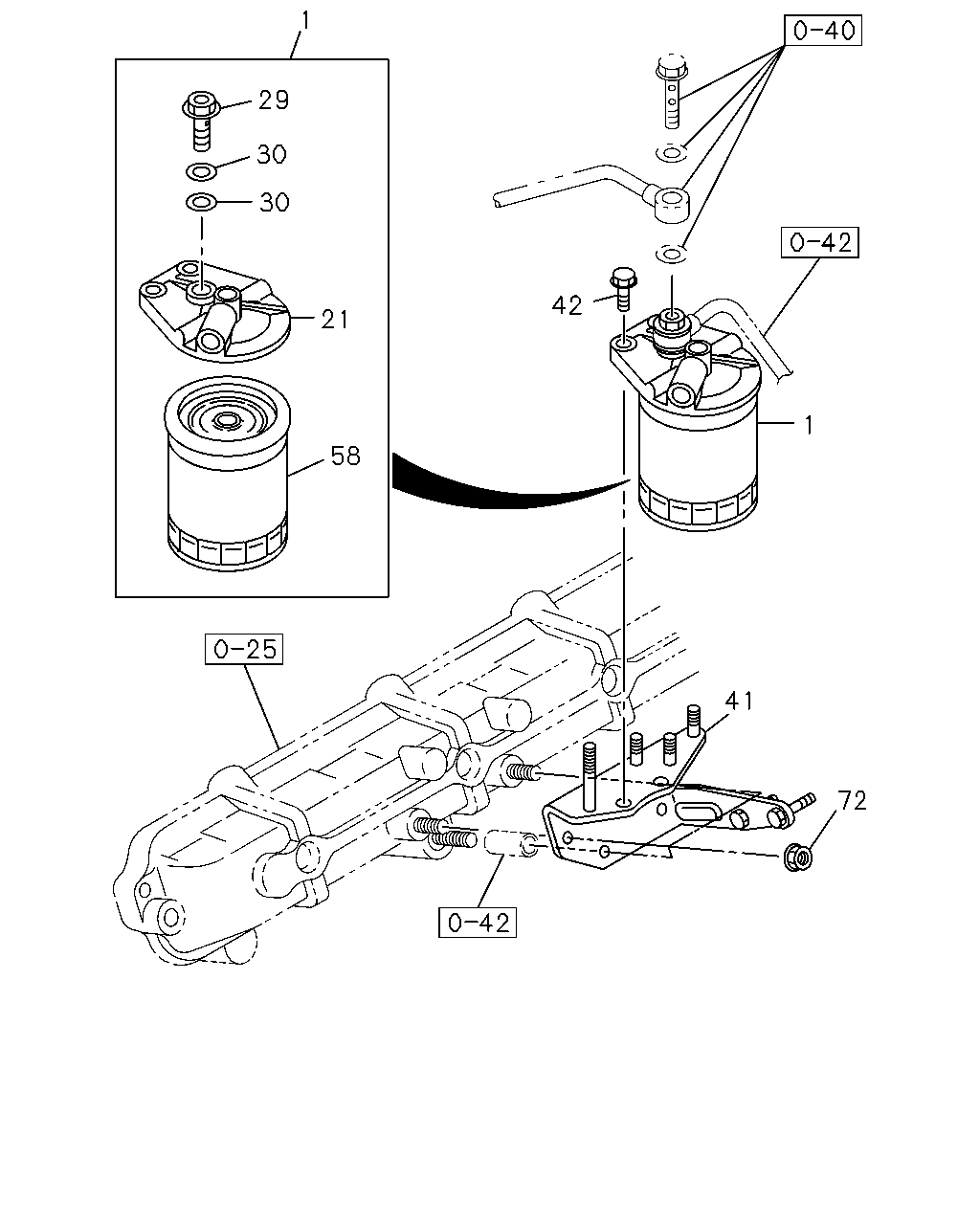

0-41 — FUEL FILTER AND BRACKET
(#14024) — 11 parça
1
29
30
30
42
21
1
58
41
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-973-3
01
1
0105-
21
COVER; UPR,FUEL FILTER
1-13212-108-1
01
1
0105-
29
VALVE; OVERFLOW
8-94399-170-0
01
1
0105-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0105-
41
BRACKET; FUEL FILTER
1-13219-330-0
01
1
0105-
42
BOLT; FUEL FILTER
M10X35 W/LK&PL WASHER
0-50141-035-0
02
1
0105-0512
42
BOLT; FUEL FILTER
M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
0601-
58
ELEMENT; FUEL FILTER
1-13240-079-1
01
1
0105-0711
58
ELEMENT; FUEL FILTER
8-98036-654-0
01
1
0712-
72
NUT; BRKT,FUEL FILTER
M8 FLANGE
0-91150-108-0
03
1
0105-0602
72
NUT; BRKT,FUEL FILTER
M8 FLANGE
0-91180-108-0
03
1
0603-
