0-39 — AIR COMPRESSOR; BRAKE (#14022) — 33 parça

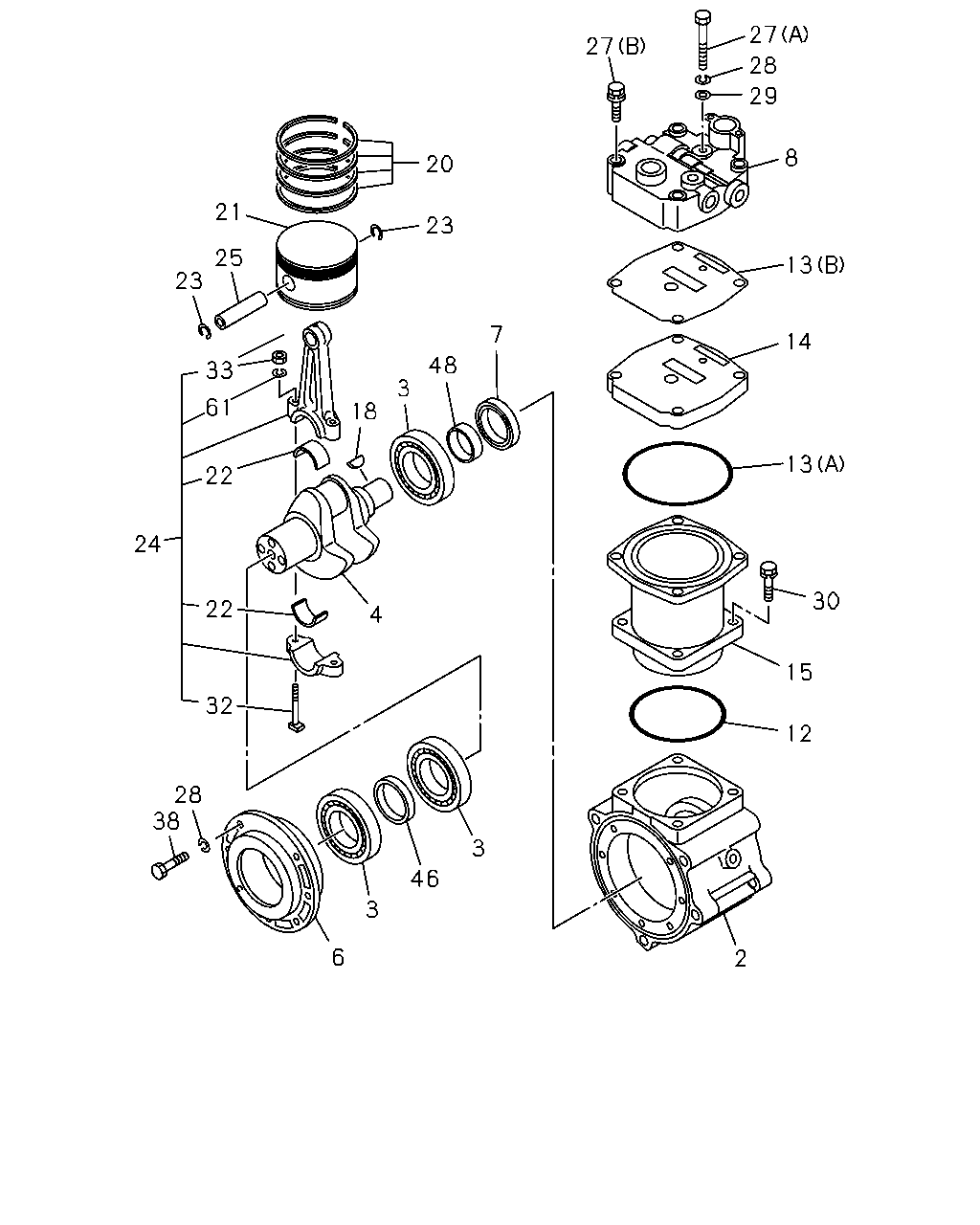

çizim 24074
27 28 29 27 8 20 21 23 25 23 13 7 14 48 33 3 18 61 13 22 24 30 22 4 15 32 12 28 38 3 46 3 6 2
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-293-0 01 1 0105-
3 BEARING; AIR CMPR 8-98171-672-0 03 1 0105-
4 CRANKSHAFT; AIR CMPR 1-19171-084-0 01 1 0105-
6 COVER ASM; BRG,AIR CMPR 1-19156-082-0 01 1 0105-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-619-0 01 1 0105-
8 HEAD ASM; CYL,AIR CMPR 1-19110-063-1 01 1 0105-0302
8 HEAD ASM; CYL,AIR CMPR 1-19110-072-0 01 1 0303-1012
8 HEAD ASM; CYL,AIR CMPR 8-97167-016-0 01 1 1101-
12 GASKET; AIR CMPR 1-09623-651-1 01 1 0105-
13 GASKET; AIR CMPR
(A) 		1-09623-650-1 01 1 0105-
13 GASKET; AIR CMPR
(B) 		1-19139-019-0 01 1 0105-
14 PLATE; AIR CMPR 1-19110-064-1 01 1 0105-
15 CYLINDER; AIR CMPR 1-19163-065-0 01 1 0105-
18 KEY; AIR CMPR 9-08055-622-0 01 1 0105-
20 RING KIT; PISTON,AIR CMPR 1-19163-064-0 01 1 0105-
21 PISTON; AIR CMPR 1-19161-023-0 01 1 0105-
22 METAL; CONNROD,AIR CMPR 1-19179-025-0 02 1 0105-
23 RING; SNAP,PISTON,AIR CMPR 1-19169-001-0 02 1 0105-
24 ROD ASM; CONN,AIR CMPR 1-19171-078-0 01 1 0105-
25 PIN; PISTON,AIR CMPR 1-19167-004-0 01 1 0105-0906
25 PIN; PISTON,AIR CMPR 1-19167-007-0 01 1 0907-
27 BOLT; HD
(A) 		1-09044-071-0 01 1 0105-
27 BOLT; HD
(B) 		1-19119-024-0 04 1 0105-1012
27 BOLT; HD
(B) M10X75 		8-98167-018-0 04 1 1101-
28 WASHER; LK,HD BOLT
ID=8.2 		9-09150-508-0 08 1 0105-
29 WASHER; PL,HD BOLT
ID=8.4 		9-09160-508-0 01 1 0105-
30 BOLT; CYL TO CRANKCASE
M10X30 		1-19119-026-0 04 1 0105-
32 BOLT; CONNROD 1-19179-021-0 02 1 0105-
33 NUT; CONNROD BOLT 1-19179-026-0 02 1 0105-
38 BOLT; COVER FIX
M8X30 		0-20800-830-0 07 1 0105-
46 SPACER; BRG 1-19179-031-0 01 1 0105-
48 SLEEVE; CR/SHF 1-19179-027-0 01 1 0105-
61 WASHER; LK,CONNROD BOLT 1-19179-022-0 02 1 0105-
