Sayfa 0-38 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE ▶

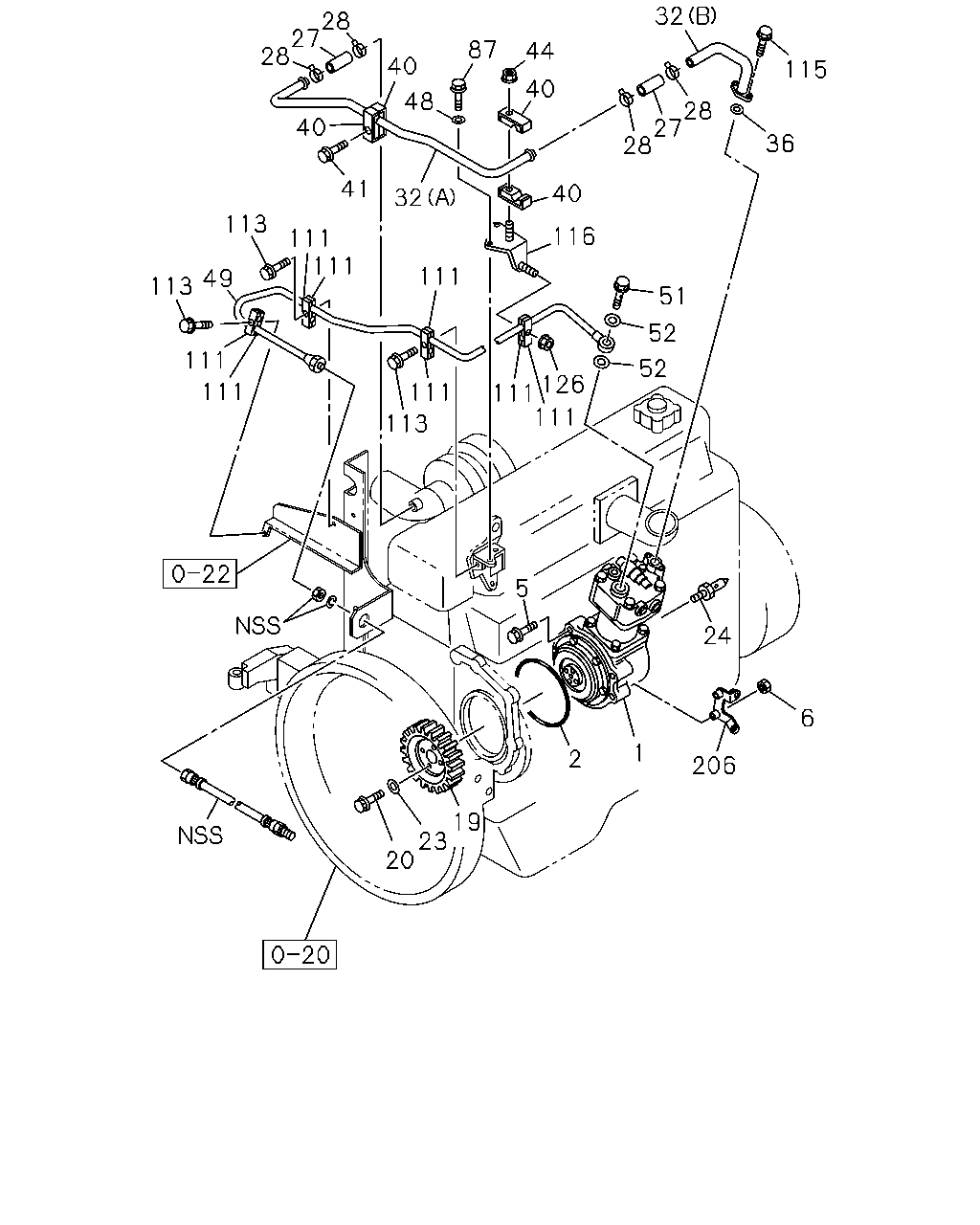

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#14021) — 41 parça

32 28 27 28 87 44 40 115 40 48 28 27 28 40 36 41 40 32 113 116 111 111 111 49 113 51 52 111 52 126 111 111 111 111 113 5 24 6 1 2 206 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0105-0302
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0105-
5	BOLT; AIR CMPR FIX M12X15	0-28186-215-0	02	1	0105-0512
5	BOLT; AIR CMPR FIX M12X15	0-28156-215-0	02	1	0601-
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	02	1	0105-0602
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	02	1	0603-
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0105-
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0105-
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0105-
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0105-
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0105-
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-
32	PIPE; AIR,AIR CMPR (A)	1-19193-271-0	01	1	0105-
32	PIPE; AIR,AIR CMPR (B)	1-19193-367-0	01	1	0105-0802
32	PIPE; AIR,AIR CMPR (B)	8-98100-018-0	01	1	0803-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0105-0802
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0803-
40	CLIP; AIR PIPE	1-09701-281-1	04	1	0105-
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	0105-0512
41	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	01	1	0601-
44	NUT M6 FLANGE	0-91150-106-0	01	1	0105-0602
44	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0105-0605
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-
49	PIPE; AIR,CHARGE	1-19193-366-0	01	1	0105-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0105-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0105-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0105-0512
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-
111	CLIP; AIR PIPE	1-09701-208-0	08	1	0105-
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28680-635-0	02	1	0105-0512
113	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28650-635-0	02	1	0601-
115	BOLT; AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
115	BOLT; AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0105-
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0105-0602
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-
206	BRACKET; CLIP,HARNESS	1-19199-385-0	01	1	0105-
