0-35 — ENGINE CONTROL VALVE AND LEVER
(#14018) — 21 parça
◀
[035A] BRACKET;ENG CONT CABLE (5 parça)

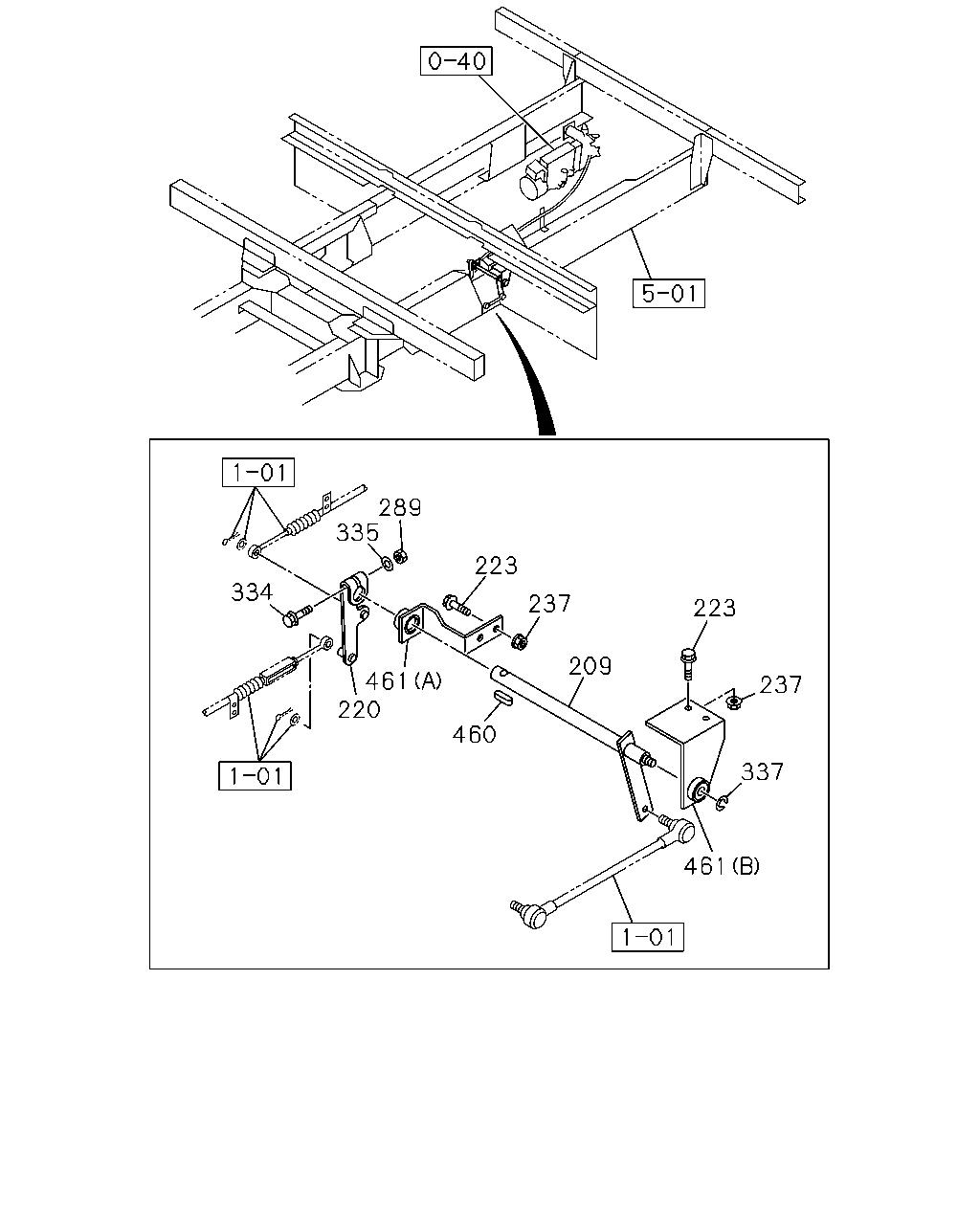

[035A] LEVER;RELAY ENG CONT CABLE (16 parça)
▶
50
62
344
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
BRACKET; ENG CONT CABLE
1-23335-560-0
01
1
0105-
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0105-0512
62
BOLT; CABLE END
M6X20 FLANGE
0-28650-620-0
02
1
0601-
344
NUT; CABLE END
M6 FLANGE
0-91150-106-0
02
1
0105-0602
344
NUT; CABLE END
M6 FLANGE
0-91180-106-0
02
1
0603-
289
335
223
334
237
223
209
461
220
237
460
337
461
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
209
SHAFT; ENG CONT
1-23331-133-0
01
1
0105-
220
LEVER ASM
1-23311-370-0
01
1
0105-
223
BOLT; BRKT FIX
M10X25 FLANGE
0-28681-025-0
04
1
0105-0512
223
BOLT; BRKT FIX
M10X25 FLANGE
0-28651-025-0
04
1
0601-
237
NUT; BRKT
M10 FLANGE
0-91150-110-0
04
1
0105-0602
237
NUT; BRKT
M10 FLANGE
0-91180-110-0
04
1
0603-
289
NUT; LEVER
M6
9-09110-406-0
01
1
0105-0512
289
NUT; LEVER
M6
0-91110-506-0
01
1
0601-
334
BOLT; LEVER
M6X35 W/LK&PL WASHER
0-50140-635-0
01
1
0105-0512
334
BOLT; LEVER
M6X35 W/LK&PL WASHER
0-50640-635-0
01
1
0601-
335
WASHER; PL LEVER
ID=6.4
9-09160-506-0
01
1
0105-
337
RING; SNAP,LEVER
ID=9
9-09185-409-0
01
1
0105-0604
337
RING; SNAP,LEVER
ID=9
0-91805-509-0
01
1
0605-
460
KEY; ENG CONT
9-08030-410-0
01
1
0105-
461
BRACKET; RELAY LEVER
(A)
1-23335-564-0
01
1
0105-
461
BRACKET; RELAY LEVER
(B)
1-23335-566-0
01
1
0105-
