◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#14017) — 47 parça

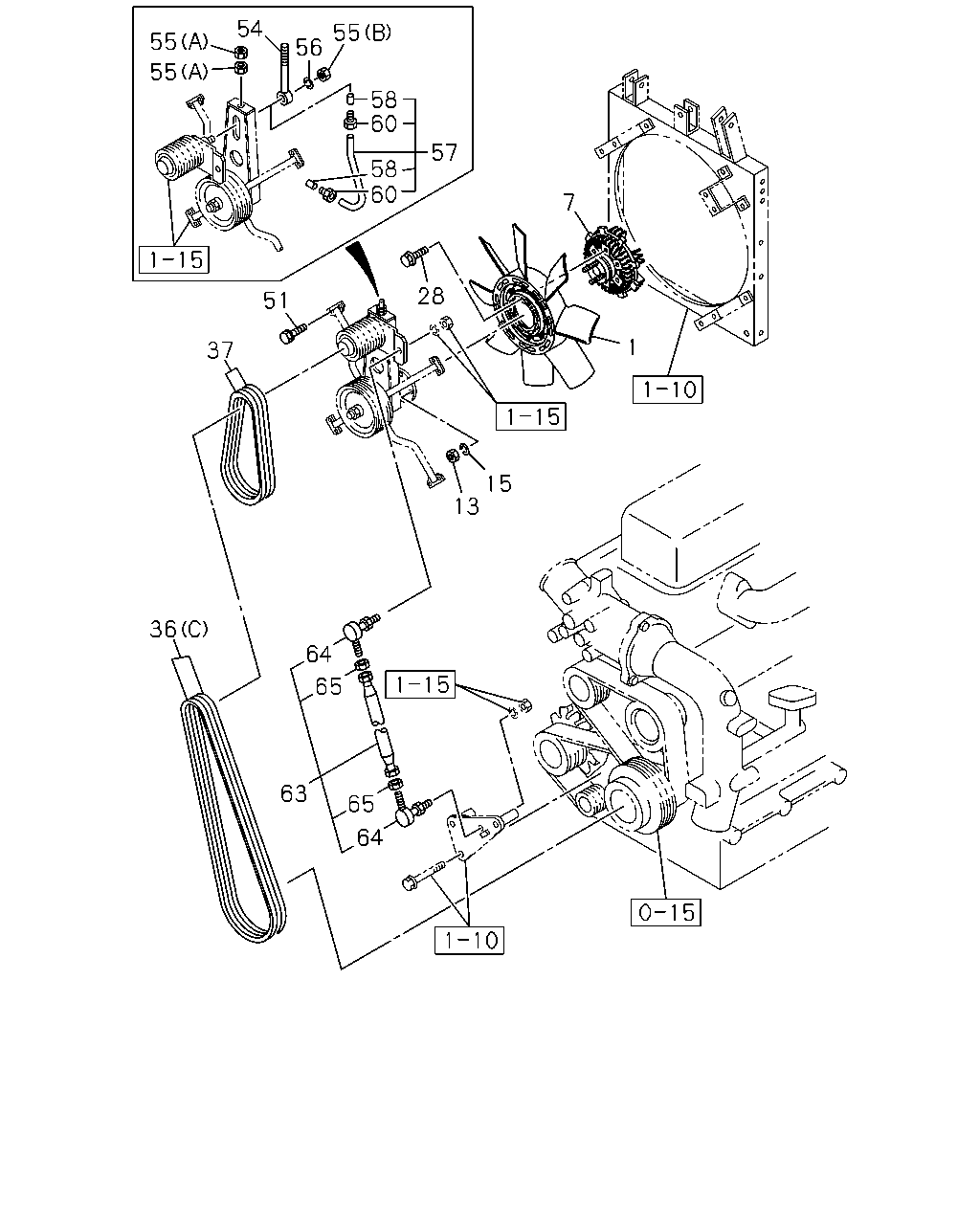

çizim 82389
54 55 55 56 55 58 60 57 58 60 7 28 51 1 37 15 13 36 64 65 63 65 64
BalonParca AdiParca NoAdetTipApplied Date
1 FAN; COOLING 1-13660-277-2 01 1 0105-
7 COUPLING; FAN 1-21650-193-1 01 1 0105-
13 NUT; COOLING FAN
M10 		9-09110-410-0 04 1 0105-0512
13 NUT; COOLING FAN
M10 		0-91110-510-0 04 1 0601-
15 WASHER; LK,COOLING FAN
ID=10.2 		9-09150-510-0 04 1 0105-0603
15 WASHER; LK,COOLING FAN
ID=10.2 		0-91510-510-0 04 1 0604-
28 BOLT; COOLING FAN
M10X16 FLANGE 		0-28181-016-0 06 1 0105-0512
28 BOLT; COOLING FAN
M10X16 FLANGE 		0-28151-016-0 06 1 0601-
36 BELT; COOLING FAN
(C) 1 SET=2 PIECE(9136713160) MITSUBOSHI 		1-13671-323-0 01 1 0105-
36 BELT; COOLING FAN
(A) L=1323 		1-13671-454-0 01 1 0105-
36 BELT; COOLING FAN
(B) L=1378 		1-13671-456-0 01 1 0105-
37 BELT; COOLING FAN,CR/SHF TO IDLE PULLE
1 SET=2 PIECE(1136714470) MITSUBOSHI 		1-13671-448-0 01 1 0105-
51 BOLT; FAN DRIVE PULLEY
M10X30 FLANGE 		0-28681-030-0 08 1 0105-0304
51 BOLT; FAN DRIVE PULLEY
M10X35 FLANGE 		0-28681-035-0 08 1 0305-0512
51 BOLT; FAN DRIVE PULLEY
M10X35 FLANGE 		0-28651-035-0 08 1 0601-
54 RETAINER; IDLE PULLEY,COOLING FAN 1-21625-036-0 01 1 0105-
55 NUT; IDLE PULLEY RET
(A) M10 		9-09110-510-0 02 1 0105-0512
55 NUT; IDLE PULLEY RET
(A) M10 		0-91110-510-0 02 1 0601-
55 NUT; IDLE PULLEY RET
(B) M24 		9-99111-524-0 01 1 0105-0512
55 NUT; IDLE PULLEY RET
(B) M24 		0-91111-524-0 01 1 0601-
56 WASHER; LK,IDLE PULLEY TO SPINDLE
ID=24.5 		9-09150-524-0 01 1 0105-0603
56 WASHER; LK,IDLE PULLEY TO SPINDLE
ID=24.5 		0-91510-524-0 01 1 0604-
57 PIPE; GREASE,IDLE PULLEY
L=180 		1-59461-674-0 01 1 0105-
58 SLEEVE; GREASE PIPE,FAN & IDLE PULLEY
ID=6.1 T=6 		9-83765-027-0 02 1 0105-
60 NIPPLE; SLEEVE,GREASE PIPE 9-83765-026-0 02 1 0105-
63 LINK ASM; ADJ,COOLING FAN DRIVE PULLEY 1-21629-041-2 01 1 0105-
64 ROD ASM; END,SWING ARM,FAN DRIVE
LH THREAD 		1-09760-034-3 01 1 0105-
64 ROD ASM; END,SWING ARM,FAN DRIVE
RH THREAD 		1-09760-035-3 01 1 0105-
65 NUT; LK,ADJ LINK,FAN PULLEY
M12 LH THREAD 		9-09840-247-1 01 1 0105-
65 NUT; LK,ADJ LINK,FAN PULLEY
M12 RH THREAD 		9-99111-412-0 01 1 0105-0512
65 NUT; LK,ADJ LINK,FAN PULLEY
M12 		0-91111-512-0 01 1 0601-

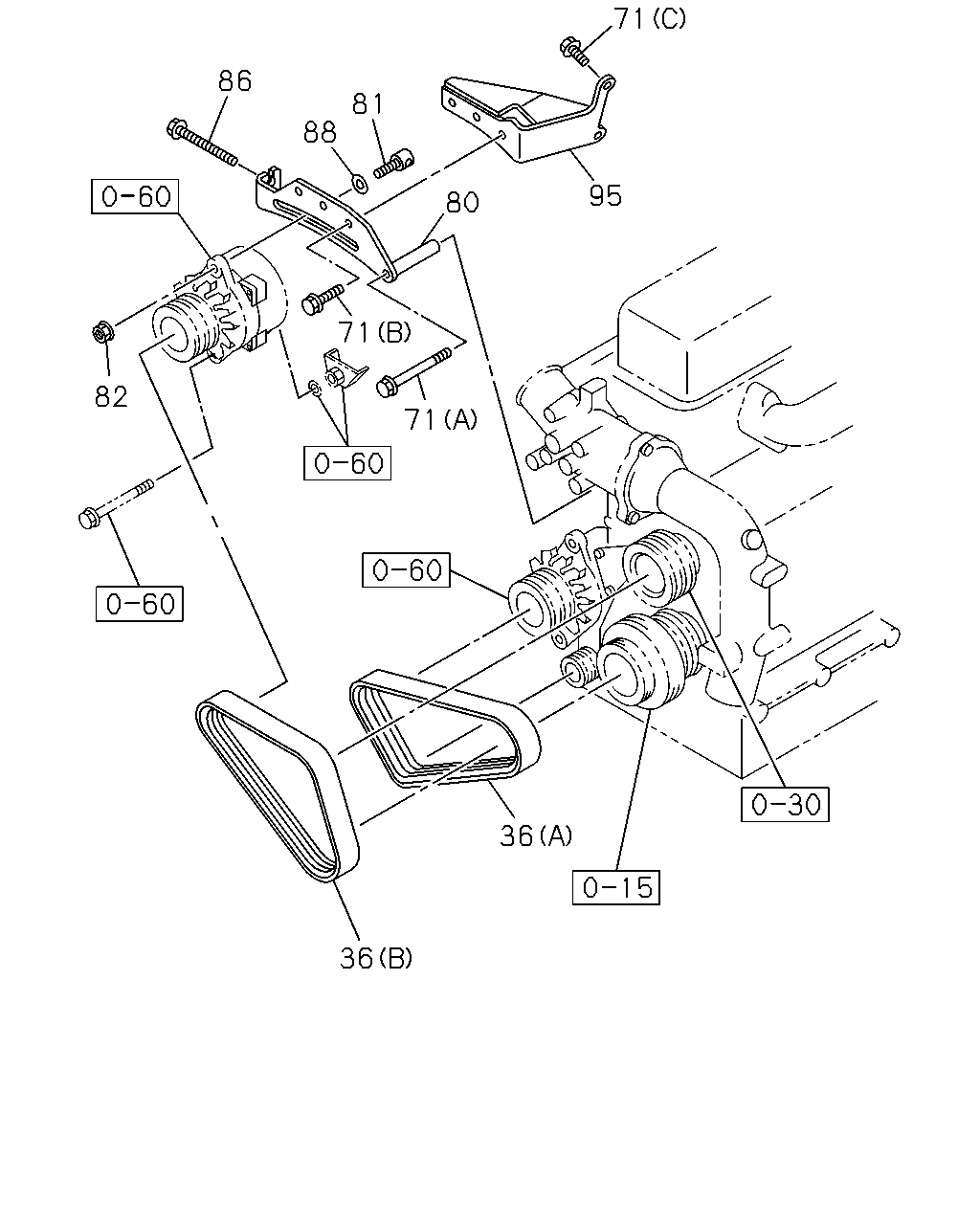

çizim 83234
71 86 81 88 95 80 71 82 71 36 36
BalonParca AdiParca NoAdetTipApplied Date
36 BELT; COOLING FAN
(C) 1 SET=2 PIECE(9136713160) MITSUBOSHI 		1-13671-323-0 01 1 0105-
36 BELT; COOLING FAN
(A) L=1323 		1-13671-454-0 01 1 0105-
36 BELT; COOLING FAN
(B) L=1378 		1-13671-456-0 01 1 0105-
71 BOLT; ADJ PLATE,GEN
(A) M12X140 FLANGE 		0-28186-214-0 01 1 0105-0512
71 BOLT; ADJ PLATE,GEN
(A) M12X140 FLANGE 		0-28156-214-0 01 1 0601-
71 BOLT; ADJ PLATE,GEN
(B) M10X35 FLANGE 		0-28681-035-0 03 1 0105-0512
71 BOLT; ADJ PLATE,GEN
(B) M10X35 FLANGE 		0-28651-035-0 03 1 0601-
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28781-025-0 02 1 0105-0512
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28751-025-0 02 1 0601-
80 PLATE; ADJ 1-13674-272-0 01 1 0105-
81 PIECE; SLIDING
M12X59 		1-13674-161-0 01 1 0105-
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 0105-0602
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0603-
86 BOLT; ADJ 1-09009-169-0 01 1 0105-
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09160-712-0 01 1 0105-
95 BRACKET; ADJ PLATE 1-21559-410-0 01 1 0105-
