Isuzu WW
▶
BUSES
▶
LV
▶
10885 - LV423(THAI)BMTA
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

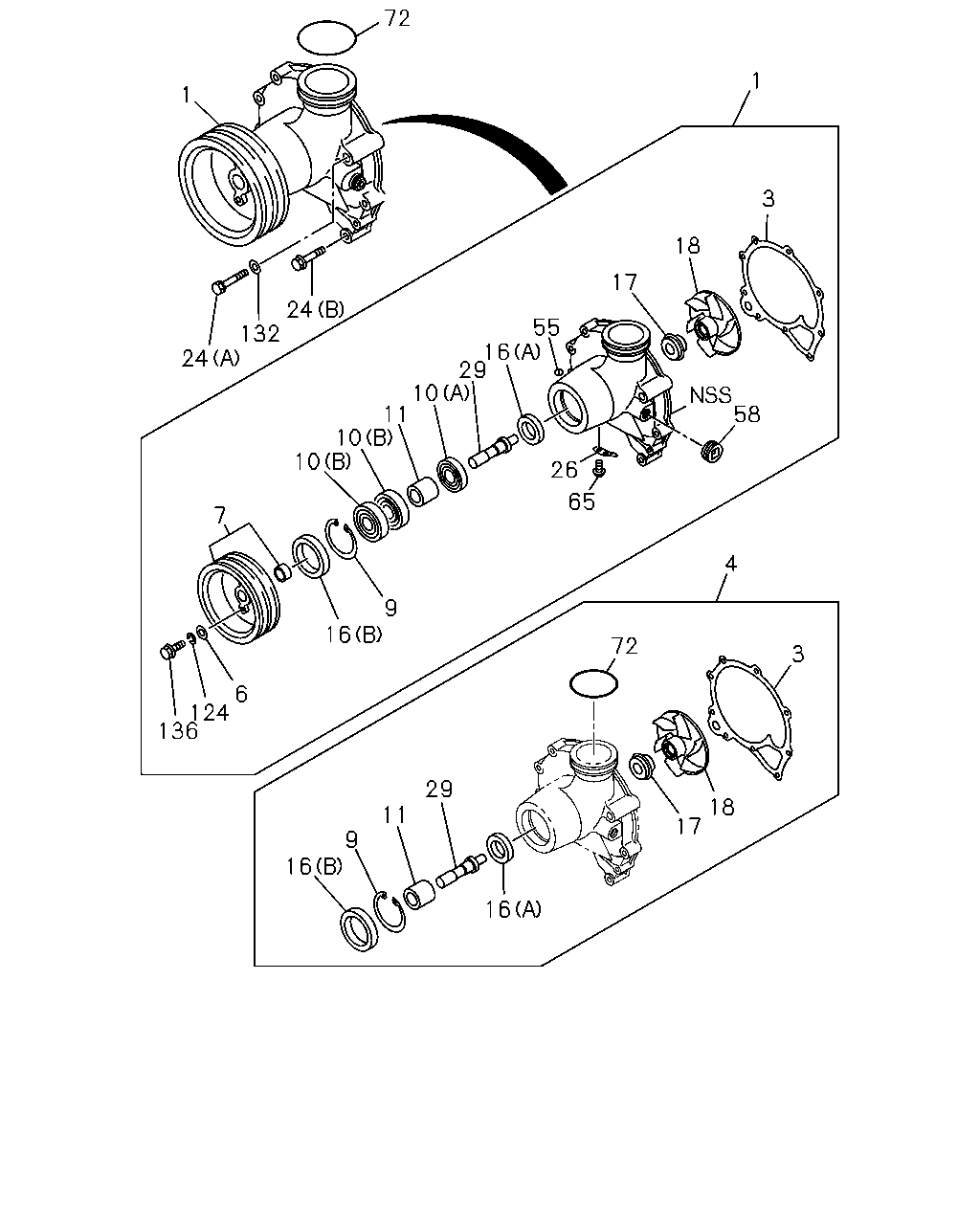

0-30 — WATER PUMP AND CORROSION RESISTOR
(#14014) — 37 parça
◀
[030A] COMPONENT AND REPAIR KIT (30 parça)
[030A] CLIP;WATER PIPE (7 parça)
▶
72
1
1
3
18
17
24
132
24
55
16
29
10
11
10
10
58
26
65
7
4
9
16
72
3
6
124
136
29
18
17
11
9
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
1-13650-111-0
01
1
0105-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-018-1
01
1
0105-
4
REPAIR KIT; WATER PUMP
1-87812-019-1
01
1
0105-
6
WASHER; PL,PULLEY
ID=10.5 OD=22
9-09160-610-0
01
1
0105-0605
6
WASHER; PL,PULLEY
ID=10.5 OD=22
0-91610-610-0
01
1
0606-
7
PULLEY; WATER PUMP
1-13641-200-0
01
1
0105-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0105-
10
BEARING; WATER PUMP
(B)
1-09800-155-0
02
1
0105-
10
BEARING; WATER PUMP
(A)
1-09800-196-0
01
1
0105-
11
SPACER; BRG,WATER PUMP
1-13634-029-0
01
1
0105-
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
0105-
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
0105-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0105-
18
IMPELLER; WATER PUMP
1-13621-052-0
01
1
0105-
24
BOLT; WATER PUMP
(A) M10X70
0-16806-070-0
02
1
0105-0512
24
BOLT; WATER PUMP
(A) M10X70
0-16856-070-0
02
1
0601-
24
BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER
0-50140-845-0
07
1
0105-0906
24
BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER
0-50640-845-0
07
1
0907-
26
COVER; DUST,WATER PUMP
1-13612-049-0
01
1
0105-
29
SHAFT; WATER PUMP
1-13631-079-0
01
1
0105-
55
NOZZLE; OIL FEED,WATER PUMP
1-13619-046-0
01
1
0105-
58
PLUG; HTR
PT3/8 T=8.0
1-09605-066-0
01
1
0105-
65
SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER
9-03910-408-0
02
1
0105-0604
65
SCREW; COVER,WATER PUMP
M4X8 W/LK WASHER
0-36220-408-0
02
1
0605-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-307-0
01
1
0105-
124
WASHER; PULLEY
ID=10.2
9-09150-510-0
01
1
0105-0603
124
WASHER; PULLEY
ID=10.2
0-91510-510-0
01
1
0604-
132
WASHER; PL,WATER PUMP
ID=10.5 OD=18
9-09160-510-0
02
1
0105-0605
132
WASHER; PL,WATER PUMP
ID=10.5
0-91610-510-0
02
1
0606-
136
BOLT; PULLEY
M10X16
0-23801-016-0
01
1
0105-
130
101
101
129
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
02
1
0105-0512
95
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0601-
101
CLIP; WATER PIPE
(A)
1-09701-230-1
01
1
0105-
101
CLIP; WATER PIPE
(B)
1-09701-231-1
01
1
0105-
129
BRACKET; CLIP
1-13319-038-0
01
1
0105-
130
NUT; CLIP
M6 FLANGE
0-91150-106-0
01
1
0105-0602
130
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
0603-
