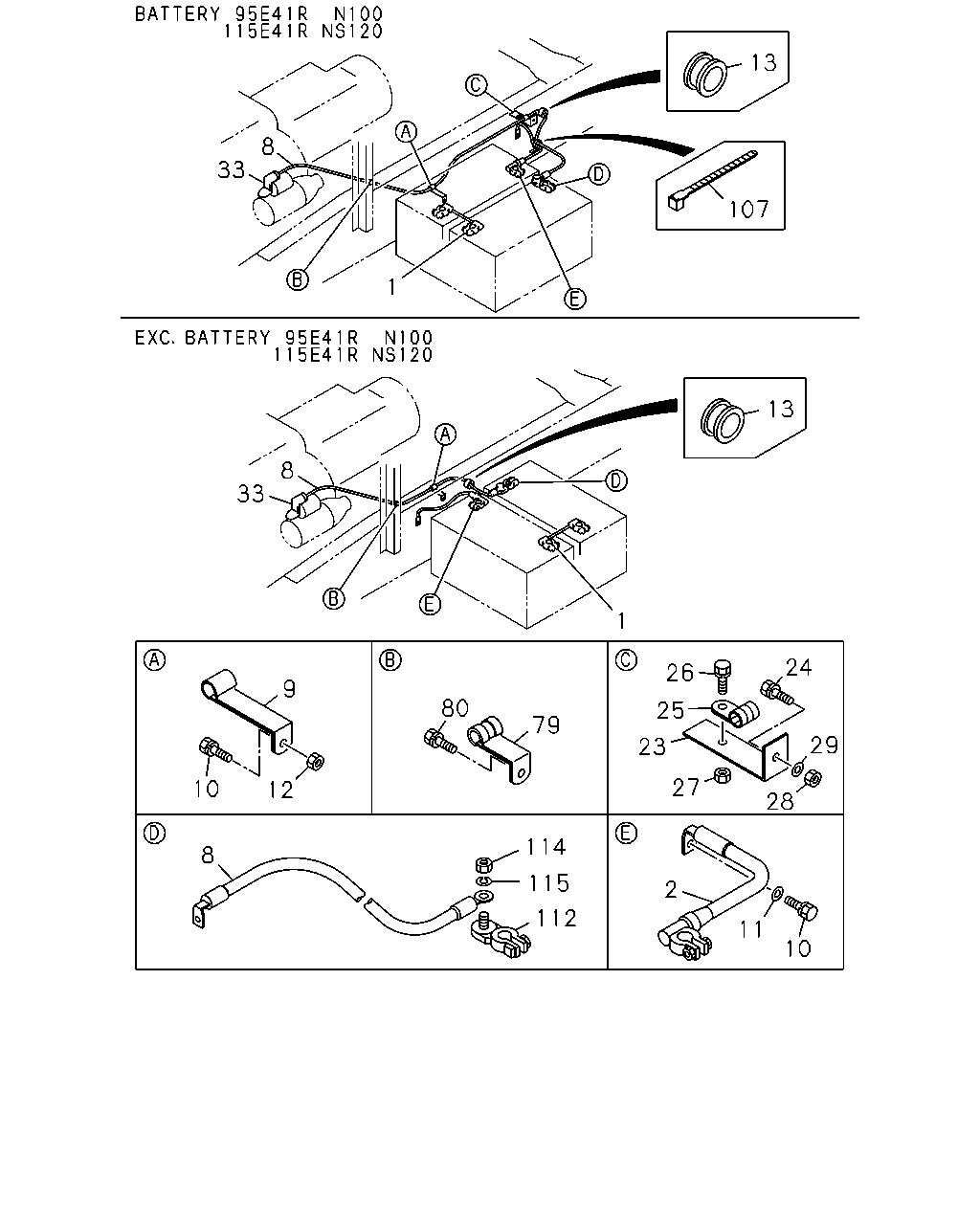

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#1401) — 61 parça

13 8 33 107 1 13 8 33 1 24 26 9 80 25 79 29 23 27 10 12 28 114 8 115 2 112 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450	9-82932-417-1	01	1	9203-	●	●
1	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180	9-82932-233-1	01	1	9203-9407	●	●
1	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180	1-82650-265-0	01	1	9408-	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9203-	●	●
2	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185	1-82650-067-2	01	1	9203-	●	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1100	1-82650-251-0	01	1	9203-9211	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1100	1-82650-251-1	01	1	9212-	●	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700	1-82650-209-1	01	1	9203-	●	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1200	1-82650-220-0	01	1	9203-9211		●
9	CLIP; BATTERY CABLE ID=16 T=1.6	1-09700-981-0	01	1	9203-9211	●
9	CLIP; BATTERY CABLE ID=83	1-09701-061-0	01	1	9212-	●	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=50 H=25	1-09700-838-0	03	1	9203-9211		●
9	CLIP; BATTERY CABLE EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=50 H=25	1-09700-838-0	02	1	9203-9205		●
9	CLIP; BATTERY CABLE EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=50 H=25	1-09700-838-0	01	1	9206-9211		●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X25 W/LK WASHER	9-01901-025-0	01	1	9203-9204	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X25 W/LK WASHER	0-50041-025-0	02	1	9205-9211	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X25 W/LK WASHER	0-50041-025-0	01	1	9212-	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9212-		●
10	BOLT; BATTERY CABLE CLIP M10X35	9-01901-035-0	01	1	9203-9204	●	●
10	BOLT; BATTERY CABLE CLIP M10X35 W/LK WASHER	0-50041-035-0	01	1	9205-	●	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9211		●
10	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	9-01900-825-0	03	1	9203-9204		●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9211		●
10	BOLT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	9-01900-825-0	02	1	9203-9204		●
10	BOLT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9205		●
10	BOLT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	01	1	9206-9211		●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9203-	●	●
12	NUT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10	9-09110-410-0	01	1	9203-9211	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9212-	●	●
12	NUT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9203-9211		●
12	NUT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9203-9211		●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	9203-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=76	1-47475-588-0	01	1	9203-9211	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=112	1-47475-694-1	01	1	9203-9211	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=95	1-82699-085-0	01	1	9212-	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X30 W/LK WASHER	9-01900-830-0	02	1	9203-9204	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9211	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	02	1	9203-9211	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9212-	●	●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9203-9205		●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 W/LK WASHER	9-01900-820-0	02	1	9203-9204	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9211	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9203-9211	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9212-	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9203-9211	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9212-	●	●
29	WASHER; PL,CLIP BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=8.4 OD=18	9-09160-608-0	01	1	9203-9211	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9203-	●	●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	9203-	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9203-9204	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9211	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9212-	●	●
107	CLIP; BAND BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=140	5-09707-031-0	01	1	9203-	●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9203-	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-410-0	01	1	9203-	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9203-9211	●	●
115	WASHER; LK,CABLE,BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=10.2	9-09150-510-0	01	1	9203-9211	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9212-	●	●
